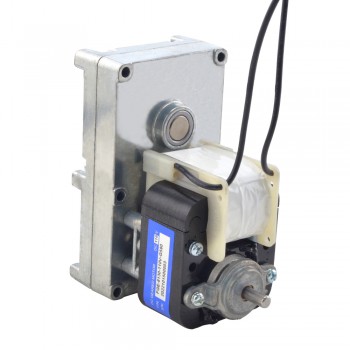

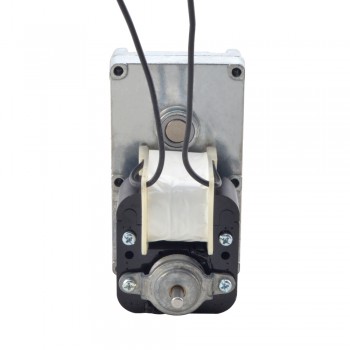

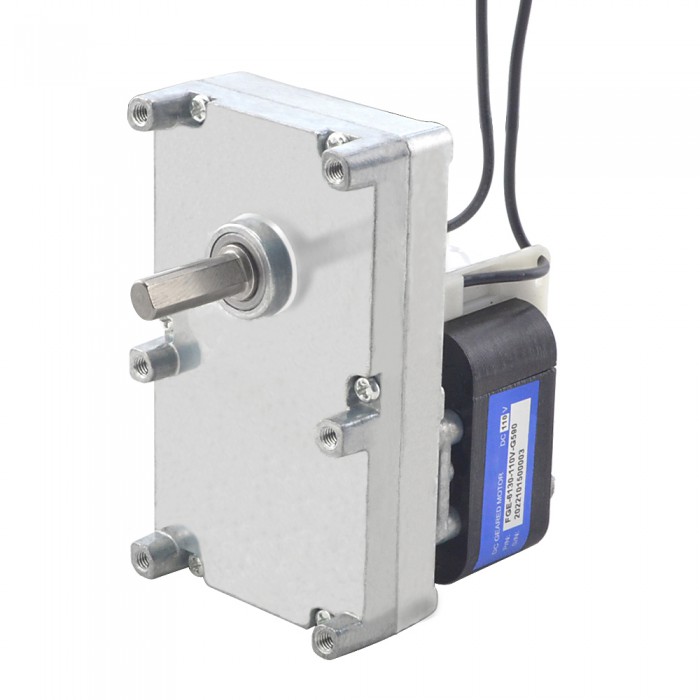

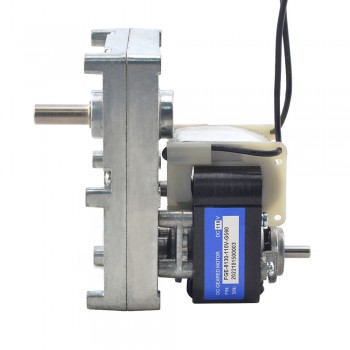

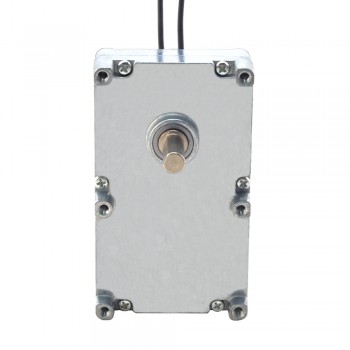

110V Electric Brushed AC Gear Motor 100Kg.cm 5.5RPM with 590:1 AC Shaded-Pole Motor with Rectangular Spur Gearbox
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till April 20th, 2024
- Note:No coupon code needed, please place order directly!
Brushed 110V AC Gear Motor 100Kg.cm/5.5RPM w/ 590:1 Rectangular Spur Gearbox
This is a standard 110 volt brushed AC gear motor, generating 100 kg.cm of torque at 5.5 rpm. It's a small, inexpensive motor suitable for low torque, high speed applications.
Electrical Specification
Part Number: FGE-6130-110V-G590
Rated Voltage: 110V
Rated Torque: 100kg.cm(1383oz.in)
Rated Current: <=570mA
Rated Speed: 5.5rpm
No-load Current: <=520mA
No-load Speed: 5.7rpm
Rotation Direction: CW/CCW
Motor Type: Brushed AC Motor
Gearbox Specification
Gearbox Type: Rectangular Gearbox
Gear Ratio: 590 : 1
Physical Specification
Motor length: 30mm
Gearbox Size: 119 x 70 x 33mm
Front Shaft Diameter: Φ9.5mm
Front Shaft Length: 27mm
Rear Shaft Diameter: Φ6mm
Rear Shaft Length: 12.5mm
Resources
- Full Datasheet: FGE-6130-110V-G590_Full_Datasheet.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Rated Current (A) | 0.57 |
| Rated Voltage(V) | 110 |
| Rated Torque(kg.cm) | 100 |
| Rated Speed(rpm) | 5.5 |
| Physical Specification | |
| Shaft Diameter(mm) | 9.5 |
| Shaft Length(mm) | 27 |
| Gear Ratio | 590 |
| Output Shaft Type | D-cut |
