110V Brushed AC Gear Motor 40Kg.cm 15RPM with 211:1 with Rectangular Spur Gearbox AC Gearmotor Shaded-Pole Motor
- Manuals and Documentation: Full Datasheet:
Our Price:$37.99
Brushed 110V AC Gear Motor 40Kg.cm/15RPM w/ 211:1 Rectangular Spur Gearbox

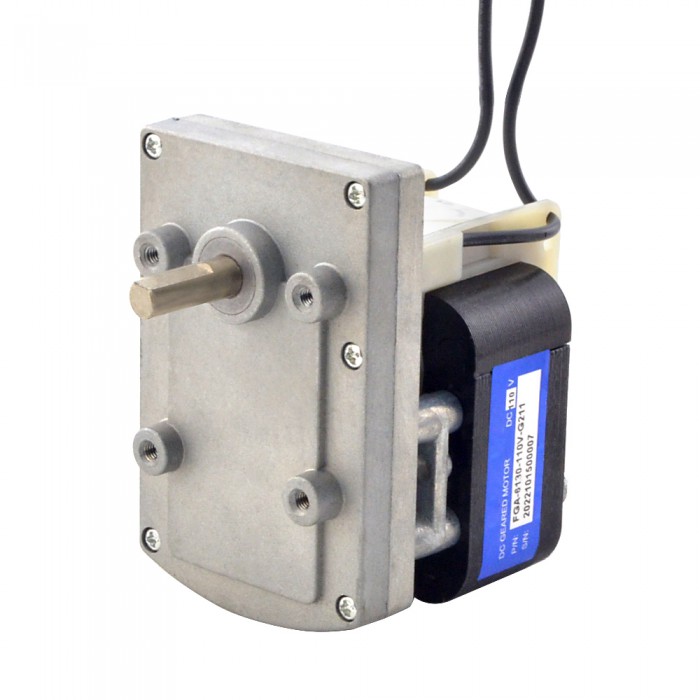

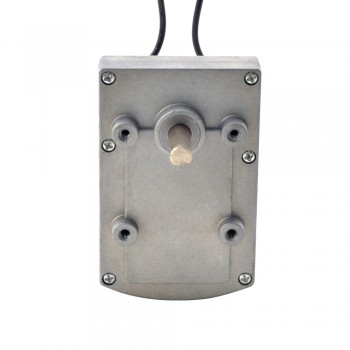

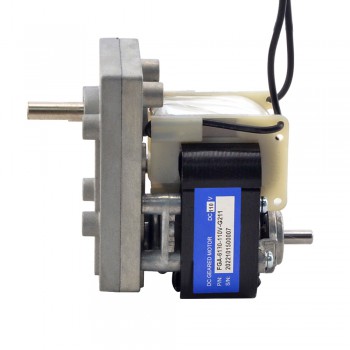

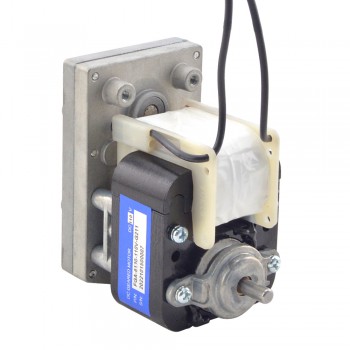

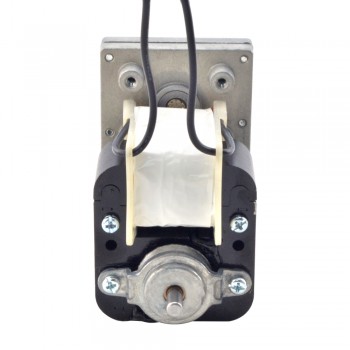

This 110 V AC brushed gear motor (FGA-6130-110V-G211) delivers 40 kg·cm at 15 rpm, features a 211:1 gear ratio and D‑cut shaft, and runs bidirectionally.
Electrical Specification
Part Number: FGA-6130-110V-G211
Rated Voltage: 110V
Rated Torque: 40kg.cm(553.2oz.in)
Rated Current: <=850mA
Rated Speed: 15rpm
No-load Current: <=780mA
No-load Speed: 15rpm
Rotation Direction: CW/CCW
Motor Type: Brushed AC Motor
Gearbox Specification
Gearbox Type: Rectangular Gearbox
Gear Ratio: 211 : 1
Physical Specification
Motor Size: 61 x 64 x 30mm
Gearbox Size: 95 x 60 x 16mm
Front Shaft Diameter: Φ8mm
Front Shaft Length: 22mm
D-cut Length: 16mm
Rear Shaft Diameter: Φ6mm
Rear Shaft Length: 12.5mm
| Electrical Specification | |
|---|---|
| Rated Current (A) | 0.85 |
| Rated Voltage(V) | 110 |
| Rated Torque(kg.cm) | 40 |
| Rated Speed(rpm) | 15 |
| Physical Specification | |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 22 |
| Gear Ratio | 211 |
| Output Shaft Type | D-cut |
