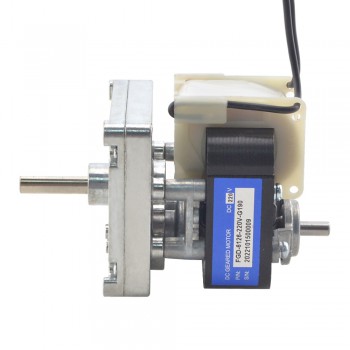

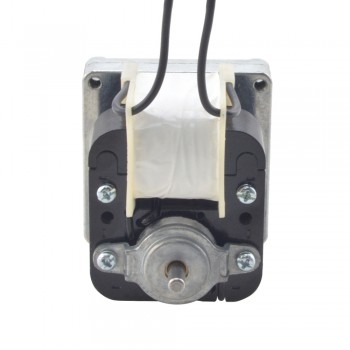

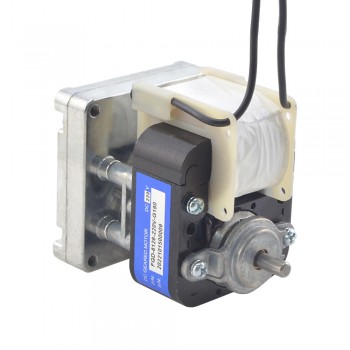

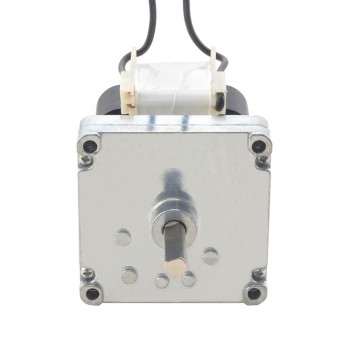

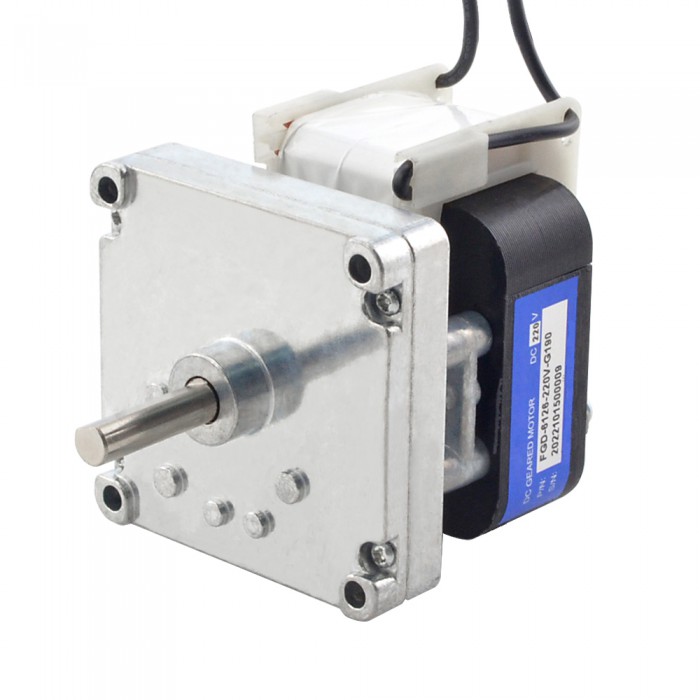

Brushed 220V AC Gear Motor 20Kg.cm/14RPM w/ 190:1 Rectangular Spur Gearbox
This is a standard 220 volt brushed AC gear motor, generating 20 kg.cm of torque at 14 rpm. It's a small, inexpensive motor suitable for low torque, high speed applications.
Electrical Specification
Part Number: FGD-6126-220V-G190
Rated Voltage: 220V
Rated Torque: 20kg.cm(276.6oz.in)
Rated Current: <=400mA
Rated Speed: 14rpm
No-load Current: <=350mA
No-load Speed: 14.7rpm
Rotation Direction: CW/CCW
Motor Type: Brushed AC Motor
Gearbox Specification
Gearbox Type: Rectangular Gearbox
Gear Ratio: 190 : 1
Physical Specification
Motor Length: 26mm
Gearbox Size: 70 x 70 x 18mm
Front Shaft Diameter: Φ8mm
Front Shaft Length: 27mm
D-cut Length: 27mm
Rear Shaft Diameter: Φ6mm
Rear Shaft Length: 12.5mm
Resources
- Full Datasheet: FGD-6126-220V-G190_Full_Datasheet.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Rated Current (A) | 0.4 |
| Rated Voltage(V) | 220 |
| Rated Torque(kg.cm) | 20 |
| Rated Speed(rpm) | 14 |
| Physical Specification | |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 27 |
| Gear Ratio | 190 |
| Output Shaft Type | D-cut |
