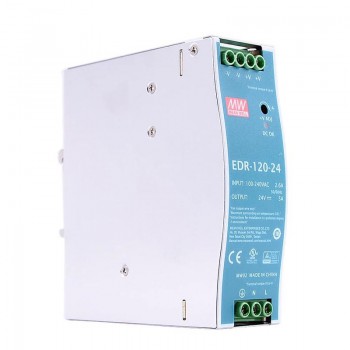

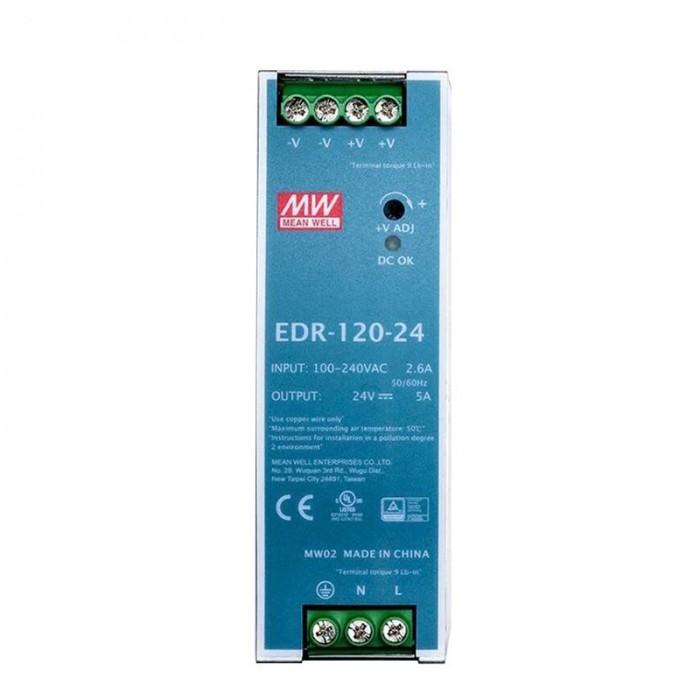

EDR-120-24 MEAN WELL 120W 24VDC 5A 115/230VAC DIN Rail Power Supply


MEAN WELL EDR-120 is one economical slim 120W DIN rail power supply series,adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 40mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current.

EDR-120 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 88.5%, the entire series can operate at the ambient temperature between -20℃ and 60℃ under air convection. It is equipped with constant current mode for over-load protection,fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus(UL508,TUV BS EN/EN62368-1,and etc.) make EDR-120 a very competitive power supply solution for industrial applications.




24V DC 5A output

AC input voltage range: 90 ~ 264VAC

Rated power: 120W

Universal AC input/Full range

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

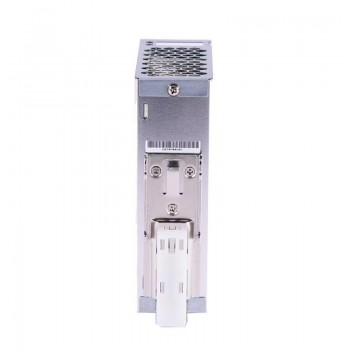

Can be installed on DIN rail TS-35/7.5 or 15

UL 508 (industrial control equipment) approved

BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level

100% full load burn-in test

2 years warranty



Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Full Datasheet: EDR-120-24.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Mean Well EDR-120-12 Switching Power Supply 120W 12VDC 10A 115/230VAC DIN Rail Power Supply
Next: Mean Well EDR-75-24 Switching Power Supply 75W 24VDC 3.2A 115/230VAC DIN Rail Power Supply
Power Supply Specification
Max. Output Current(A) 5
Power(W) 120
Output Voltage(VDC) 24
Input Voltage(VAC/VDC) 90 - 264 / 127 - 370
Dim.(LxWxH)(mm/in.) 40 x 125.2 x 113.5 / 1.57 x 4.93 x 4.47
Input Frequency(Hz) 47 - 63
Efficiency(%) 87.5%
