Nema 23 Worm Gearbox Stepper Motor 15:1 L=76mm Worm Geared Reducer NMRV30 Worm Gear Speed Reducer

NO.:23HS30-2804S-RV30-G15
Post a review

Special Offer in September 2024:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till September 20th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$61.67

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$58.59	5%
10	$57.35	7%
50	$55.50	10%
100	$53.65	13%

Affiliate Link

Description Specification Custom Options Review

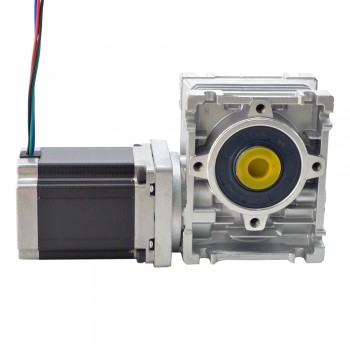

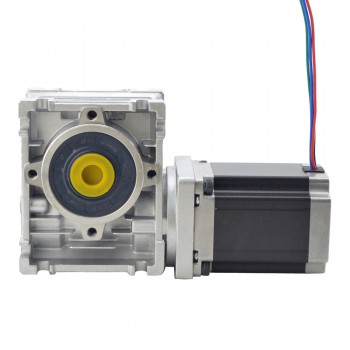

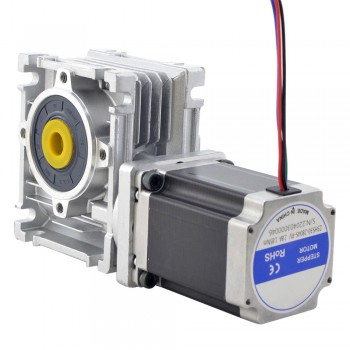

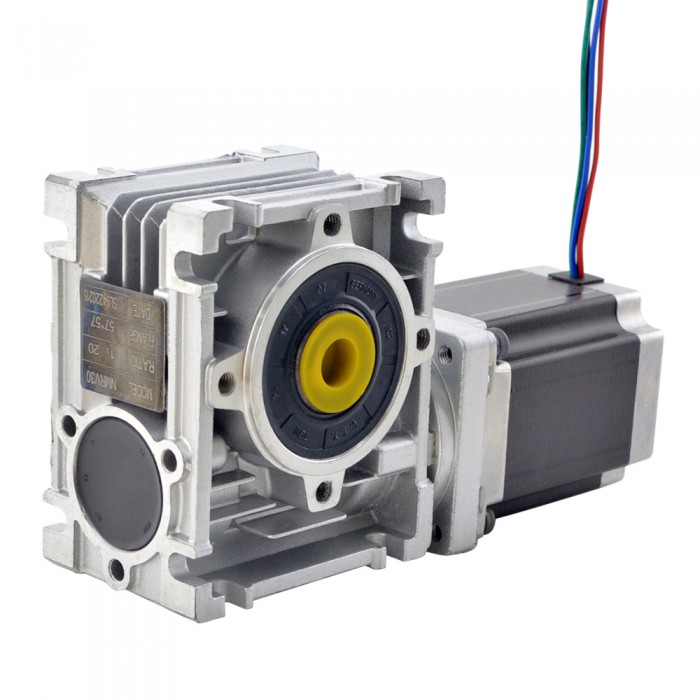

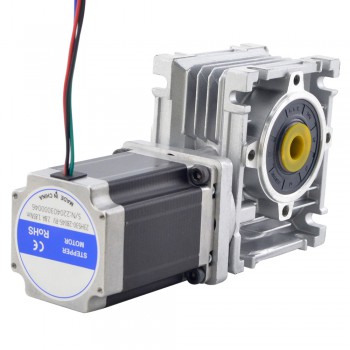

Nema 23 Stepper Motor L=76mm Gear Ratio 15:1 Worm Gearbox NMRV30 Worm Gear Speed Reducer

This Nema 23 size stepper motor is equipped with a 10:1 worm gearbox. Its output shaft is offset by 90° from the drive shaft and characterized by self-locking. It is widely used in CNC Router, Engraving, Milling, Lathe, etc.

Electrical Specification

Manufacturer Part Number: 23HS30-2804S-RV30-G15

Motor Type: Bipolar Stepper

Holding Torque without Gearbox: 1.9Nm(269oz.in)

Rated Current/phase: 2.8A

Phase Resistance: 1.13ohms

Inductance: 4.8mH±20%(1KHz)

Gearbox Specifications

Gearbox Type: Worm Gearbox

Gear Ratio: 15:1

Efficiency: 76%

Backlash at No-load: <=1°

Output Max.Permissible Torque: 18Nm(159.31lb-in)

Output Max. Radial Load: 0.86kN

Physical Specification

Frame Size: 57 x 57mm

Motor Length: 76.5mm

Output Type: Hollow Bore

Output Bore Diameter: Φ14mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Resources

Full Datasheet: 23HS30-2804S-RV_Full_Datasheet.pdf, 23HS30-2804S-RV30-G15_Full_Datasheet.pdf

Torque Curver: 23HS30-2804S-RV_Torque_Curve.pdf

NMRV030-40-50.pdf

NMRV30.STEP

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Worm Gearbox Stepper Motor 10:1 L=76mm Worm Geared Reducer NMRV30 Worm Gear Speed Reducer
Next: Nema 23 Worm Gearbox Stepper Motor 20:1 L=76mm Worm Geared Reducer NMRV30 Worm Gear Speed Reducer

Electrical Specification
Bipolar/Unipolar	Bipolar
Inductance(mH)	4.8
Phase Resistance(ohm)	1.13
Current(A)	2.8
Holding Torque w/o Gearbox(N.m)	1.9
Physical Specification
Body Length(mm)	76
Frame Size(mm)	Nema 23 (57 x 57)
Lead Length(mm)	500
Gearbox Type	Worm Gearbox
Gear Ratio	15
Backlash at No-load	<=1 deg
IP Rating	40
Output Bore Diameter(mm)	14
Output Type	Hollow Bore
