SURPASS Hobby S2306.5 1800KV / 2500KV FPV Brushless DC Motor FPV Drone Motor

SURPASS Hobby S2306.5 1800KV / 2500KV FPV Brushless DC Motor FPV Drone Motor
NO.:S2306.5
Post a review
Special Offer in June 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$22.99

Quantity:- +

Add To Cart

SURPASS Hobby S2306.5 1800KV / 2500KV FPV Brushless DC Motor FPV Drone Motor



Features:
Waterproof design, durable material.
High teamperature resistant 220­°C;

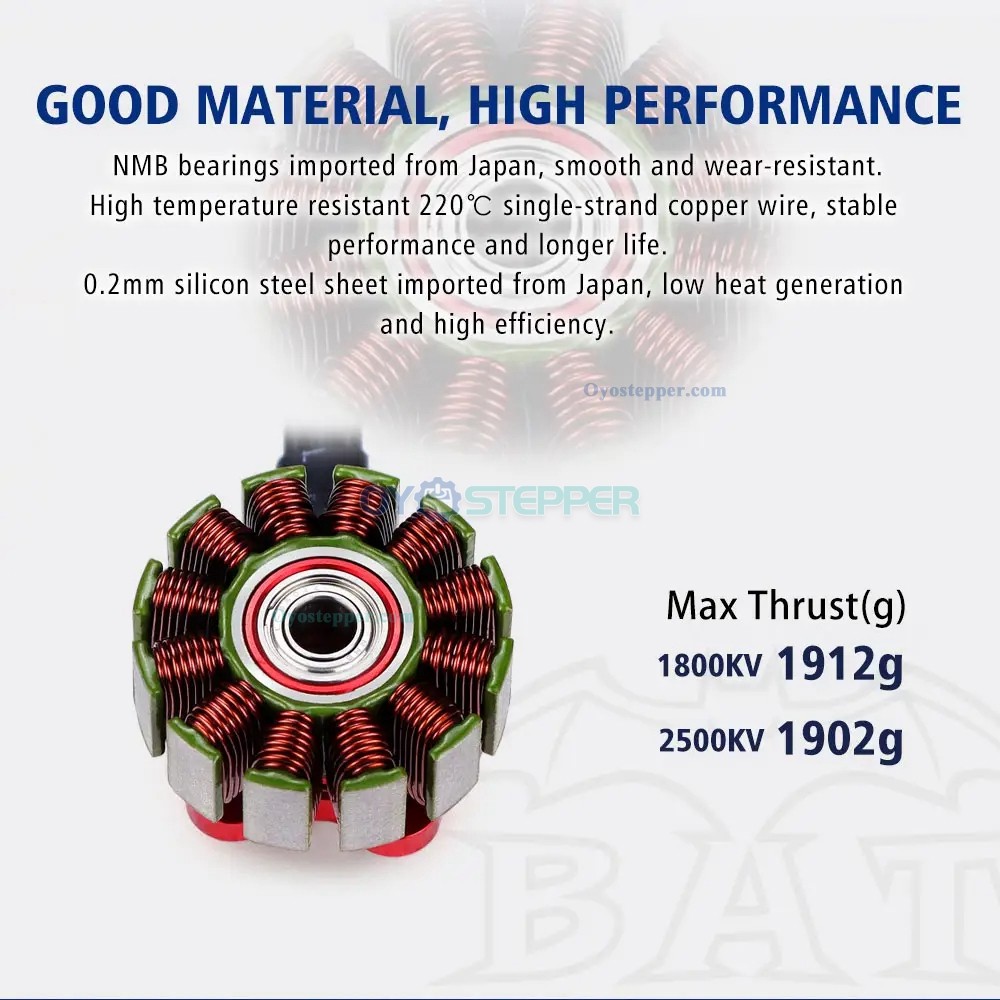

14 poles, 12 slots, and CNC machined 6061-T6 aluminium cooling fin leads to efficient heat dissipation. Secondary oxidation treatment makes it durable.
High purity copper windings imizes efficiency, with high temperature resistance.
ABEC5 bearing is precision and stably, with low friction, better durability.
Ultra-thin silicon lamination behave high magnetic permeability, better insulation and heat resistance.

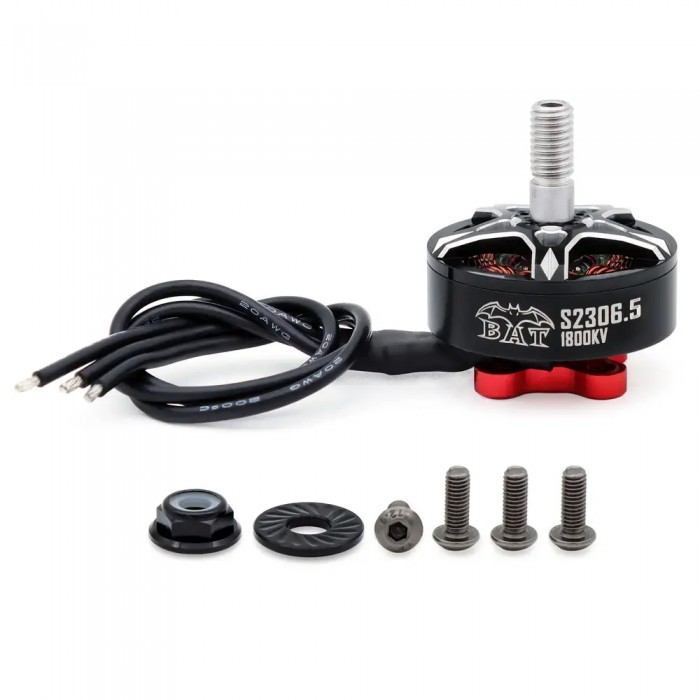

3.5mm gold plated connector, 4mm shaft, screws are included.
Balanced and smooth rotor can get reliability and imum RPM.

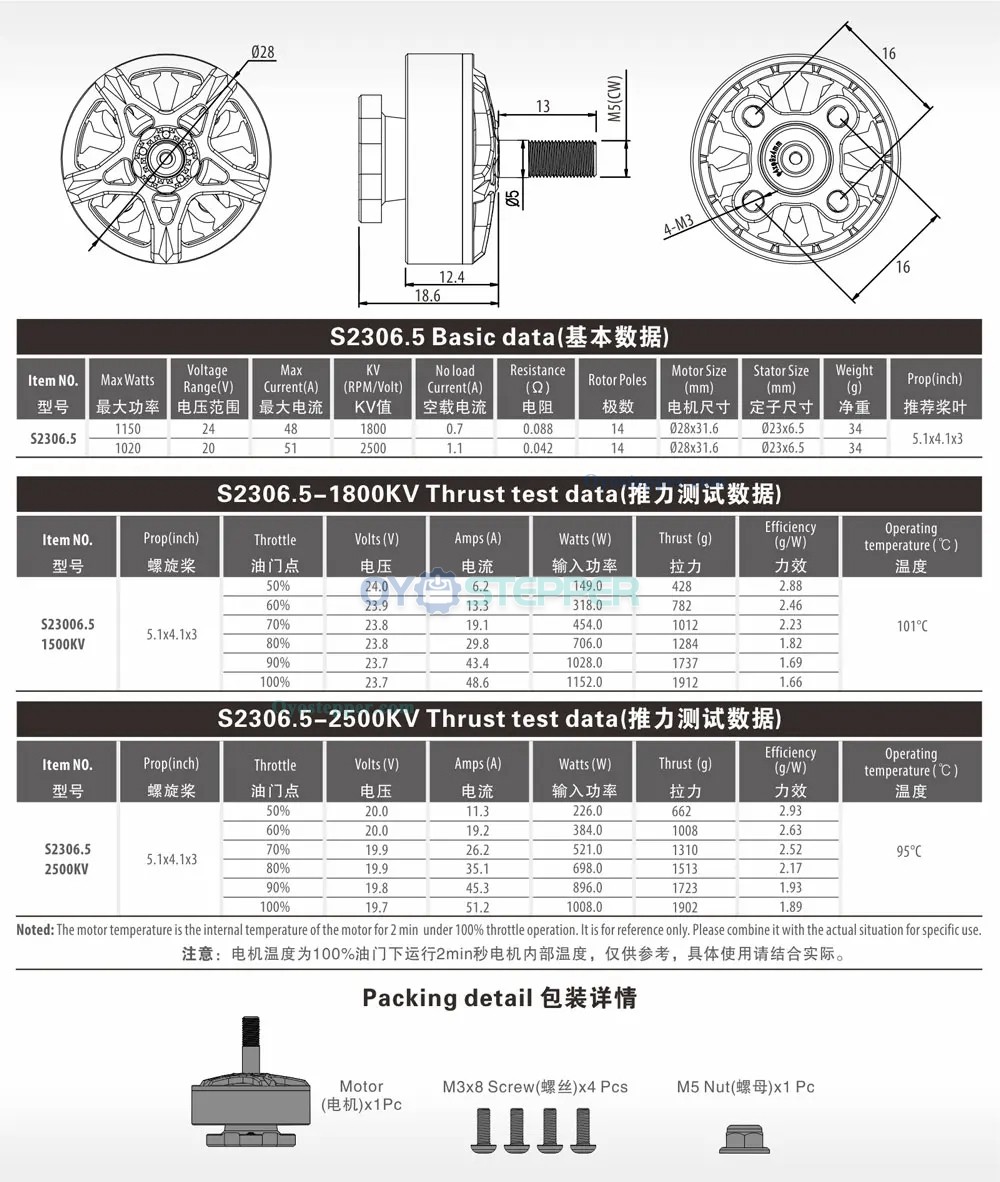

Specification:
Brand:Surpass Hobby
Model:S2812
Motor Type:FPV Motor
Rotor Poles:14
KV:1800KV / 2500KV
Power:1120W
No load current:0.9-1.3Ω
Max Current(A):48A/51A
Voltage Range(V):24V/20V
Bearings:NMB
Motor Size:28x 31.6mm
Stator size (mm):23x6.5mm
Propeller::5.1 x4 .1x3mm
Net Weight:34g


MAX Thrust(g)
S2806.5 2535g
S2807 2535g
S2808 2071g
S2810 2950g
S2812 3313g;
