TQEG Series Planetary Gearbox 50:1 for Nema 11 Stepper Motor BLDC Motor & Servo Motor Backlash 20 Arc-min
TQEG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20 arc-min for Nema 11 Stepper Motor

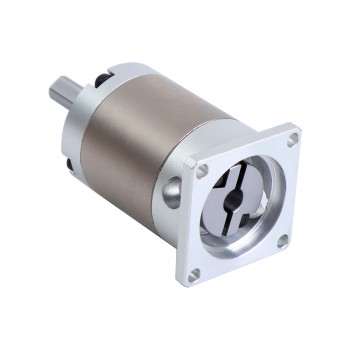

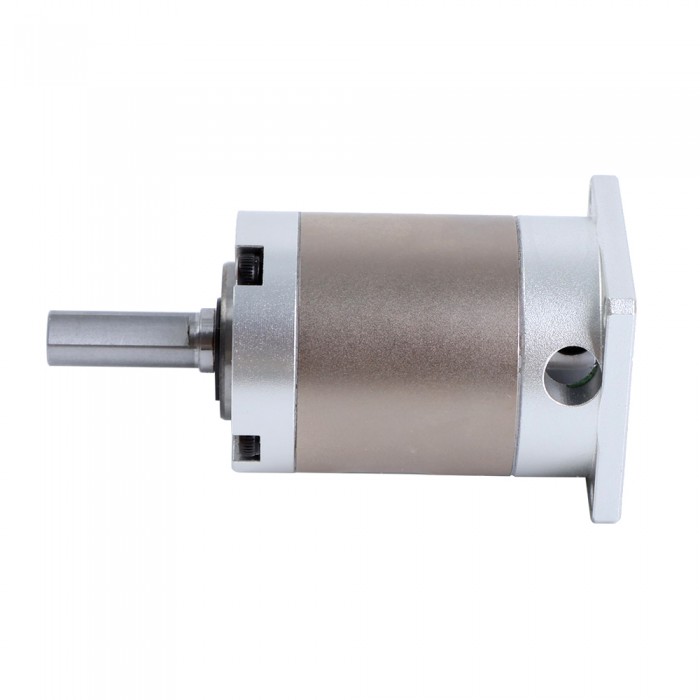

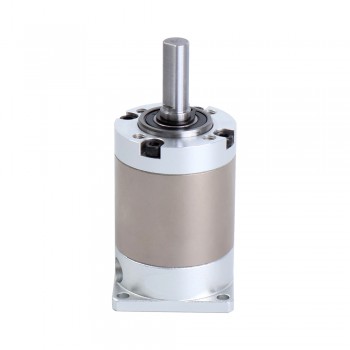

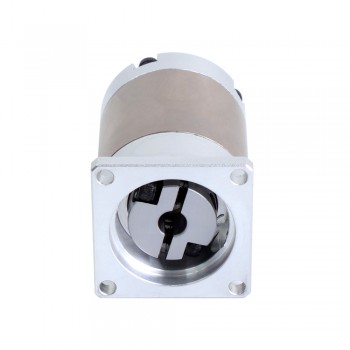

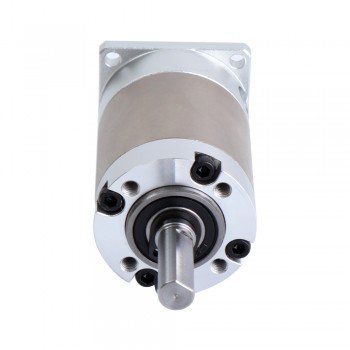

This inline planetary gearbox has a 50:1 gear ratio and maximum backlash of 20 arc-min, with an integrated input shaft coupling compatible with Nema 11 stepper, brushless DC, and servo motors.
Gearbox Specifications
Manufacturer Part Number: TQEG11-G50
Gearbox Type: Planetary
Gear Ratio: 50 : 1
Efficiency: 94%
Backlash at No-load: <=20 arcmin
Max.Permissible Torque: 3 Nm(26.55 lb-in)
Moment Permissible Torque: 6 Nm(53.1 lb-in)
Noise: <=55dB
Waterproof Rating: IP54
Lifetime: 20000 hours
Physical Specifications
Frame Size: 28 x 28 mm
Gearbox Length: 41.5 mm
Output Shaft Type: D-cut
Output Shaft Diameter: Φ6 mm
Output Shaft Length: 20 mm
Input Shaft Diameter: Φ5 mm
Input Shaft Length: 10.5 mm
| Physical Specification | |
|---|---|
| Frame Size(mm) | 28 x 28 |
| Gearbox Length(mm) | 41.5 |
| Input Shaft Diameter(mm) | 5 |
| Input Shaft Length(mm) | 10.5 |
| Output Shaft Diameter(mm) | 6 |
| Output Shaft Length(mm) | 20 |
| Suit for Motor | Nema 11 |
| Gear Ratio | 50 |
| Backlash at No-load | <=20 arcmin |
| Output Shaft Type | Keyway Shaft |
| Gearbox Type | TQEG Series |
| Product Type | TQEG Series Planetary Gearbox |
