TQEG Series Planetary Gearbox 100:1 for Nema 11 Stepper Motor BLDC Motor & Servo Motor Backlash 25 Arc-min

TQEG Series Planetary Gearbox 100:1 for Nema 11 Stepper Motor BLDC Motor & Servo Motor Backlash 25 Arc-min
NO.:TQEGS11-G100
Post a review
Special Offer in July 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till July 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$73.60
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $69.92 5%
10 $68.45 7%
50 $66.24 10%
100 $64.03 13%
Add To Cart

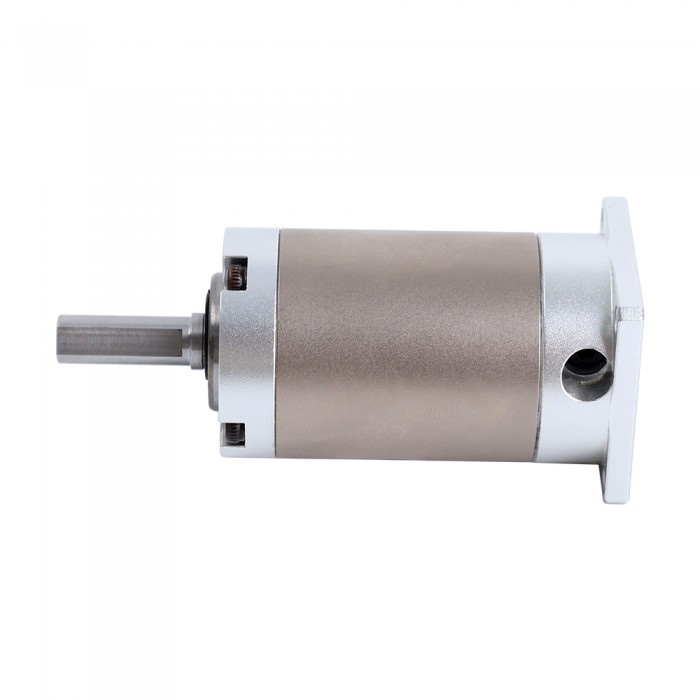

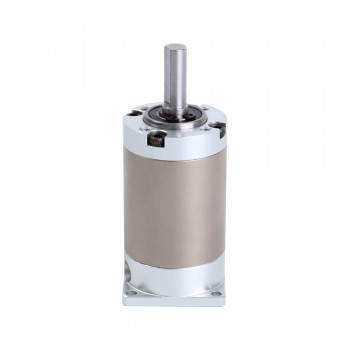

TQEG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25 arc-min for Nema 11 Stepper Motor

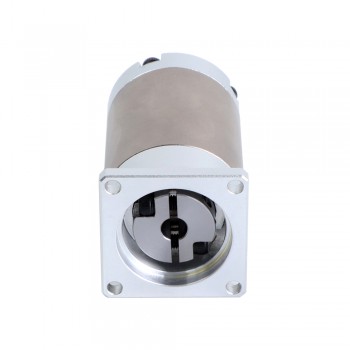

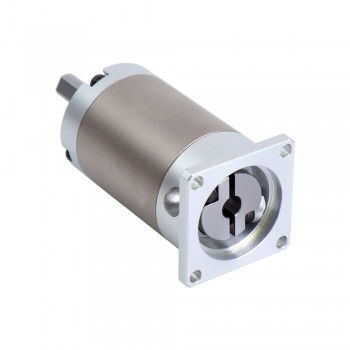

It with gear ratio 100:1 and a maximum 25 arc-min backlash. This in-line planetary gearbox built-in an input shaft coupling which can match any standard Nema 11 stepper motor, brushless DC motor and servo motor.



Gearbox Specifications

Manufacturer Part Number: TQEGS11-G100

Gearbox Type: Planetary

Gear Ratio: 100 : 1

Efficiency: 90%

Backlash at No-load: <=25 arcmin

Max.Permissible Torque: 6 Nm(53.1 lb-in)

Moment Permissible Torque: 12 Nm(106.21 lb-in)

Noise: <=55dB

Waterproof Rating: IP54

Lifetime: 20000 hours



Physical Specifications

Frame Size: 28 x 28 mm

Gearbox Length: 50 mm

Output Shaft Type: D-cut

Output Shaft Diameter: Φ6 mm

Output Shaft Length: 20 mm

Input Shaft Diameter: Φ5 mm

Input Shaft Length: 10.5 mm



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 200W AC Servo Motor Kit 3000rpm 0.64Nm with Servo Driver& 17-Bit Encoder IP65 E6 Series
Next: TQEG Series Planetary Gearbox 50:1 for Nema 11 Stepper Motor BLDC Motor & Servo Motor Backlash 20 Arc-min
Physical Specification
Frame Size(mm) 28 x 28
Gearbox Length(mm) 50
Input Shaft Diameter(mm) 5
Input Shaft Length(mm) 10.5
Output Shaft Diameter(mm) 6
Output Shaft Length(mm) 20
Suit for Motor Nema 11
Gear Ratio 100
Backlash at No-load <=25 arcmin
Output Shaft Type Keyway Shaft
Gearbox Type TQEG Series
Product Type TQEG Series Planetary Gearbox
