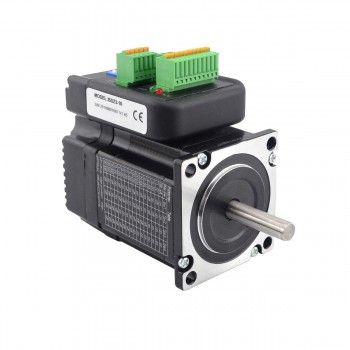

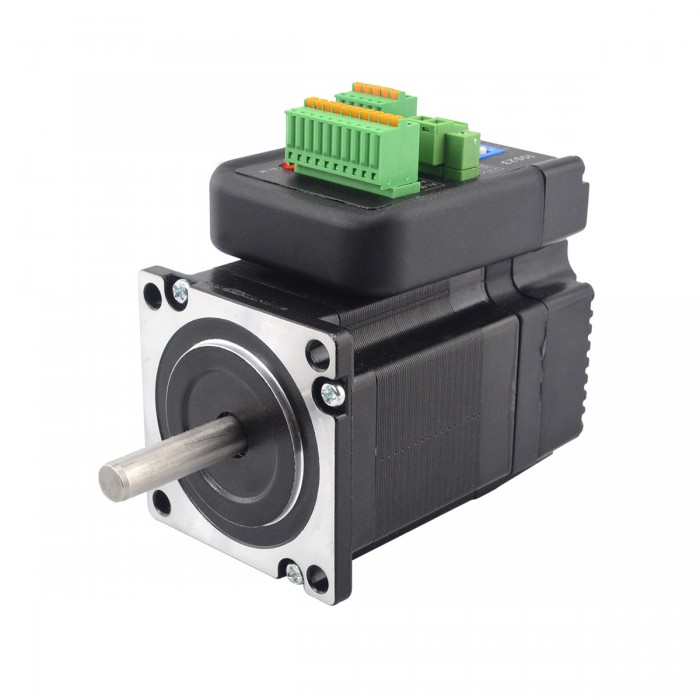

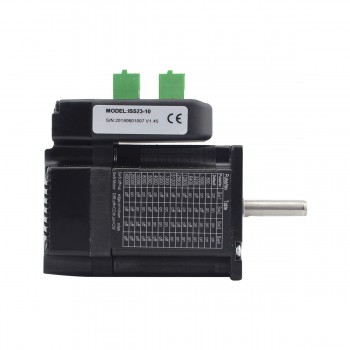

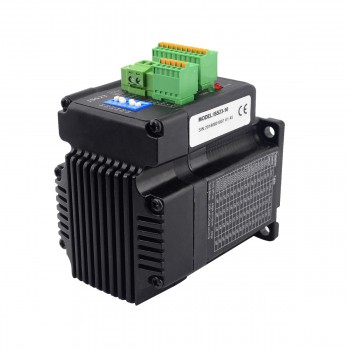

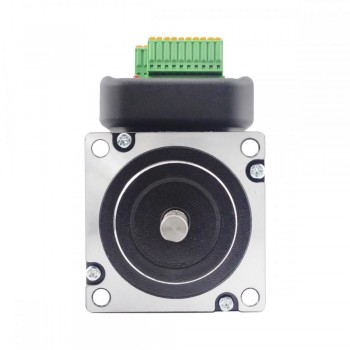

NEMA 23 Closed Loop Integrated Stepper Servo Motor 1Nm 4.5A 24-50VDC NEMA23 Closed Loop
NEMA 23 Closed Loop Integrated Stepper Servo Motor 1Nm 4.5A 24-50VDC NEMA23 Closed Loop
Key Features:
Integrated compact size for saving mounting space
Without losing step, High accuracy in positioning
100% rated output torque
Variable current control technology, High current efficiency
Small vibration, Smooth and reliable moving at low speed
Accelerate and decelerate control inside, significant improvement in smoothness of starting or stopping the motor.
User-defined microsteps
No adjustment in general applications
Over current, over voltage and over position error protection

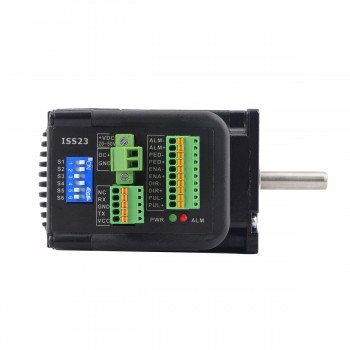

Green light means running while red light means protection or off line
Technological Index:
Input Voltage: 24~50VDC(36V Typical)
Output Current: 4.5A,20KHz,PWM
Max Pulse Frequency: 200K
Default Communication Rate: 57.6kbps
Overcurrent Peak value: 8A±10%
Over voitage Value: 70VDC
The over position error range can be set through the HISU
Environment: Avoid dust,oil fog and corrosive gases
Operating Temperature: 0~70℃MAX
Storage Temperature: -20℃~+80℃
Humidity: 40~90%RH
Cooling method: Natural cooling or forced air cooling
Resources
Manual: ISS23-10.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Integrate Stepper Servo Motor Specification | |
---|---|
Max Pulse Frenquency(KHz) | 200 |
Input Voltage (V) | 24 - 50VDC(36V Typical) |
Length(mm) | 85 |
Output Current | 4.5A 20KHz PWM |
Pulse width(μs) | 2.5 |
