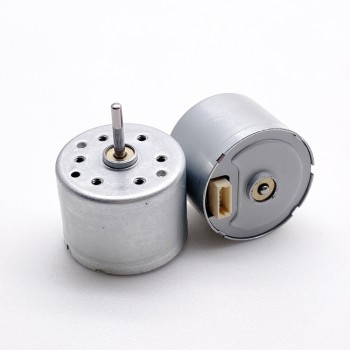

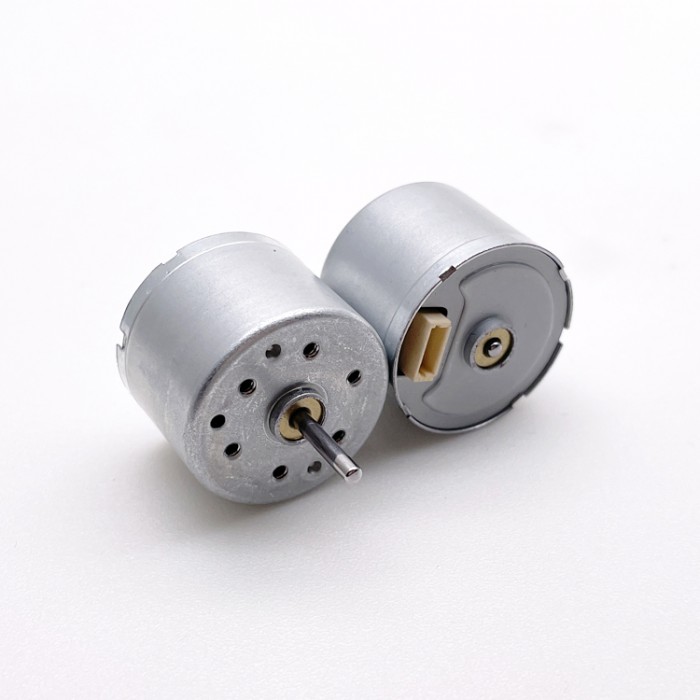

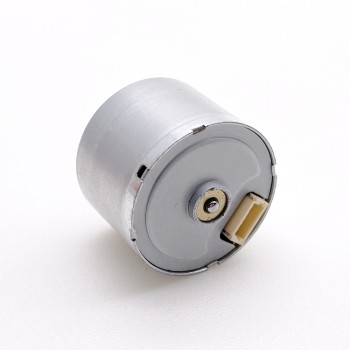

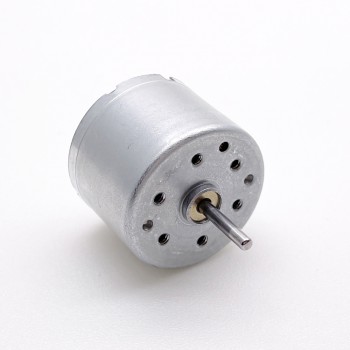

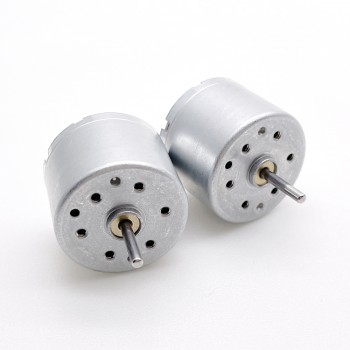

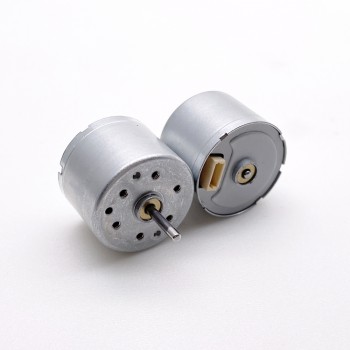

2Pcs 12V 24V Electric Brushless DC Motor 20g.cm 6000rpm/8700rpm 24mm*18mm 2mm Shaft
Features:
1. Small size dc brushless motor with low speed and big torque
2. Suitable to small diameter, low noise and big torque application
3. Can equip with Gear Reducer;
Application:
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Electric grinder.

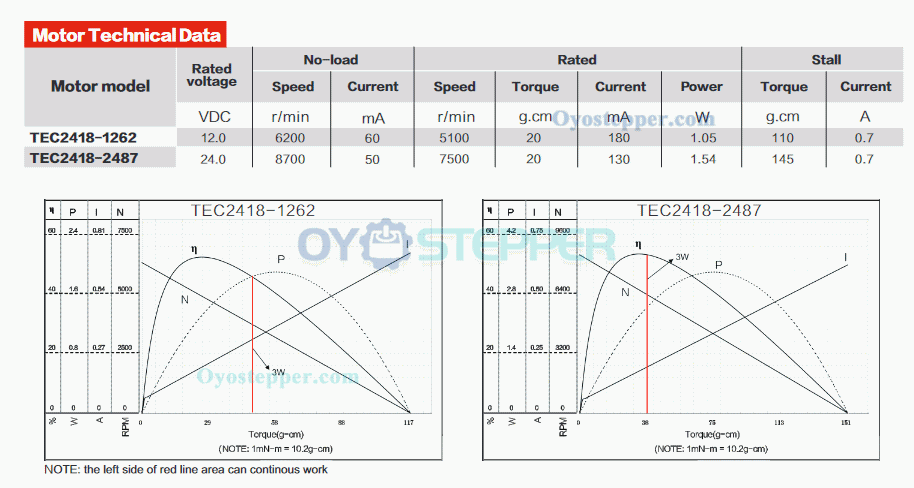

Electrical Specification

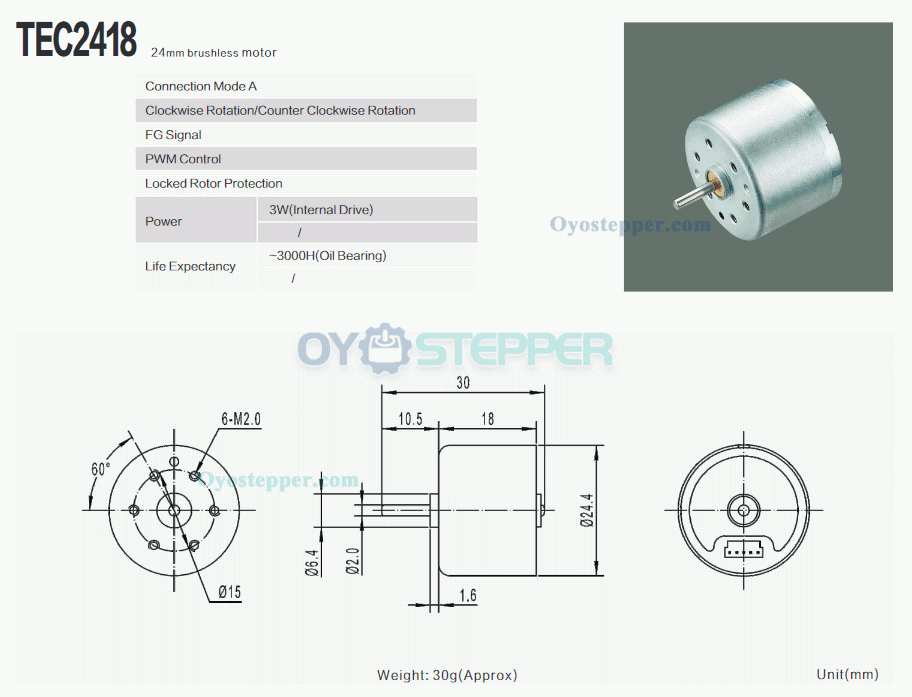

Part Number: TEC2418
Power:3W
Rated Voltage:12V/24V
Rated Current(A):180(12V) / 130mA(24V)
Rated Torque:20g.cm
Rated Speed:5100rpm(12V)/7500rpm(24V)
No Load Speed : 6200rpm(12V)/8700rpm(24V)
Stall Torque:110g.cm(12V)/145g.cm(24V)
Stall Current:0.7A
Type:DC brushless motor
Efficiency:65%
Construction:Permanent Magnet
Noise:<40db
Life Expectancy:3000H(Oil Bearing)

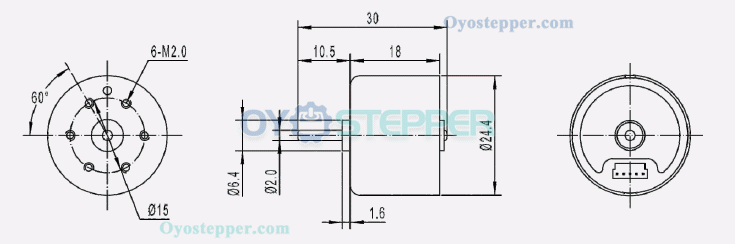

Physical Specification:
Motor Size:24.4mm*18mm
Motor Diameter:24.4mm
Motor Length:18 mm
Shaft Type:O
Shaft Diameter:2mm
Shaft Length:8.9mm
Weight:30g
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | Φ24.4 |
| Shaft Diameter(mm) | 2 |
| Shaft Length(mm) | 8.9 |
| Shaft Type | O |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 30 |
| Product Type | DC brushless motor |
| Body Length(mm) | 18 |
| Electrical Specification | |
| Rated Current (A) | 0.18 / 0.13 |
| Rated Power(W) | 3 |
| Rated Voltage(V) | Worm Gearbox / 24 |
| Rated Torque(kg.cm) | 0.02 |
| Rated Speed(rpm) | 5100 / 7500 |
