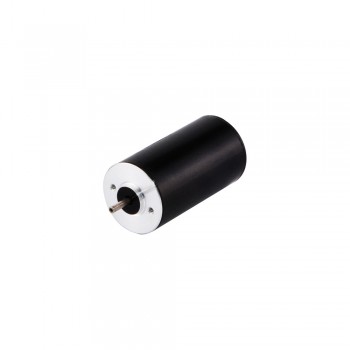

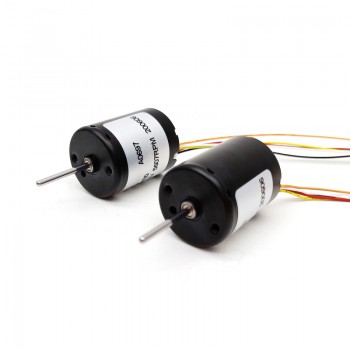

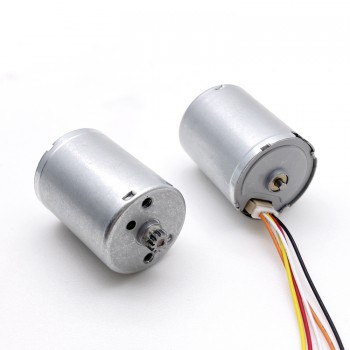

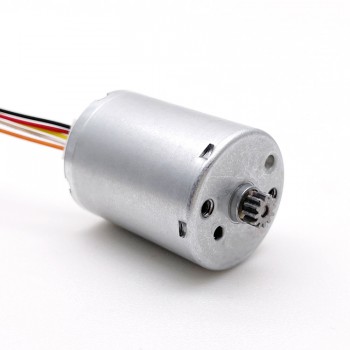

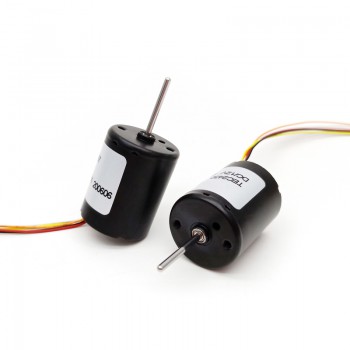

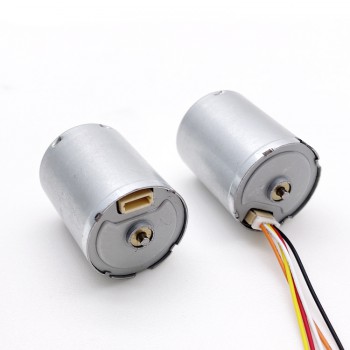

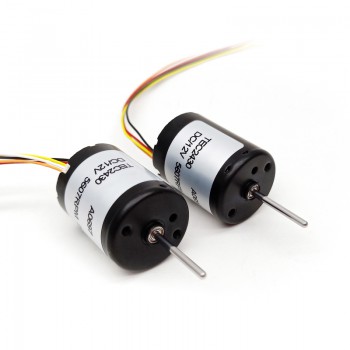

2Pcs 12V 24V BLDC Motor Brushless DC Motor 50g.cm 5000RPM-8000RPM 22mm*30mm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!
Application:
Robot,lock. Towel dispensers, automatic shutters, USB fans, slot machines, money detectors, coin return machines, currency count machines
Doors that open automatically,
Peritoneal dialysis machine, automatic TV rack, office equipment, household products, and so on.

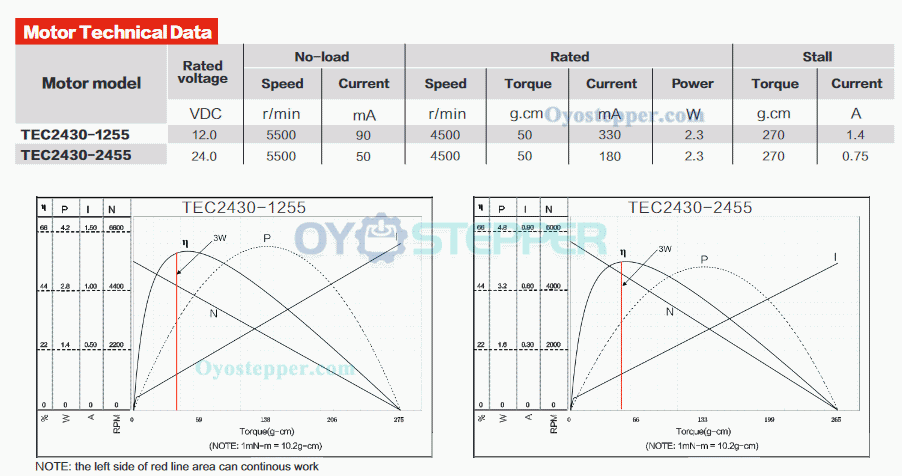

Electrical Specification
Part Number: TEC2430
Rated Power:2.3W
Rated Voltage:12V/24V
Rated Current(A):330mA(12V) / 180mA(24V)
Rated Torque:50g.cm
Rated Speed:4500RPM
No Load Speed : 5500RPM
Stall Torque:270g.cm
Stall Current:1.4A(12V)/0.75A(24V)
Type:DC brushless motor
Construction:Permanent Magnet
Noise:30cm.<40db
Physical Specification:
Motor Size:Φ24.4mm*30.8mm
Motor Diameter:24.4mm
Motor Length:30.8mm
Shaft Type:O
Shaft Diameter:2mm
Shaft Length:8.9mm
Weight:55g
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Body Length(mm) | 30.8 |
| Frame Size(mm) | 24.4 |
| Shaft Diameter(mm) | 2 |
| Shaft Length(mm) | 8.9 |
| Shaft Type | O |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 55 |
| Electrical Specification | |
| Rated Current (A) | 0.33 / 0.18 |
| Motor Type | DC brushless motor |
| Rated Power(W) | 2.3 |
| Rated Voltage(V) | 12 / 24 |
| Rated Torque(kg.cm) | 0.05 |
| Rated Speed(rpm) | 4500 |
