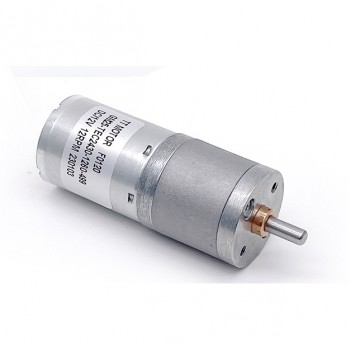

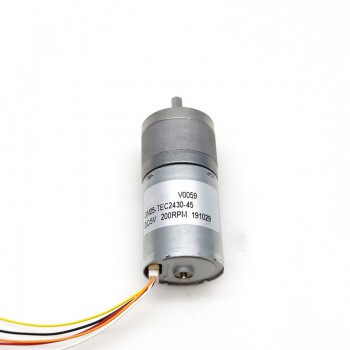

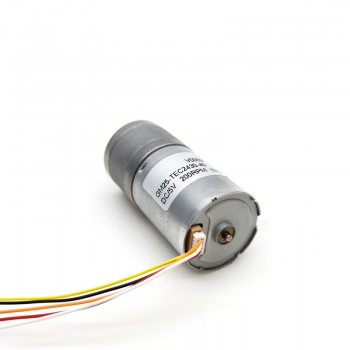

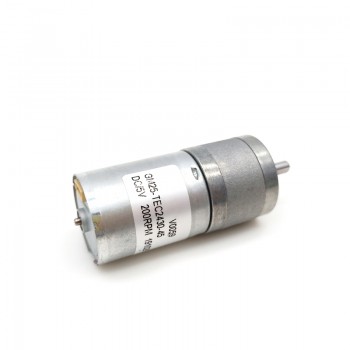

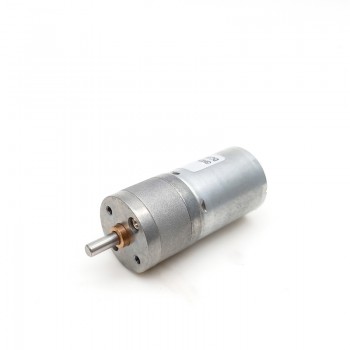

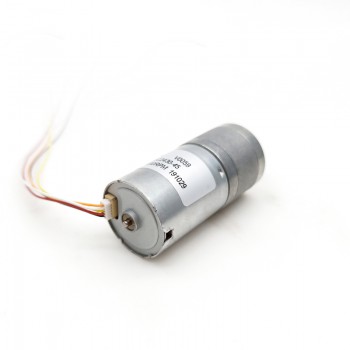

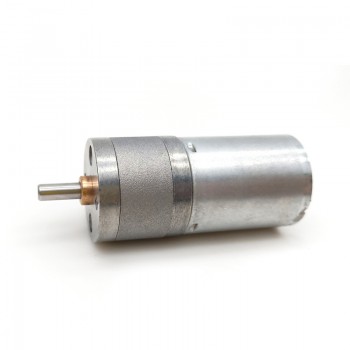

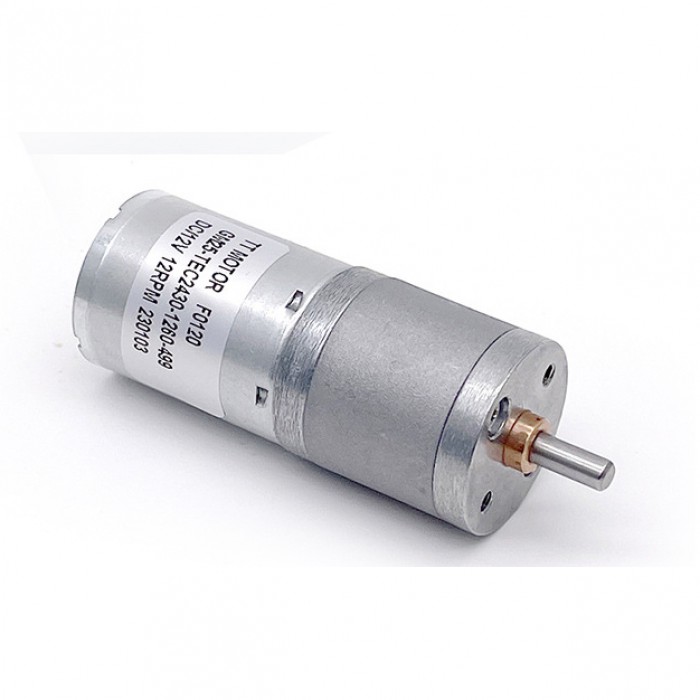

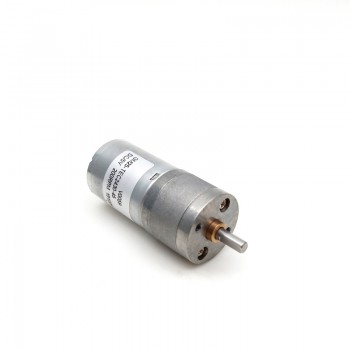

2Pcs 12V 24V DC Geared Motor BLDC Brushless Geared Motor with Spur Gearbox 0.2-5kg.cm

2Pcs 12V 24V DC Geared Motor BLDC Brushless Geared Motor with Spur Gearbox 0.2-5kg.cm
NO.:GM25-TEC2430
Review: Post a review
Our Price:$25.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $24.68 5%
30 $24.16 7%
50 $23.38 10%
100 $22.08 15%
Add To Cart



Features:
1. Small size dc brushless motor with low speed and big torque.
2. Suitable to small diameter, low noise and big torque application.
3. Can equip with Planetar Gear Reducer Compact size, Low noise Diameters as small as 12 mm Rated speed as low as 4rpm Torque up to 6000 mNm High torque, low Speed Ability to withstand harsh environments Long service life.
4. Reduction Ratio: 4、10、21、34、47、78、103、130、227、499.

2 stages: 4:1
3 stages: 10:1
4 stages: 21:1
5 stages: 34:1/47:1
6 stages: 78:1/103:1
7 stages: 130:1/227:1
8 stages: 499:1

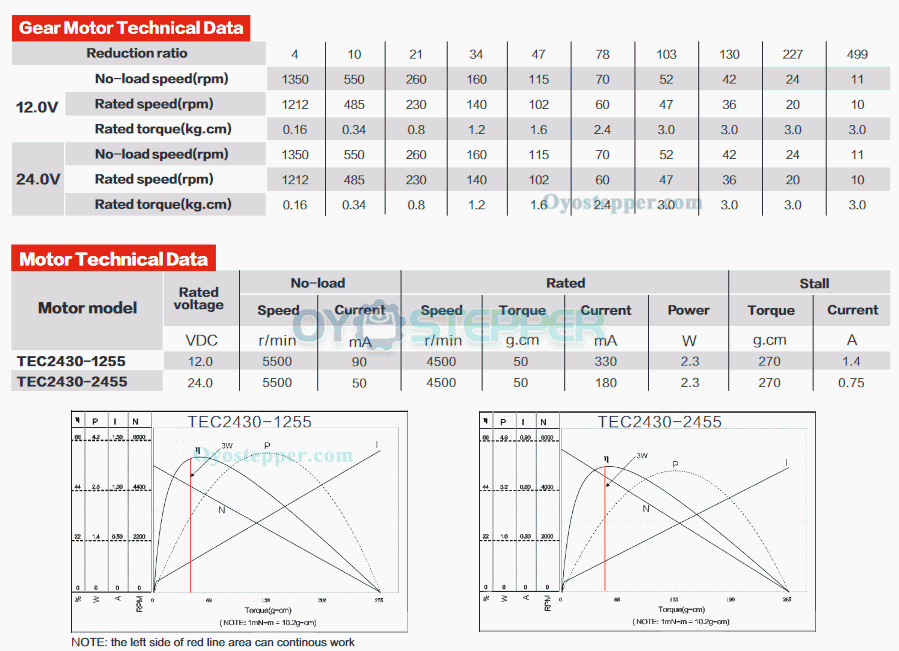

Electrical Specification:
Part Number:GM25-TEC2430
Rated Voltage:12V/24VDC
Rated Torque:3.0Kg.cm max
Max momentary tolerance torque: 6.0kg.cm
Rated current:330mA(12V)/180mA(24V)
No Load Speed W/O Gearbox: 5500RPM
Rated Speed W/O Gearbox: 4500RPM
No Load Speed W Gearbox: 11-1350 RPM
Rated Speed W/ Gearbox:10-1212 RPM
Rated Power:2.3W
Gear type:Spur gearbox
Type:DC Spur Gear Motor
Efficiency: 65%
Noise:30cm.40-50db

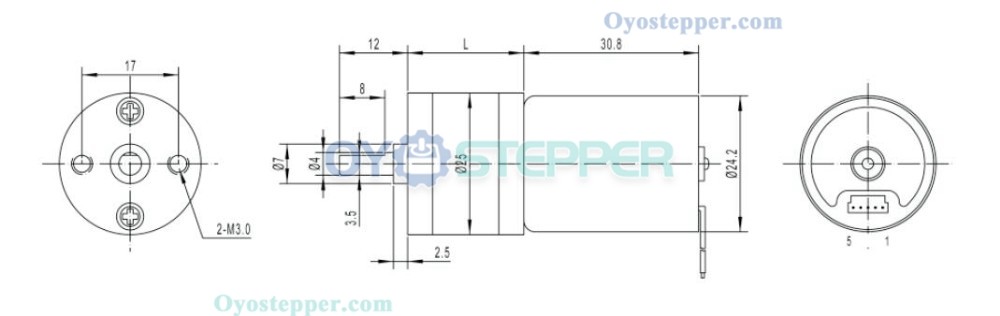

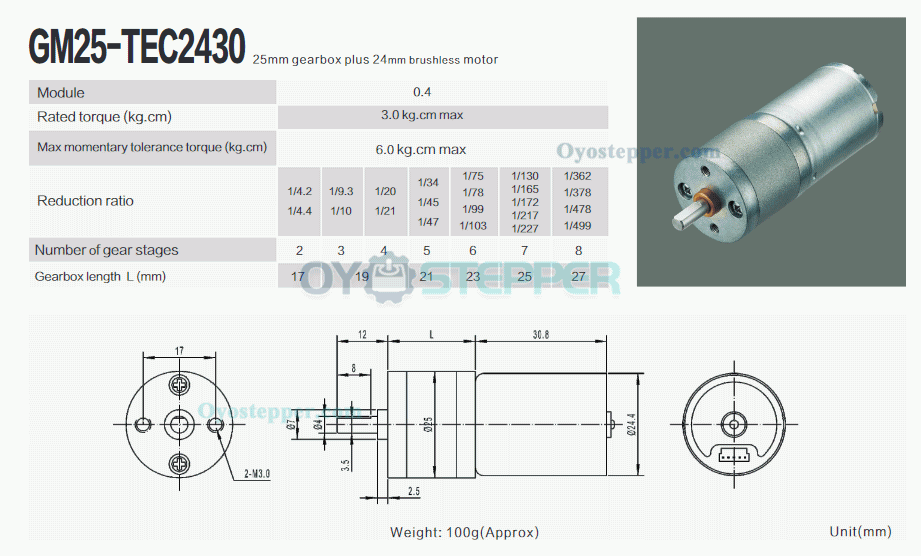

Physical Specification:
Motor Size:Φ24.2*30.8mm
Motor Diameter: 30.8mm
Gearbox Diameter:Φ25
Gearbox Length:17mm/19mm/21mm/23mm/25mm/27mm
Length:30.8mm+Spur gearbox
Shaft Type:D-cut
D-cut Diameter:3.5mm
D-cut Length:8mm
Shaft Diameter:4mm
Shaft Length:9.5mm
Weight:100g;

2Pcs 12V 24V DC Geared Motor BLDC Brushless Geared Motor with Spur Gearbox 0.2-5kg.cm



2Pcs 12V 24V DC Geared Motor BLDC Brushless Geared Motor with Spur Gearbox 0.2-5kg.cm

2Pcs 12V 24V DC Geared Motor BLDC Brushless Geared Motor with Spur Gearbox 0.2-5kg.cm



Resources

GM25-TEC2430.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 12V 24V Brushless DC Motors High Torque DC BLDC Motor 2kg.cm 800-8000RPM
Next: 2Pcs 12V 24V Brushless DC Motor with Spur Gearbox High Speed BLDC Motor 4-850RPM 0.7-10kg.cm
Physical Specification
Body Length(mm) 30.8+gearbox
Frame Size(mm) Φ24.2
Shaft Diameter(mm) 3.5
Shaft Length(mm) 8
Shaft Type D-cut
Single Shaft/Dual Shaft Single Shaft
Weight(g) 100
Gearbox Length(mm) 17 / 19 / 21 / 23 / 25 / 27
Gearbox Type Spur gearbox
Gear Ratio 4:1 / 10:1 / 21:1 / 34:1 / 47:1 / 78:1 / 103:1 / 130:1 / 227:1 / 499:1
Product Type DC Spur Gear Motor
Electrical Specification
Rated Current (A) 0.33 / 0.18
Rated Power(W) 2.3
Rated Voltage(V) 12 / 24
Rated Torque(kg.cm) 3
Rated Speed(rpm) 10-1212
