Nema 11 Geared Stepper Motor L=31mm 6Ncm 0.35 Deg 0.67A 3.8V with 5:1 Planetary Gearbox Dual Shaft

NO.:11HS12-0674D-PG5
Post a review

Special Offer in September 2023:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till September 28th, 2023
Note:No coupon code needed, please place order directly!

Our Price:$38.30

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$36.39	5%
10	$35.62	7%
50	$34.47	10%
100	$33.32	13%

Description Specification Custom Options Review

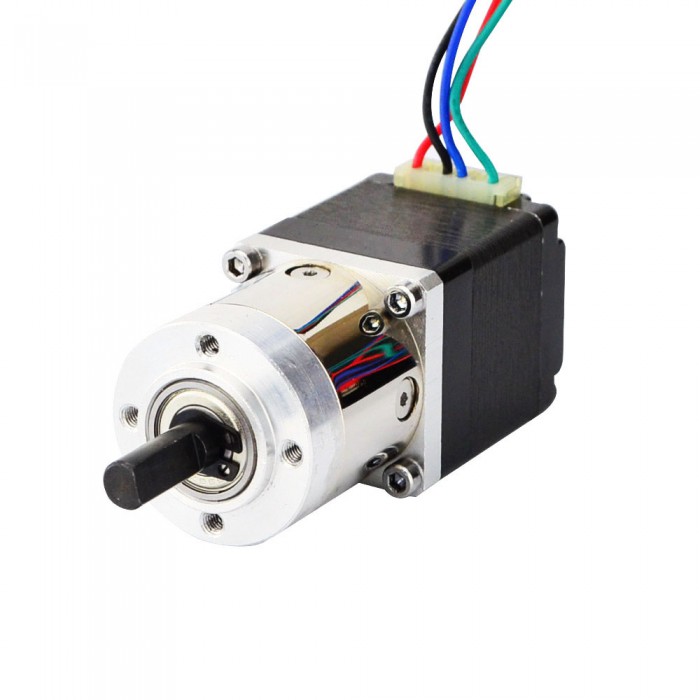

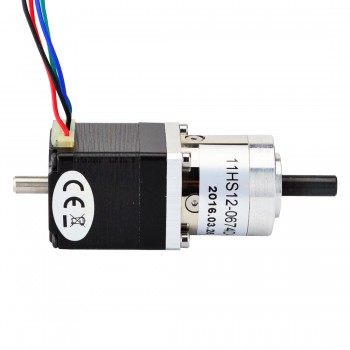

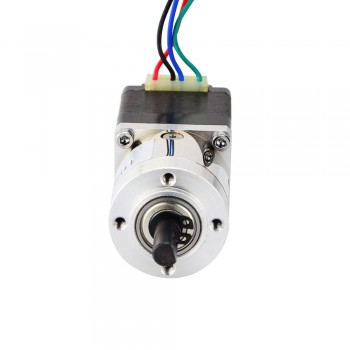

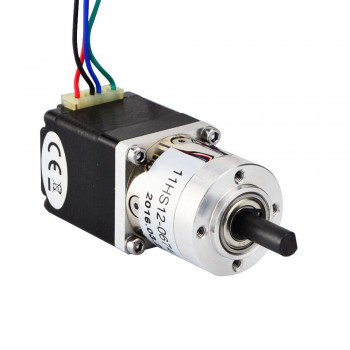

This Nema 11 stepper motor with 31mm body and 0.67A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque. A 5mm diameter rear shaft is available.

Electrical Specification

Manufacturer Part Number: 11HS12-0674D-PG5
Motor Type: Bipolar Stepper
Step Angle: 0.35 deg
Holding Torque without Gearbox: 6Ncm(8.50oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 5.6ohms
Voltage: 3.8V
Inductance: 4.2mH ± 20%(1KHz)

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 5.18: 1
Efficiency: 90%
Backlash at No-load: <=1 deg
Max.Permissible Torque: 2Nm(283oz.in)
Moment Permissible Torque: 4Nm(566oz.in)
Shaft Maximum Axial Load: 5N
Shaft Maximum Radial Load: 25N

Physical Specifications

Frame Size: 30 x 30mm
Motor Length: 31.5mm
Gearbox Length: 27.2mm
Front Shaft Diameter: Φ6mm
Front Shaft Length: 18mm
Front D-cut Length: 12mm

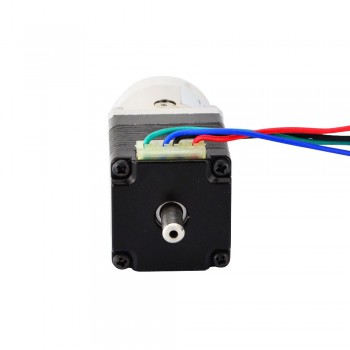

Rear Shaft Diameter: 5mm
Rear Shaft Length: 10mm
Number of Leads: 4
Lead Length: 300mm
Weight: 120g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Resources

Full Datasheet: 11HS12-0674D-PG5.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 8 Stepper Motor Bipolar L=38mm 4Ncm 0.02 deg 0.6A 6V with 90:1 Planetary Gearbox
Next: Nema 11 Geared Stepper Motor Bipolar L=31mm 6Ncm 0.35 Deg 0.67A 3.8V with 5:1 Gearbox Dual Shaft

Gearbox Specification
Backlash at No-load(Max.°)	1
Efficiency	90%
Gear Ratio	5.18:1
Gearbox Length(mm)	27.2
Gearbox Type	Planetary
Max. Permissible Torque(Ncm)	200
Max. Permissible Torque(oz.in)	283.2
Moment Permissible Torque(Ncm)	566.4
Shaft Maximum Axial Load(N)	5
Shaft Maximum Radial Load(N)	25
Motor Specification
Inductance(mH)	4
Lead Length(mm)	300
Motor Nema Size	Nema 11
No. of Lead	4
Phase Resistance(ohm)	5.6
Rated Current (A)	0.67
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Bipolar/Unipolar	Bipolar
Holding Torque w/o Gearbox(Ncm)	7
Holding Torque w/o Gearbox(oz.in)	9.9
Motor Length(mm)	32
Single Shaft/Dual Shaft	Dual Shaft
Shaft Type	D-Cut
Physical Specification
Weight(g)	200
