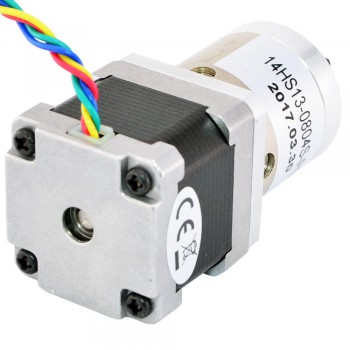

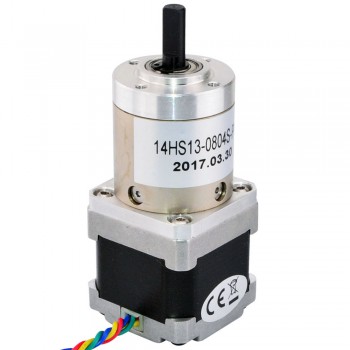

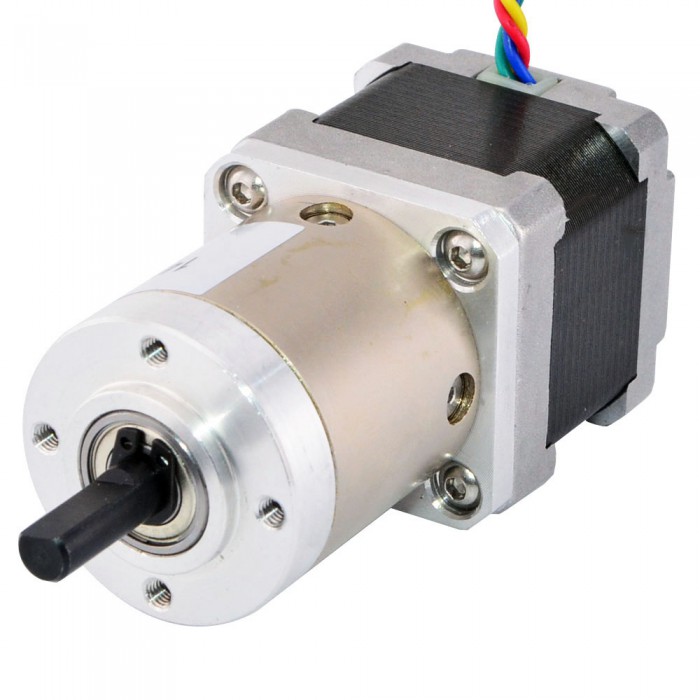

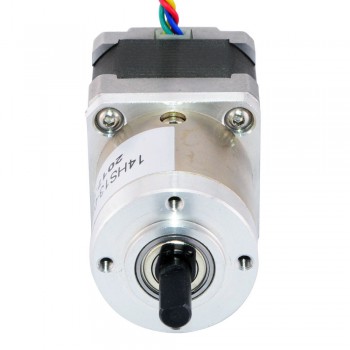

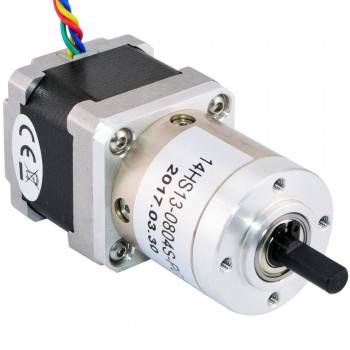

Nema 14 Stepper Motor Bipolar L=33mm 18Ncm 0.094 Deg 0.8A 5.4V with 51:1 Planetary Gearbox

Nema 14 Stepper Motor Bipolar L=33mm 18Ncm 0.094 Deg 0.8A 5.4V with 51:1 Planetary Gearbox
NO.:14HS13-0804S-PG51
Review: Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$37.93
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $36.03 5%
10 $35.27 7%
50 $34.14 10%
100 $33.00 13%
Add To Cart

This Nema 14 stepper motor with 33mm body and 0.8A rated current, integrated a planetary gearbox of 50.9:1 gear ratio.



Electrical Specification

Manufacturer Part Number: 14HS13-0804S-PG51

Motor Type: Bipolar Stepper

Step Angle: 0.094 deg

Holding Torque without Gearbox: 18Ncm(25.49oz.in)

Rated Current/phase: 0.8A

Phase Resistance: 6.8ohms

Voltage: 5.4V

Inductance: 10mH ± 20%(1KHz)



Gearbox Specifications

Gearbox Type: Planetary

Gear Ratio: 50.9: 1

Gear Efficiency: 73%

Backlash at No-load: <=1 deg

Max.Permissible Torque: 4Nm(566oz.in)

Moment Permissible Torque: 6Nm(850oz.in)

Shaft Maximum Axial Load: 50N

Shaft Maximum Radial Load: 100N



Physical Specifications

Frame Size: 35 x 35mm

Motor Length: 34mm

Gearbox Length: 43.6mm

Shaft Diameter: Φ6mm

Shaft Length: 18mm

D-cut Length: 12mm

Number of Leads: 4

Lead Length: 500mm

Weight: 360g



Connection

A+
A-
B+
B-
Red
Green
Yellow
Blue



Resources

Full Datasheet: 14HS13-0804S-PG51.pdf

Torque Curve: 14HS13-0804S-PG51_Torque_Curve.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 Stepper Motor Bipolar L=33mm 18Ncm 0.094 Deg 0.8A 5.4V with 19:1 Planetary Gearbox
Next: Nema 14 Stepper Motor Bipolar L=33mm 18Ncm 0.067 Deg 0.8A 5.4V with 27:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 73%
Gear Ratio 50.89:1
Gearbox Length(mm) 43.6
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 400
Max. Permissible Torque(oz.in) 566.4
Moment Permissible Torque(Ncm) 600 / 849.7
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Inductance(mH) 4.5
Lead Length(mm) 500
Motor Nema Size Nema 14
No. of Lead 4
Phase Resistance(ohm) 3.2
Rated Current (A) 1
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 18
Holding Torque w/o Gearbox(oz.in) 19.8
Motor Length(mm) 34
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 400

Max - Relsig – 22 Nov 2017

Excellent economical motor for cost effective use to achieve high torque while requiring lower speed. This product was used by my team and I for robotic arm. good size and lightweight. Shipping came as described and fast. Output was as desired and have great driving strength & torque.
Packaging was neat and well cushioned
Not recommended for use with high speed needs, consider 19:1 or 5:1 ratios if higher speed needs are required. Also, output shaft would need an efficient method to hold or couple because the material is passable grade aluminium.
All in all still a very good all inclusive motor with gearbox and ready attached wires.
