Nema 17 Stepper Bipolar L=33mm 26Ncm 0.35 deg 0.4A 12V with 5:1 Small Planetary Gearbox
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till September 20th, 2024
- Note:No coupon code needed, please place order directly!

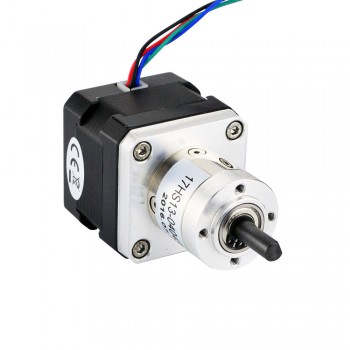

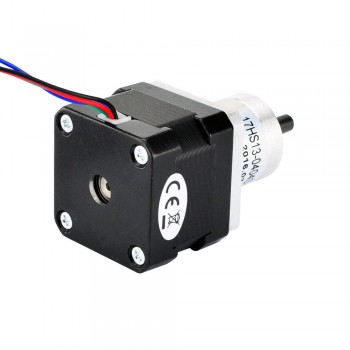

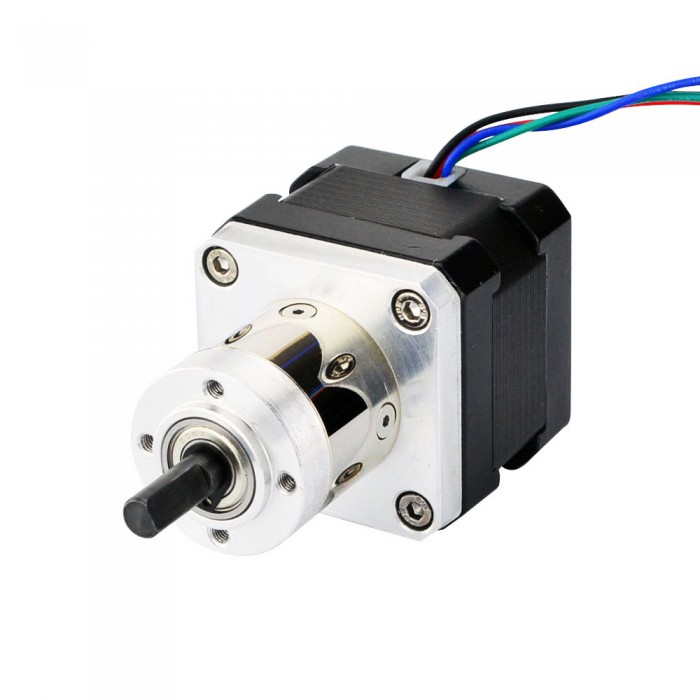

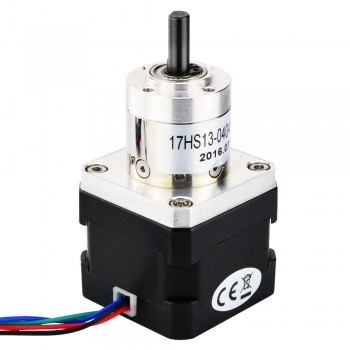

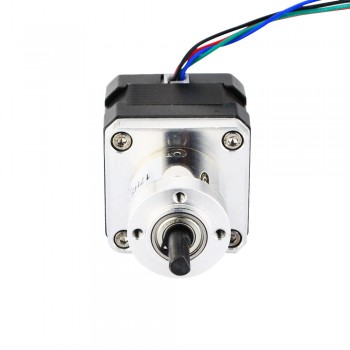

This custom Nema 17 stepper motor with 33mm body and 0.4A rated current, integrated a 28mm diameter Planetary gearbox of 5.18:1 gear ratio. It's suitable for applications that with special space but need low speed and/or high torque.
Electrical Specification
Manufacturer Part Number: 17HS13-0404S-CG5
Motor Type: Bipolar Stepper
Step Angle: 0.35 deg
Holding Torque without Gearbox: 26Ncm(36.82oz.in)
Rated Current/phase: 0.4A
Phase Resistance: 30ohms
Voltage: 12V
Inductance: 34mH ± 20%(1KHz)
Gearbox Specifications
Gearbox Type: Planetary
Gear Ratio: 5.18: 1
Efficiency: 90%
Backlash at No-load: <=1 deg
Max.Permissible Torque: 2Nm(283oz.in)
Moment Permissible Torque: 4Nm(566oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N
Physical Specifications
Frame Size: 42 x 42mm
Motor Length: 34mm
Gearbox Length: 27.2mm
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-cut Length: 12mm
Number of Leads: 4
Lead Length: 500mm
Weight: 400g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 17HS13-0404S-CG5.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Gearbox Specification | |
|---|---|
| Backlash at No-load(Max.°) | 1 |
| Efficiency | 90% |
| Gear Ratio | 5.18:1 |
| Gearbox Length(mm) | 27.3 |
| Gearbox Type | Planetary |
| Max. Permissible Torque(Ncm) | 200 |
| Max. Permissible Torque(oz.in) | 283.2 |
| Moment Permissible Torque(Ncm) | 566.4 |
| Shaft Maximum Axial Load(N) | 5 |
| Shaft Maximum Radial Load(N) | 25 |
| Motor Specification | |
| Inductance(mH) | 27 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 17 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 30 |
| Rated Current (A) | 0.4 |
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 18 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque w/o Gearbox(Ncm) | 22 |
| Holding Torque w/o Gearbox(oz.in) | 31.2 |
| Motor Length(mm) | 34 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Physical Specification | |
| Weight(g) | 500 |
