NMRV050 Worm Gear Reducer Gearbox Ratio 5:1/10:1/20:1 Fit Nema 42 Stepper Motor

NMRV050 Worm Gear Reducer Gearbox Ratio 5:1/10:1/20:1 Fit Nema 42 Stepper Motor
NO.:NMRV050
Post a review
Our Price:$71.99

Quantity:- +

Add To Cart

NMRV050 Worm Gear Reducer Gearbox Ratio 5:1/10:1/20:1 Fit Nema 42 Stepper Motor

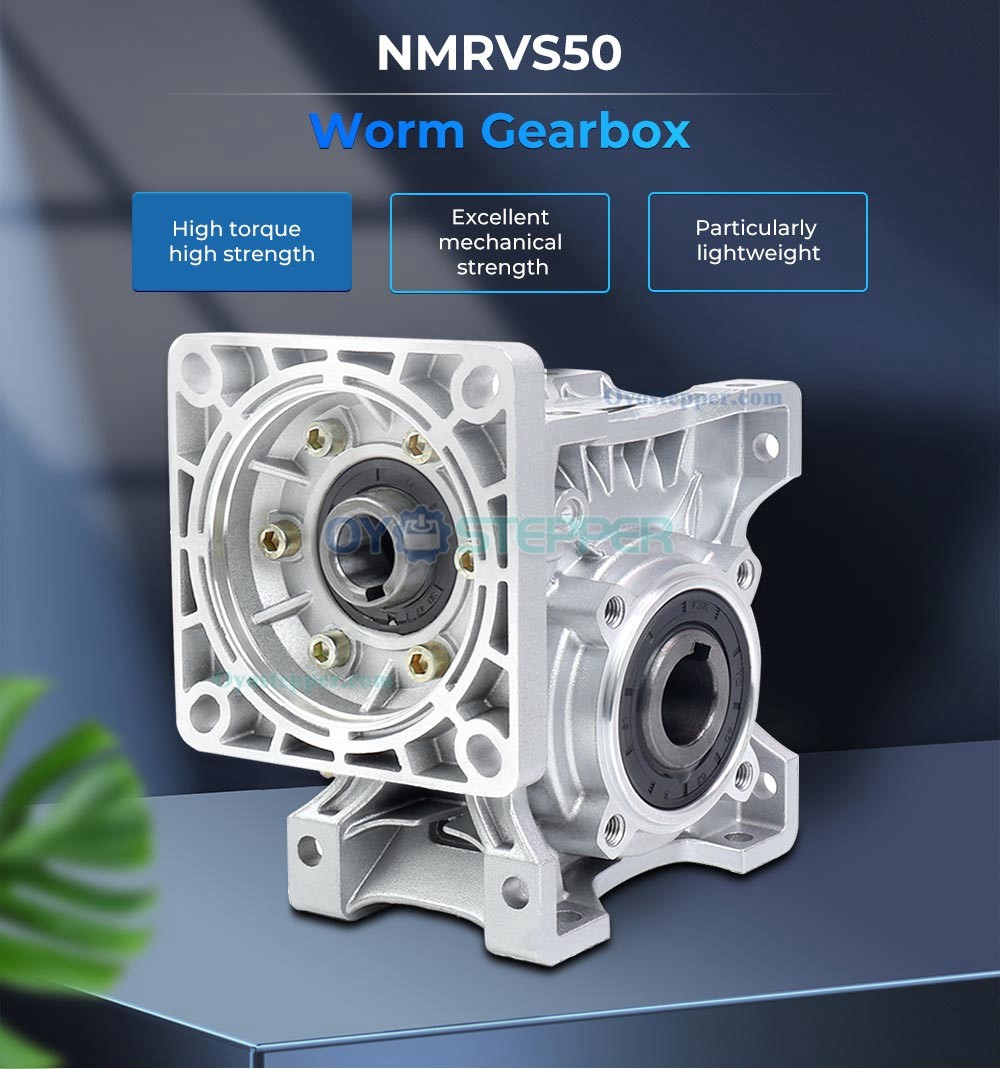

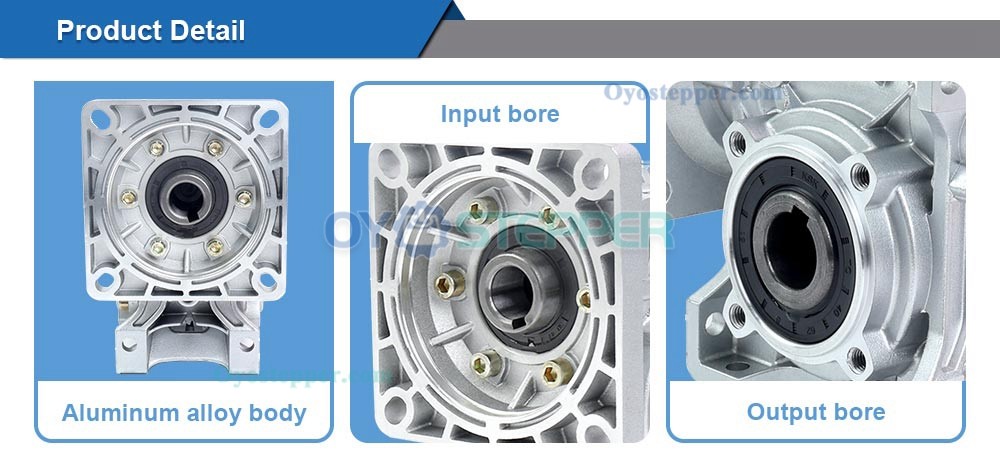

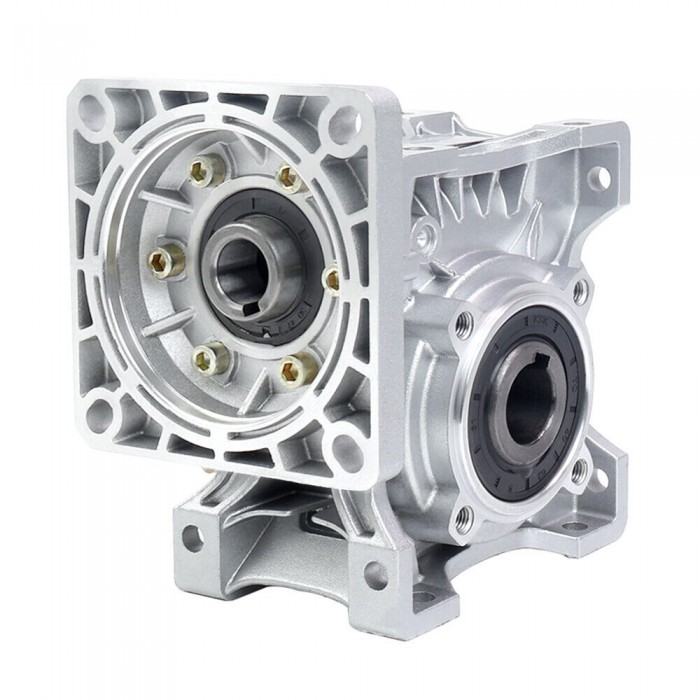

This worm gearbox is designed for Nema 42 Stepper Motor or other 110mmx110mm size motor, the output shaft is offset by 90° from the drive shaft. Besides big cases, no gap structure of box means a maintenance-free that is hermetically sealed. It prevents the lubricant from easily losing and going bad, and exchanging.



Feature

High torque and high strength

Worm wheel: Bronze Cu Sn12 Ni2 (UNI7013-10)

Aluminium units are supplied complete with synthetic oil and allow for universal mounting positions, with no need to modify lubricant quantity



NMRV050 Worm Gear Reducer Gearbox Ratio 5:1/10:1/20:1 Fit Nema 42 Stepper Motor

NMRV050 Worm Gear Reducer Gearbox Ratio 5:1/10:1/20:1 Fit Nema 42 Stepper Motor

NMRV050 Worm Gear Reducer Gearbox Ratio 5:1/10:1/20:1 Fit Nema 42 Stepper Motor

NMRV050 Worm Gear Reducer Gearbox Ratio 5:1/10:1/20:1 Fit Nema 42 Stepper Motor

NMRV050 Worm Gear Reducer Gearbox Ratio 5:1/10:1/20:1 Fit Nema 42 Stepper Motor



Note

Recommend Input Speed <=1500rpm.

Due to high backlash, worm gearboxes are not suitable for positioning applications.

Worm gearboxes are generally recommended to use B3 installation type, if you use other installation types, please contact us for customization.

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NMRV040 Worm Gearbox Speed Reducer 5:1 10:1 20:1 30:1 50:1 for Nema 34 Motor
Next: Non-excited DC Electromagnetic Brake 24VDC 0.32Nm (45oz.in) for Nema 14 Stepper Motor

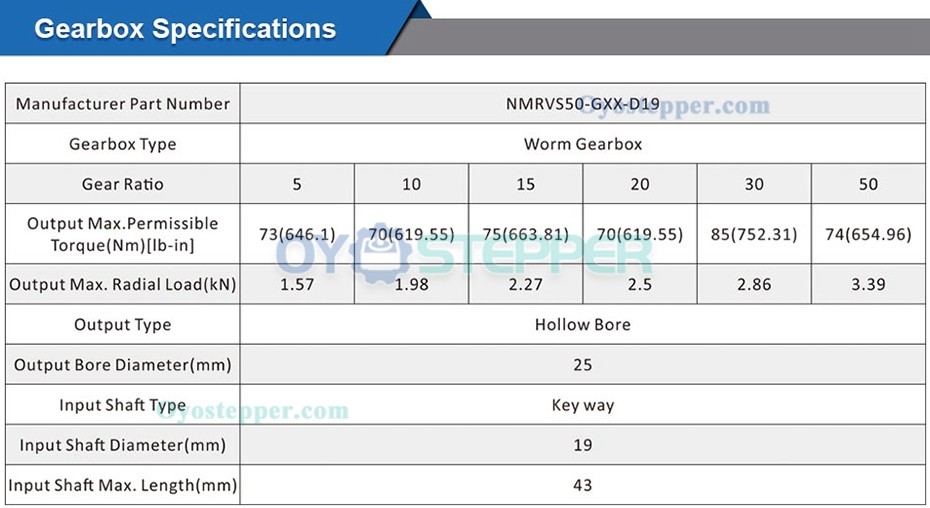

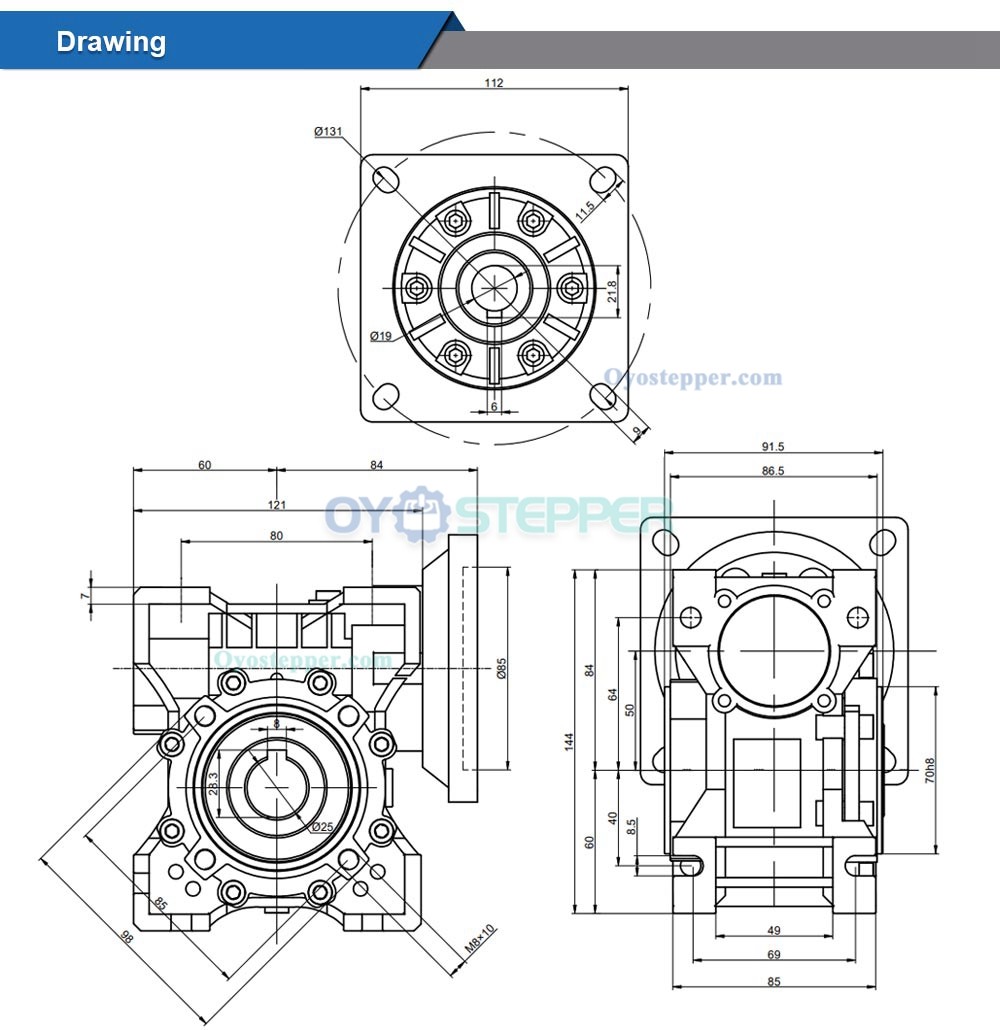

Physical Specification
Frame Size(mm) 112x112
Weight(g) 3850
Input Shaft Diameter(mm) 19
Gearbox Type Worm Gearbox
Gear Ratio 5:1 / 10:1 / 15:1 / 20:1 / 30:1 / 40:1 / 50:1
Output Shaft Type Hollow Bore
Input Shaft Max. Length 43
Output Bore Diameter(mm) 25
