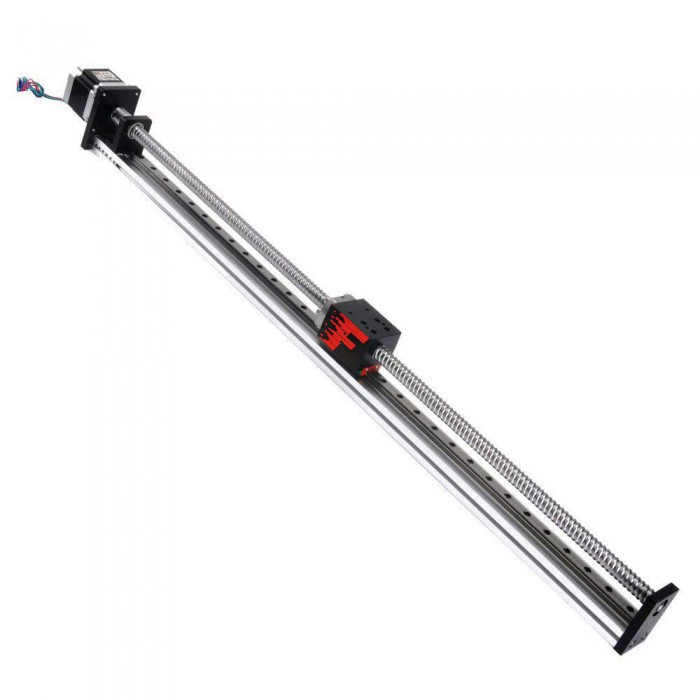

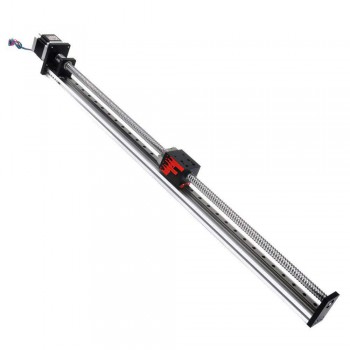

FSL40 Linear Guide Table Ball Screw Motion CNC Linear Guide Stage With Nema 23 Stepper Motor

Linear Ball Ccrew Actuator CNC Linear Guide Stage FSL40 500mm With Nema 23 Stepper Motor

Features:

Equipped with a NEMA 23 stepper motor

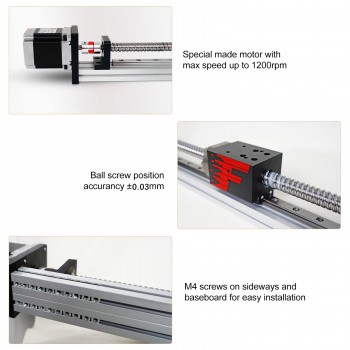

Maximum motor speed: 1200 rpm

Ball screw model: G1610

Accuracy class: C7

Positioning accuracy: ±0.03mm

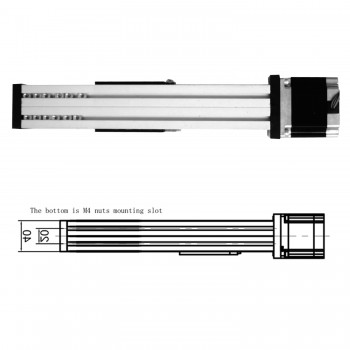

M4 screw holes for end stop and base mounting

Anodized aluminum construction

Stroke options: 50mm to 1000mm;

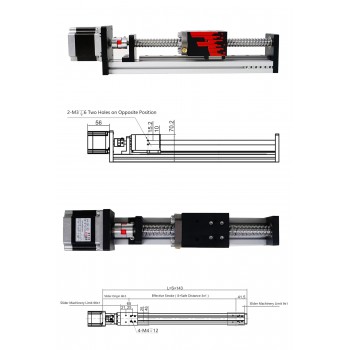

Specifications (500mm Stroke Model):

Effective stroke: 500mm

Total length: 699mm

Total height: 80mm

Slide width: 40mm

Maximum horizontal load: 25kg

Maximum vertical load: 15kg

Maximum horizontal speed at full load: 150mm/s

Maximum vertical speed at full load: 88mm/s

Stepper Motor Specifications:

Rated voltage: 1.7V

Step angle: 1.8°

Flange size: 57mm

Motor length: 56mm

Holding torque: 0.95N·m

Current: 2.0A

Resistance: 1.32Ω
