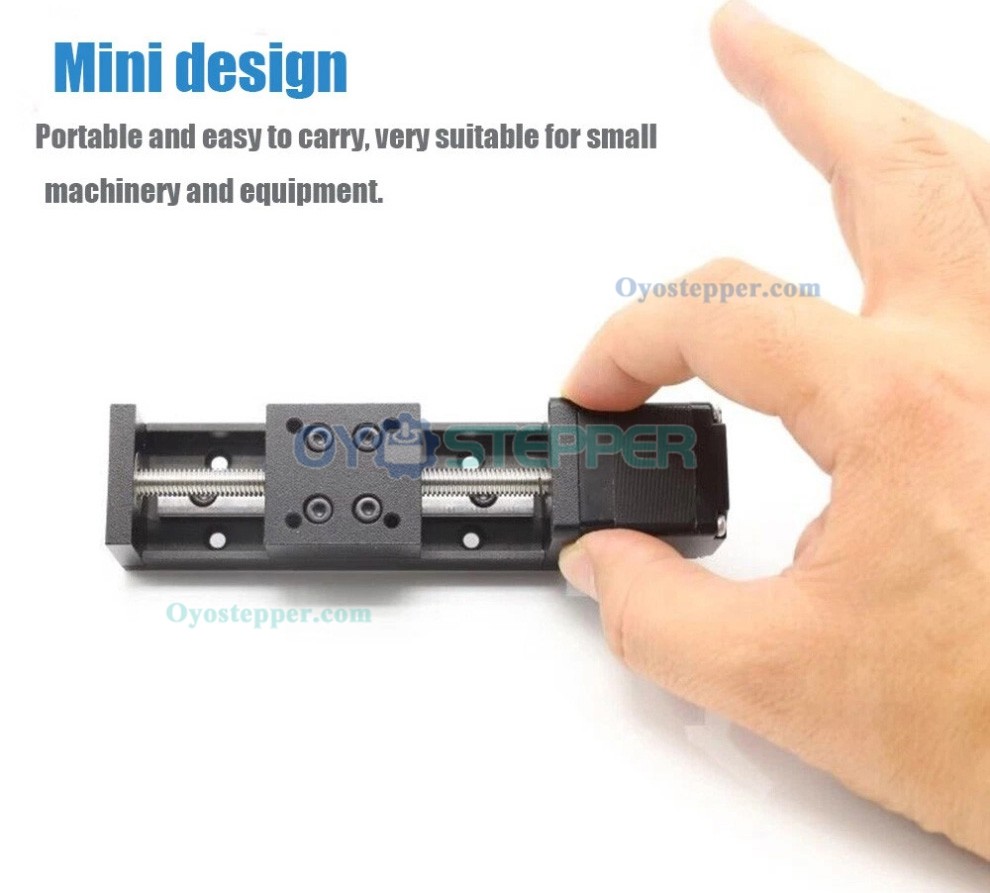

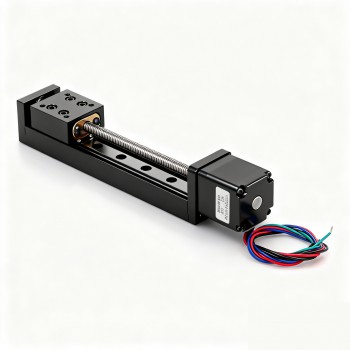

Mini CNC Slide Table Motorized Linear Stage 1mm Pitch 0.07Nm with NEMA11 Stepper Motor Kit

Mini CNC Slide Table Motorized Linear Stage 1mm Pitch 0.07Nm with NEMA11 Stepper Motor Kit

Features:

When the Z-axis moves vertically and the screw stops rotating, the moving panel locks itself to stop sliding.

The linear motion actuator is driven by a rotating handle, with a stroke range of 0 to 75mm.

Commonly used in automotive, home furniture, industrial construction, and agricultural machinery, such as massage recliners, electric wheelchairs and electric sofas.



Package Includes:

1 x T06 Trapezoidal screw slide table

1 x NEMA11 28mm Stepper Motor

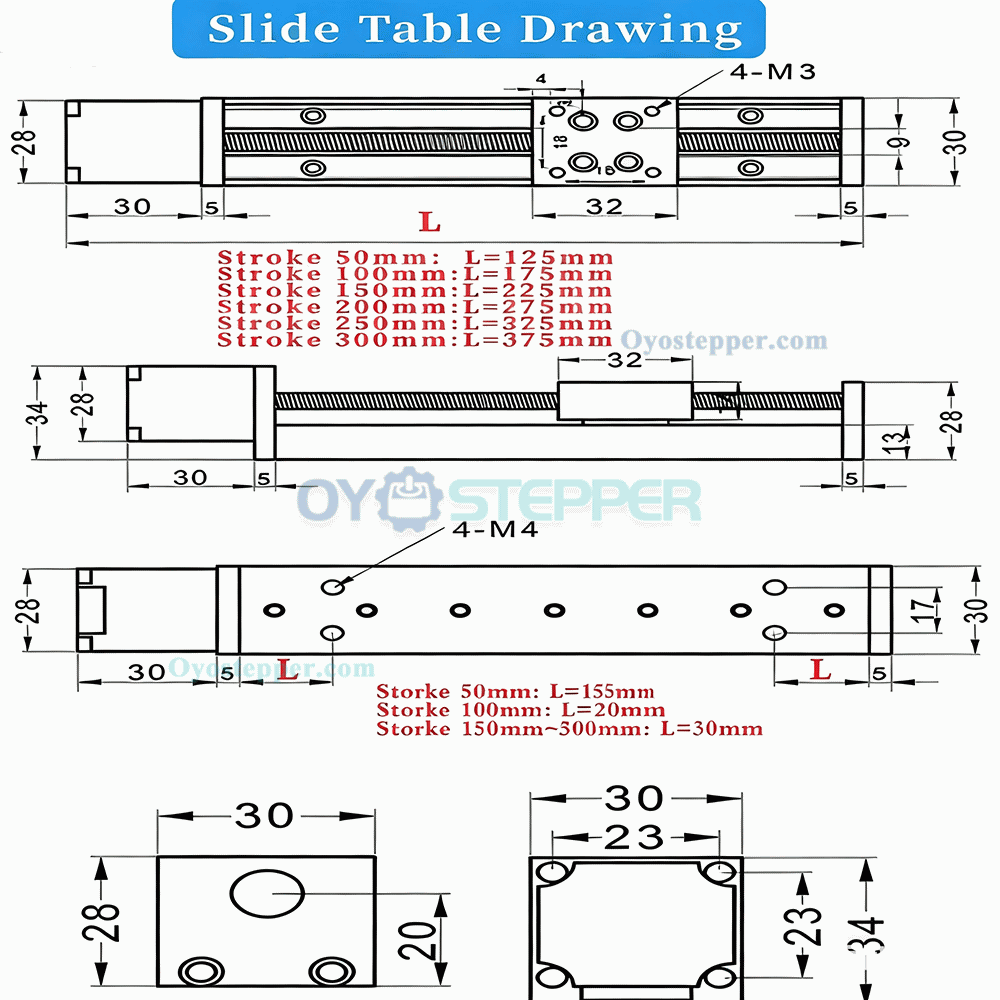

Sliding Table Specifications:

Model: T06

Slide Type: Trapezoidal screw slide table

Horizontal Load: 5kg (maximum)

Vertical Load: 1kg (maximum)

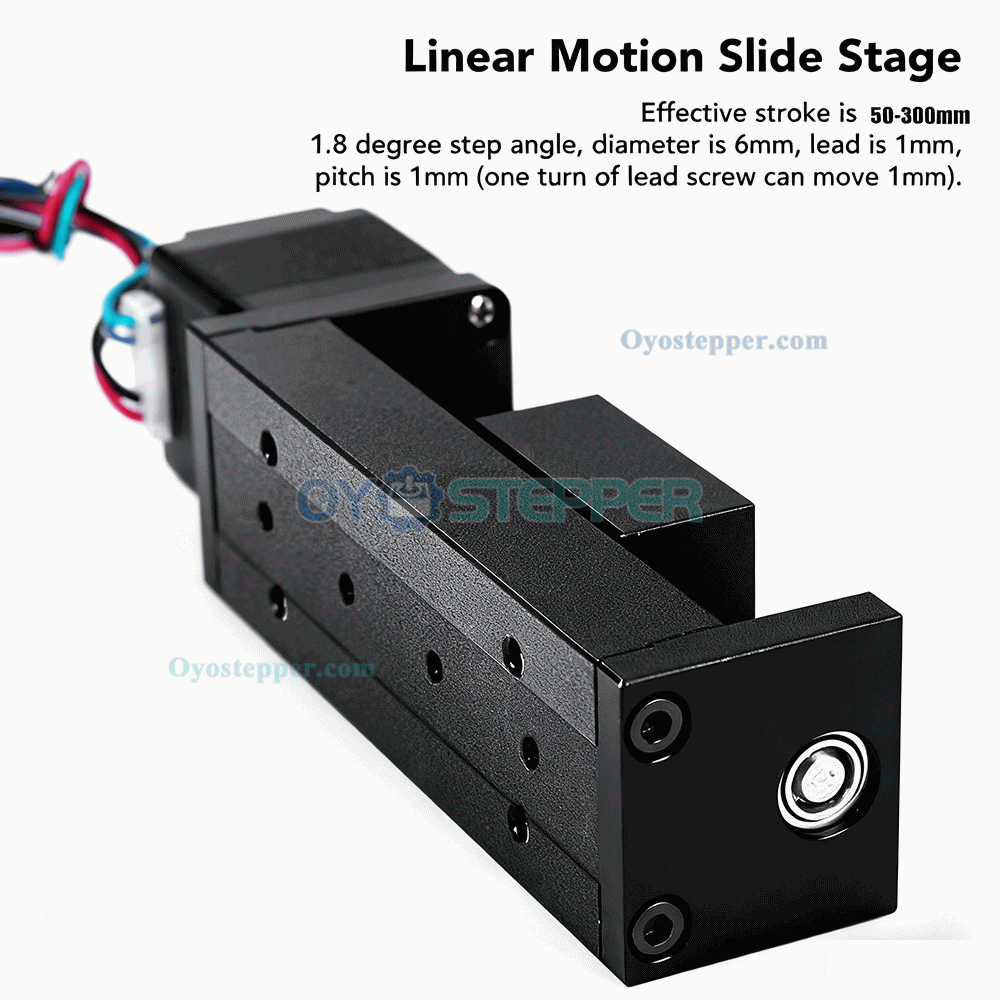

Effective Stroke: 50mm

Total Length: Effective stroke + 75mm

Mobile Panel Size: 30mm x 32mm

Repeat Positioning Accuracy: 0.02mm-0.03mm

Maximum Speed: 80mm/s

Rail Width: 6mm

Block: MGN8H

Screw Precision: C7

Pitch: 1mm

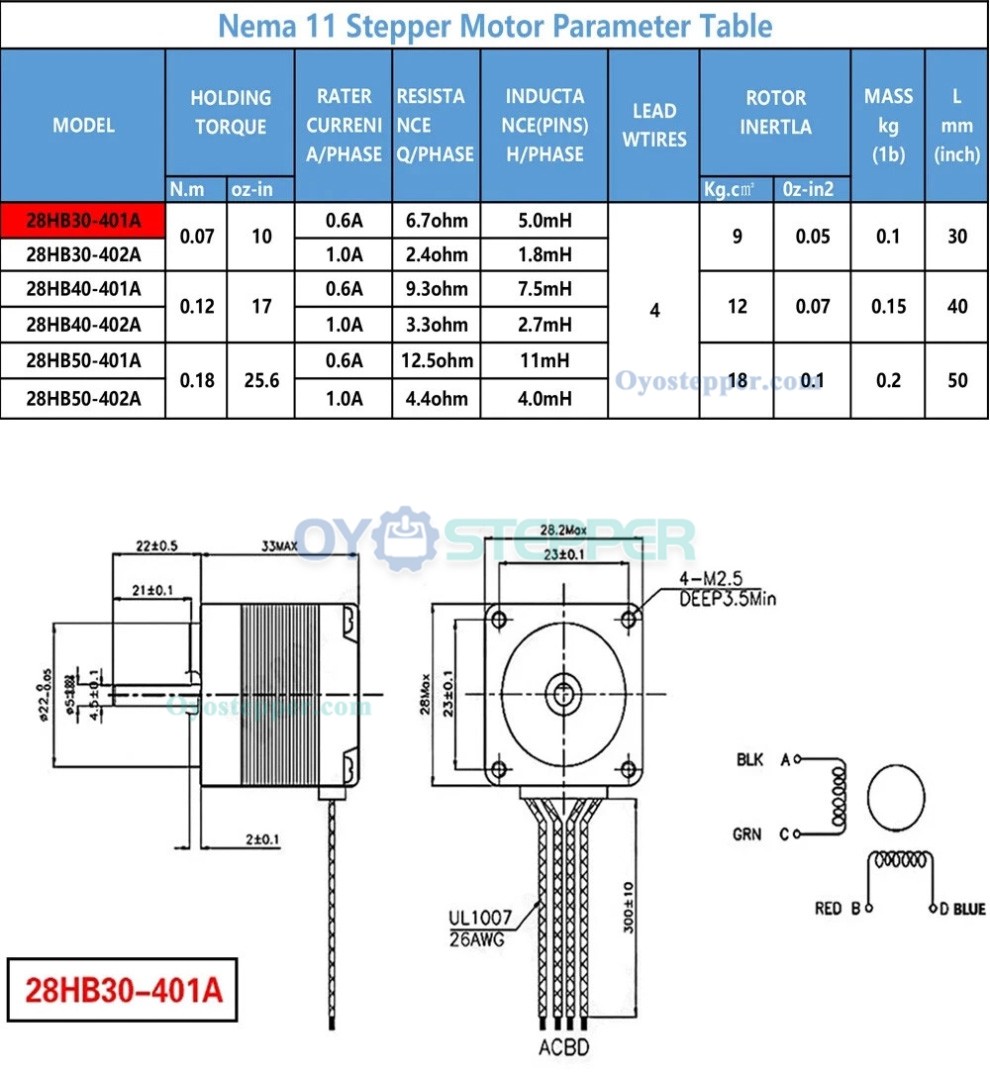

Stepper Motor Specification:

Model: 28HB30-401A

Motor Flange Size: NEMA 11 (28mm)

Holding Torque: 0.07N·m

Body Length: 30mm

Shaft Diameter: 5mm

Type: Hybrid Motor

Phase: 2 Phase

Current: 0.6A

Certification: CCC, CE, ISO

Step Angle: 1.8 degrees
