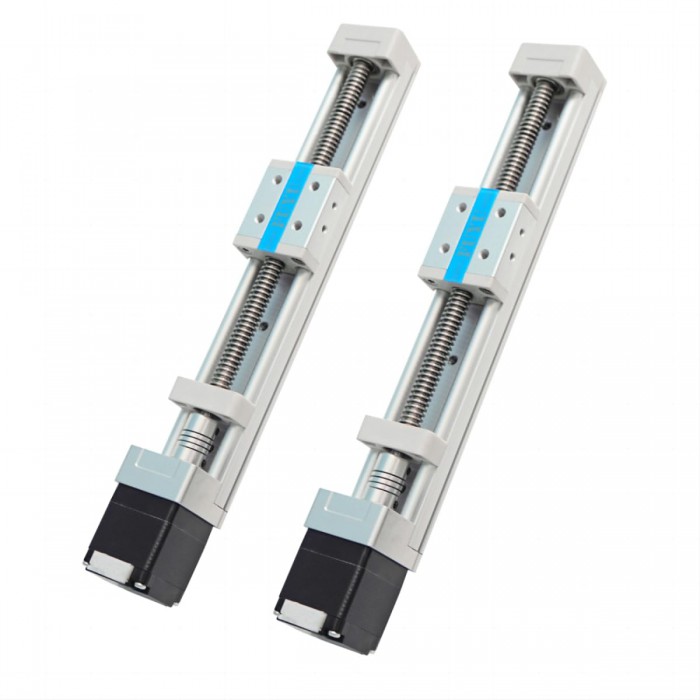

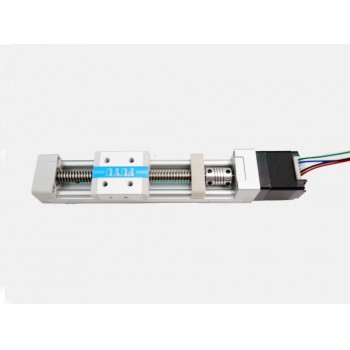

2Pcs FSK30J Mini Linear Rail Linear Guide Ball Screw Linear Actuator with Nema 11 Stepper Motor

2Pcs FSK30J Mini Linear Slide Rail Linear Guide Ball Screw Linear Actuator with Nema 11 Stepper Motor

Feature:

The Linear guide is made of aluminum alloy and new materials, no steel parts, light weight, and not easy to rust.

Linear Rail position accurancy up to ±0.05mm,linear slide rail with high-precision smooth movement.

Linear motion, with a small frictional resistance.Below 60dB low frequency noise, especially applicable to quiet working environment.M4 screws on sideways and basedboard for easy installnation.

Nema 11 stepper motor.the linear guide have multi length stroke options from 50mm to 500mm for cnc router device,Tr8*02 as its defalut screw lead, Tr8*04, Tr8*12 are for customization.

Application:Linear Rail Stage Cross,widely used in production machinery, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, mechanical equipment positioning and movement.

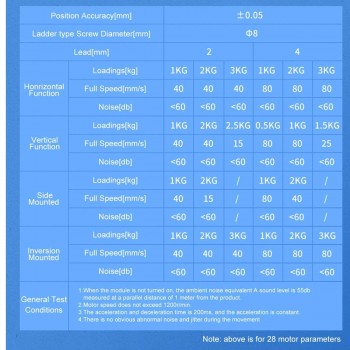

TACHNICAL PARAMETER

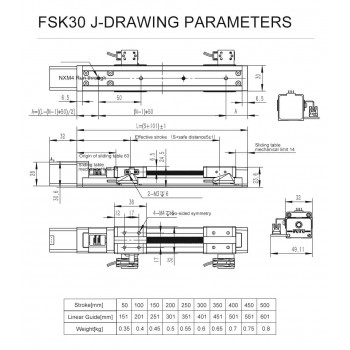

Effective Stroke: 50-500mm

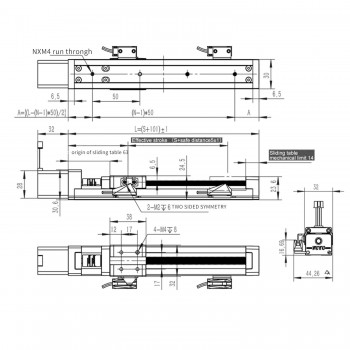

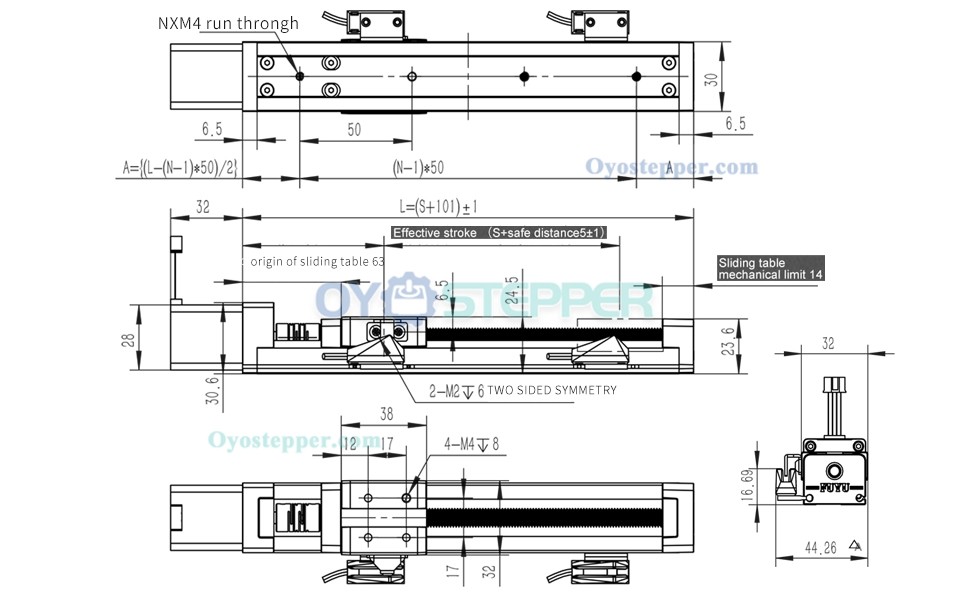

Total Length: Stroke+101mm

Screw Model: Tr8*2

Position Accuracy: ±0.05mm

Max Horizontal Loading: 6.6 pounds

Max Vertical Loading: 2.2 pounds

Max Horizontal Full Speed: 40 mm/s[max loading]

Max Vertical Full Speed: 15mm/s[max loading]

Noise: ＜60 dB

OPTIONAL ACCESSORIES

Power supply, drive, limit switch, controller,connection board, drag chain

TECHNICAL FEATURES

Economical and practical screw module, high cost performance,suitable for medium andlow load, medium speed requirements, stable environment conditions. Linear guide can be combined with single axis or multi axis, and it is convenient to match the workpieces heqtired byvarious industries, so it becomes the most simple and practical manipulator.
