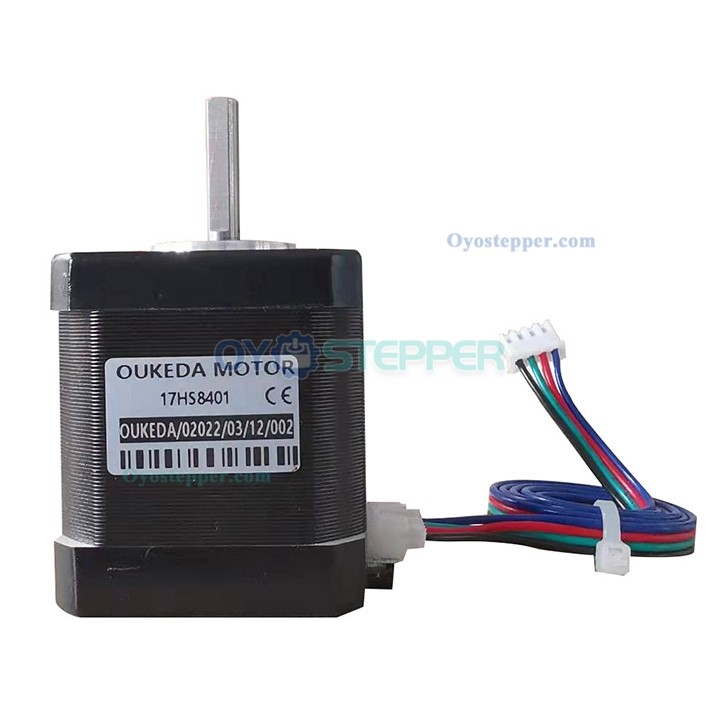

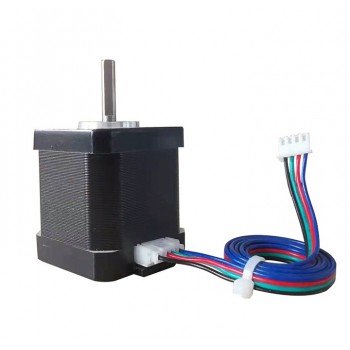

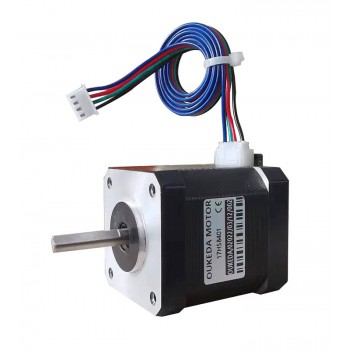

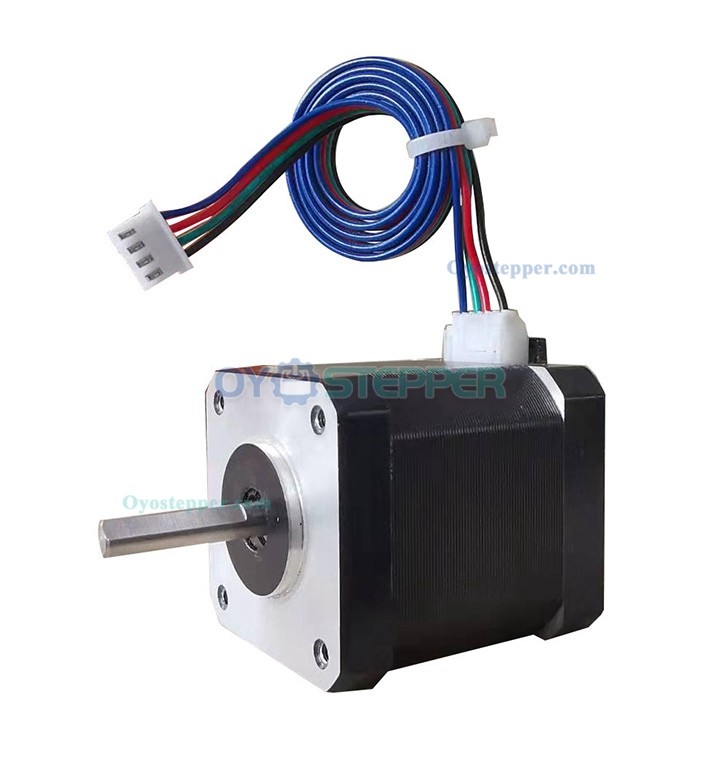

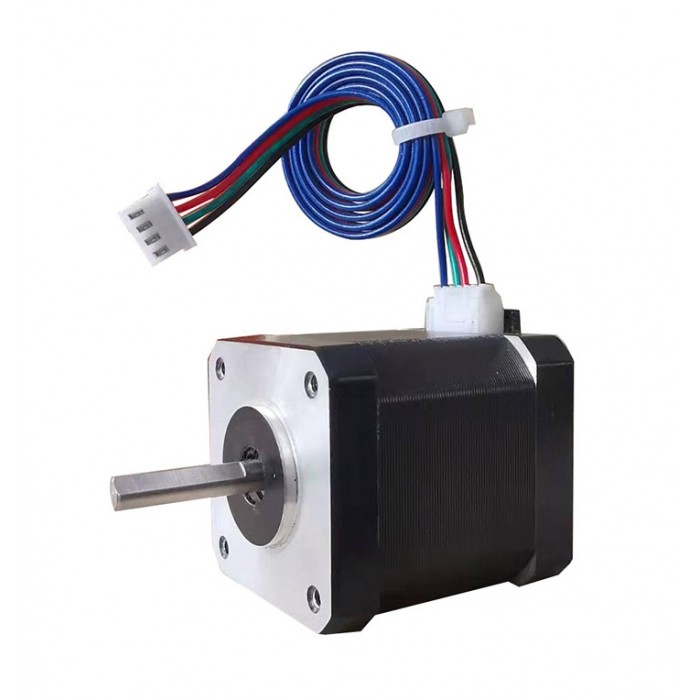

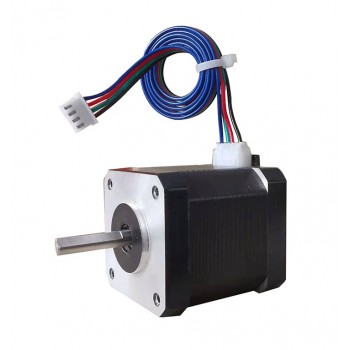

OUKEDA NEMA17 Stepper Motor 1.8 Deg 59Ncm(83.55 oz.in) 2A D-cut for 3D Printer
OUKEDA NEMA17 Stepper Motor 1.8 Deg 59Ncm(83.55 oz.in) 2A D-cut for 3D Printer
Electrical Specification
Manufacturer Part Number: 17HS8401
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 59Ncm(83.55 oz.in)
Phase Voltage:2.8V
Phase Current:2A
Phase Voltage: 12V
Use Voltage:12-36V
Phase Resistance: 1.4 ohms
Inductance: 3.0mH ± 20%(1KHz)

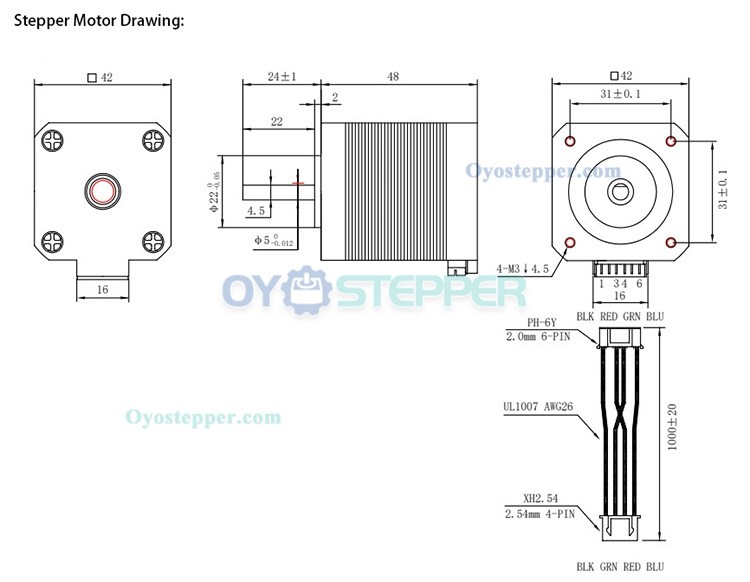

Physical Specification
Frame Size: 42 x 42mm
Body Length: 48mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 22mm
Number of Leads: 4
Lead Length: 300mm
Weight:400g;
.jpg "OUKEDA NEMA17 Stepper Motor 1.8 Deg 59Ncm(83.55 oz.in) 2A D-cut for 3D Printer")
.jpg "OUKEDA NEMA17 Stepper Motor 1.8 Deg 59Ncm(83.55 oz.in) 2A D-cut for 3D Printer")
.jpg "OUKEDA NEMA17 Stepper Motor 1.8 Deg 59Ncm(83.55 oz.in) 2A D-cut for 3D Printer")
| Physical Specification | |
|---|---|
| Frame Size(mm) | 42x42 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 48mm |
| Shaft Length(mm) | 24mm |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 400g |
| Product Type | Bipolar Stepper Motor |
| Electrical Specification | |
| Holding Torque (Ncm) | 59Ncm |
| Holding Torque (oz.in) | 83.55 oz.in |
| Phase Resistance(ohm) | 1.4 ohms |
| No. of Phase | 2 |
| Step Angle(deg.) | 1.8 deg |
| Open-loop/Closed-loop | Open-loop |
