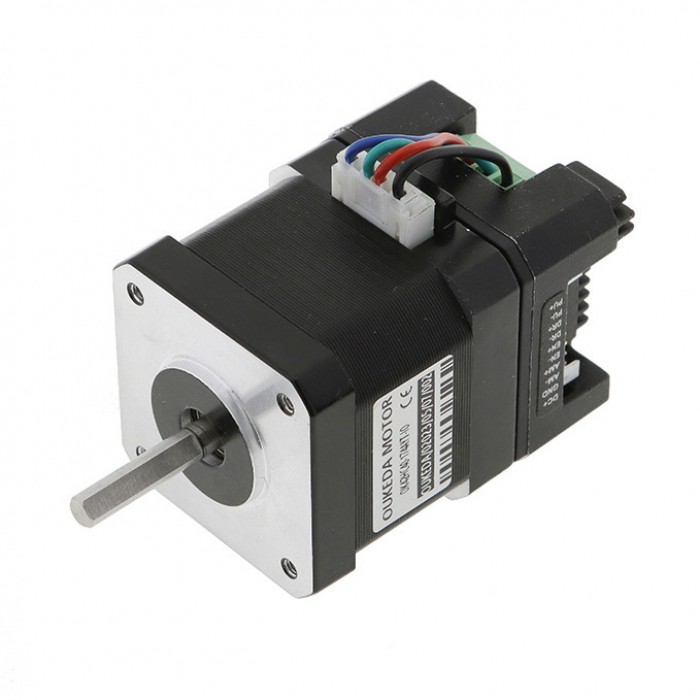

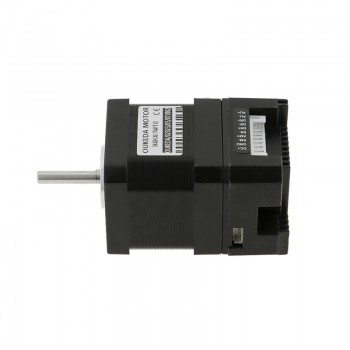

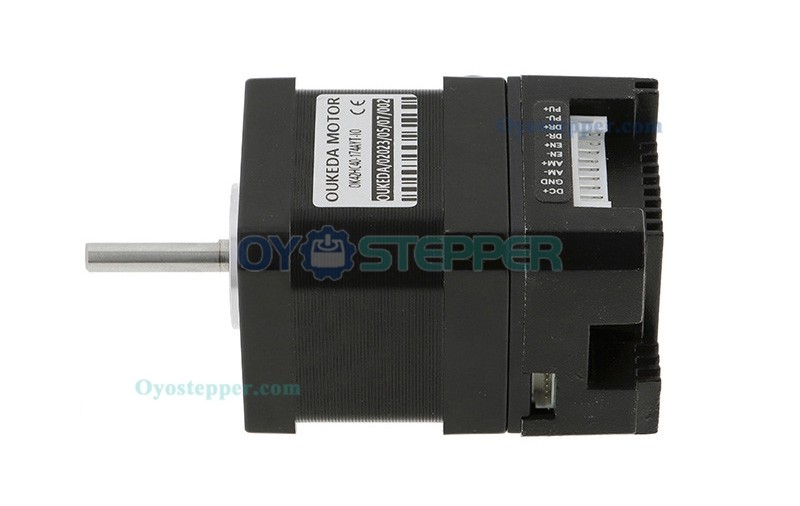

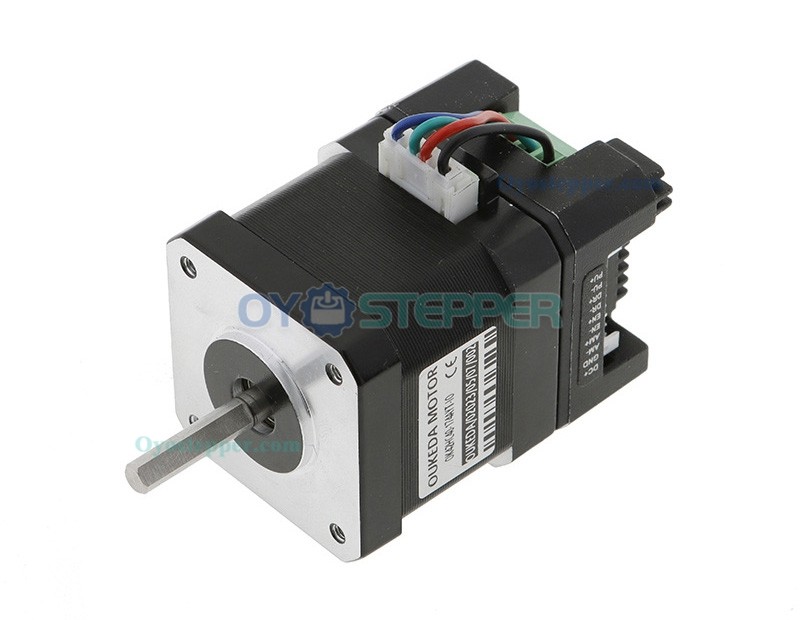

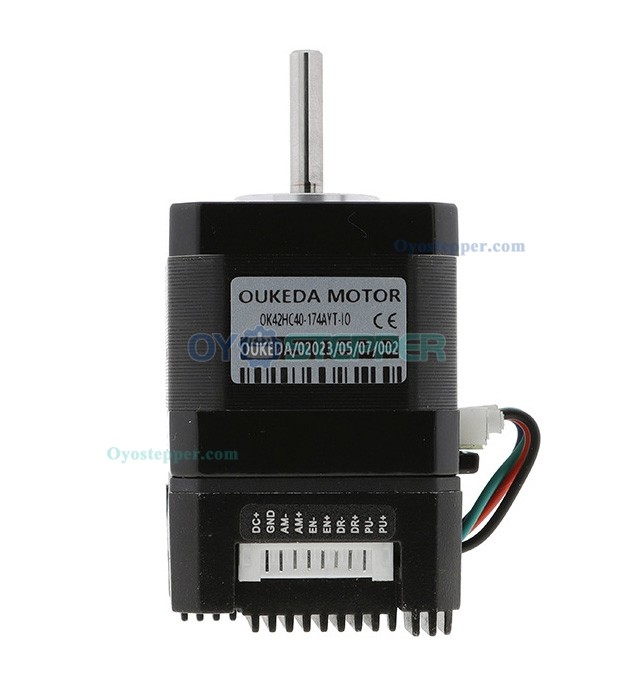

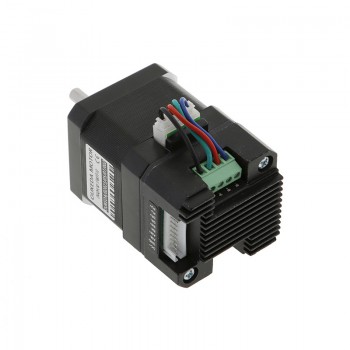

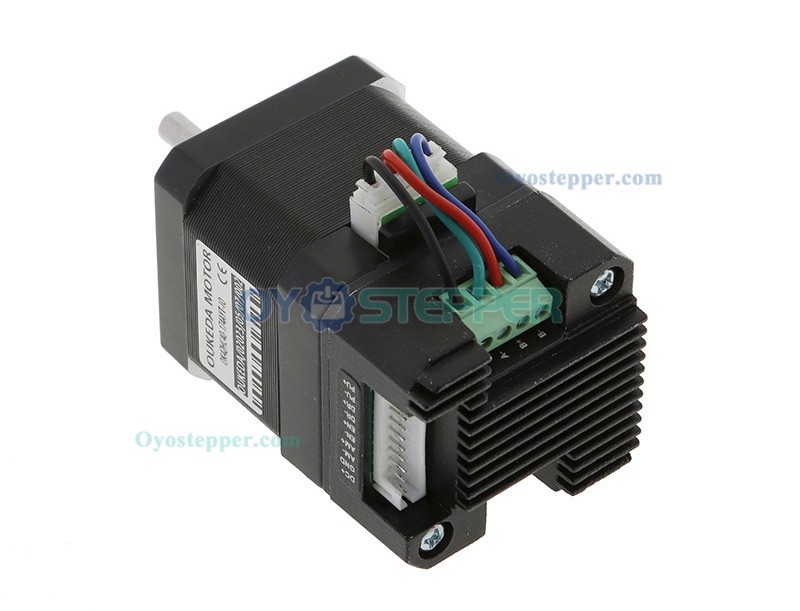

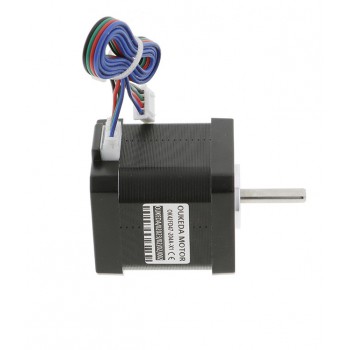

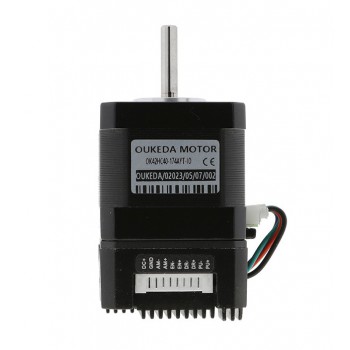

OUKEDA Integrated Nema 17 Stepper Motor with Controller 1.8 Deg 0.44Nm (62.30 oz-in) 1.68A 2 Phase 12-40VDC
OUKEDA Integrated Nema 17 Stepper Motor with Controller 1.8 Deg 0.44Nm (62.30 oz-in) 1.68A 2 Phase 12-40VDC
Models available:
Motor Length:34mm 32Ncm
Motor Length:40mm 45Ncm (default model)
Motor Length:48mm 55Ncm
Motor Length:60mm 75Ncm
Electrical Specifications:
Manufacturer Part Number: OK42HC40-174AYT-IO
Step Angle: 1.8 deg
Number of Phase:2
Phase Voltage:3.27VDC
Holding Torque: 44Ncm(62.30 oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.95 ohms
Inductance: 4.4 mH ± 20%(1KHz)

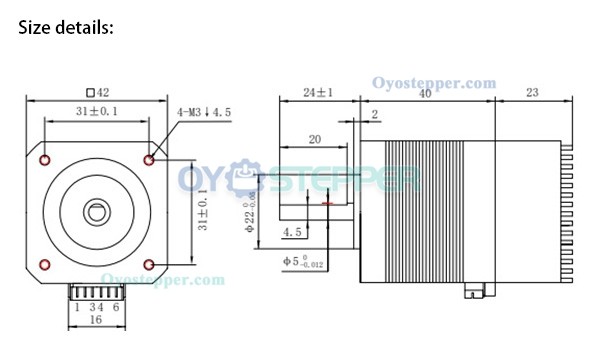

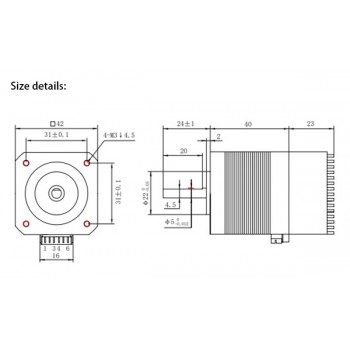

Physical Specifications:
Frame Size: 42 x 42 mm
Motor Length:40mm
Driver Length: 23 mm
Body Length:63mm
D-cut Length:20mm
Shaft Diameter: Φ5 mm
Shaft Length: 24 mm
Weight: 300g
Driver Specifications:
Output Peak Current: 0 - 2.1A
Input Voltage: 12 - 40 VDC
Speed control through pulse 200-25600 RPM
10 Swiching Control;
.jpg "OUKEDA Integrated Nema 17 Stepper Motor with Controller 1.8 Deg 0.44Nm (62.30 oz-in) 1.68A 2 Phase 12-40VDC")
.jpg "OUKEDA Integrated Nema 17 Stepper Motor with Controller 1.8 Deg 0.44Nm (62.30 oz-in) 1.68A 2 Phase 12-40VDC")
.jpg "OUKEDA Integrated Nema 17 Stepper Motor with Controller 1.8 Deg 0.44Nm (62.30 oz-in) 1.68A 2 Phase 12-40VDC")
.jpg "OUKEDA Integrated Nema 17 Stepper Motor with Controller 1.8 Deg 0.44Nm (62.30 oz-in) 1.68A 2 Phase 12-40VDC")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 63mm |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 5 mm |
| Shaft Length(mm) | 24 mm |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 300 |
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 44 |
| Holding Torque (oz.in) | 62.30 |
| Step Angle(°) | 1.8 |
| Motor Type | Integrated Stepper Motor |
| No. of Phase | 2 |
| Current(A) | 1.68A |
| Open-loop/Closed-loop | Open-loop |
