Nema 17 External Linear Actuator 1.8 Degree 1.68A 44Ncm(62.3oz.in) 2.8V Lead Screw 300mm

Nema 17 External Linear Actuator 1.8 Degree 1.68A 44Ncm(62.3oz.in) 2.8V Lead Screw 300mm
NO.:17LS19-1684E-300D
Post a review
Special Offer in July 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till July 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$47.72
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $45.33 5%
10 $44.38 7%
50 $42.95 10%
100 $41.52 13%
Add To Cart

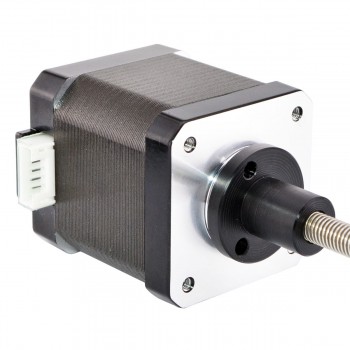

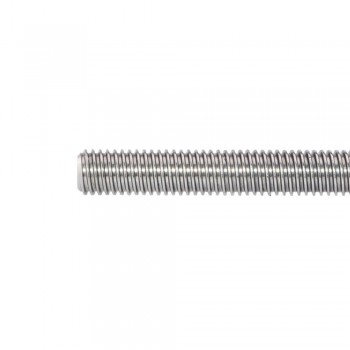

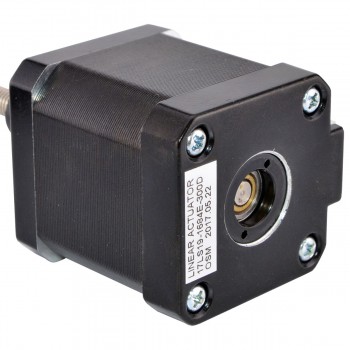

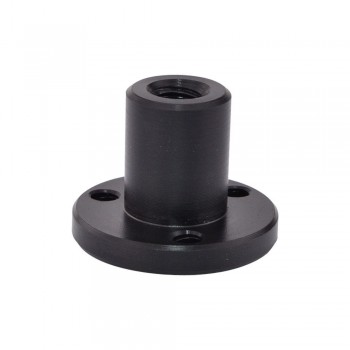

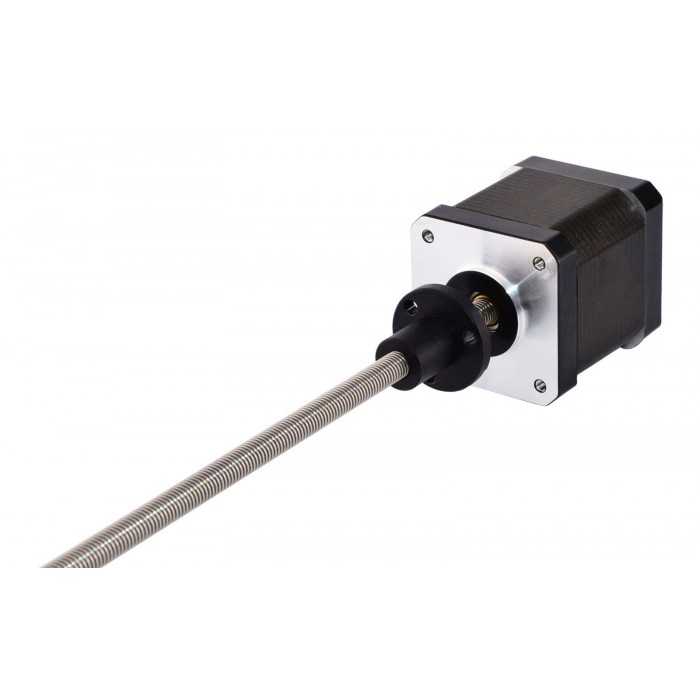

This model is economy linear stepper motor which named Nema 17 external linear actuator, the motor part is 48mm 1.8 degree 1.68A Nema 17 stepper motor. It was integrated with 300mm Tr6.35x2 threaded rod and a POM screw nut move along the threaded rod.

Electrical Specification

  • Manufacturer Part Number: 17LS19-1684E-300D
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 44Ncm(62.3oz.in)
  • Rated Current/phase: 1.68A
  • Phase Resistance: 1.65ohms
  • Voltage: 2.8V
  • Inductance: 3mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm
  • Lead Screw Length: 300mm(11.811")
  • Lead Screw Diameter: Φ6.35mm(0.25")
  • Lead /Step: 0.01mm(0.0003937" )
  • Lead/Revolution: 2mm(0.0787")
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight : 400g

Connection

A+
A-
B+
B-
Red
Brown
Yellow
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 External Linear Stepper Motor Bipolar 1.8 Deg 2.8V 1.68A 44Ncm(62.3oz.in) Lead Screw 200mm
Next: Nema 17 External Linear Actuator 1.8 Degree 1.68A 44Ncm(62.3oz.in) 2.8V Lead Screw 200mm
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 44
Holding Torque (oz.in) 62.3
Inductance(mH) 2.8
Motor Type External
Phase Resistance(ohm) 1.65
Rated Current (A) 1.68
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 48
Lead Screw Diameter(mm) 6.35
Lead Screw Length(mm) 300
Lead Revolution(mm) 2
Linear Travel / Step(mm) 0.01
No. of Lead 4
Lead Length(mm) 500
Frame Size(mm) Nema 17 (42 x 42)
