Nema 17 External 48mm Stack 1.68A Lead 2mm/0.07874" Length 200mm
Special Offer in June 2023:
- 5% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 10th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$39.75

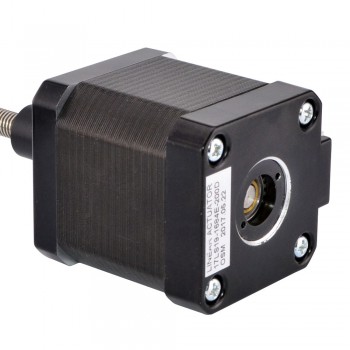

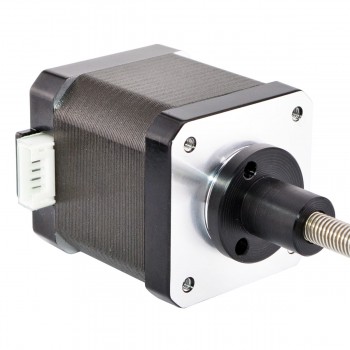

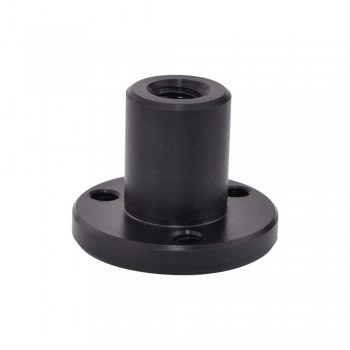

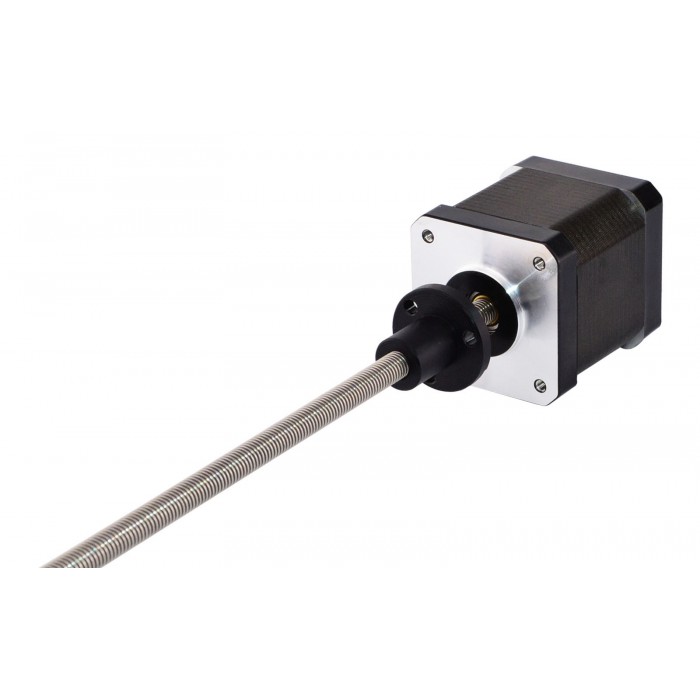

This model is economy linear stepper motor which named Nema 17 external linear actuator, the motor part is 48mm 1.8 degree 1.68A Nema 17 stepper motor. It was integrated with 200mm Tr6.35x2 threaded rod and a POM screw nut move along the threaded rod.
Electrical Specification
- Manufacturer Part Number: 17LS19-1684E-200D
- Motor Type: External Linear Stepper
- Step Angle: 1.8 deg
- Holding Torque: 44Ncm(62.3oz.in)
- Rated Current/phase: 1.68A
- Phase Resistance: 1.65ohms
- Voltage: 2.8V
- Inductance: 3mH ± 20%(1KHz)
Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 48mm
- Lead Screw Length: 200mm（7.874"）

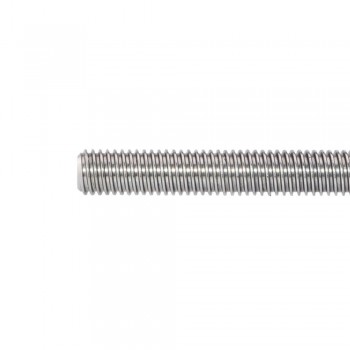

- Lead Screw Diameter: Φ6.35mm（0.25"）
- Lead /Step: 0.01mm(0.0003937" )
- Lead/Revolution: 2mm（0.0787"）
- Number of Leads: 4
- Lead Length: 400mm
- Weight : 400g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Brown
|
Yellow
|
Green
|
Resources
- Full Datasheet: 17LS19-1684E-200D.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 44 |
| Holding Torque (oz.in) | 62.3 |
| Inductance(mH) | 2.8 |
| Motor Type | External |
| Phase Resistance(ohm) | 1.65 |
| Rated Current (A) | 1.68 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 48 |
| Frame Size(mm) | 42x42 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Screw Length(mm) | 200 |
| Lead Revolution(mm) | 2 |
| Linear Travel / Step(mm) | 0.01 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
