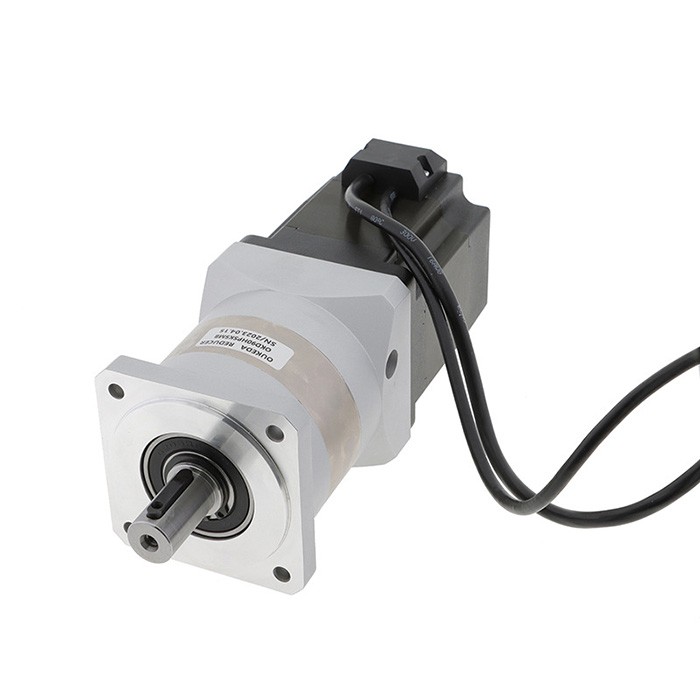

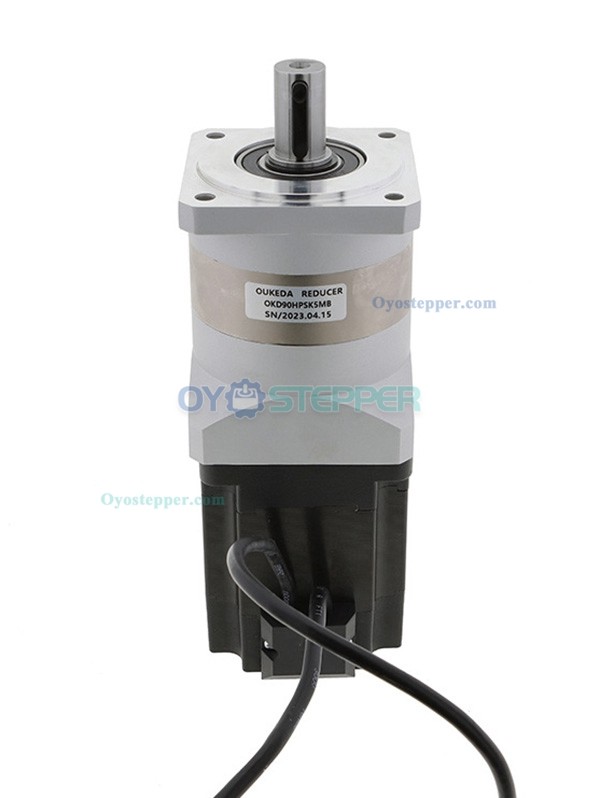

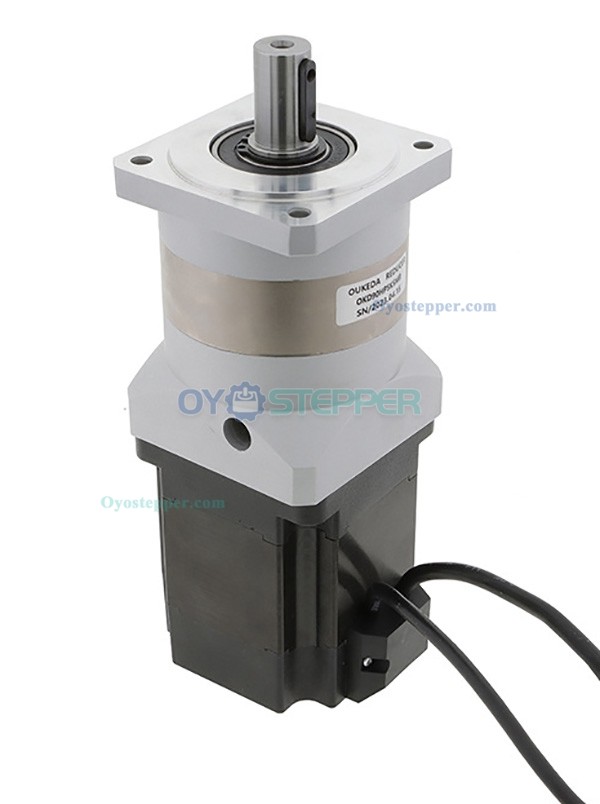

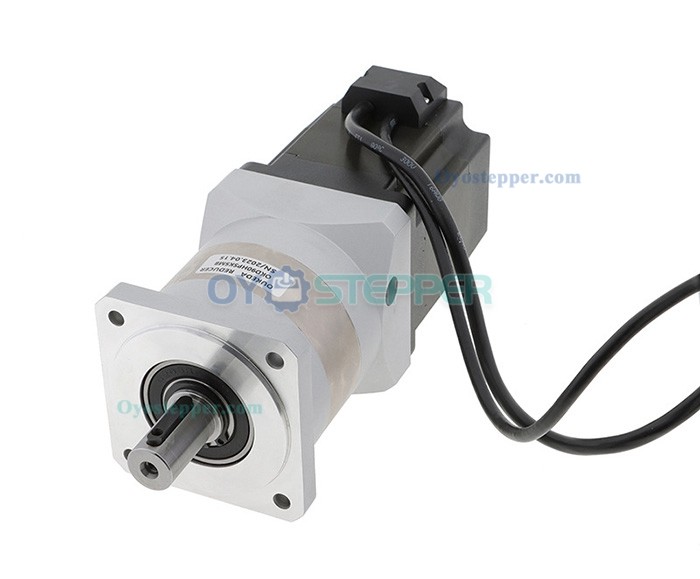

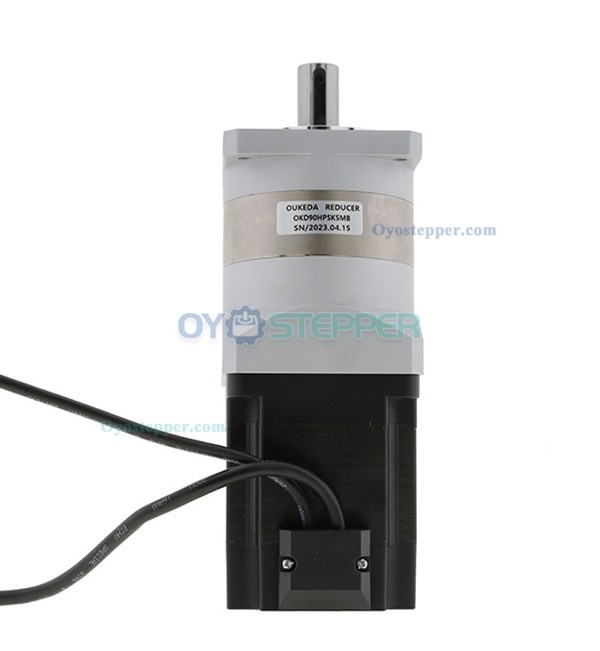

Oukeda NEMA 34 Stepper Motor with Planetary Gearbox Ratio 5:1/10:1/20:1/50:1 48V 3000RPM

Oukeda NEMA 34 Stepper Motor with Planetary Gearbox Ratio 5:1/10:1/20:1/50:1 48V 3000RPM
NO.:OK86BLS105-430A-SPL5G
Post a review
Our Price:$149.00

Quantity:- +

Add To Cart

Oukeda NEMA 34 Stepper Motor with Planetary Gearbox Ratio 5:1/10:1/20:1/50:1 48V 3000RPM



Stepper Motor Specification:

Manufacturer Part Number:OK86BLS105-430A-SPL5G

Number of Phase:3

Number of Poles:8

Step Angle: 1.8 deg

Rated Voltage:48V

Rated Current:0.6A

Rated Torque:180Ncm(254.90oz.in)

Phase Resistance: 6.5 ohms± 10%

Inductance: 1.7mH ± 20%(1KHz);

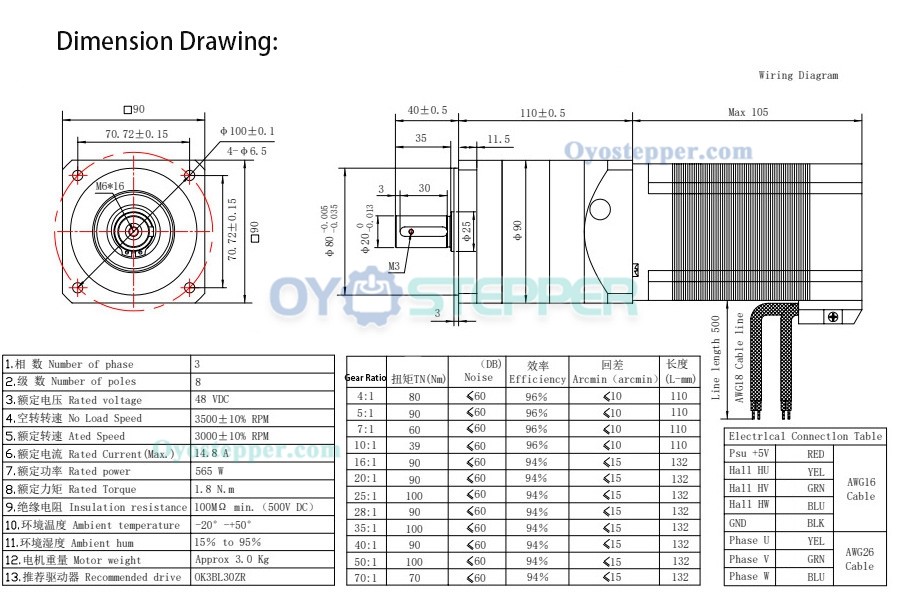

Physical Specification:

Frame Size: 86 x 86 mm

Body Length:105mm

Output Shaft Diameter: Φ20 mm

Output Shaft Length: 40 mm

Number of Leads: 8

Lead Length: 500 mm

Weight:3kg



Gearbox Specifications:

Gearbox Type: Planetary Gearbox

Gear Ratio: 5:1/10:1/20:1/50:1

Efficiency: 94%/96%

Backlash at No-load:<=10 arcmin/ <=15 arcmin

Noise: <=60dB

Waterproof Rating: IP54



Gearbox Physical Specifications:

Frame Size: 90 x 90 mm

Gearbox Length: 110 mm

Output Shaft Type: Keyway

Output Shaft Diameter: Φ20 mm

Output Shaft Length: 40 mm;



Oukeda NEMA 34 Stepper Motor with Planetary Gearbox Ratio 5:1/10:1/20:1/50:1 48V 3000RPM



Oukeda NEMA 34 Stepper Motor with Planetary Gearbox Ratio 5:1/10:1/20:1/50:1 48V 3000RPM



Oukeda NEMA 34 Stepper Motor with Planetary Gearbox Ratio 5:1/10:1/20:1/50:1 48V 3000RPM



Oukeda NEMA 34 Stepper Motor with Planetary Gearbox Ratio 5:1/10:1/20:1/50:1 48V 3000RPM



Oukeda NEMA 34 Stepper Motor with Planetary Gearbox Ratio 5:1/10:1/20:1/50:1 48V 3000RPM

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: JMC Nema 17 Integrated AC Servo Motor 78W 24V 0.185N.m(26.19 oz.in) 52000RPM 42 x 42mm
Next: JMC Nema 23 Integrated AC Servo Motor 100W 36V 0.29N.m 3.5A 3 Phase 3000RPM 57 x 57mm
Gearbox Specification
Shaft Type Keyway
Efficiency 94% / 96%
Gear Ratio 5:1 / 10:1 / 20:1 / 50:1
Gearbox Type Planetary Gearbox
Backlash at No-load(Max.°) <=10 arcmin / <=15 arcmin
Electrical Specification
Holding Torque (Ncm) 180
Holding Torque (oz.in) 254.90
No. of Phase 3
Step Angle(deg.) 1.8
Rated Voltage(V) 48
Current(A) 0.6
