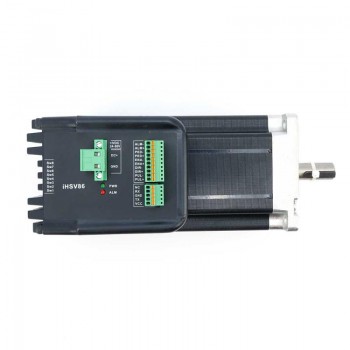

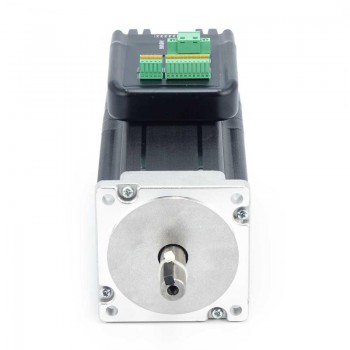

JMC NEMA 34 Integrated AC Servo Motor 660W 2.03N.m 3000RPM 72V 13.1A 86x86mm

JMC NEMA 34 Integrated AC Servo Motor 660W 2.03N.m 3000RPM 72V 13.1A 86x86mm

The iHSV86-XX is an integrated AC servo motor with a built-in servo drive. It utilizes DSP-based vector control and operates in a full closed‑loop digital control architecture. Three adjustable feedback control loops are included: position, speed, and current.

Specifications:

Integrated AC servo drive and motor

DSP-based vector control

Full closed-loop control

Digital control architecture

Adjustable position, speed, and current loops;

Electrical Specifications:

Manufacturer Part Number: IHSV86-30-66-72

Number of Phase:3

No-load Speed: 4200RPM +/- 7%

Rated speed: 3000RPM +/- 7%

Rated torque: 2.03N.m(287.47 oz.in)

Rated Voltage:72V

Rated Current:13.1A

Power: 660W

Insulation Class:B;

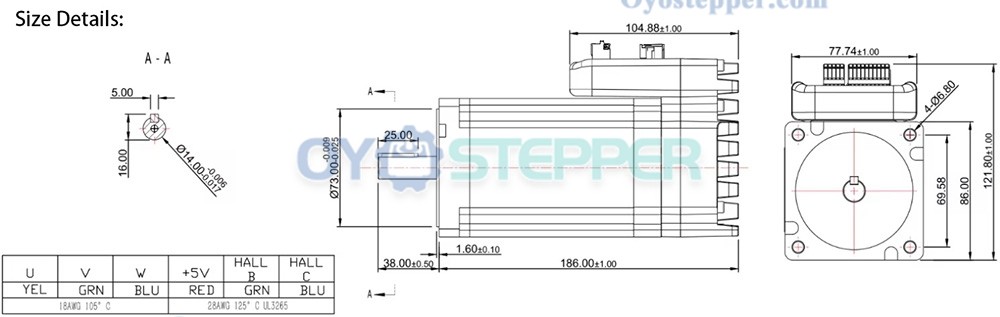

Physical Specifications:

Frame Size: 86 x 86mm

Body Length: 186 mm

Shaft  Length:38 mm

Shaft Diameter: Φ14 mm

Keyway Length: 25 mm

Weight: 4.5kg;

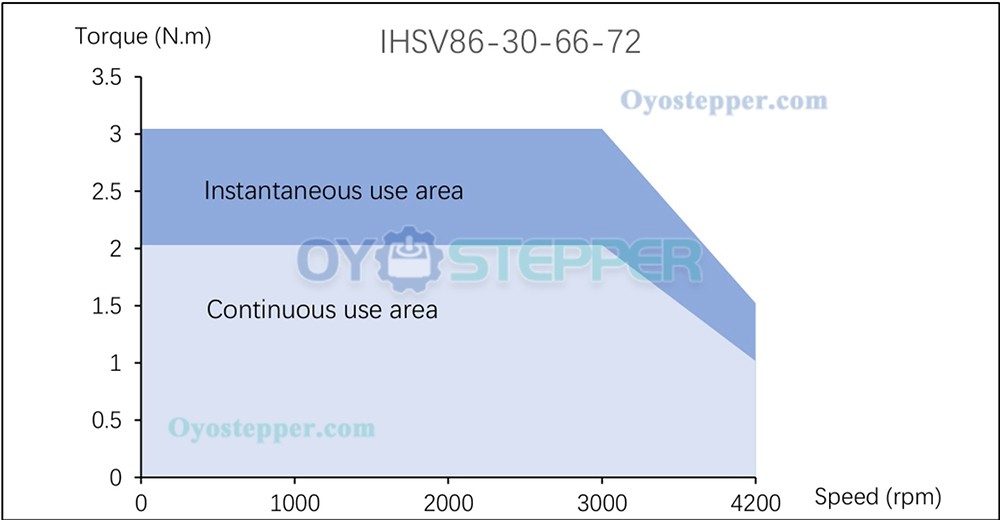

Torque diagram:

Note:If need software for this integrated servo motor ,please leave message.
