RV063 Round Worm Gearbox Speed Reducer Ratio 7.5:1 10:1 15:1 20:1 30:1 Input 19mm/24mm 80B5/90B14

RV063 Round Worm Gearbox Speed Reducer Ratio 7.5:1 10:1 15:1 20:1 30:1 Input 19mm/24mm 80B5/90B14

Features:

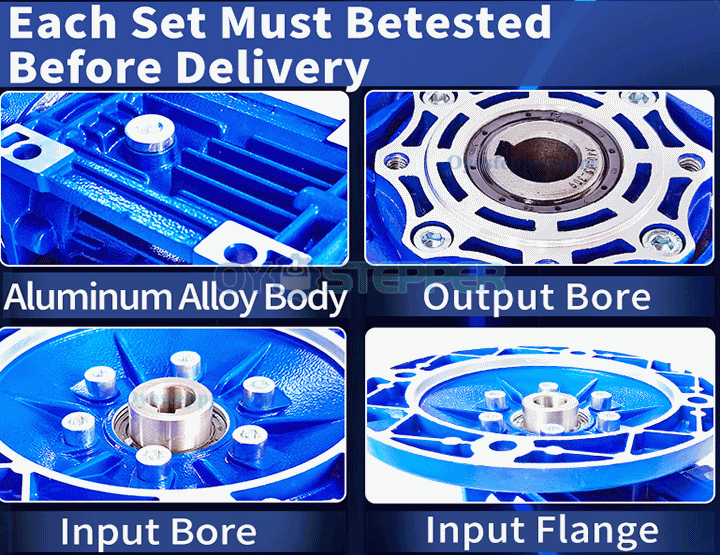

The body is made of aluminium alloy, which is stable and durable.

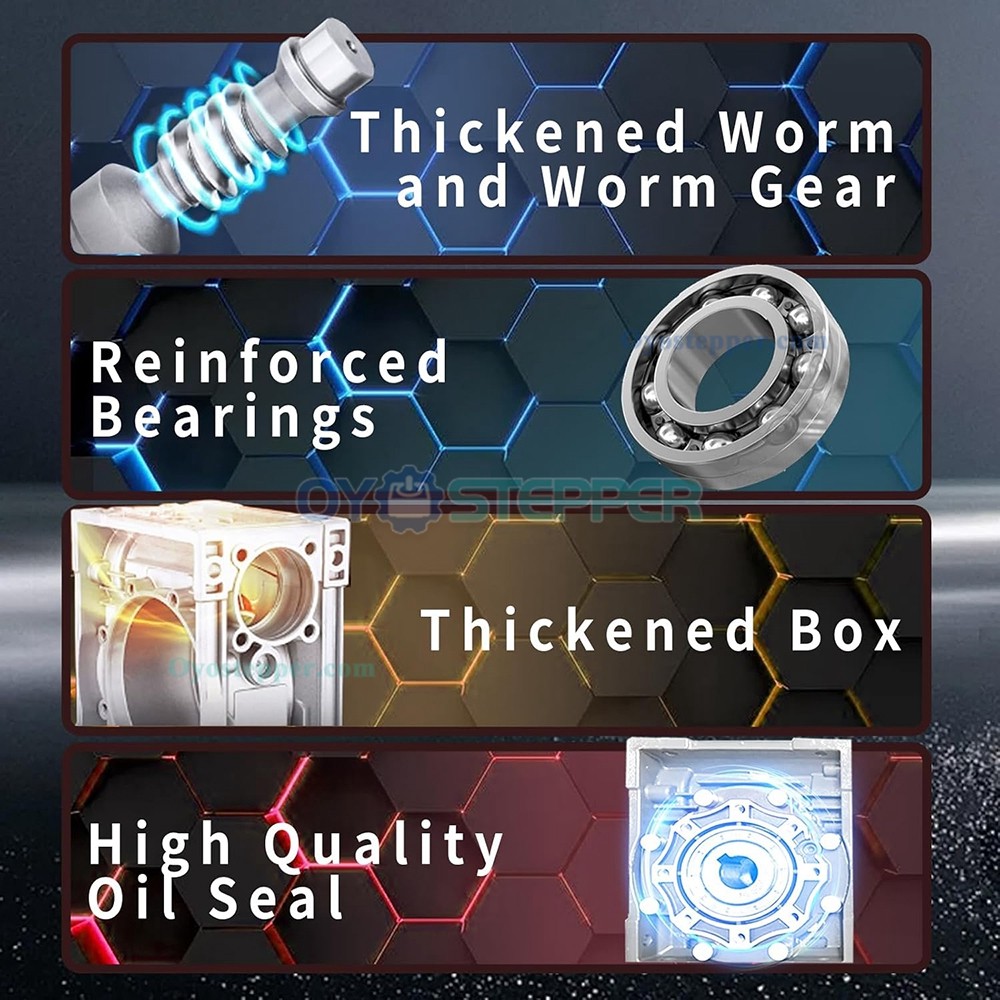

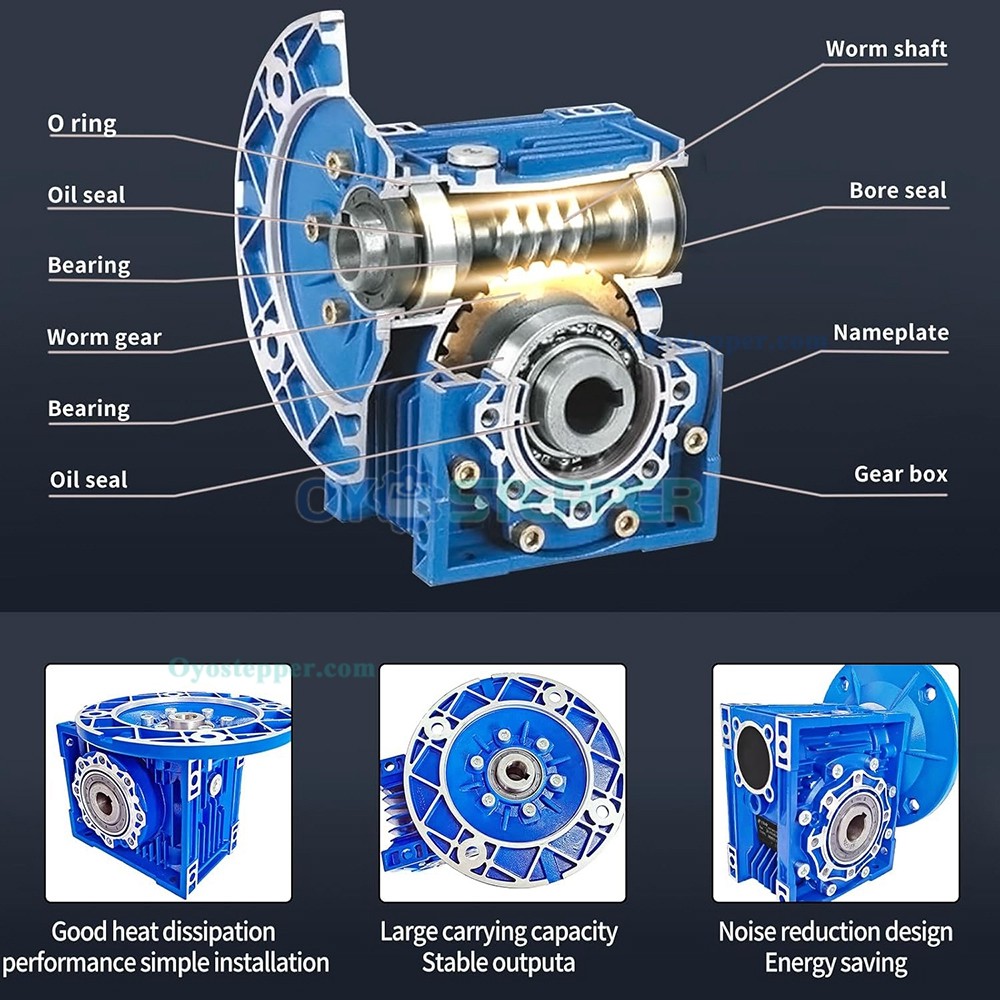

Inside the fuselage, using metal gears, running smoothly and quite-quiet, durable.

Each product has undergone rigorous inspection, stable transmission, low noise.

Different from the traditional way, sprocket-free, pulley, transmission structure, no leakage, reduce the injury of workers.

Waterproof, dustproof, reducer protection, etc. IP55, effective isolation for dust and moisture.

Compared to traditional machines, we are small and light, and can carry different accessories.

Applications:

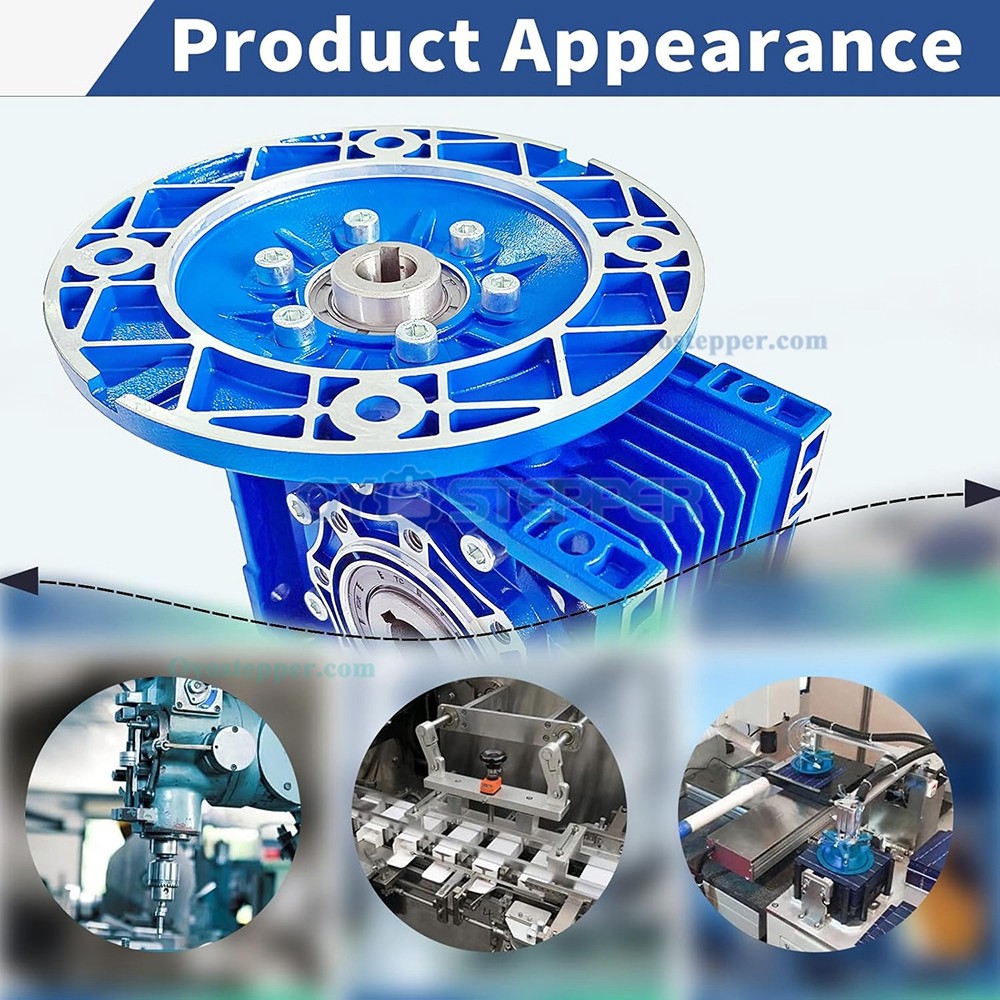

Gearboxes are widely used in industries such as automotive, robotics, heavy machinery, wind turbines, and manufacturing equipment, where precise speed reduction and torque amplification are necessary.

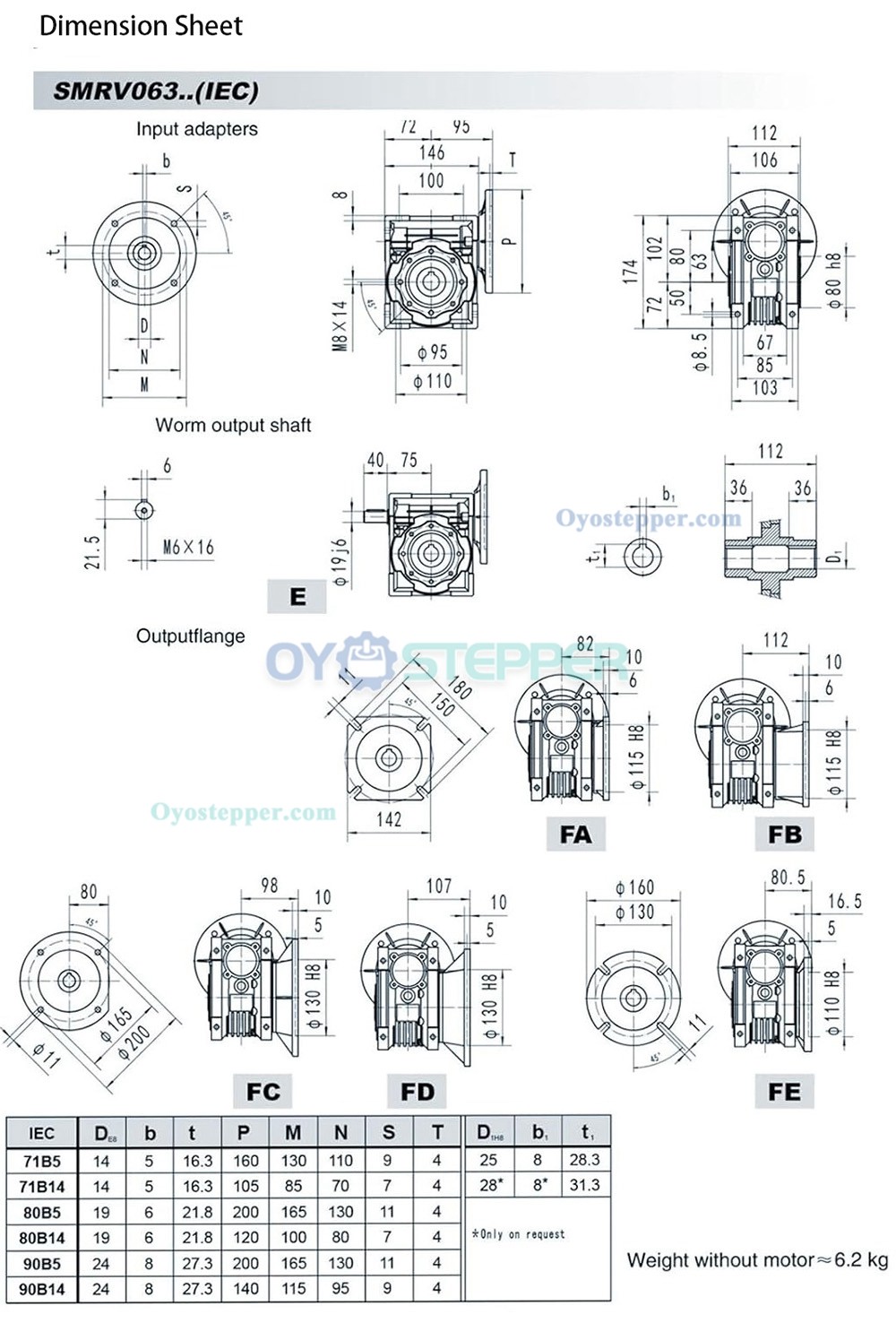

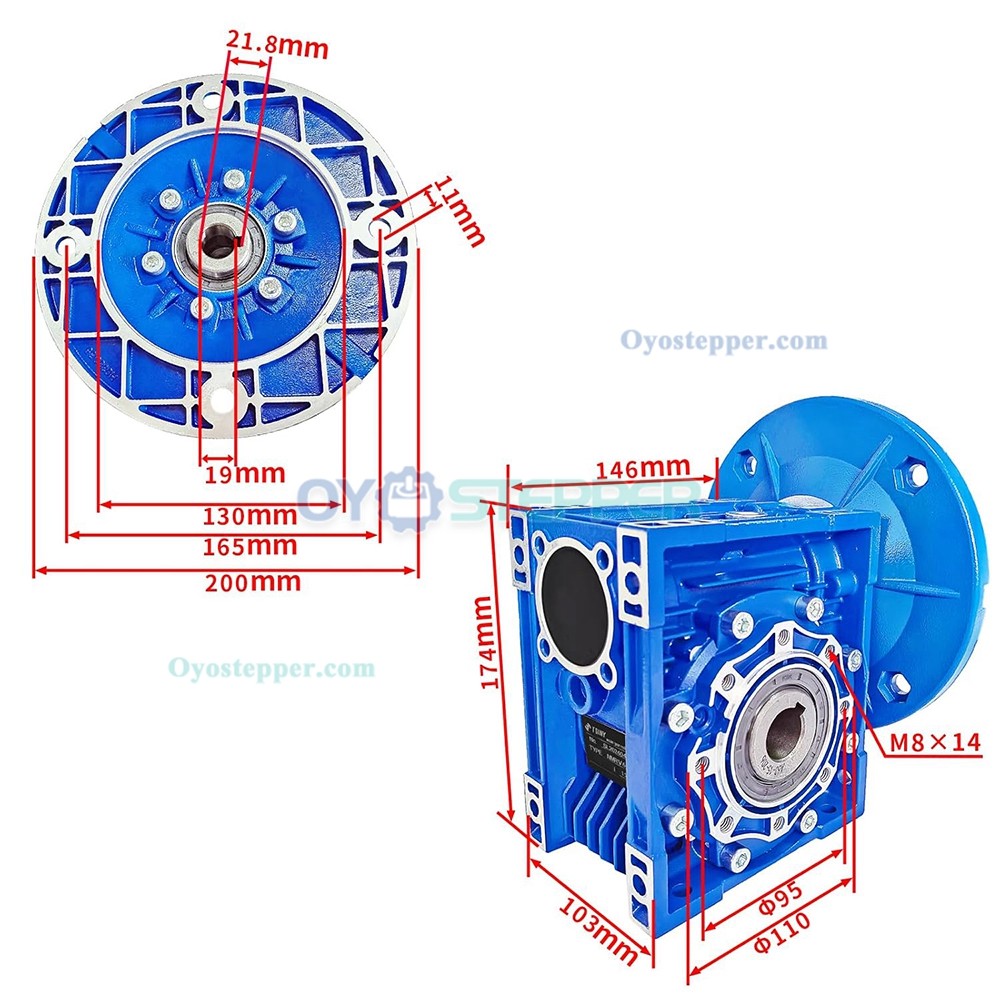

RV063-80B5 Specifications:

Model: RV063-80B5

Input Flange Model:80B5

Input bore diameter:19mm

Output bore diameter:25mm

Reduction ratio: 7.5:1,10:1,15:1,20:1,25:1,30:1

Reducer can be positive and reverse operation.

Weight:3.5kg;

RV063-90B14 Specifications:

Model: RV063-90B14

Input Flange Model:90B14

Input bore diameter:24mm

Output bore diameter:25mm

Reduction ratio: 7.5:1,10:1,15:1,20:1,25:1,30:1

Reducer can be positive and reverse operation.

Weight:6.2kg

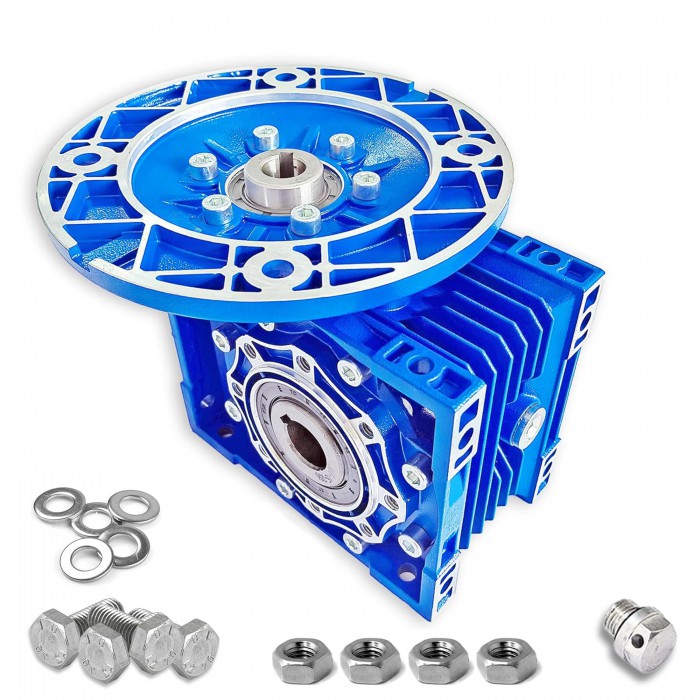

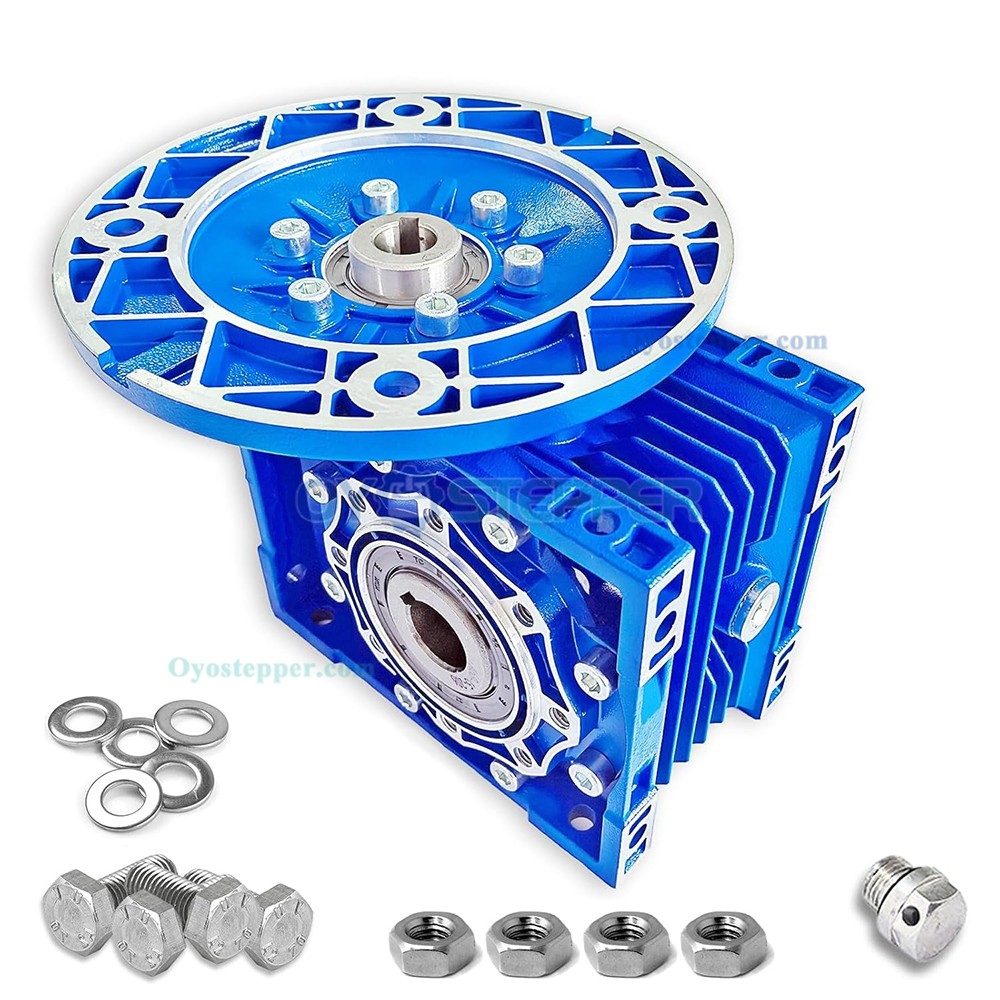

Package included:

1x Gearbox Speed Reducer;
