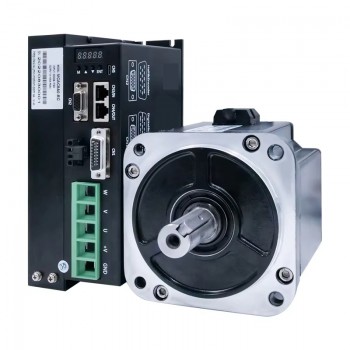

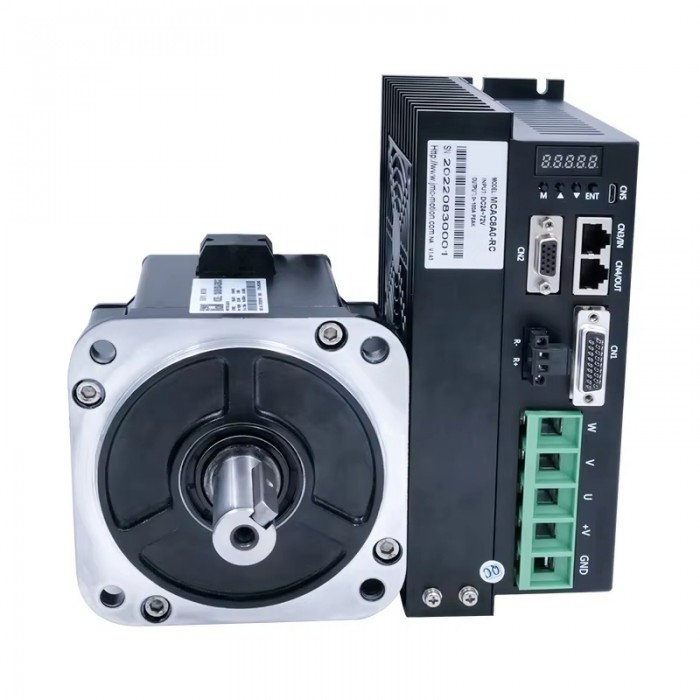

1500W DC Servo Motor & Driver Kit 48V 4.78Nm 3000RPM with 2500 Lines Magnetic Encoder

1500W DC Servo Motor & Driver Kit 48V 4.78Nm 3000RPM with 2500 Lines Magnetic Encoder

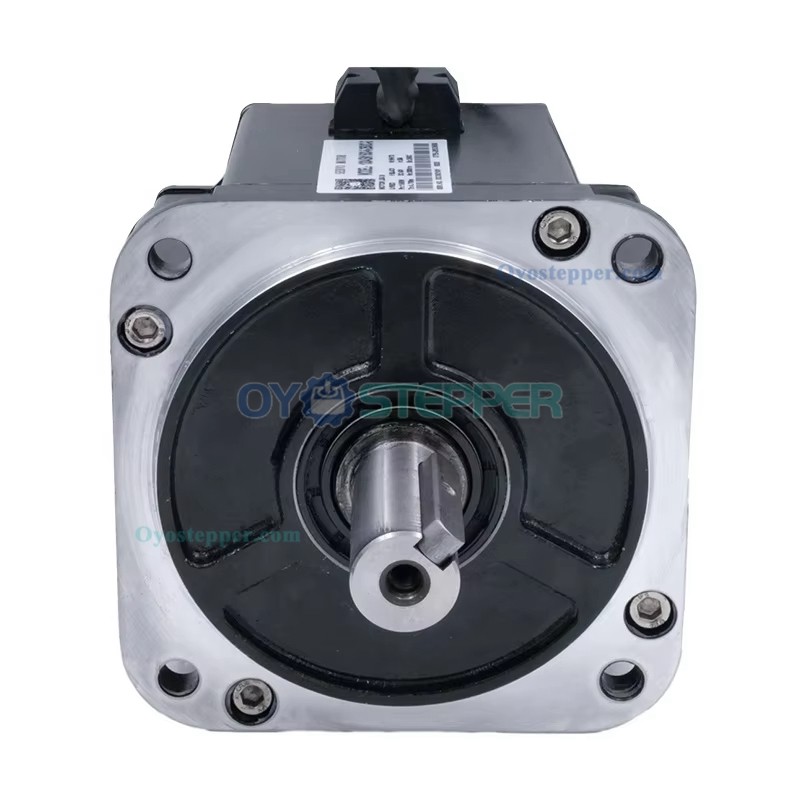

Servo Motor Specifications:

Electrical Parameters:

Model: 130ASM1500‑5‑2500C

Supply Voltage: 48V

Rated Power: 1500W

Rated Torque: 4.78 Nm (676.90 oz·in)

Peak Torque: 14.3 Nm

Rated Speed: 3000 RPM

Maximum Speed: 3500 RPM

Rated Current: 37 A

Maximum Current: 74 A

Motor Pole Pairs: 5

Rotor Inertia: 11.2 × 10⁻⁴ kg·m² (11.2 × 10⁻² kg·cm²)

Encoder Type: 2500‑line magnetic encoder

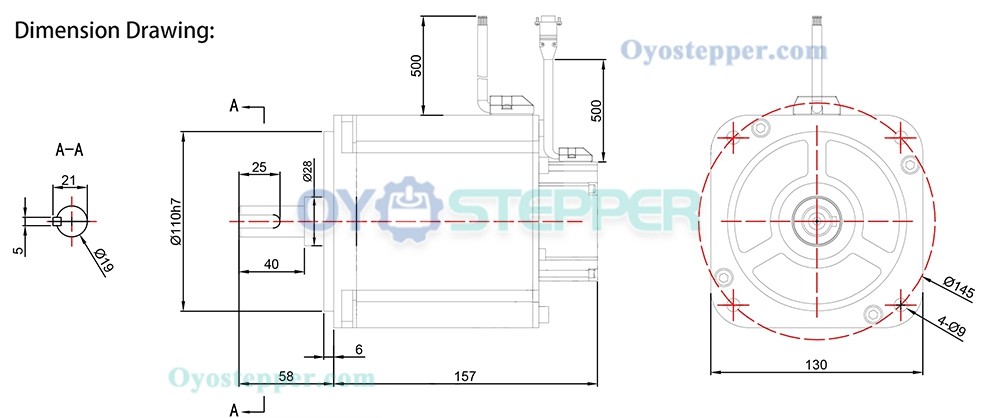

Mechanical Parameters

Frame Size: 130 × 130 mm

Body Length: 215 mm

Shaft Diameter: 19 mm

Shaft Length: 58 mm

Keyway Length: 25 mm

Weight: 6 kg

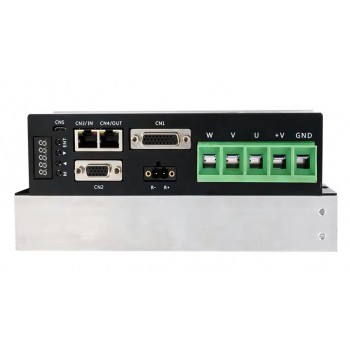

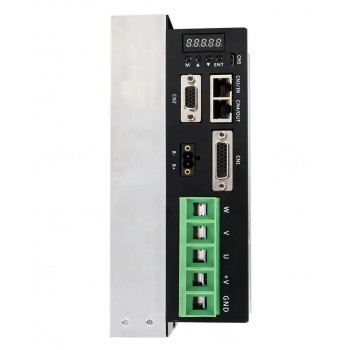

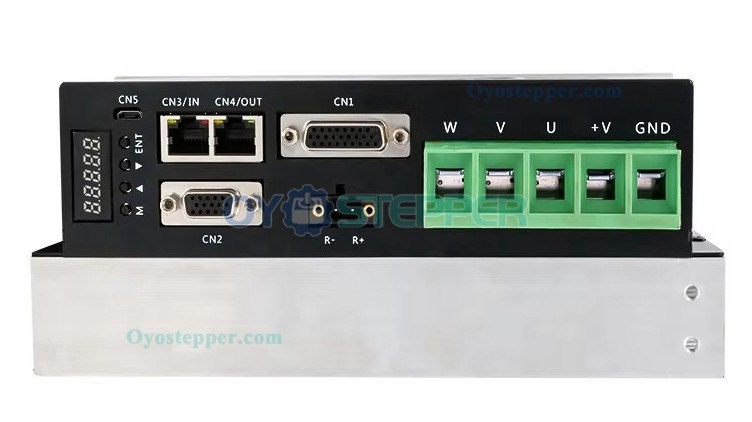

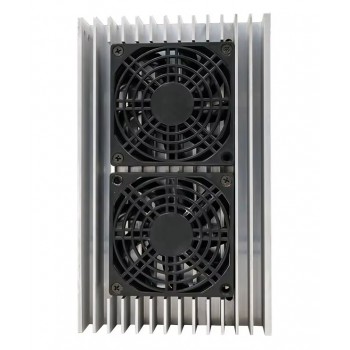

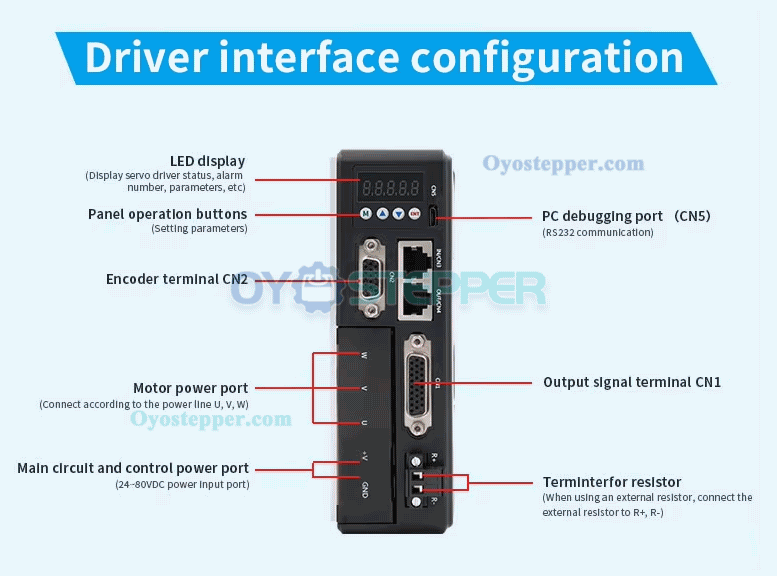

MCAC8A0 Digital Servo Driver Controller 3 Phase 24-110V 100A 1000W for 110/130mm Servo Motor

Features:

Fully closed‑loop control with configurable position, speed, and current loops;

Motor winding short‑circuit protection;

Over‑current, overload and over‑speed protection;

Encoder disconnection detection;

Multiple control input modes;

Opto‑isolated servo reset input (ERC);

Current loop bandwidth: 2 kHz (typical);

RS232C interface for parameter configuration via PC or text display;

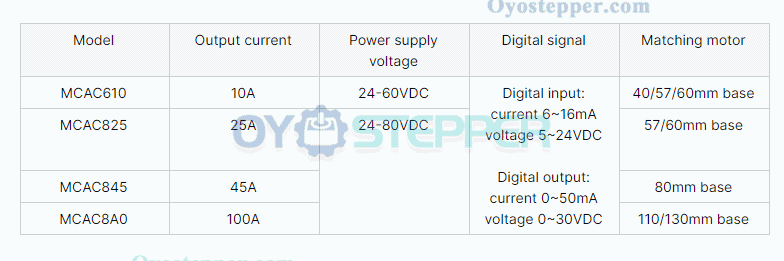

Servo Driver Specifications:

Part Number: MCAC8A0

Phase: 3

Input Voltage: 24–110 V

Input Current: 100 A

Output Voltage: 100 V

Rated Power: 1000 W

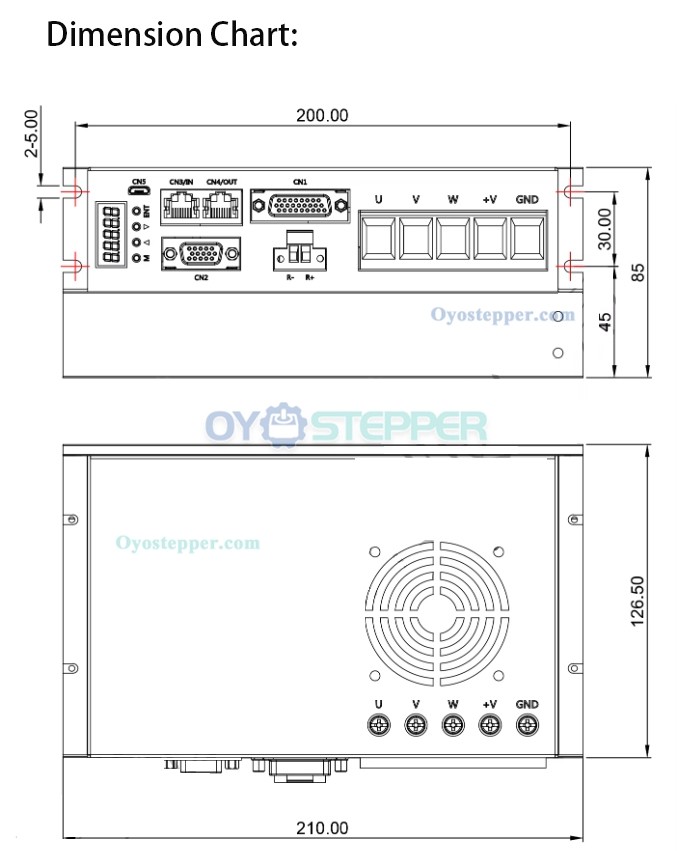

Dimensions: 210 × 126.5 × 85 mm

Compatible Motor Frame: 110 mm / 130 mm

Weight: 2.5 kg
