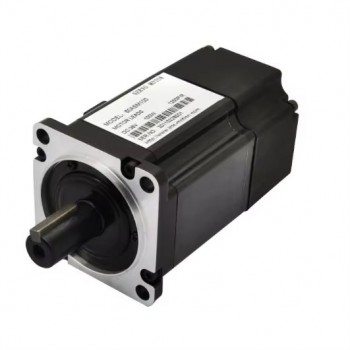

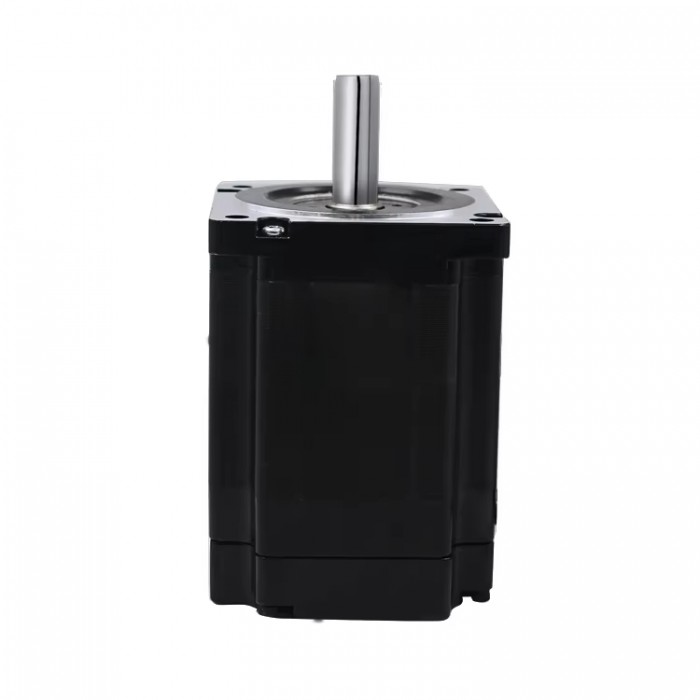

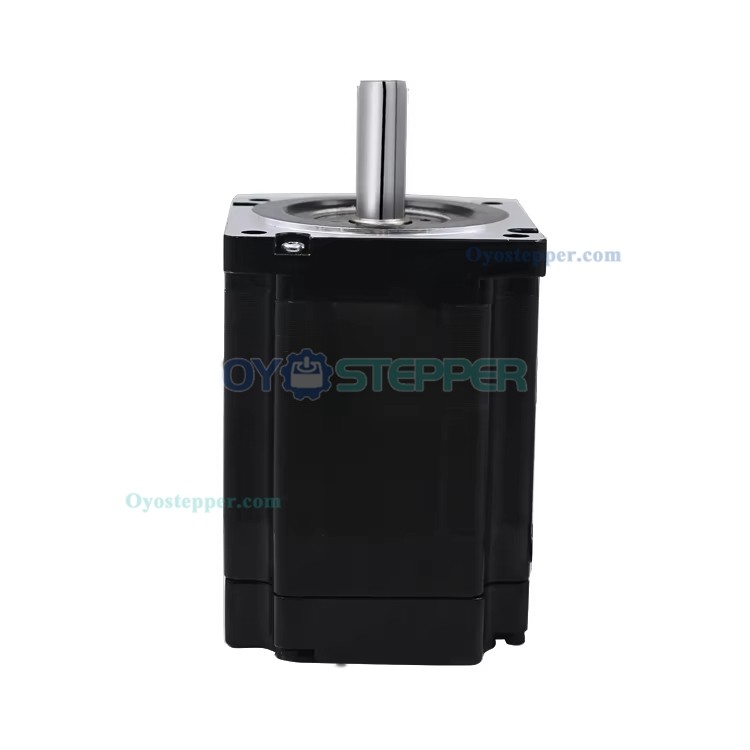

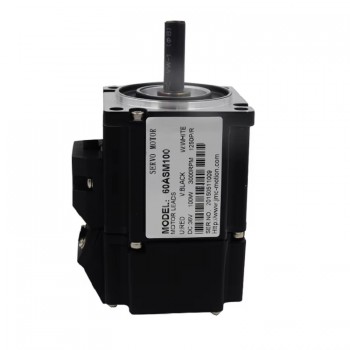

100W 36V 4.0A 0.318N.m 3000 RPM DC Servo Motor with 2500 Lines Encoder 60 x 60mm

100W 36V 4.0A 0.318N.m 3000 RPM DC Servo Motor with 2500 Lines Encoder 60 x 60mm

Servo Motor Specification:

Part Number:60ASM100

Phase:3 Phase

Power Supply Voltage:36V

Rated Power:100W

Rated Torque:0.318N.m(45.03 oz.in)

Peak Torque:0.955N.m

Rated Speed: 3000 RPM

Rated Current:4.0A

Max Current:20A

Resistance:3.03*10-3 V/RPM

Torque coefficient:0.0866 N.M/A

Rotor inertia(10^-4kg*cm²):0.58

Encoder:2500 Line;

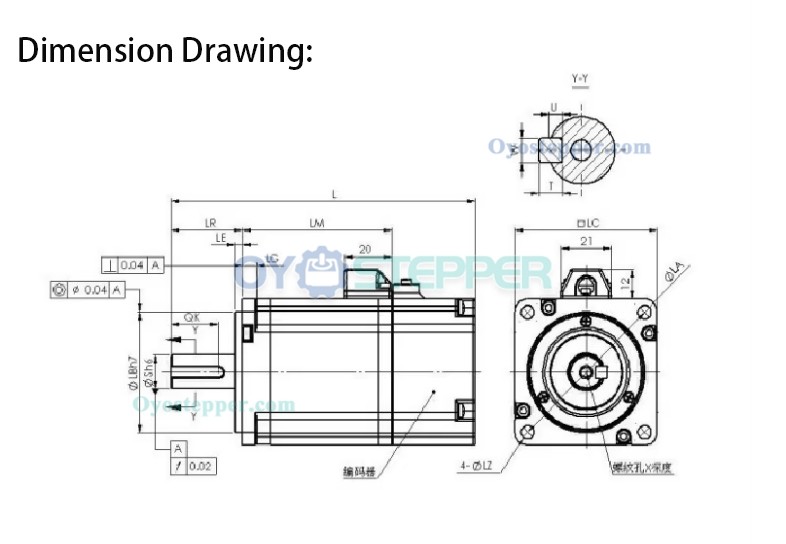

Physical Specifications:

Frame Size:60 x 60mm

Body Length:110mm

Shaft Diameter:8mm

Shaft Length:30mm

Weight:0.7kg;
