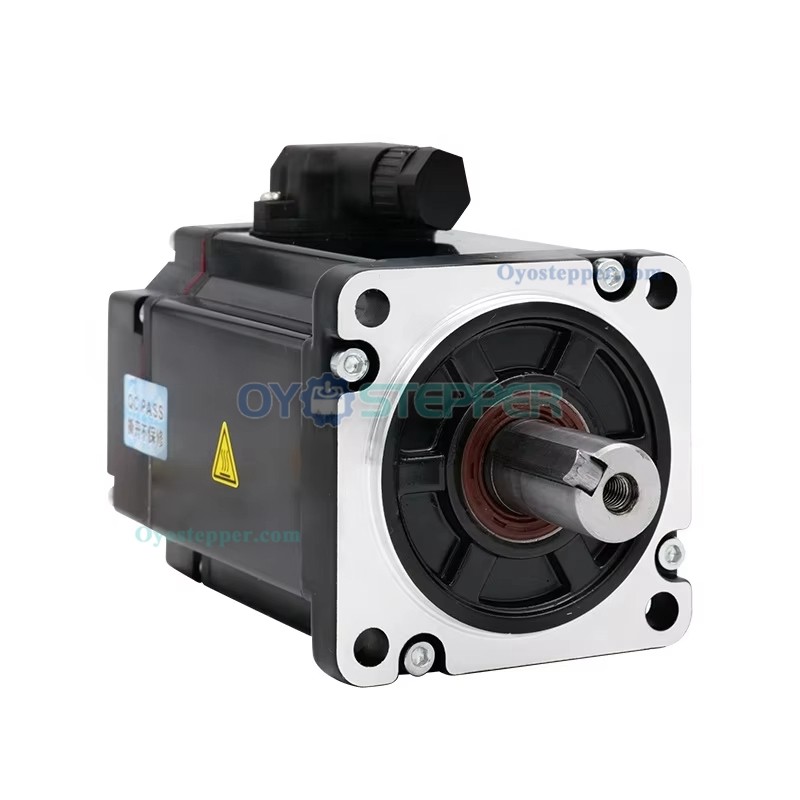

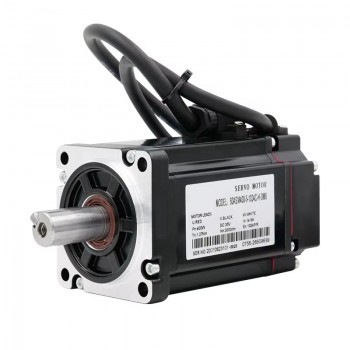

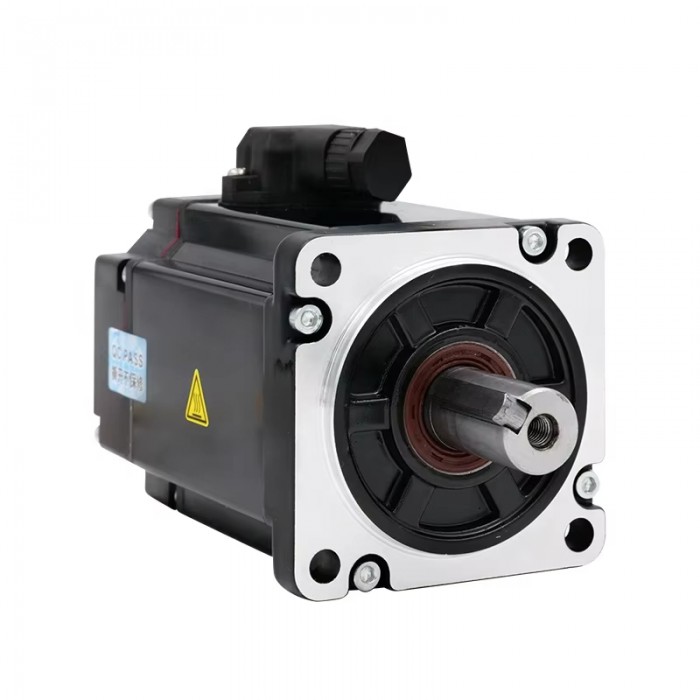

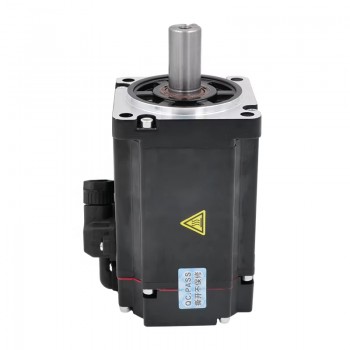

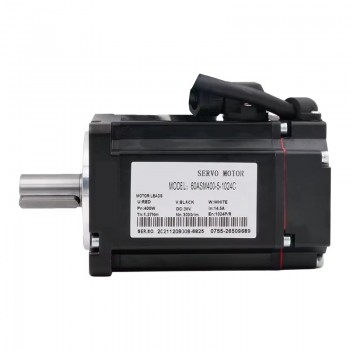

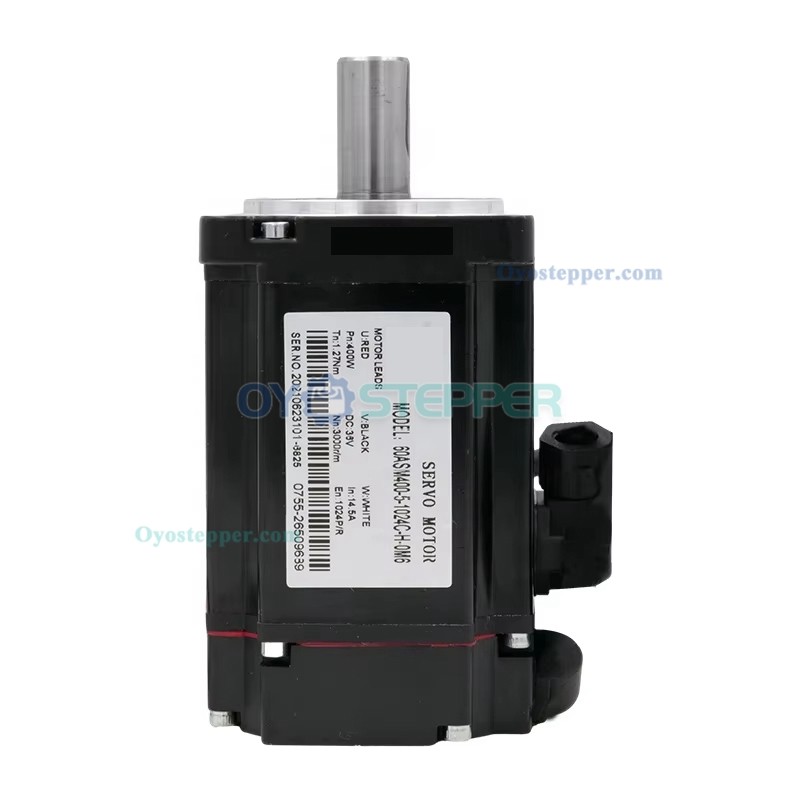

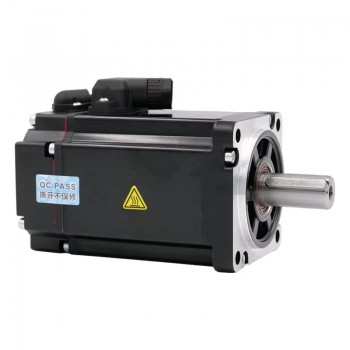

400W 48V 1.27N.m DC Servo Motor with 1024 Lines Magnetic Encoder 60 x 60mm
400W 48V 1.27N.m DC Servo Motor with 1024 Lines Magnetic Encoder 60 x 60mm
Servo Motor Specification:
Part Number:60ASM400-5-1024C
Power Supply Voltage:48V
Rated Power:400W
Rated Torque: 1.27N.m(179.84 oz.in)
Peak Torque:3.8Nm
Rated Speed: 3000 RPM
Max Speed: 3500 RPM
Rated Current:10A
Max Current:20A
Motor pole pairs:5
Rotor inertia(10^-4kg*cm²):0.58
Encoder:1024 lines magnetic encoder;

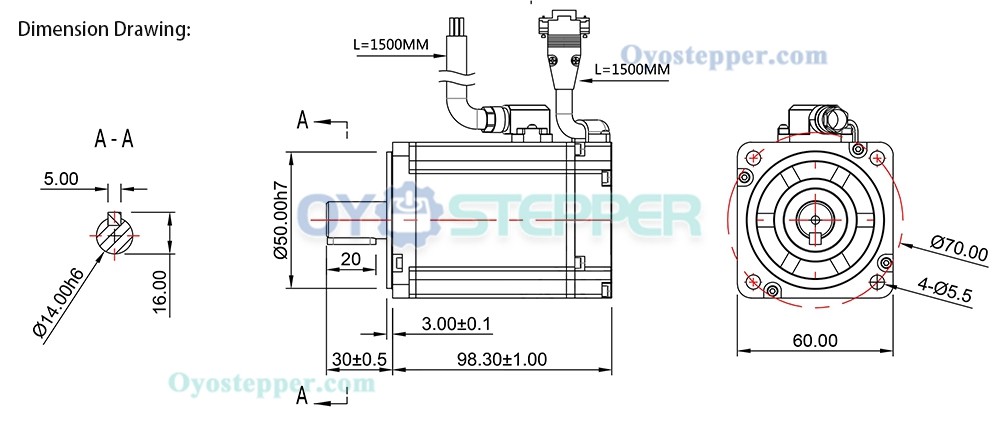

Physical Specifications:
Frame Size:60 x 60mm
Body Length:128mm
Shaft Diameter:14mm
Shaft Length:30mm
D-cut Length:20mm
Weight:3.5kg;
.jpg)
.jpg)
(1).jpg)
| Servo Motor Specification | |
|---|---|
| Rated Current | 20 |
| No-load Speed | 3500 |
| Power supply voltage | 48 |
| Encoder | 1024 lines |
| Motor Base | 60 x 60 |
| Servo Motor Type | DC Servo Motor |
| Rated Power(W) | 400 |
| Rated Speed(rpm) | 3000 |
| Rated Torque(Nm) | 1.27 |
| Peak Torque(Nm) | 3.8 |
| With Brake | Without brake |
Berke Tirpan – 12 Feb 2026
I am interested in your 400W 48V 60×60mm DC servo motor (3000 rpm, 1.27 Nm) listed on your website. Before placing an order, I would like to review the detailed technical specifications.
Could you please provide the following information?
1) Complete torque–speed curve (continuous and peak clearly indicated)
2) Torque constant (Kt, Nm/A) and back-EMF constant (Ke, V/krpm)
3) Phase resistance and phase inductance (R and L values)
4) Rated current and peak current clarification (there appears to be different values on the product page)
5) Thermal specifications (maximum winding temperature, allowable case temperature, continuous torque conditions)
6) Encoder details (output type ABZ/UVW, signal level TTL or RS422, resolution confirmation, wiring diagram)
7) IP rating and bearing specifications
If available, please also share the full datasheet and 2D/3D mechanical drawings.
Thank you in advance for your support. I look forward to your response.
Thanks for your message.
I have sent an email to you, would you please check it?
