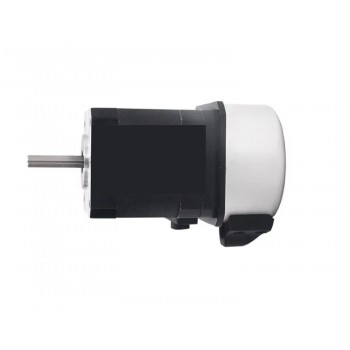

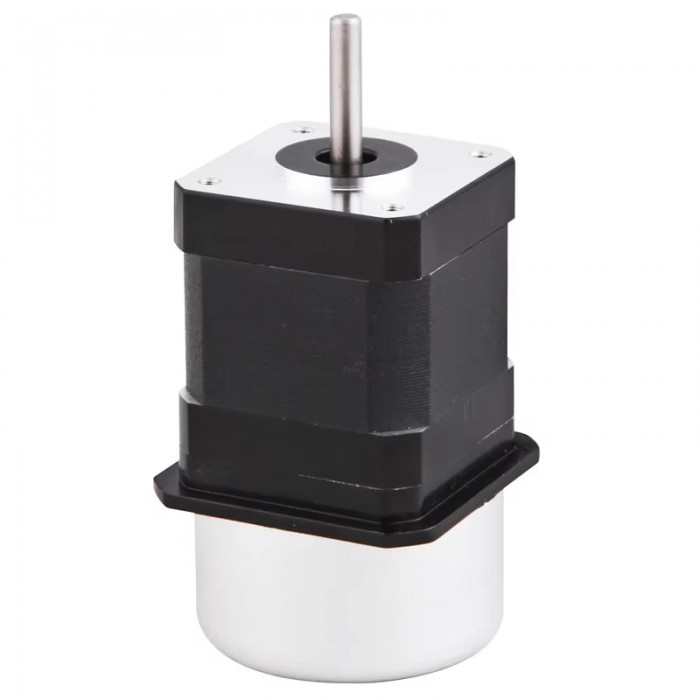

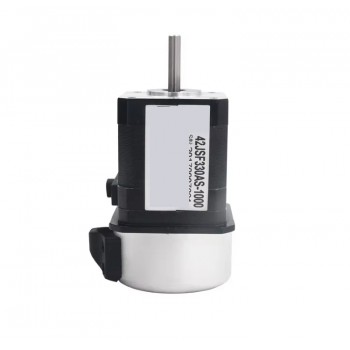

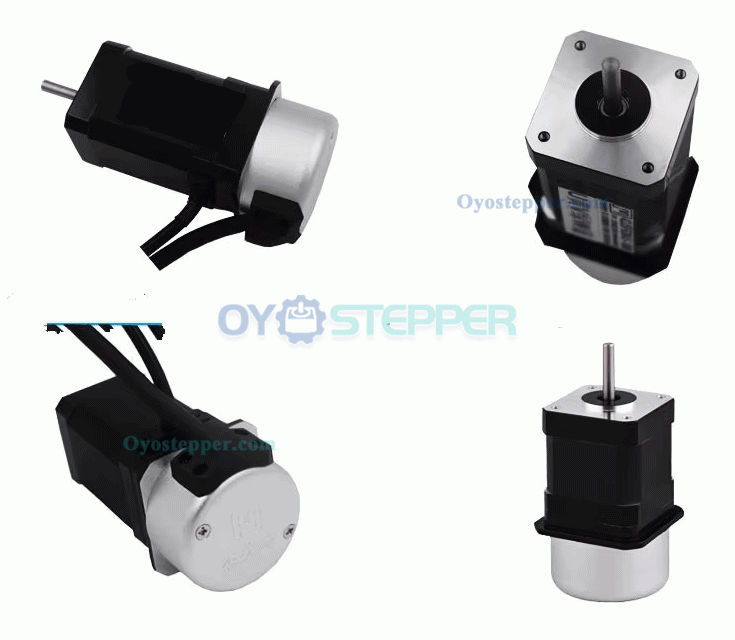

64W 24V 3.13A 0.2N.m 3000 RPM Brushless DC Servo Motor with1000 Lines Encoder 42 x 42mm

64W 24V 3.13A 0.2N.m 3000 RPM DC Servo Motor with1000 Lines Encoder 42 x 42mm

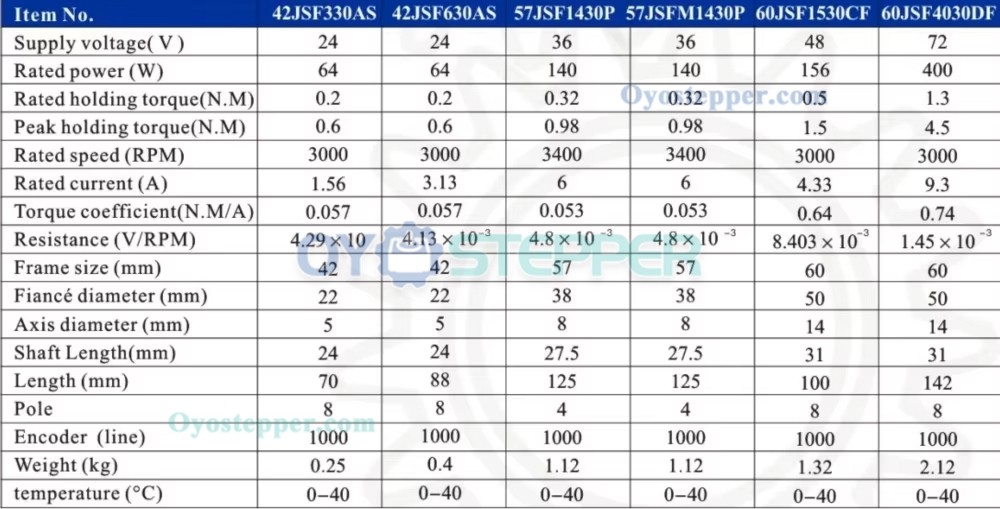

Specifications:

Phase: Single phase

Rated voltage: 24V

Rated power: 64W

Rated holding torque: 0.2N·m

Peak torque: 0.6N·m

Rated speed: 3000RPM

Rated current: 1.56A

Frequency: 200Hz

Poles: 8

Resistance: 4.13×10⁻³ V/RPM

Torque coefficient: 0.057N·m/A

Rotor inertia: 0.58×10⁻⁴kg·m²

Encoder: 1000 line

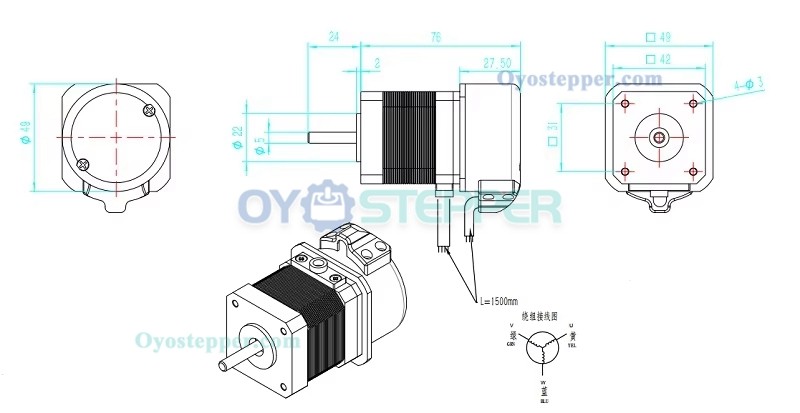

Physical:

Frame size: 42×42mm

Body length: 70mm

Shaft diameter: 5mm

Shaft length: 24mm

Weight: 0.3kg
