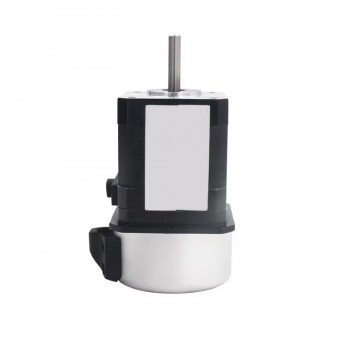

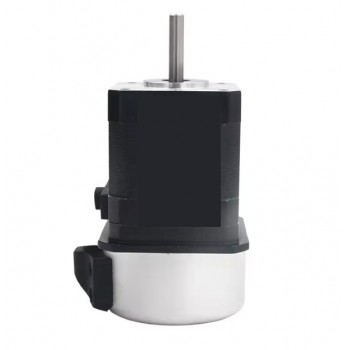

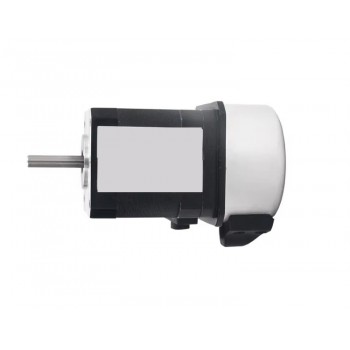

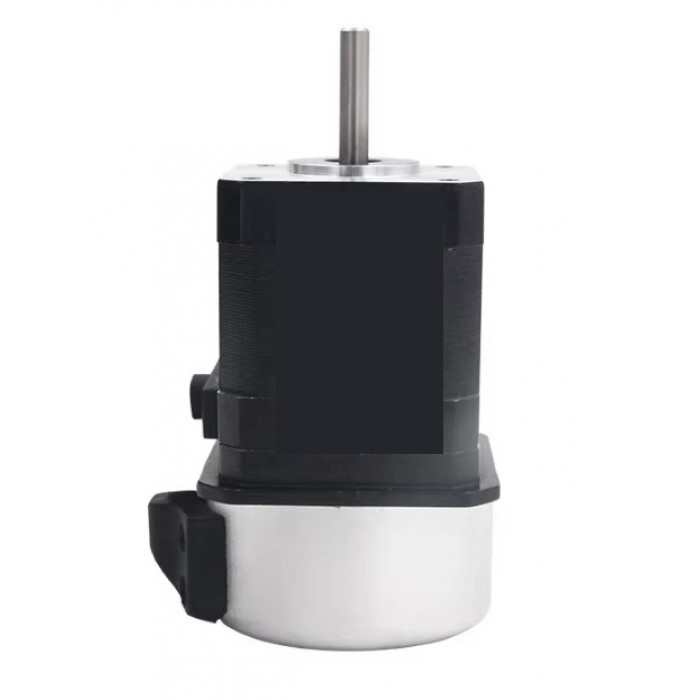

64W 24V 1.56A 0.2N.m 3000 RPM Brushless DC Servo Motor with1000 Lines Encoder 42 x 42mm

64W 24V 1.56A 0.2N.m 3000 RPM Brushless DC Servo Motor with1000 Lines Encoder 42 x 42mm

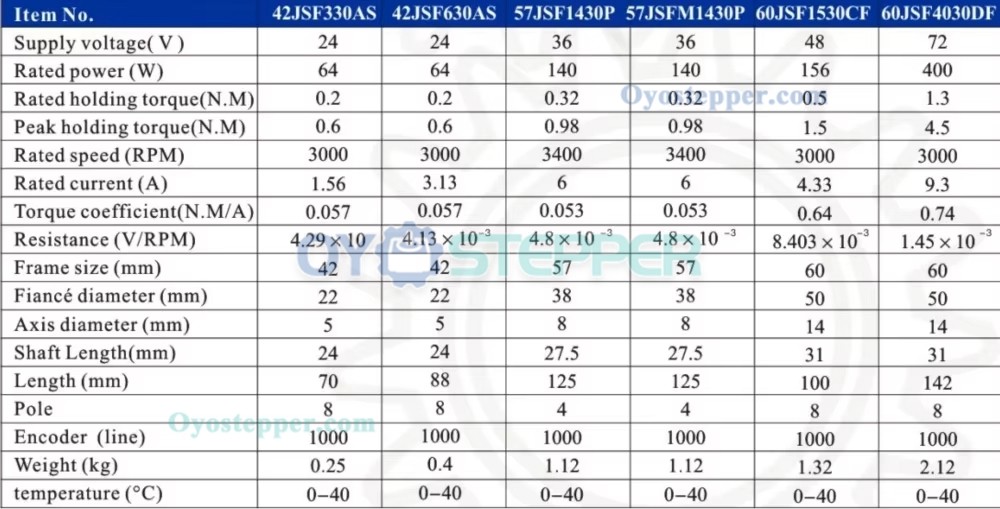

Servo Motor Specification:

Part Number:42JSF330AS

Phase:3 Phase

Power Supply Voltage:24V

Rated Power:64W

Rated Holding Torque:0.2N.m(28.32 oz.in)

Peak Torque:0.6N.m

Rated Speed: 3000 RPM

Rated Current:1.56A

Frequency:200HZ

Poles:8

Resistance:4.13*10-3 V/RPM

Torque coefficient:0.057 N.M/A

Rotor inertia(10^-4kg*cm²):0.58

Encoder:1000 Line;

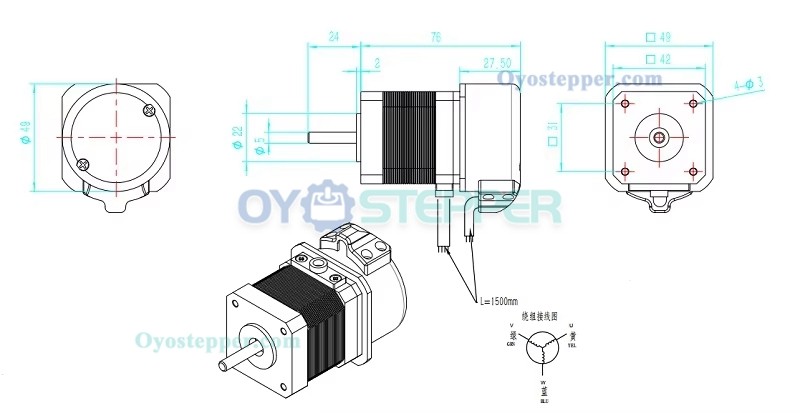

Physical Specifications:

Frame Size:42 x 42mm

Body Length:70mm

Shaft Diameter:5mm

Shaft Length:24mm

Weight:0.3kg;
