DC Servo Motor 0.64N.m 36V 200W 7.5A 0.64N.m 3000 RPM with 1024 Lines Magnetic Encoder 60x60mm
DC Servo Motor 0.64N.m 36V 200W 7.5A 0.64N.m 3000 RPM with 1024 Lines Magnetic Encoder 60x60mm
Specifications:
Rated voltage: 36V
Rated power: 200W
Rated torque: 0.64N·m
Peak torque: 9.56N·m
Rated speed: 3000RPM
Peak speed: 3200RPM
Rated current: 7.5A
Peak current: 1.3A
Max current: 15A
Rotor inertia: 0.183×10⁻⁴kg·m²
Poles: 5
Encoder: 1024 line magnetic
Protection: IP65

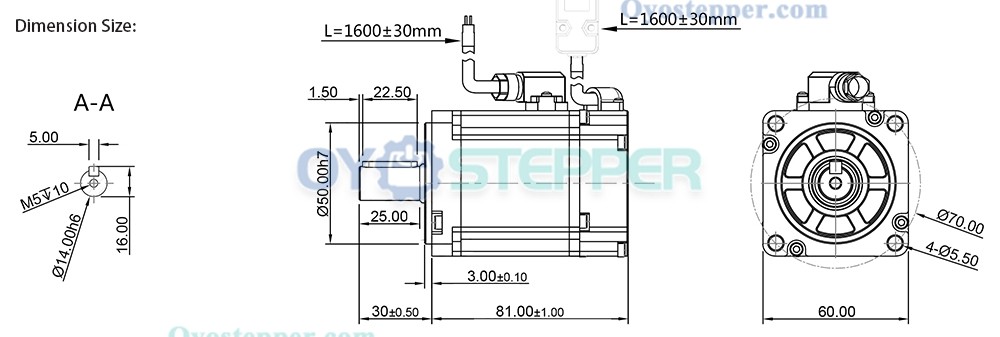

Frame size: 60×60mm
Weight: 3.0kg
.jpg)
.jpg)
.jpg)
| Servo Motor Specification | |
|---|---|
| Rated Current | 7.5 |
| Power supply voltage | 36 |
| Servo Motor Type | DC Servo Motor |
| Motor Base | 60 x 60 |
| Rated Power(W) | 200 |
| Rated Speed(rpm) | 3000 |
| Rated Torque(Nm) | 0.64 |
| Peak Speed(rpm) | 3200 |
| Peak Torque(Nm) | 9.56 |
| With Brake | Without brake |
