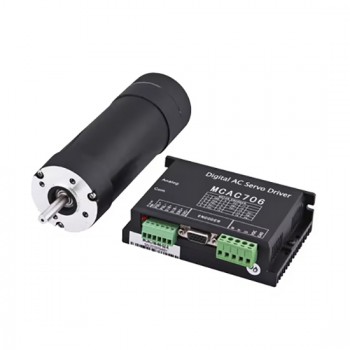

24V 60W DC Brush Servo Motor & Driver Kit 0.72N.m 3000RPM Φ58mm

24V 60W DC Brush Servo Motor & Driver Kit 0.72N.m 3000RPM Φ58mm

Servo Motor Specification:

Part Number:58JZS0630AS

Power Supply Voltage:24V

Rated Power:60W

Rated Torque:0.72N.m(101.96 oz.in)

Peak Torque:3.8N.m

Rated Speed: 3200 RPM

No Load Speed:4200 RPM

No Load Current:0.25A

Terminal Resistance:1.9 Ohms

Rotor inertia(10^-4kg*cm²):0.133

Inductance(mH):3.2;

Physical Specifications:

Frame Size:Φ58mm

Body Length:100mm

Shaft Diameter:6.35mm

Shaft Length:25.4mm

Weight:0.8kg;

MCAC706 Digital AC Servo Driver 6A 20~70V 200W for Brushless AC Servo motor

Digital AC servo drive with DSP and integrated circuit design. Compatible with 50V, 200W AC servo motors. Control modes: position, velocity, torque. Feedback loops: position, velocity, current.

Specifications:

Voltage: 20–70VDC

Continuous power: 200W

Continuous current: 6A, 32kHz PWM

Overload current: 18A (3s)

Protections:

Over current: 30A ±10%

Over I²t: 300% (5s)

Over temperature: 80°C

Over voltage: 65V

Under voltage: 18V

Performance:

Max pulse frequency: 300kHz

Default communication: 9.6kbps (external converter required);

Environment:

Operating temperature: 0–50°C

Storage temperature: –20–80°C

Humidity: 40–90%RH

Cooling: Natural or forced convection

Avoid dust, oil, corrosive gases;

Physical:

Dimensions: 118×76×35mm

Weight: 200g
