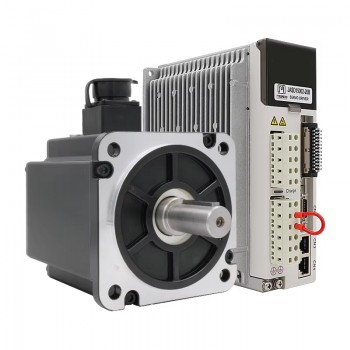

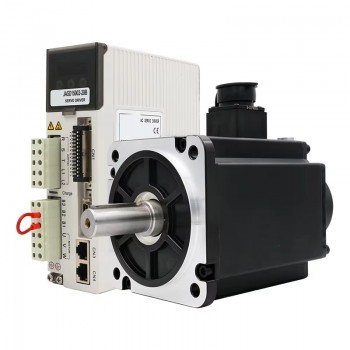

1500W AC Servo Motor with Brake+ Servo Driver Kit 9.55Nm 1500RPM 6.2A with 17 bit Magnetic Encoder
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 30th, 2026
- Note:No coupon code needed, please place order directly!
1500W AC Servo Motor with Brake+ Servo Driver Kit 9.55Nm 1500RPM 6.2A with 17 bit Magnetic Encoder

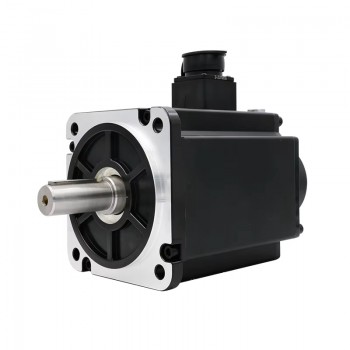

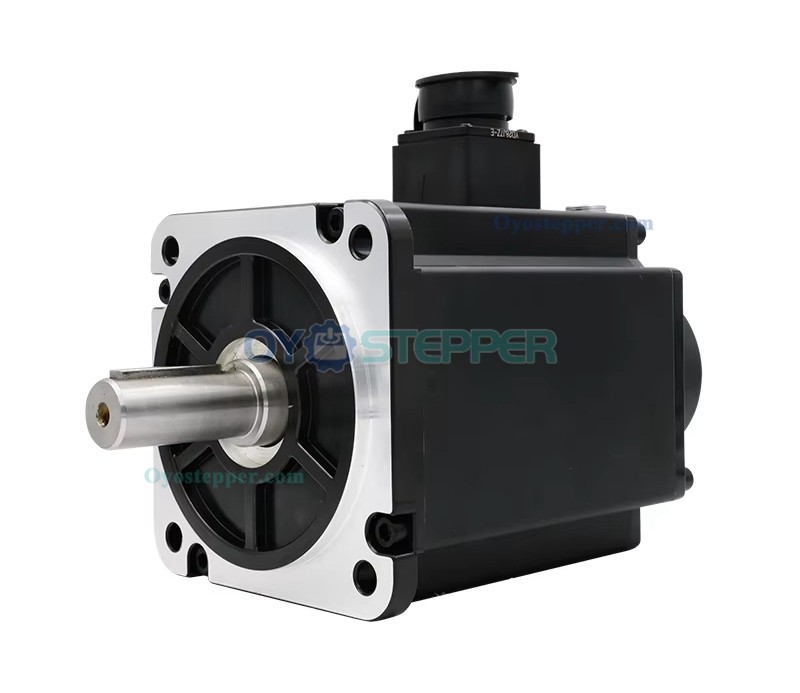

Servo Motor Specification
Part Number:130JASM515215K-17BCW-SC
Phase:Single-phase
Rated Power:1500W
Rated Torque:9.55Nm(1352.39 oz.in)
Peak Torque:19.1N.m
Rated Speed: 1500RPM
No Load Speed:3000RPM
Power Supply:220V
Rated Current:6.2A
Control Type:Pulse type
Input Voltage:AC 180V-240V, 50/60Hz
Control Type:Pulse type
Rotor Inertia:12.3kgcm²
Encoder:with 17 bit absolute magnetic encoder;
Brake:With Brake;

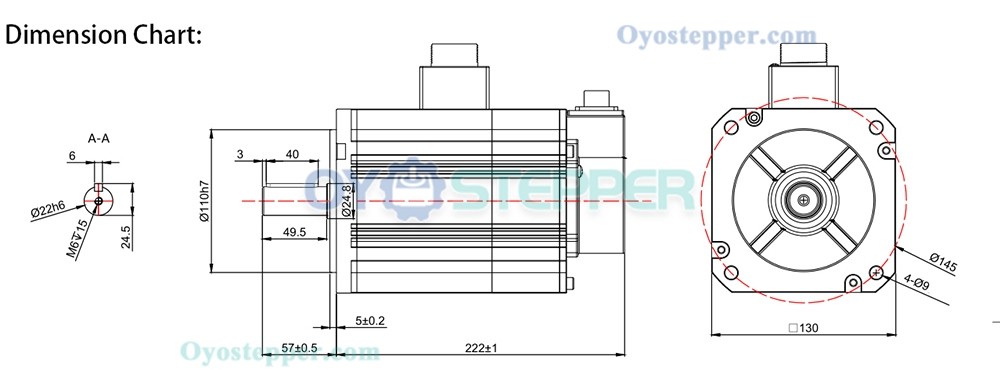

Physical Specifications:
Frame Size:130x130mm
Body Length withBrake:279mm
Shaft Diameter:22mm
Shaft Length:57mm
Keyway Length:40mm
Weight:14kg;
.jpg "1500W AC Servo Motor with Brake+ Servo Driver Kit 9.55Nm 1500RPM 6.2A with 17 bit Magnetic Encoder")

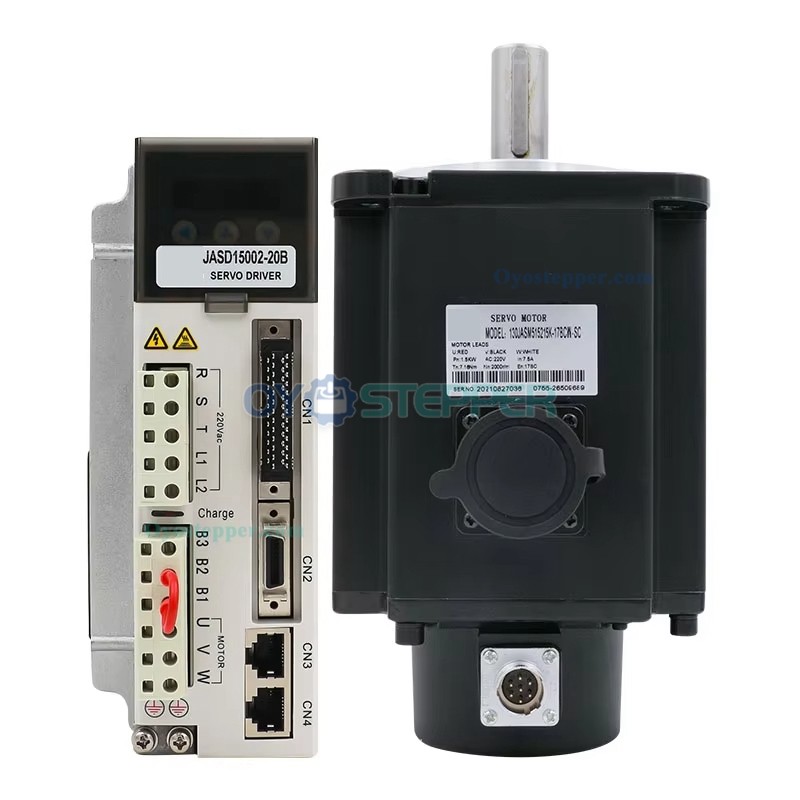

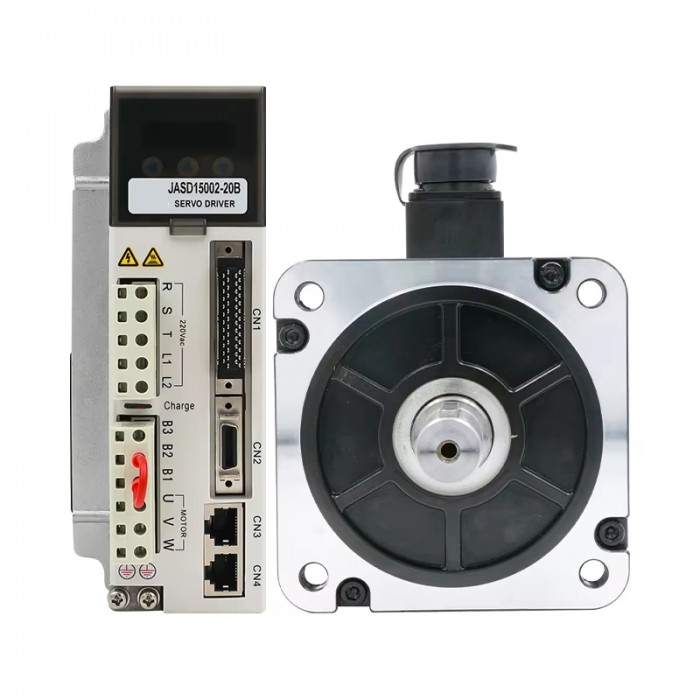

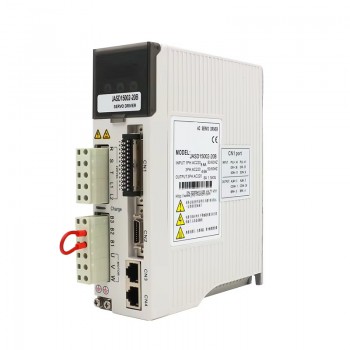

Servo Driver Specification:
Part Number:JASD15002-20B
Rated power:1.5KW
3 phase 220V servo drive;
Continuous input current:6A
Continuous output current:8A
Max output Current:19A
Input voltage:3 Phase AC 180V-240V, 50/60Hz;
Braking resistor:Built-in braking resistor;
Communication function:RS232, for debugging on PCRS485, support modbus protocol (only for reading data).
Dimension:182x140x70mm;
.png "1500W AC Servo Motor with Brake+ Servo Driver Kit 9.55Nm 1500RPM 6.2A with 17 bit Magnetic Encoder")
.png "1500W AC Servo Motor with Brake+ Servo Driver Kit 9.55Nm 1500RPM 6.2A with 17 bit Magnetic Encoder")
.jpg "1500W AC Servo Motor with Brake+ Servo Driver Kit 9.55Nm 1500RPM 6.2A with 17 bit Magnetic Encoder")
(1).jpg "1500W AC Servo Motor with Brake+ Servo Driver Kit 9.55Nm 1500RPM 6.2A with 17 bit Magnetic Encoder")
| Servo Motor Specification | |
|---|---|
| Rated Current | 6.2 |
| Number of Phase | Single-phase |
| No-load Speed | 3000 |
| Encoder | With 17 bit absolute magnetic encoder |
| Motor Base | 130x130 |
| Servo Motor Type | AC Servo Motor |
| Power supply voltage | 220 |
| Control Modes | Pulse type |
| Rated Power(W) | 1500 |
| Rated Speed(rpm) | 1500 |
| Rated Torque(Nm) | 9.55 |
| Peak Torque(Nm) | 19.1 |
| With Brake | With brake |
