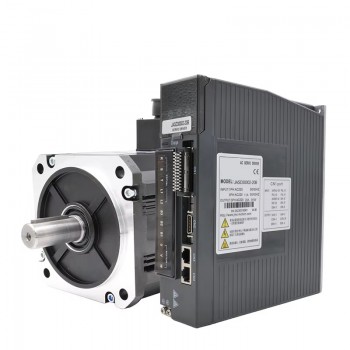

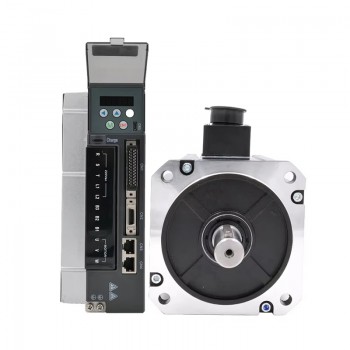

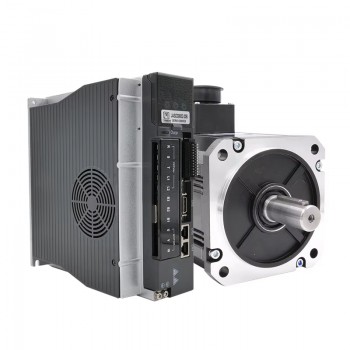

2.3KW AC Servo Motor & Servo Driver Kit 14.64N.m 1500RPM 12.3A with 17 bit Absolute Magnetic Encoder
2.3KW AC Servo Motor & Servo Driver Kit 14.64N.m 1500RPM 12.3A with 17 bit Absolute Magnetic Encoder

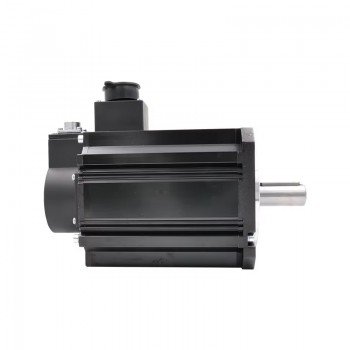

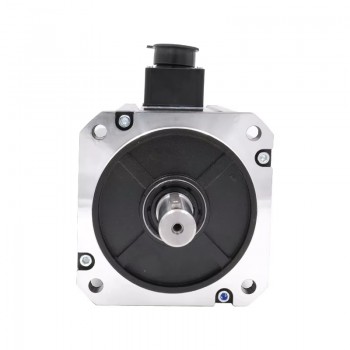

Servo Motor Specification:
Part Number:130JASM523215K-17B
Phase:Single-phase
Rated Power:2300W
Rated Torque:14.64N.m
Peak Torque:28.6N.m
Rated Speed: 1500RPM
No Load Speed:2000RPM
Power Supply:220V
Rated Current:12.3A
Control Type:Pulse type
Input Voltage:AC 180V-240V, 50/60Hz
Control Type:Pulse type
Rotor Inertia:12.3kgcm²
Encoder:with 17 bit absolute magnetic encoder;

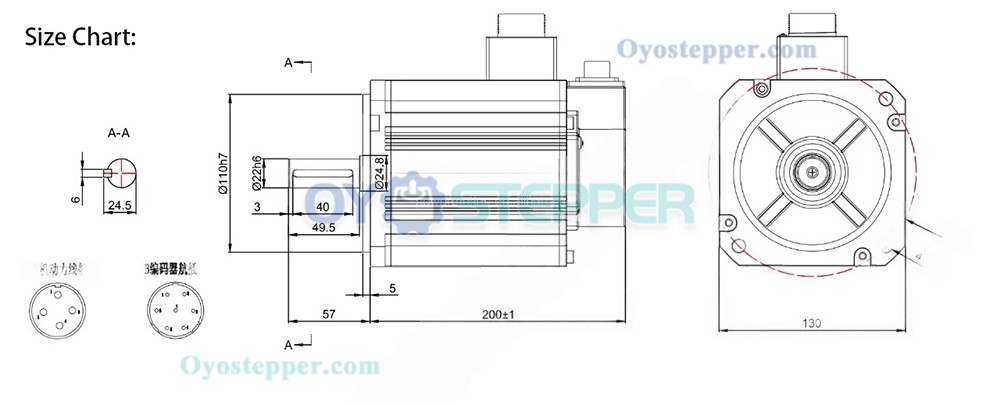

Physical Specifications:
Frame Size:130x130mm
Body Length withBrake:257mm
Shaft Diameter:22mm
Shaft Length:57mm
Keyway Length:40mm
Weight:14kg;

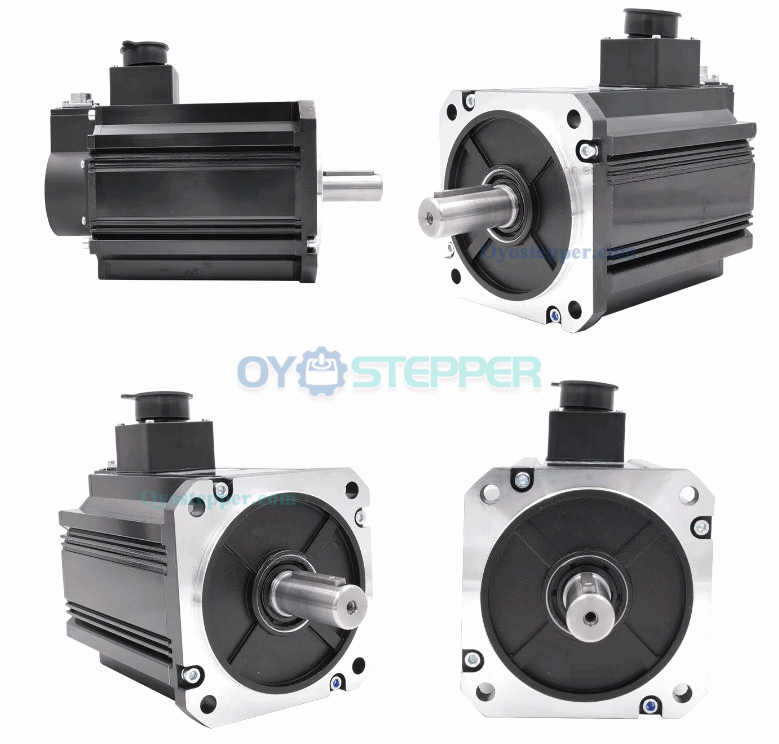

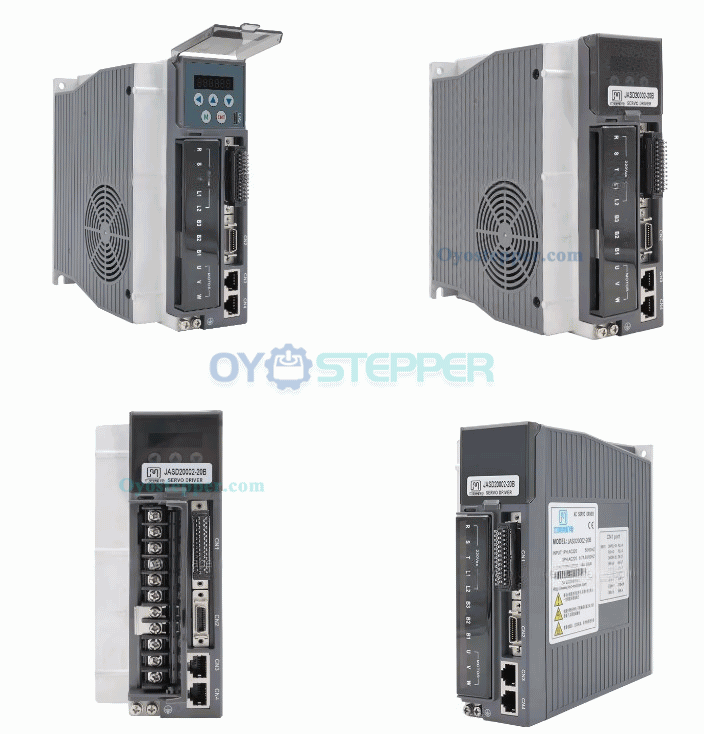

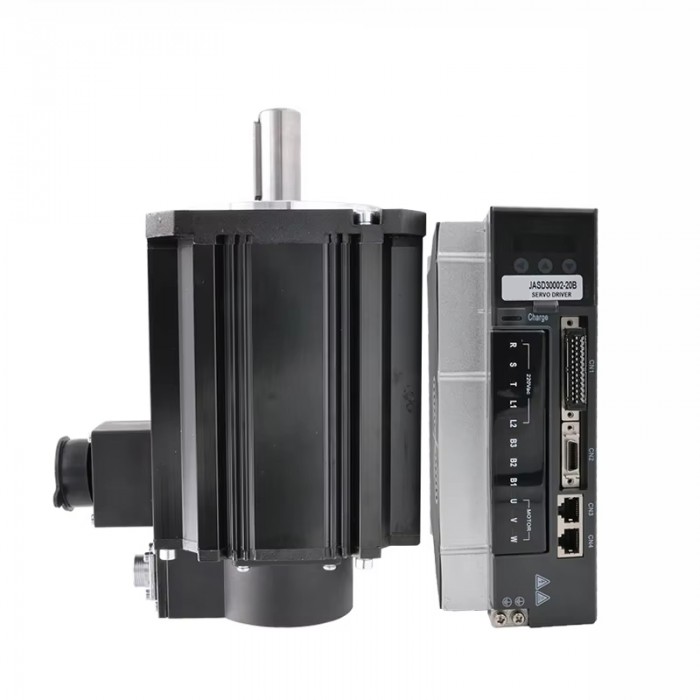

Servo motor driver specification:
Model:JASD20002-20B
Rated power:2KW
Single/3 phase 220V servo drive;
Single phase continuous input current:8.7A
Continuous output current:14A
Max output Current:33A
Input voltage:3 Phase AC 180V-240V, 50/60Hz;
Braking resistor:Built-in braking resistor;
Communication function:RS232, for debugging on PCRS485, support modbus protocol (only for reading data).
Dimension:180x169.5x75mm
Weight:4kg;
Servo Driver Dimension Drawing:
| Servo Motor Specification | |
|---|---|
| Rated Current | 12.3 |
| Number of Phase | Single-phase |
| No-load Speed | 2000 |
| Power supply voltage | 220 |
| Encoder | With 17 bit absolute magnetic encoder |
| Motor Base | 130x130 |
| Servo Motor Type | AC Servo Motor |
| Control Modes | Pulse type |
| Rated Power(W) | 2300 |
| Rated Speed(rpm) | 1500 |
| Rated Torque(Nm) | 14.64 |
| Peak Torque(Nm) | 28.6 |
| With Brake | Without brake |
