Nema 23 External 56mm Stack 2A Lead 4mm/0.15748" Length 300mm

Nema 23 External 56mm Stack 2A Lead 4mm/0.15748" Length 300mm
NO.:23LS22-2004E-300U
Post a review
Special Offer in June 2023:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 10th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$55.15
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $52.39 5%
10 $51.29 7%
50 $49.64 10%
100 $46.88 15%
Add To Cart

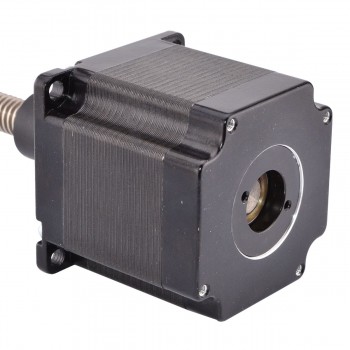

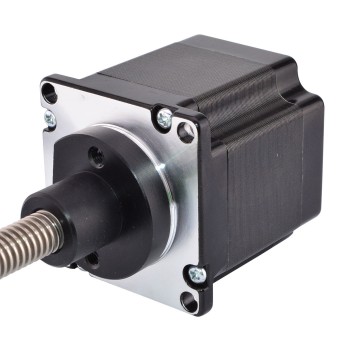

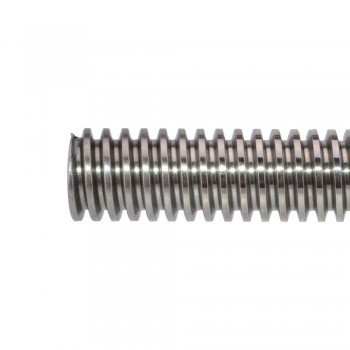

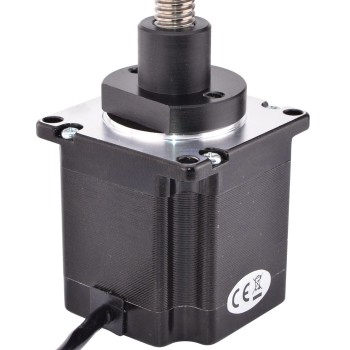

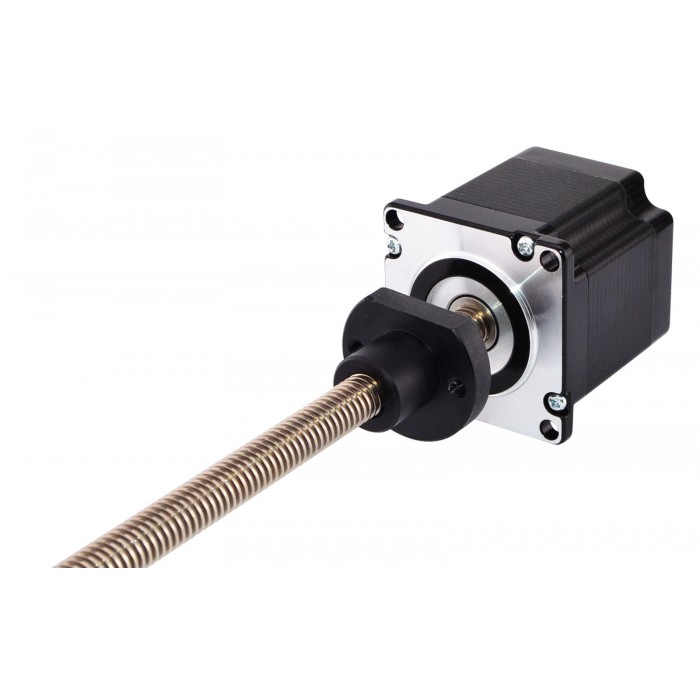

This model is economy linear stepper motor which named Nema 23 external linear actuator, the motor part is 56mm 1.8 degree 2A Nema 23 stepper motor. It was integrated with 300mm Tr11x4 threaded rod, and a POM screw nut move along the threaded rod.

Electrical Specification

  • Manufacturer Part Number: 23LS22-2004E-300U
  • Motor Type: Bipolar Stepper
  • Holding Torque: 1.2Nm
  • Rated Current/phase: 2.0A
  • Phase Resistance: 3.6ohms
  • Voltage: 7.2V
  • Inductance: 12mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Motor Length: 56mm
  • Lead Screw Length: 300mm(11.811")
  • Lead Screw Diameter: Φ11mm(0.433")
  • Lead /Step: 0.02mm(0.0007874" )
  • Lead/Revolution: 4mm(0.1575")
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight : 650g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 External 56mm Stack 2A Lead 4mm/0.15748" Length 200mm
Next: Nema 23 Non-captive 56mm Stack 2A Lead 2mm/0.07874" Length 140mm
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 120
Holding Torque (oz.in) 170
Inductance(mH) 12
Motor Type External
Phase Resistance(ohm) 3.6
Rated Current (A) 2
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 56
Frame Size(mm) 57x57
Lead Screw Diameter(mm) 11
Lead Screw Length(mm) 300
Lead Revolution(mm) 4
Linear Travel / Step(mm) 0.02
No. of Lead 4
Lead Length(mm) 500
