Nema 23 External 56mm Stack 2A Lead 4mm/0.15748" Length 200mm
Special Offer in May 2023:
- $10 Off Over $150
- $20 Off Over $300
- $30 Off Over $500
- $50 Off Over $800
- $60 Off Over $1000
- $80 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till May 31st, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$52.48

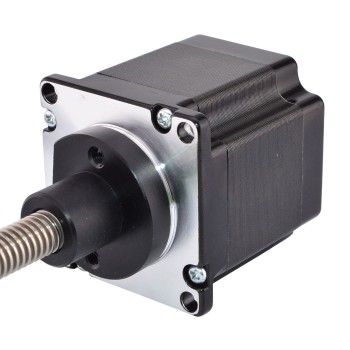

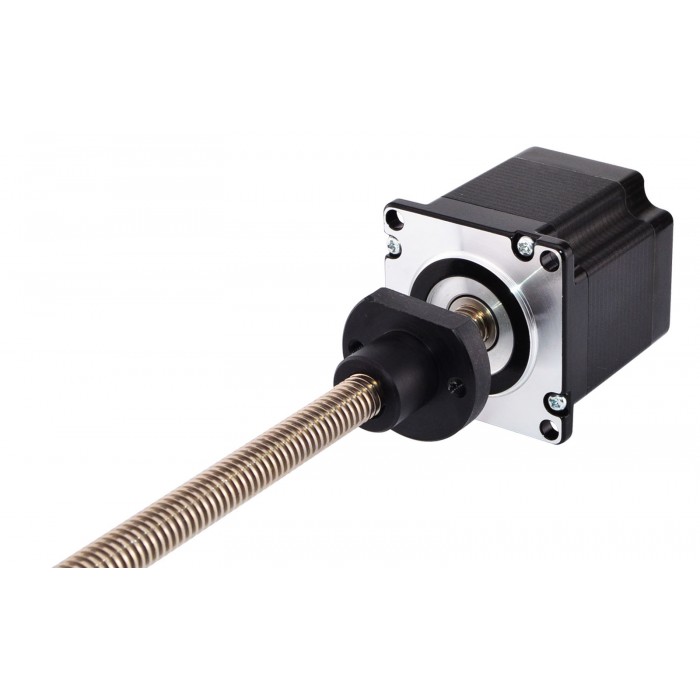

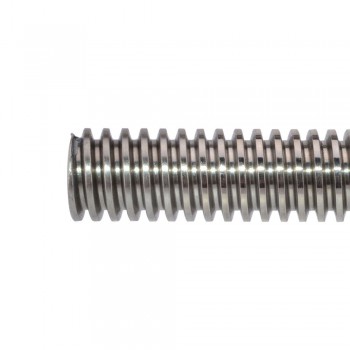

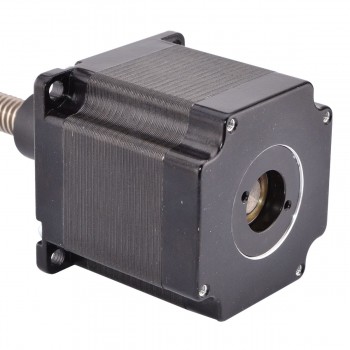

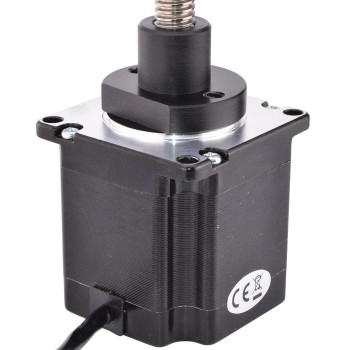

This model is economy linear stepper motor which named Nema 23 external linear actuator, the motor part is 56mm 1.8 degree 2A Nema 23 stepper motor. It was integrated with 200mm Tr11x4 threaded rod, and a POM screw nut move along the threaded rod.
Electrical Specification
- Manufacturer Part Number: 23LS22-2004E-200U
- Motor Type: Bipolar Stepper
- Holding Torque: 1.2Nm
- Rated Current/phase: 2.0A
- Phase Resistance: 3.6ohms
- Voltage: 7.2V
- Inductance: 12mH ± 20%(1KHz)
Physical Specification
- Frame Size: 57 x 57mm
- Motor Length: 56mm
- Lead Screw Length: 200mm（7.874"）
- Lead Screw Diameter: Φ11mm（0.433"）
- Lead /Step: 0.02mm(0.0007874" )
- Lead/Revolution: 4mm（0.1575"）
- Number of Leads: 4
- Lead Length: 500mm
- Weight : 650g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 23LS22-2004E-200U.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 120 |
| Holding Torque (oz.in) | 170 |
| Inductance(mH) | 12 |
| Motor Type | External |
| Phase Resistance(ohm) | 3.6 |
| Rated Current (A) | 2 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 56 |
| Frame Size(mm) | 57x57 |
| Lead Screw Diameter(mm) | 11 |
| Lead Screw Length(mm) | 200 |
| Lead Revolution(mm) | 4 |
| Linear Travel / Step(mm) | 0.02 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
