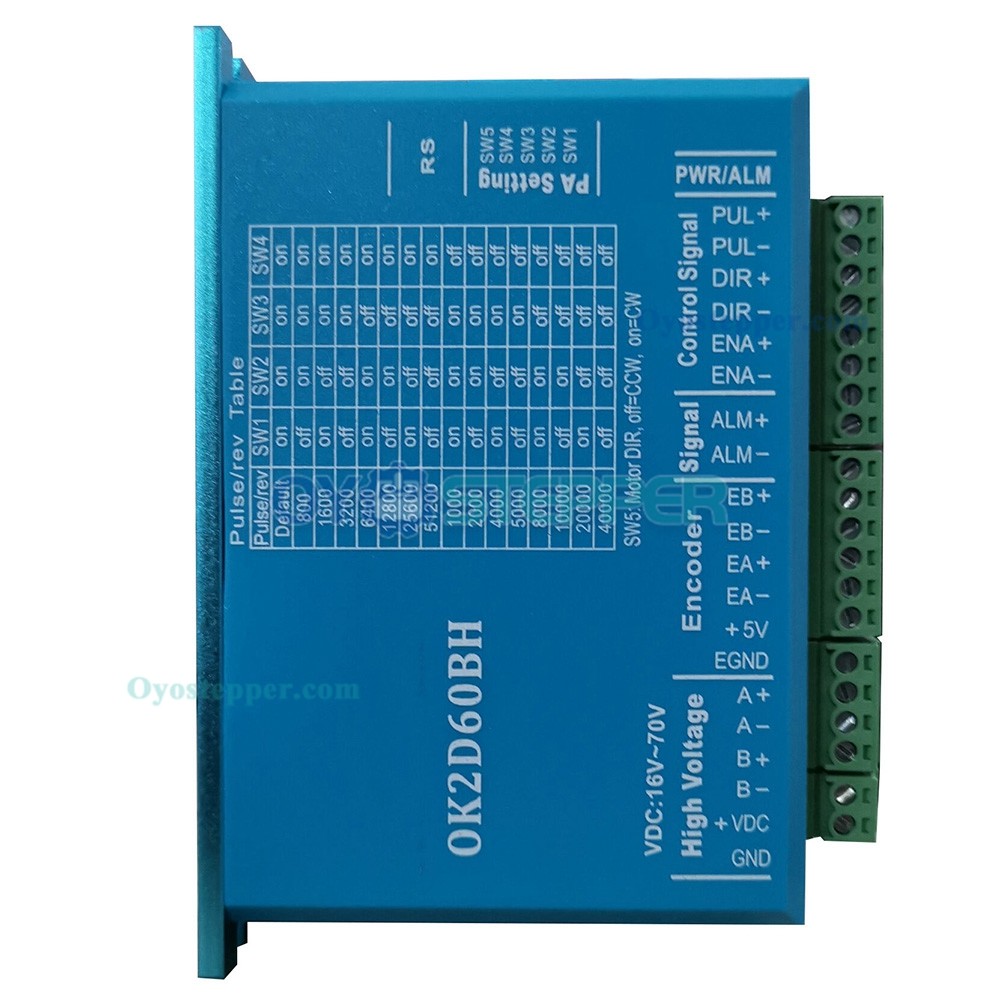

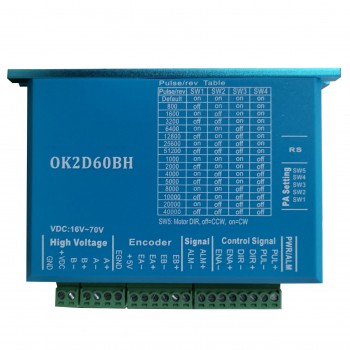

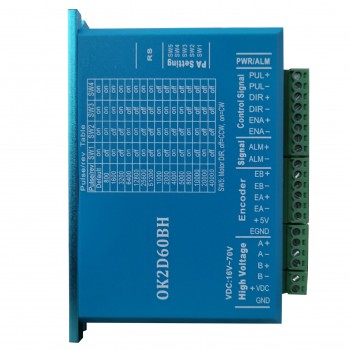

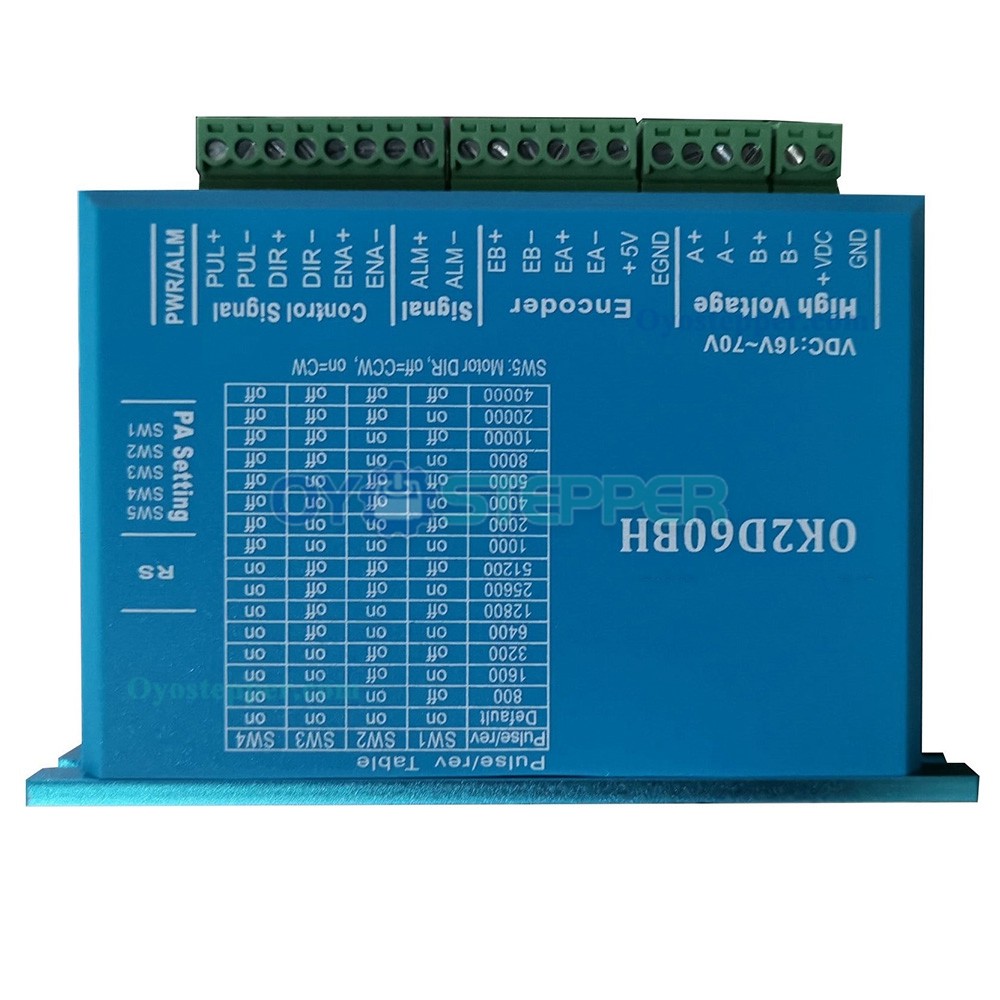

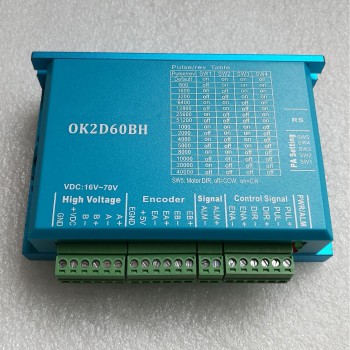

Closed Loop Stepper Driver 0~5.6A 16~70VDC for Nema 23, Nema 24 Stepper Motor

Closed Loop Stepper Driver 0~5.6A 16~70VDC for Nema 23, Nema 24 Stepper Motor

Key Features:
Closed-loop, eliminates loss of synchronization
Broader operating range - higher torque and higher speed
Reduced motor heating and more efficient
Do not need a high torque margin
No Tuning and always stable
Quick response, no delay and almost no settle time
High torque at starting and low speed, high stiffness at standstill
Offer servo-like performance at a much lower cost;

Performance parameters:
Adopting new 32-bit motor control dedicated dual-core DSP chip;
Adopting advanced vector current and speed and position closed-loop control algorithms;
The static current and dynamic current ratio can be automatically set;
The motor comes with a 1000-line high-precision encoder;
Optocoupler isolated differential signal input;
The impulse response frequency can reach up to 300KHZ;

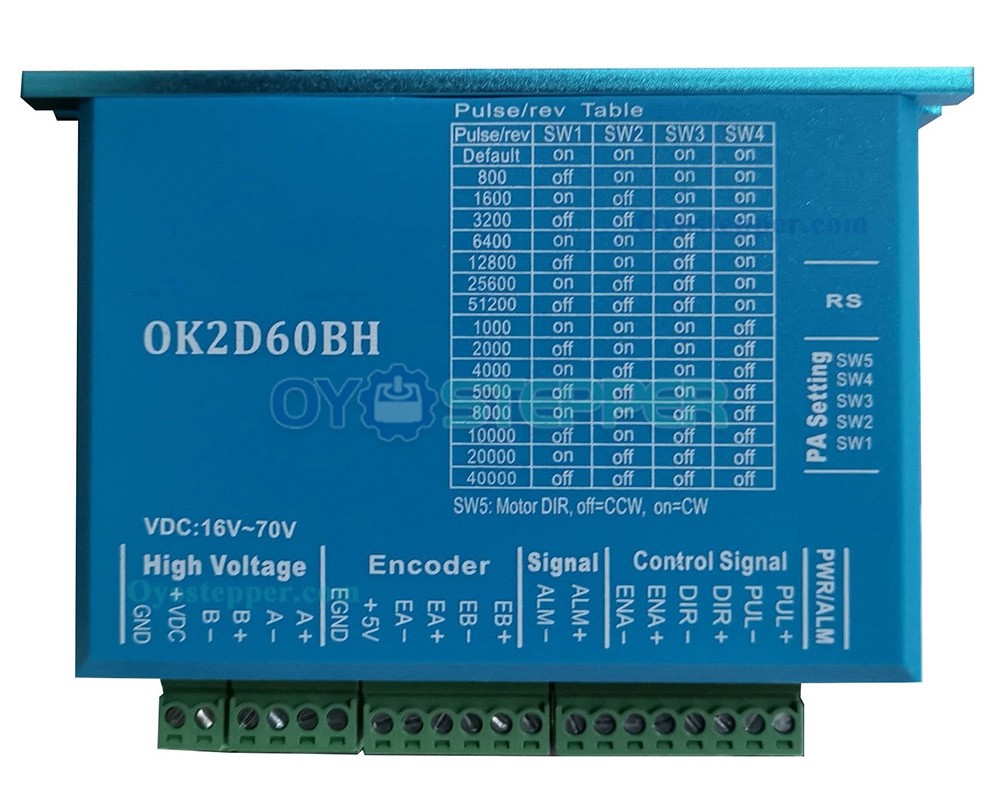

Subdivided into 16 settings (800-51200) to meet the requirements of most customers;
It has several protection functions such as overcurrent, overvoltage, overspeed, overheating, and excessive tracking error.

Specifications:
Model:OK2D60BH
Output Peak Current: 0~5.6A
Input Voltage: +16~70VDC (Typical 36VDC)
Logic Signal Current: 7~16mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Encoder current:50mA
Isolation Resistance: 500MΩ
Weight:280g

Operating Environment and other Specifications(Tj = 25℃/77℉):
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temperature: 0℃ － 50℃
Humidity: 40%RH－90%RH
Operating Temperature: 70℃ MAX
Vibration: 5.9m/s2 Max
Storage Temperature: -20℃ －+80℃;

Resources

Driver Manual: OK2D60BH manual.pdf

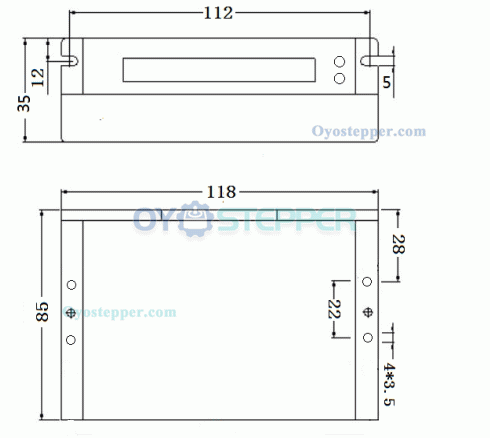

Install Size Picture:
