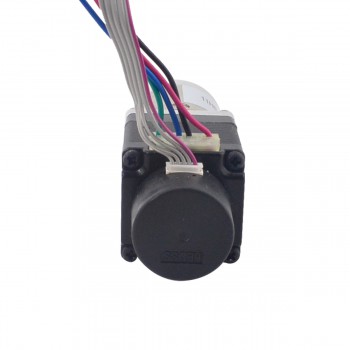

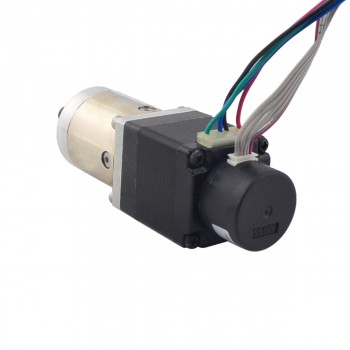

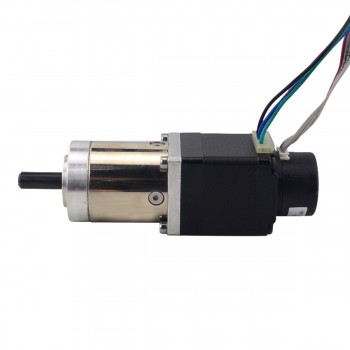

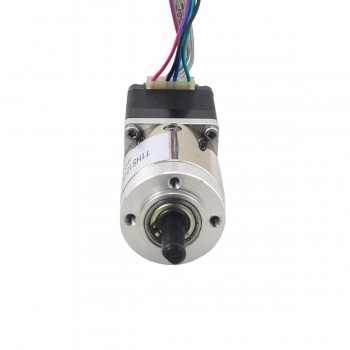

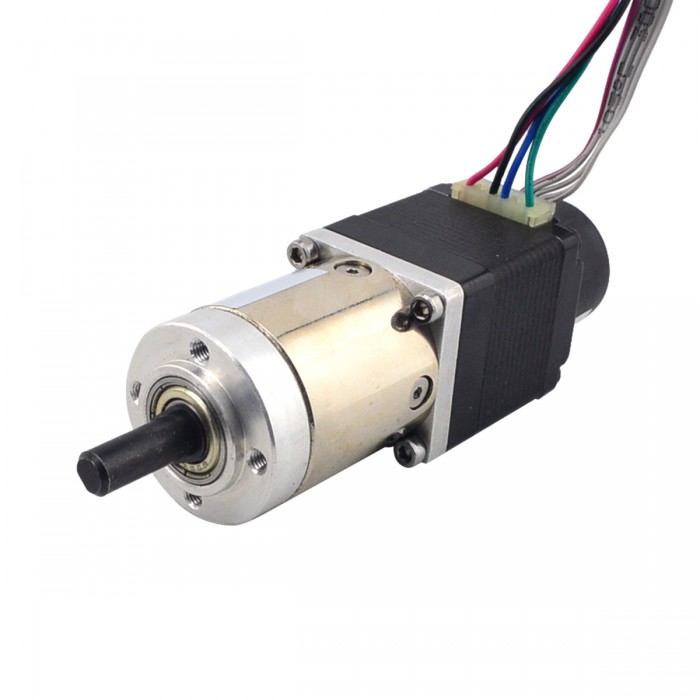

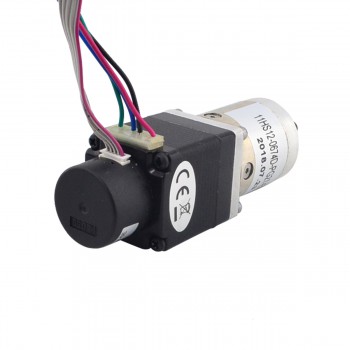

Nema 11 Closed-loop Geared Geared Stepper Motor L=31mm 1.8 Deg 0.67A 3.75V 0.07Nm 27:1 with Encoder 300CPR
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till October 15th, 2024
- Note:No coupon code needed, please place order directly!
Motor Specification
Manufacturer Part Number: 11HS12-0674D-PG27-E22-300
Motor Type: Bipolar Stepper
Step Angle without Gearbox: 1.8 deg
Holding Torque without Gearbox: 0.07Nm(9.91oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 5.60ohms
Voltage: 3.75V
Inductance: 4.00mH ± 20%(1KHz)
Number of Leads: 4
Lead Length: 500mm
Gearbox Specifications
Gearbox Type: Planetary
Gearbox Length: 35mm
Gear Ratio: 26.85
Efficiency: 81%
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-Cut length: 12mm
Backlash at No-load: <=1deg
Max.Permissible Torque: 2Nm(283.28oz.in)
Moment Permissible Torque: 4Nm(566.56oz.in)
Shaft Maximum Axial Load: 5N
Shaft Maximum Radial Load: 25N
Encoder Specification
Supply Voltage : 5VDC
Output current : ≤20mA
Resolution : 300cpr
Output Signal : 2 Channels
Shaft Diameter : Φ4mm
Output Frequency : ≤30KHz
Output Low Voltage: ≤0.3VDC
Output High Voltage: ≥3.4VDC
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Motor Datasheet: 11HS12-0674D-PG27-E22-300.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 7 |
| Holding Torque (oz.in) | 9.915 |
| Inductance(mH) | 4.0 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 11 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 5.6 |
| Rated Current (A) | 0.67 |
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 18 |
| Step Angle(°) | 1.8 |
| Encoder Specification | |
| Output Current(mA) | 20 |
| Output Frequency | ≤30KHz |
| Rated Voltage(V) | 5 |
| Resolution(CPR) | 300 |
| Output High Voltage(VDC) | ≥3.4 |
| Output Low Voltage(VDC) | ≤0.3 |
| Output Signal Channels | 2 Channels |
