System Specifications:

Main chip: ARM9

Core algorithm: FPGA

Display: 5 inch TFT, 480×272

Operation keys: 17

Internal memory: 1GB

Power input: 24VDC, 0.5A min

I/O power: internally supplied;

Motion Control:

Supported axes: 3 to 4

Output type: differential pulse + direction

Max pulse frequency: 500kHz per axis

G-code support: FANUC and standard formats

Data retention: automatic after power loss

Compensation: backlash, tool;

Inputs/Outputs:

Digital inputs: 16, optically isolated

Digital outputs: 3, optically isolated

Limit switch input: NPN

Spindle control: 0–10V analog or PWM configurable;

Programming & Data:

G-code input: USB flash drive, no file size limit

MPG support: standard

Jog modes: continuous, step, custom distance

Quick position selection

Soft interpolation;

MPG Specifications:

Step selector: X1, X10, X100

Axis selector: X, Y, Z, 4th

LED indicator

Emergency stop button

Housing: Metal

Mounting: Magnetic base

Cable: 6ft shielded

Power: 5VDC, 150mA

Output: A, /A, B, /B, TTL, ±20mA drive

Compatibility: Taiwan Pou Yuen M600/M500/M520i/T300, Higerman, HANUC, GSK, Open NC, KND, Siemens, NUM, FAGOR 8055i and others.

Package List:

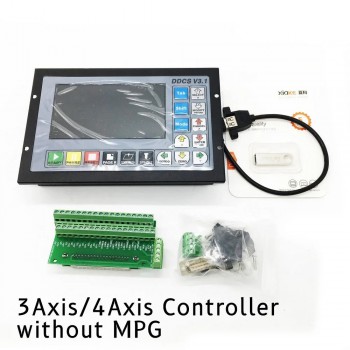

① 3-Axis Controller

1 × 3-Axis CNC Offline Motion Controller

1 × 4GB USB Flash Disk

1 × USB Extension Cable & Accessories

1 × Mounting Screws Set

② 4-Axis Controller

1 × 4-Axis CNC Offline Motion Controller

1 × 4GB USB Flash Disk

1 × USB Extension Cable & Accessories

1 × Mounting Screws Set

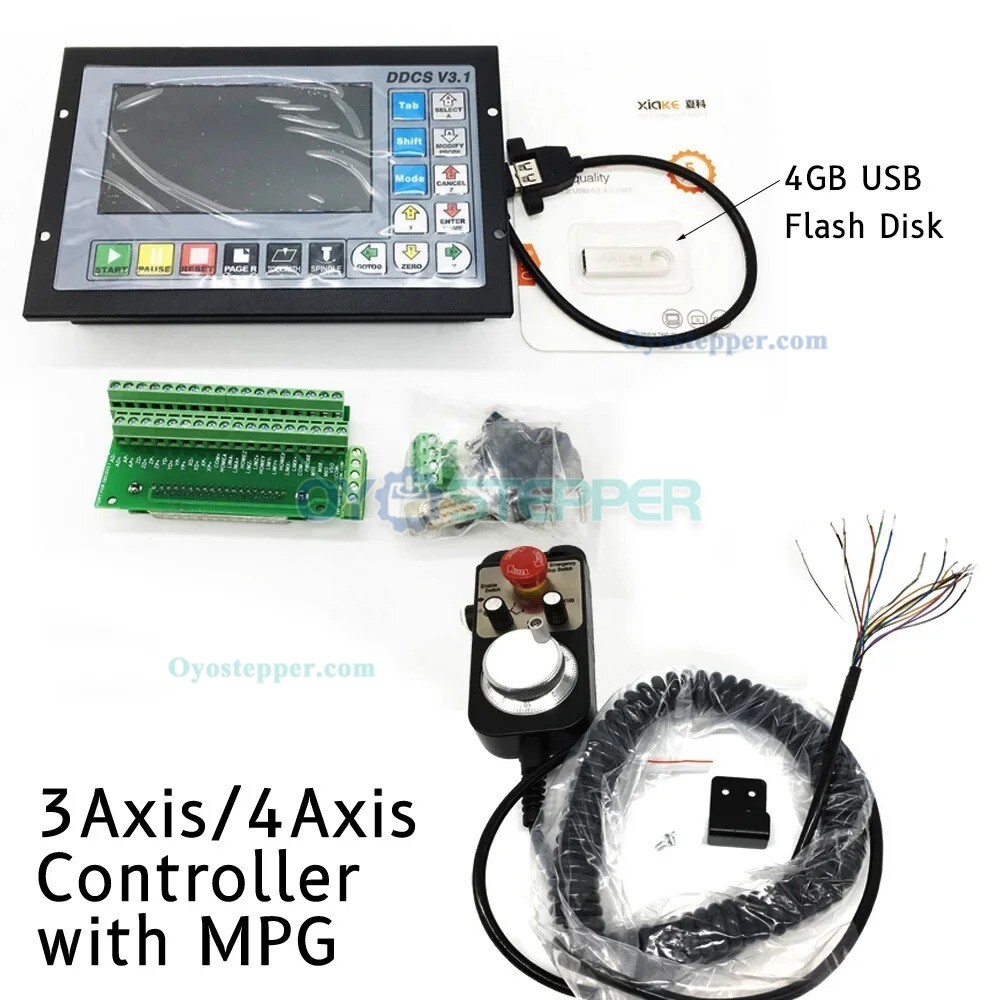

③ 3-Axis with MPG

1 × 3-Axis CNC Offline Motion Controller

1 × MPG Hand Wheel with Emergency Stop

1 × 4GB USB Flash Disk

1 × USB Extension Cable & Accessories

1 × Mounting Screws Set

④ 4-Axis with MPG

1 × 4-Axis CNC Offline Motion Controller

1 × MPG Hand Wheel with Emergency Stop

1 × 4GB USB Flash Disk

1 × USB Extension Cable & Accessories

1 × Mounting Screws Set

For the English manual, please contact the seller.
