Single Axis CNC Motion Programmable Controller for Servo Motor / Stepper Motor

Single Axis CNC Motion Programmable Controller for Servo Motor / Stepper Motor

Features:

Motion control: positioning and non-positioning operations;

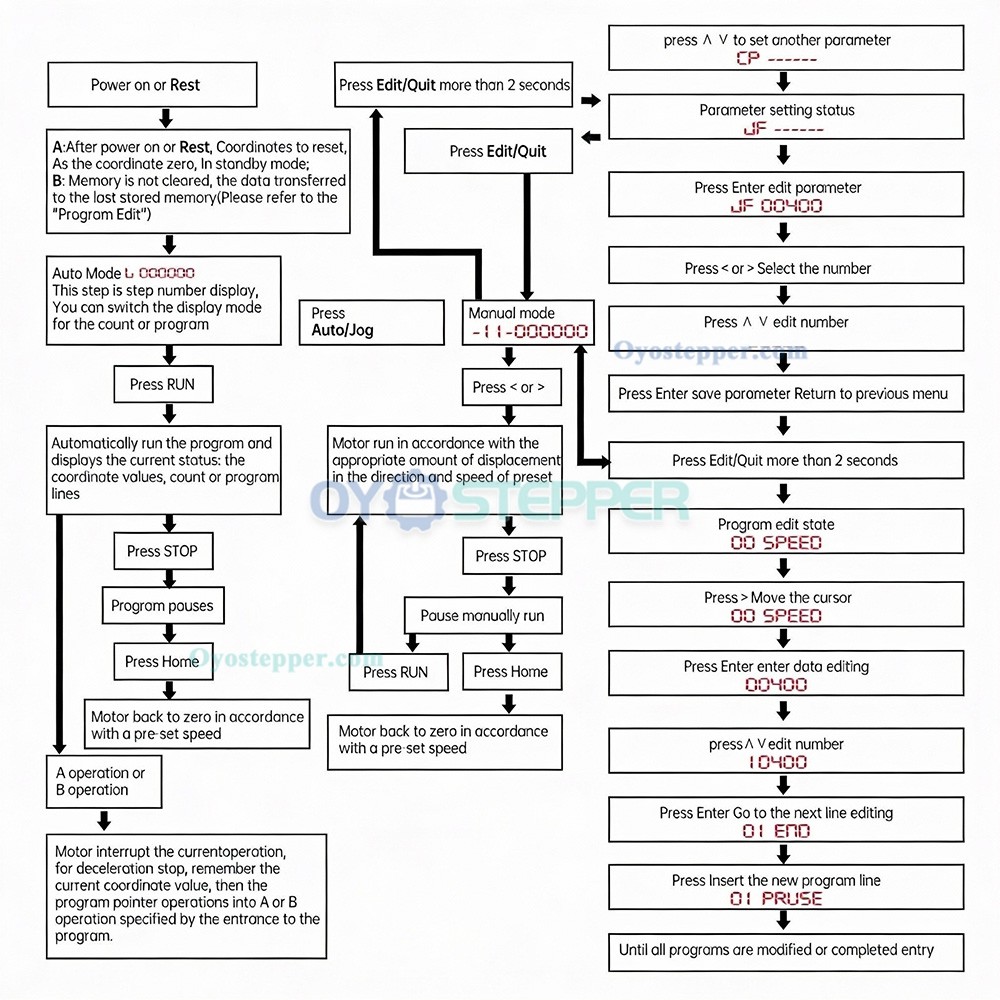

Operation modes: auto-run, manual, program editing, parameter setting

Programming: edit, insert, delete, modify programs; error instruction recognition;

Program capacity: up to 99 program rows;

Programming instructions: 14;

Manual jog: adjustable speed and step count;

Auto-run control: panel buttons or external terminal switches;

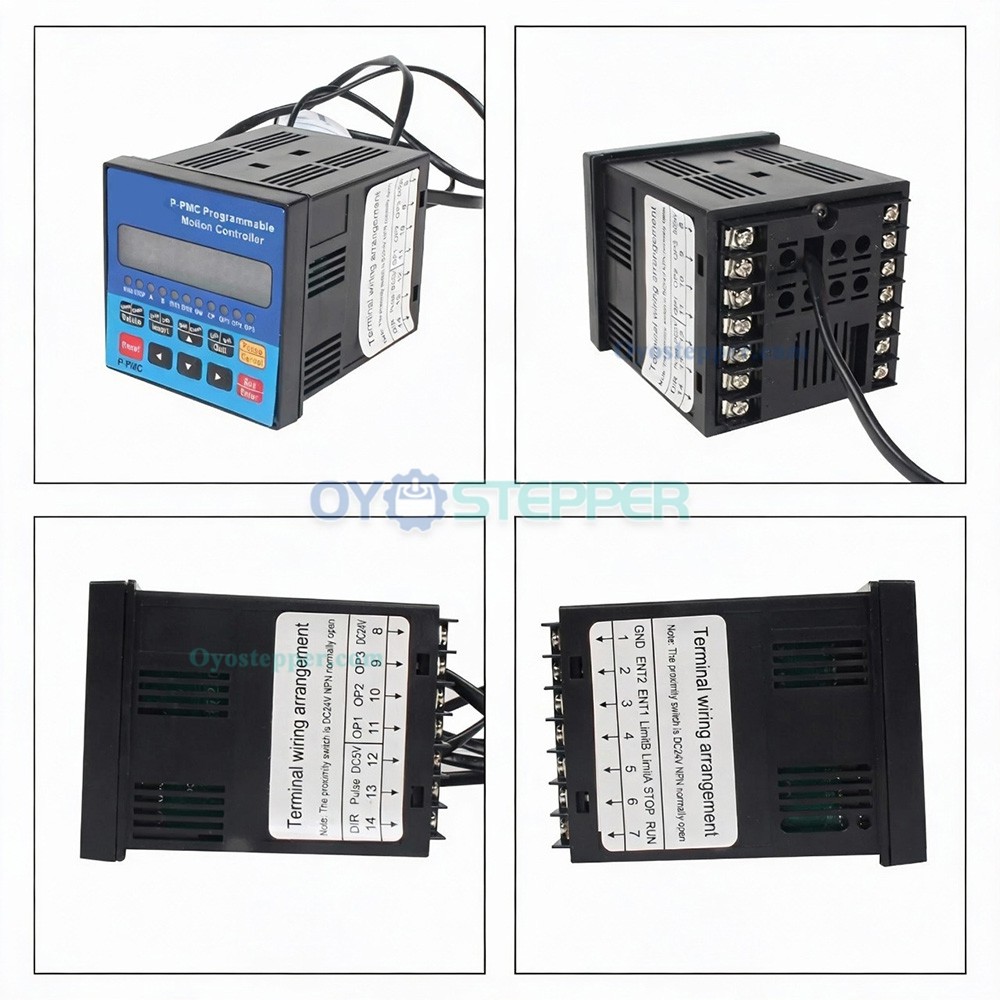

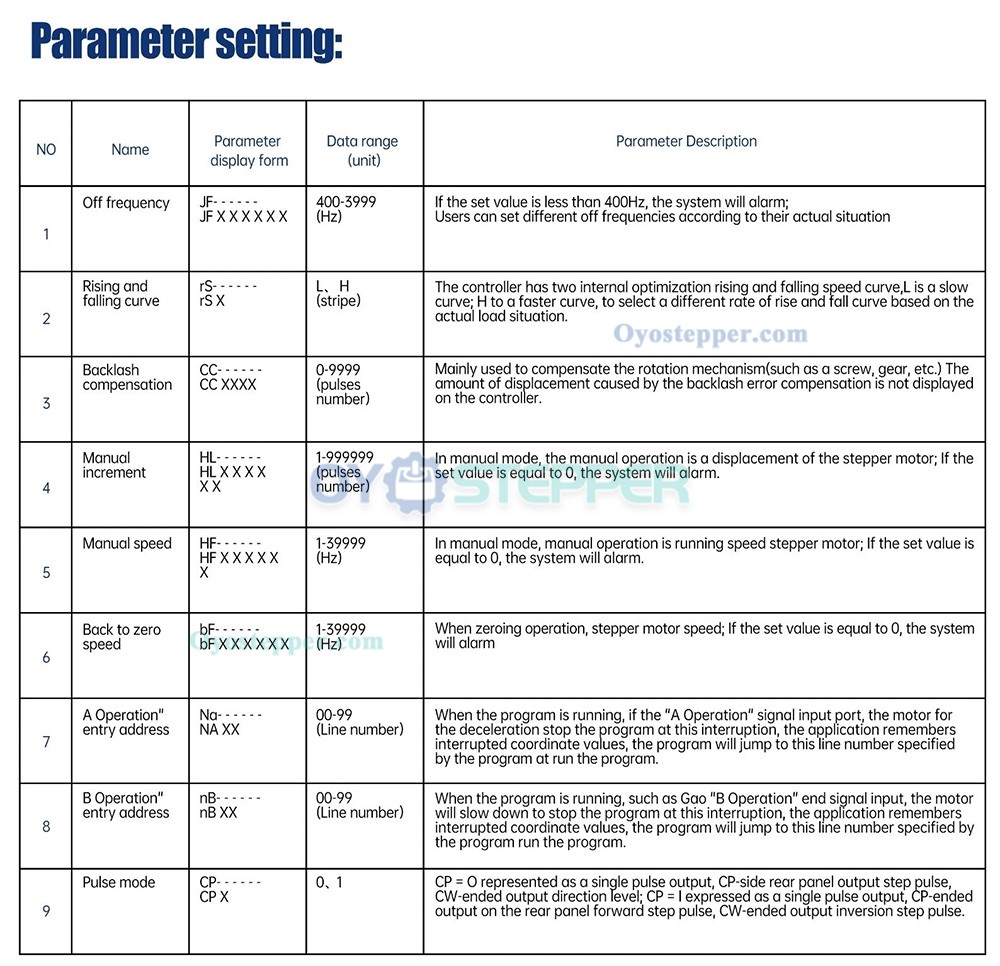

Configurable parameters: starting frequency, acceleration/deceleration curves (2 types), manual speed, homing speed, backlash ;compensation, interrupt jump lines;

Homing function: automatic homing from positive or negative direction

External control: interrupt operations via external switches;

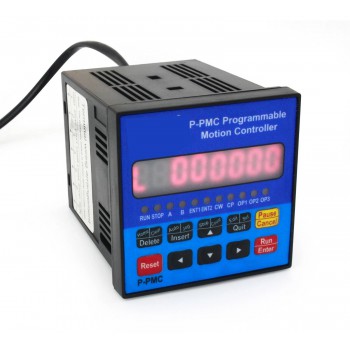

Display: 8-digit display for status, steps, counts, programs, parameters, I/O states.

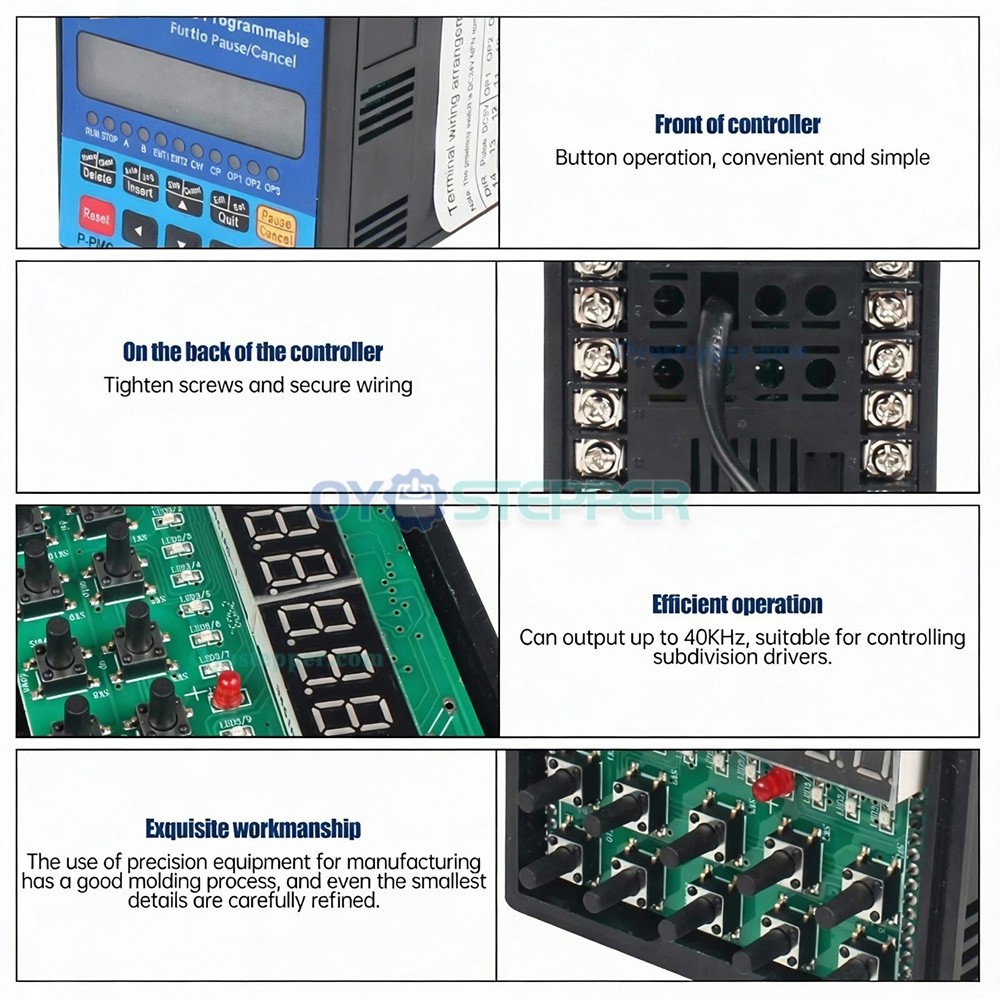

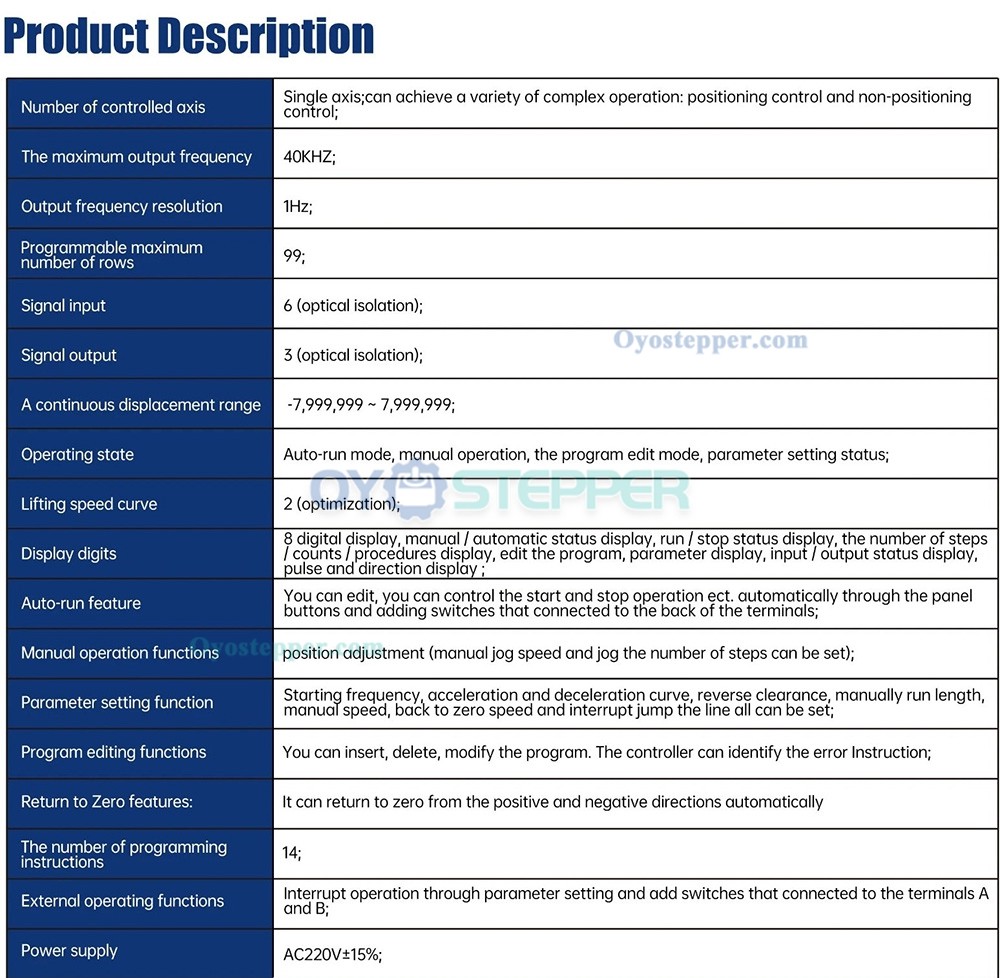

Specifications:

Controlled Axes: Single axis

Maximum Output Frequency: 40 kHz

Frequency Resolution: 1 Hz

Displacement Range: -7,999,999 to 7,999,999 units

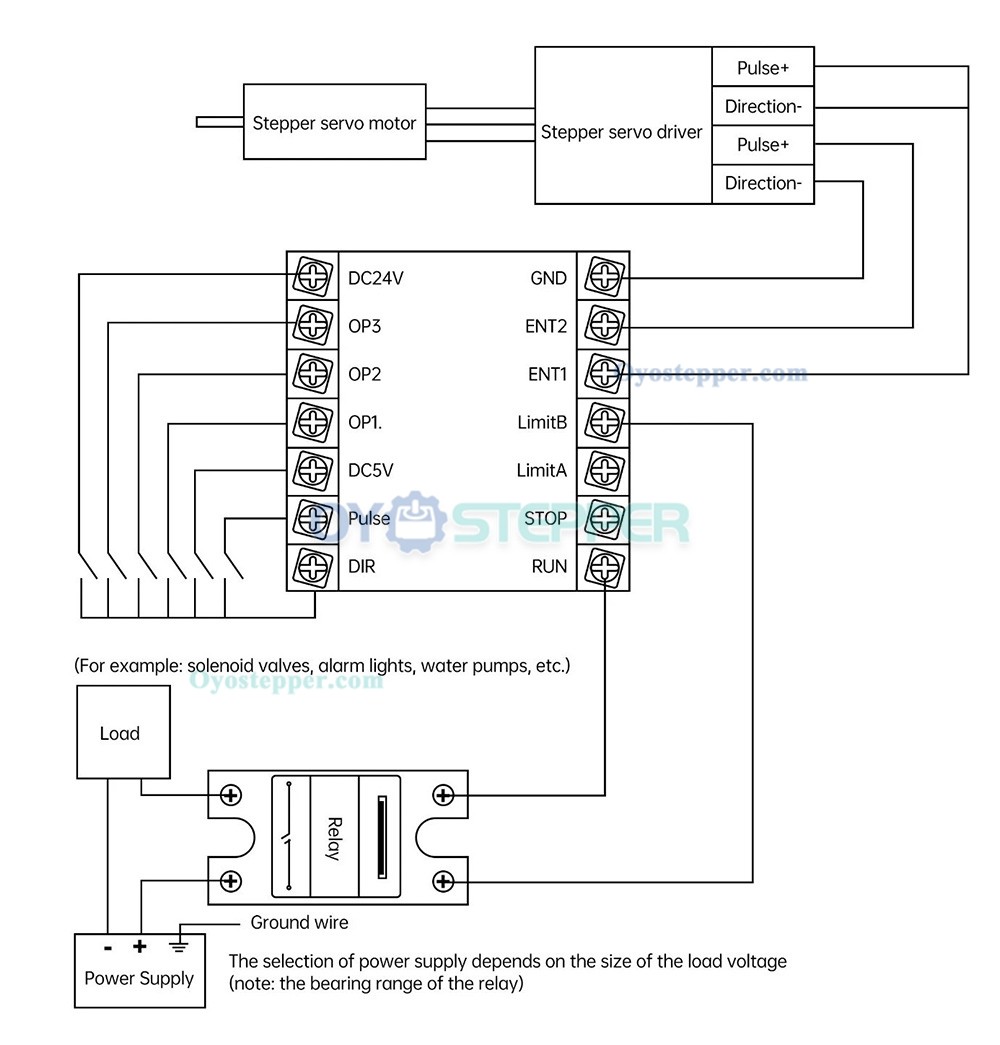

Digital Inputs: 6 (optically isolated)

Digital Outputs: 3 (optically isolated)

Power Supply: AC 220V ±15%

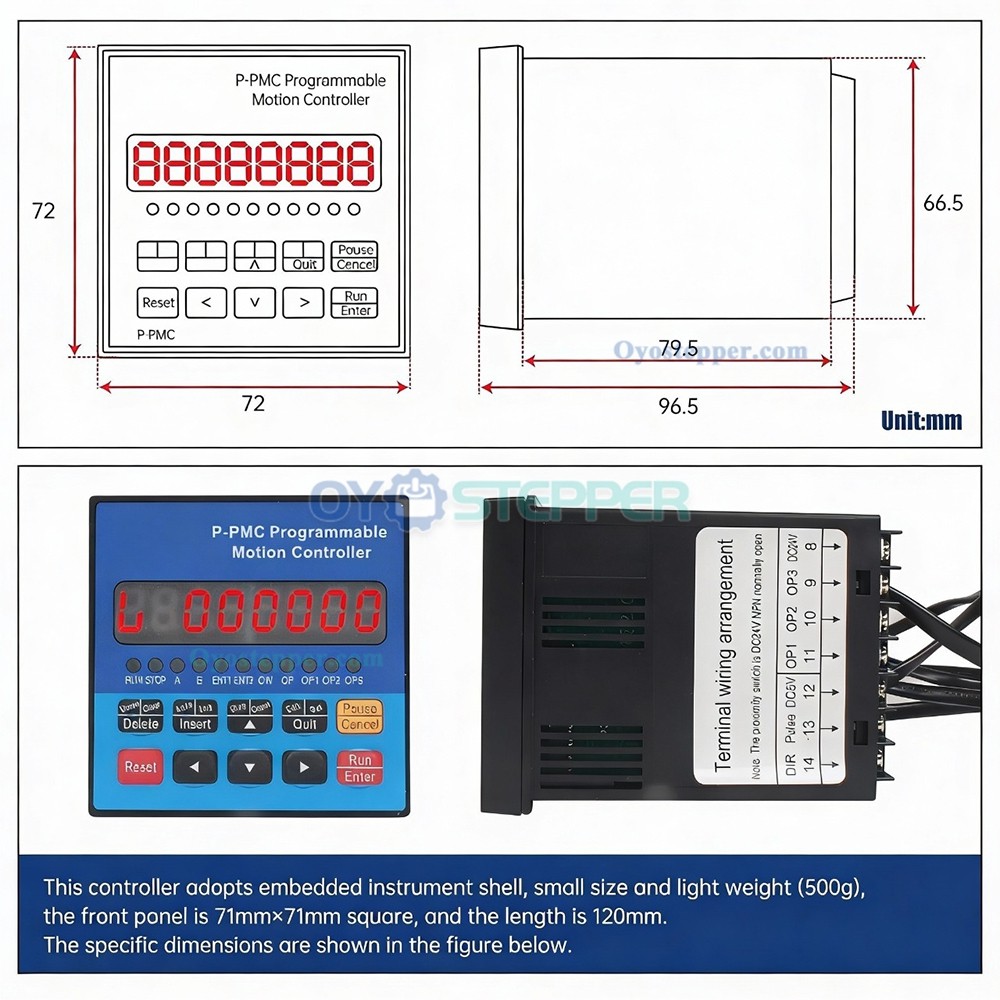

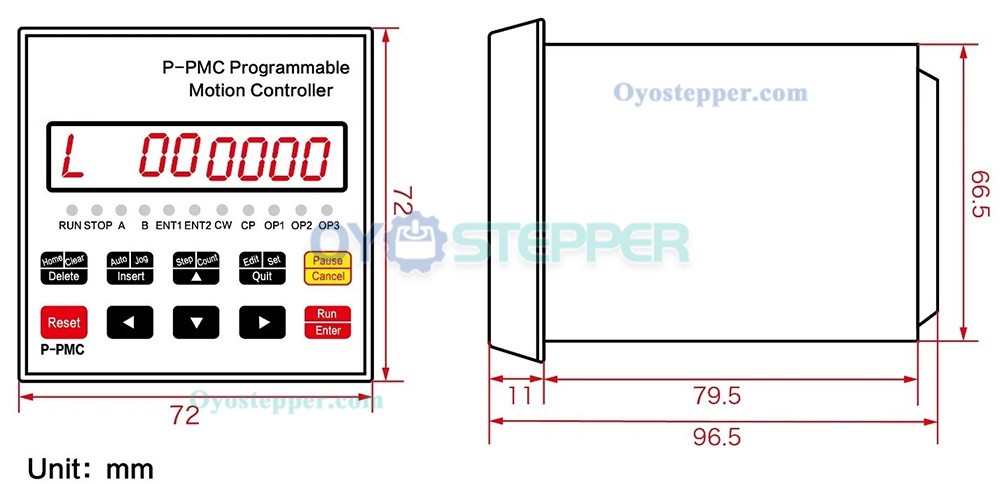

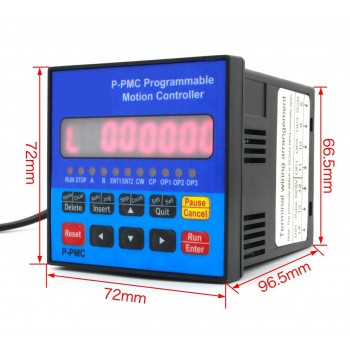

Dimensions: Panel size 71mm x 71mm; Housing length 120mm

Weight: 500g

Housing: Embedded instrument design


Package Includes:

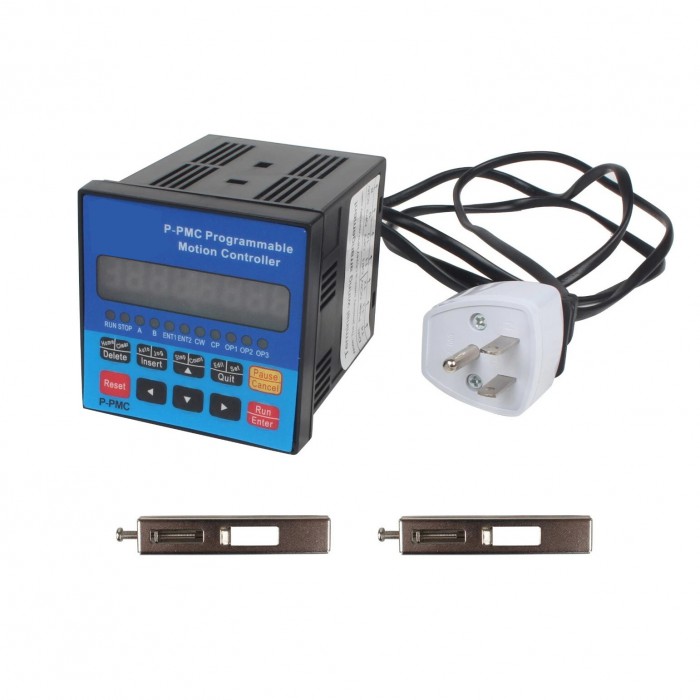

1 x Single-Axis Motion Programmable Controller

1 x Universal Plug Converter

English User Manual (provided via email);
