DDCS V4.1 3-Axis/4-Axis Standalone CNC Motion Controller Offline Controller USB CNC Controller Interface

DDCS V4.1 3-Axis/4-Axis Standalone CNC Motion Controller Offline Controller USB CNC Controller Interface



Models:
3-Axis Motion Controller
4-Axis Motion Controller
3-Axis Controller with Manual Pulse Generator DDMPG
4-Axis Controller with Manual Pulse Generator DDMPG

Description:

ARM + FPGA architecture, Linux platform. ARM handles interface and G-code interpretation; FPGA executes motion control. Fanuc-compatible G-code. Panel mount with locking hooks.

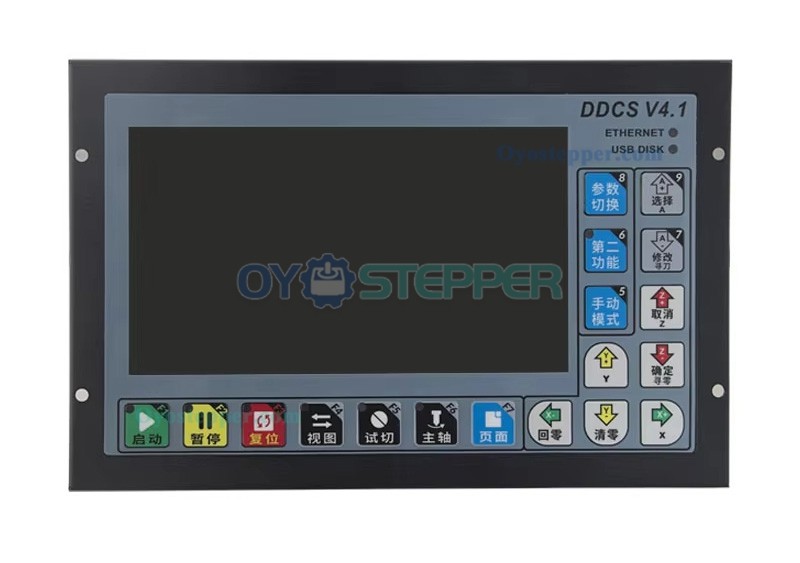

Display & Controls:

7 inch TFT, 1024×600

17 composite keys (control + numeric)

Languages: English, Chinese, multi-language character encoding

Hardware:

Main chip: ARM9

Algorithm chip: FPGA

Controller power: 24VDC, 0.5A min

I/O power: 24VDC, 0.5A min

Panel size: 237×153.7×5.2mm

Body size: 237×153.7×48.2mm

Cutout: 228.5×83.7mm

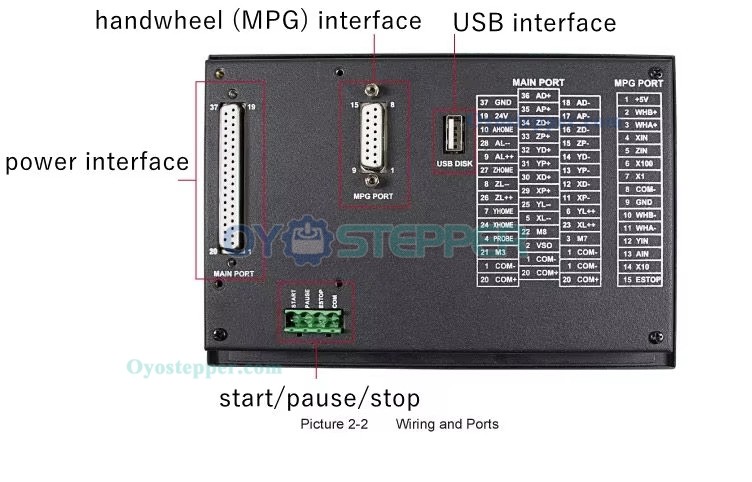

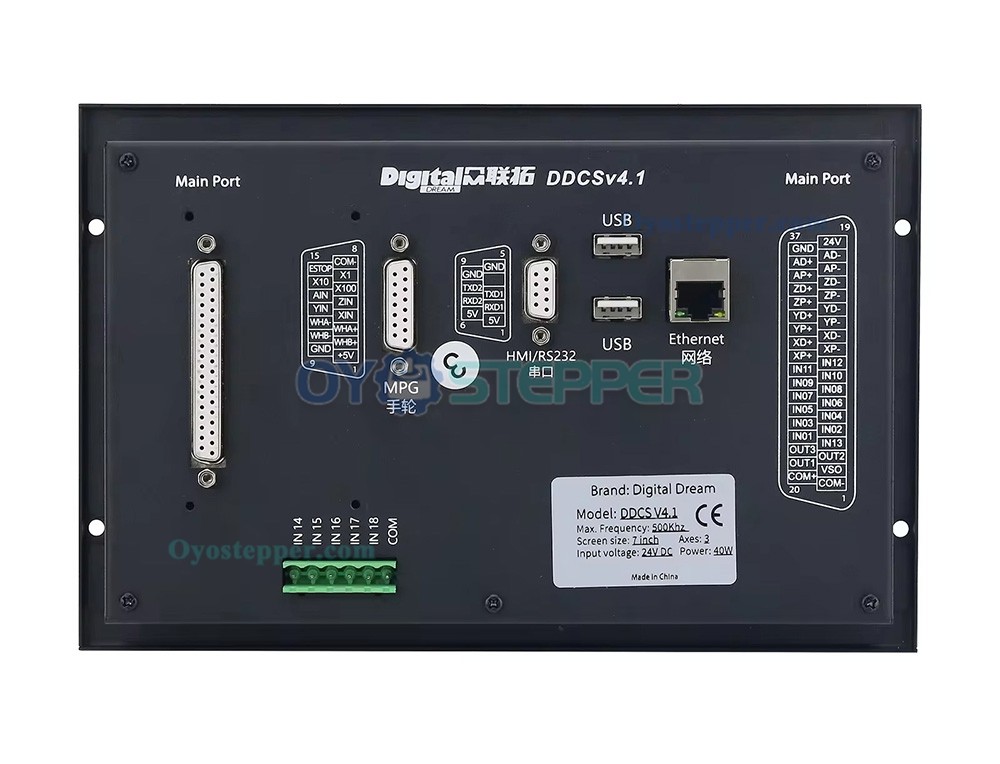

I/O:

Digital inputs: 18, optically isolated

Digital outputs: 3, optically isolated

Limit switch: NPN

Driver alarm inputs: configurable pin assignment

Motion Control:

Axes: 3–4

Output modes: differential pulse, double pulse

Max pulse frequency: 500kHz per axis

Interpolation: 2–4 axis linear, 2 axis circular

Gantry support: Slave X/Y/Z

Cycle encoder: unlimited A-axis rotation

Parameters for emergency stop

Spindle Control:

0–10V analog or Servo spindle

Programming & Data:

G-code input: USB flash drive, Ethernet

No file size limit

CAM software support: ArtCAM, MasterCAM, ProE, JDSoft SurfMill, Aspire, Fusion 360

Internal memory: data retention

Access levels: visitor, operator, admin, super admin

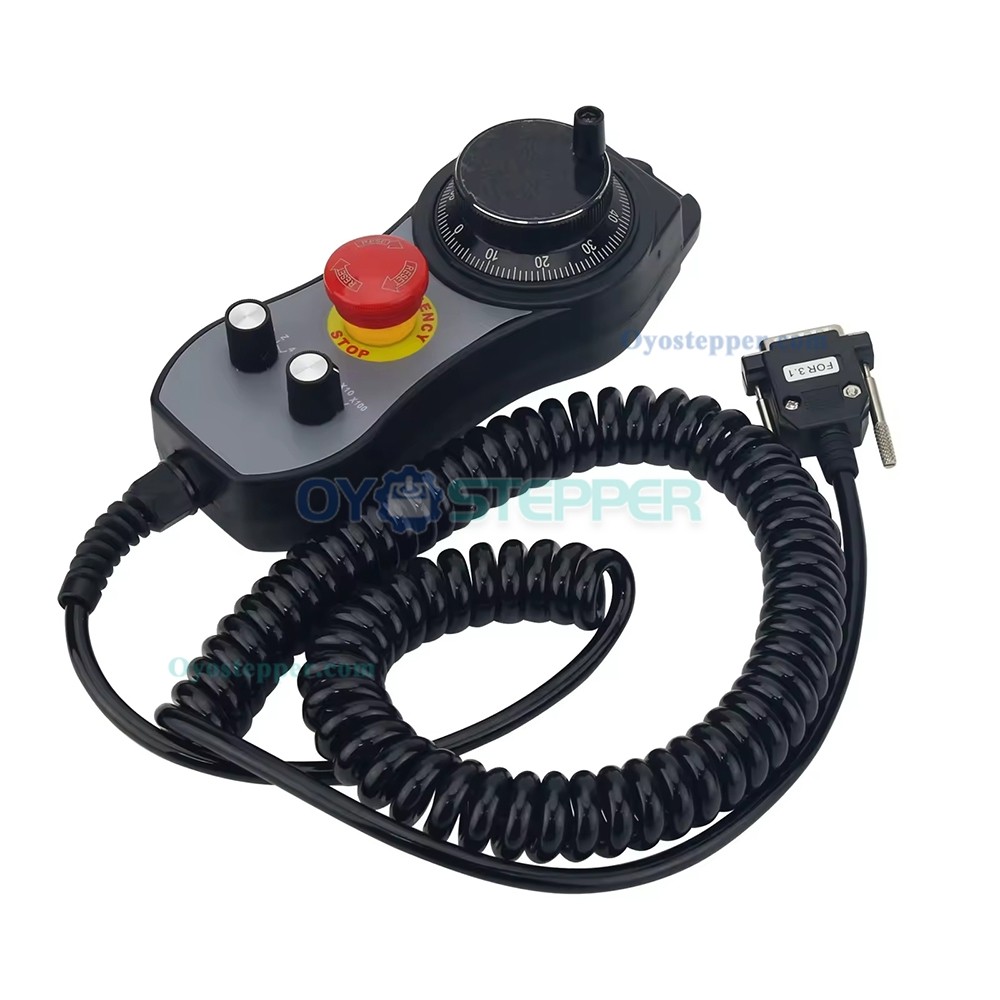

MPG Support:

Standard MPG compatible

New in V4.1:

USB and EtherCAT interface

Servo spindle option

Gantry slave axis configuration

Polar coordinate and rotation commands

Radius compensation

Start from specified line / nearest point

Simulation with FRO adjustment

Driver alarm input, pin configurable

Cycle encoder for unlimited A-axis

32‑bit speed generator (FPGA);

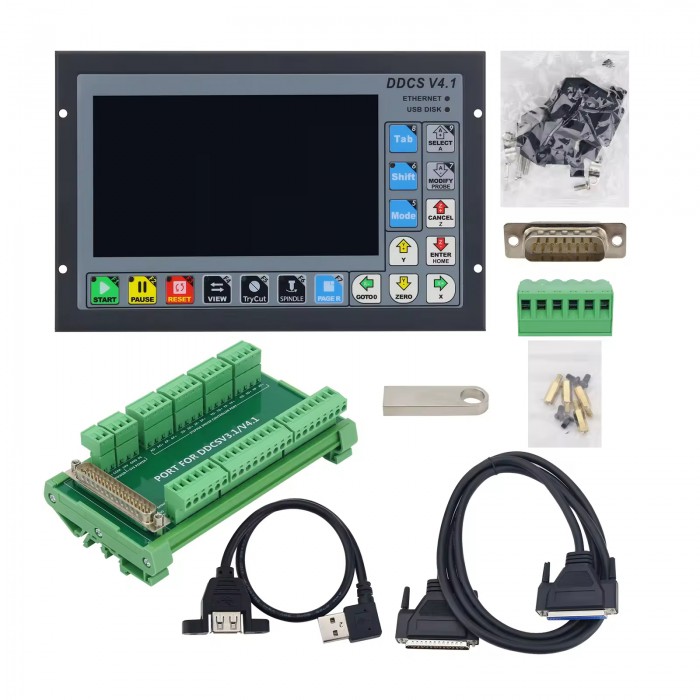

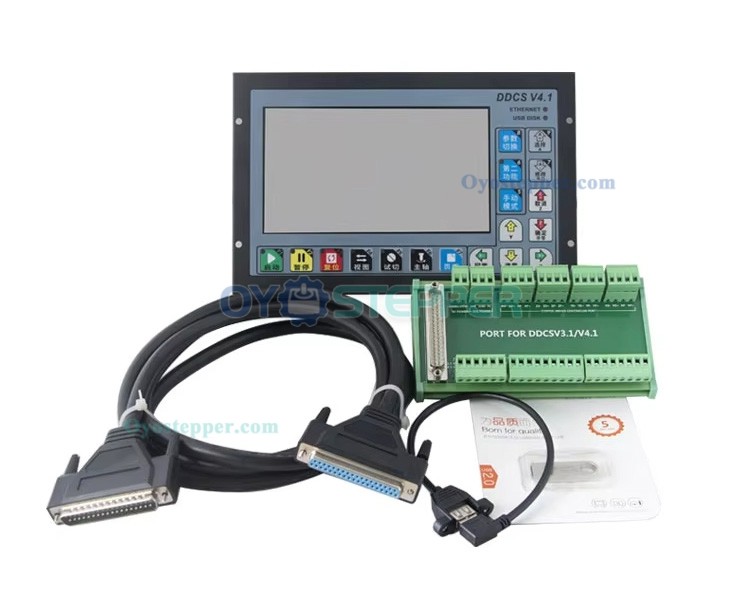

Package Includes:

1×DDCS V4.1 controller (3 or 4 axis)

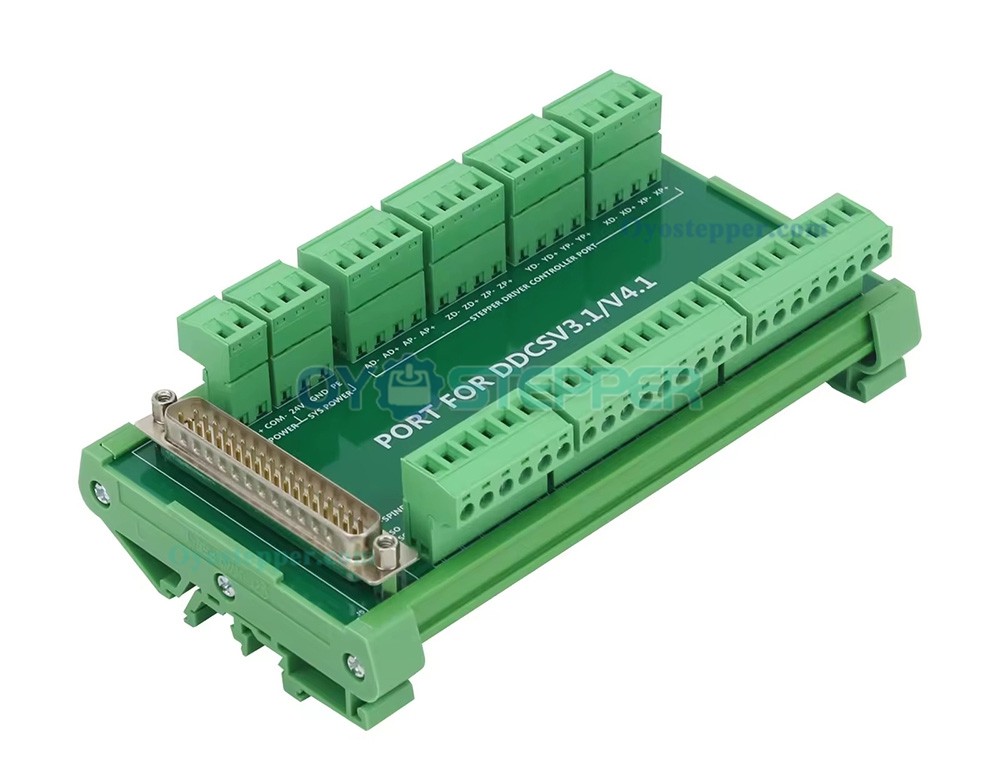

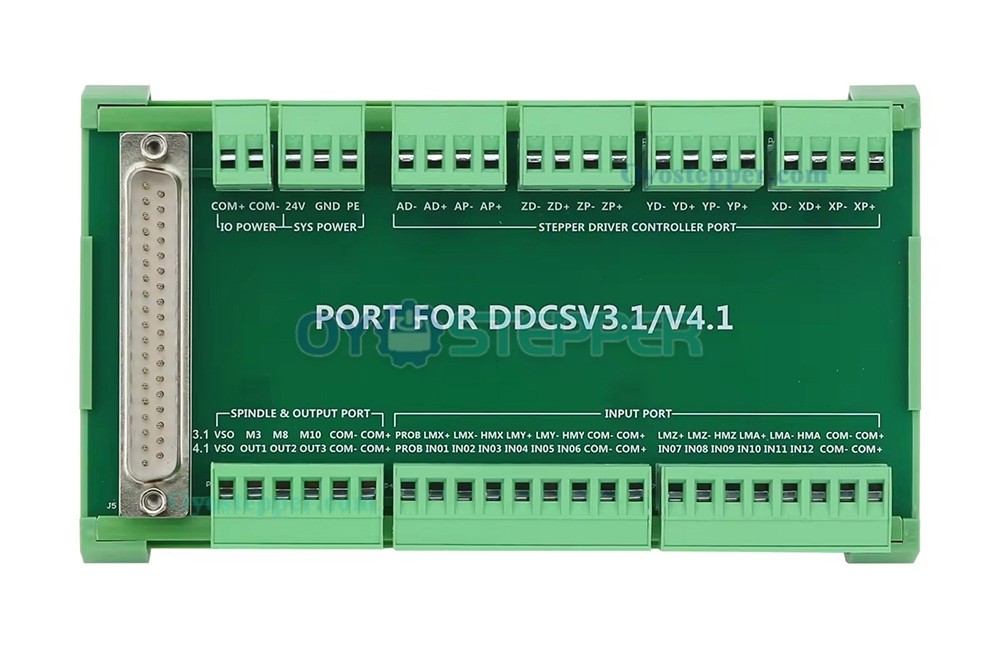

1×DB37 cable (controller to wiring board)

1×DB15 handwheel interface cable

1×USB extension cable (50cm)

1×USB flash drive

1×Mounting screw set

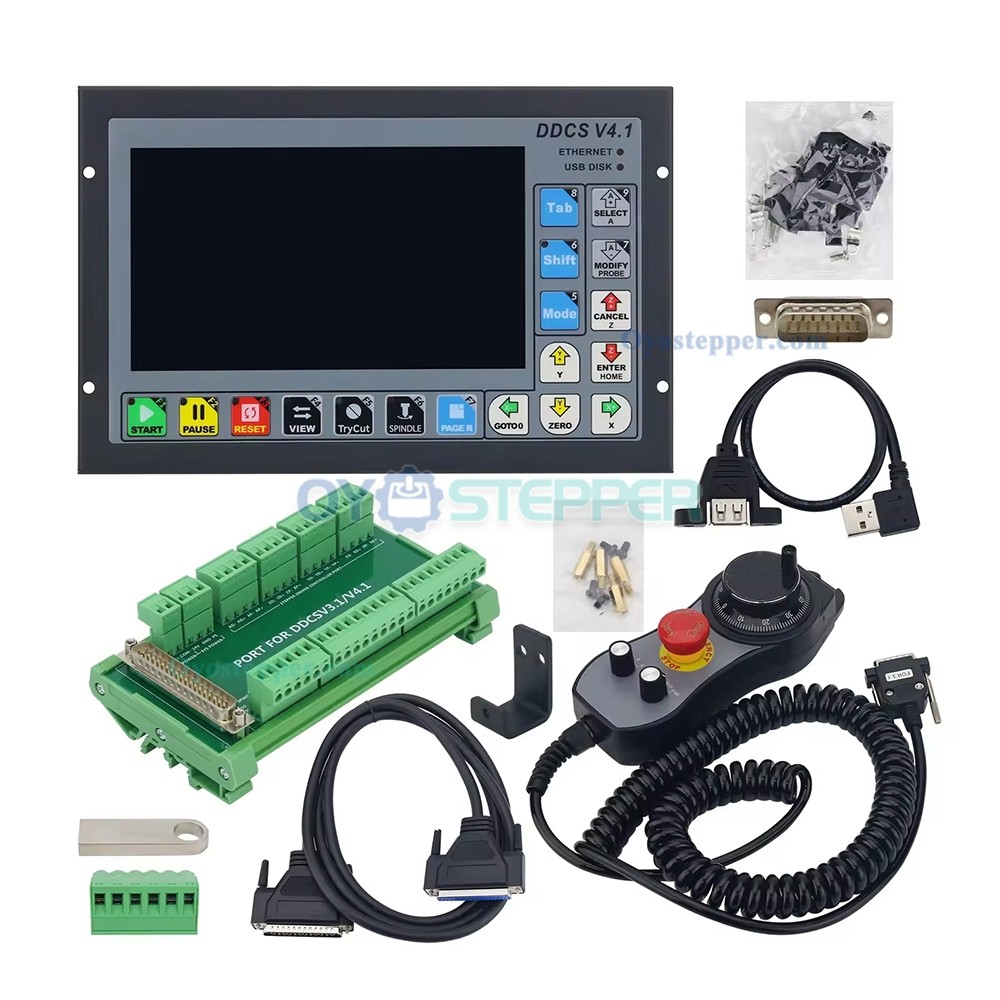

CNC Controller with Manual Pulse Generator DDMPG:
