CNC Breakout Board USB Fit MACH3 100KHz 5-Axis Interface Driver Motion Controller

CNC Breakout Board USB Fit MACH3 100KHz 5-Axis Interface Driver Motion Controller

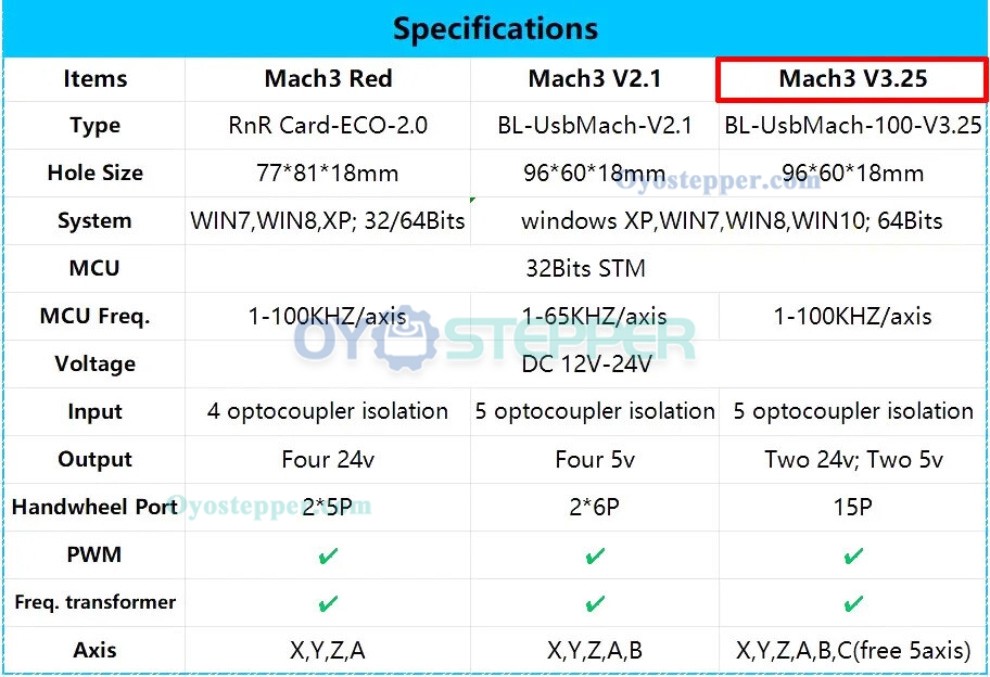

Features:

Compatible with MACH3 software;

OS support: Windows XP, WIN7, WIN8, WIN10 (32/64 bit, tablet compatible);

Input voltage: 12–24VDC, reverse polarity protection;

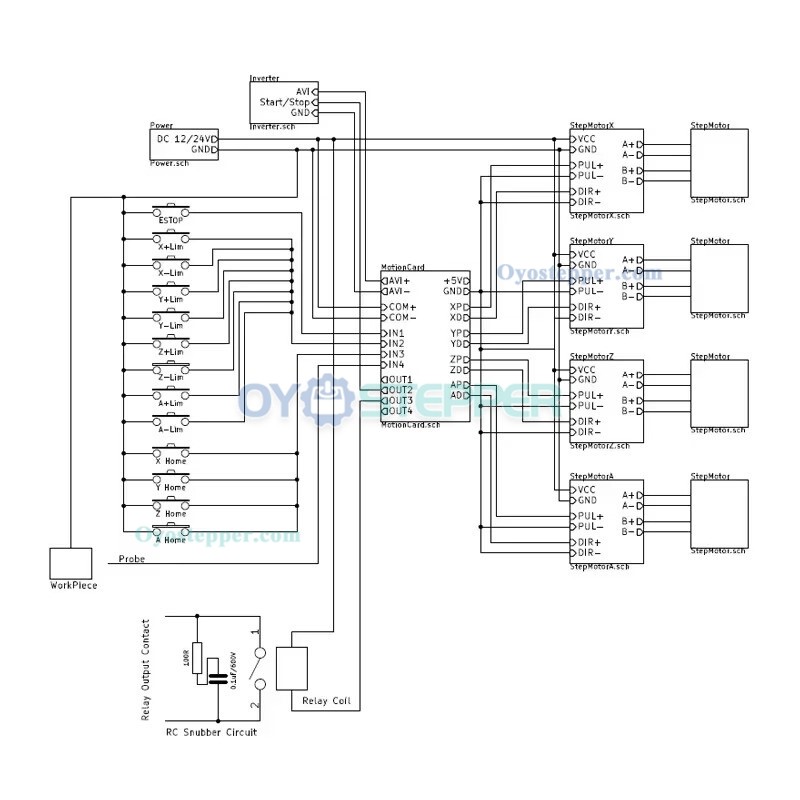

Optically isolated inputs: emergency stop, tool setting, limit, homing;

Optically isolated 0–10V analog output (inverter speed control);

Optically isolated PWM output (5V, spindle speed control);

4 x 5V output ports (relay control for water cooling, mist.)

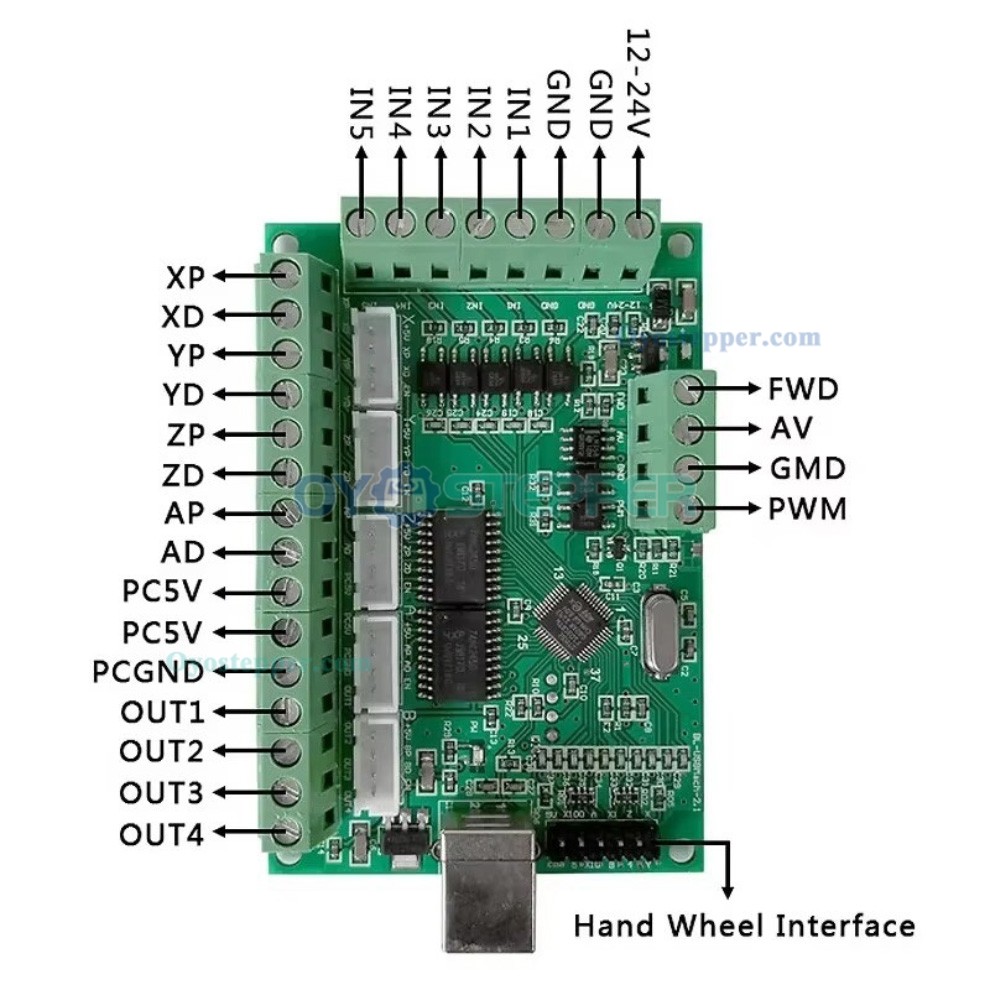

5‑axis interface socket (HX2.54) for stepper drivers;

Compatible with common anode/cathode, 5V, optocoupler input drivers.

Inverter Setup:

Set inverter to external terminal start mode;

Set frequency control mode to 0–10V analog input;

Quick Inverter Test:

Short FWD and COM terminals

Short 10V and VI terminals on inverter

Connect spindle

Alternatively: connect potentiometer to 10V, VI, GND

Power on: spindle should run, speed adjustable via potentiometer.

Package Includes:

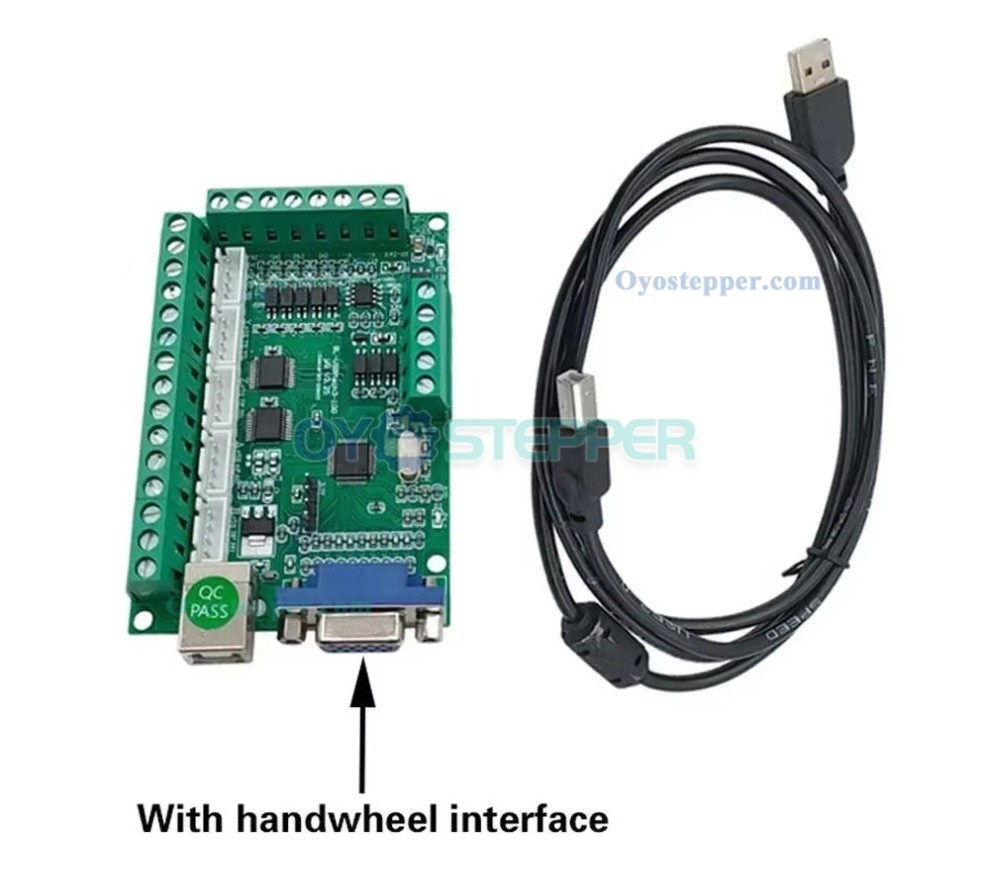

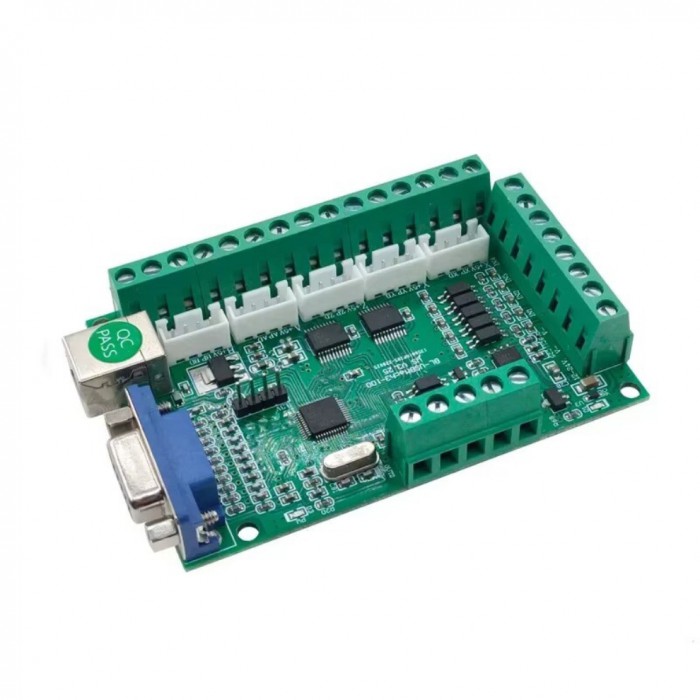

1×5 Axis Mach3 V3.25 Interface Board;

1×USB Cable;

Notes:

Observe power polarity and driver direction;

Do not connect/disconnect motors or drivers while powered on;

Disconnect all motors when adjusting driver current.
