DXG6042 Mini Manual Ballscrew Slide Table CNC Linear Module Handwheel Linear Translation Stage

DXG6042 Mini Manual Ballscrew Slide Table CNC Linear Module Handwheel Linear Translation Stage



Model:
Stroke Length:100mm(4 inches)
Stroke Length:200mm(8 inches)
Stroke Length:300mm(12 inches)

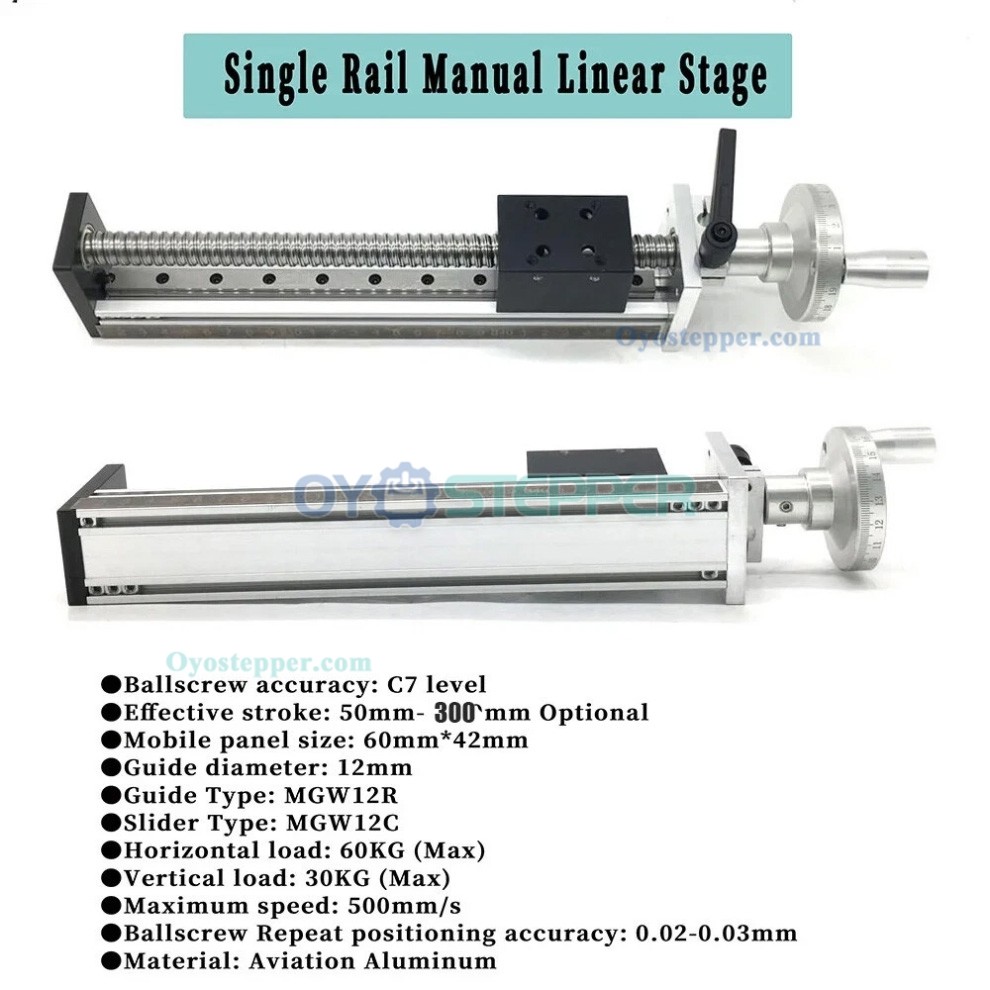

Parameter:
Model:M-DXG6042

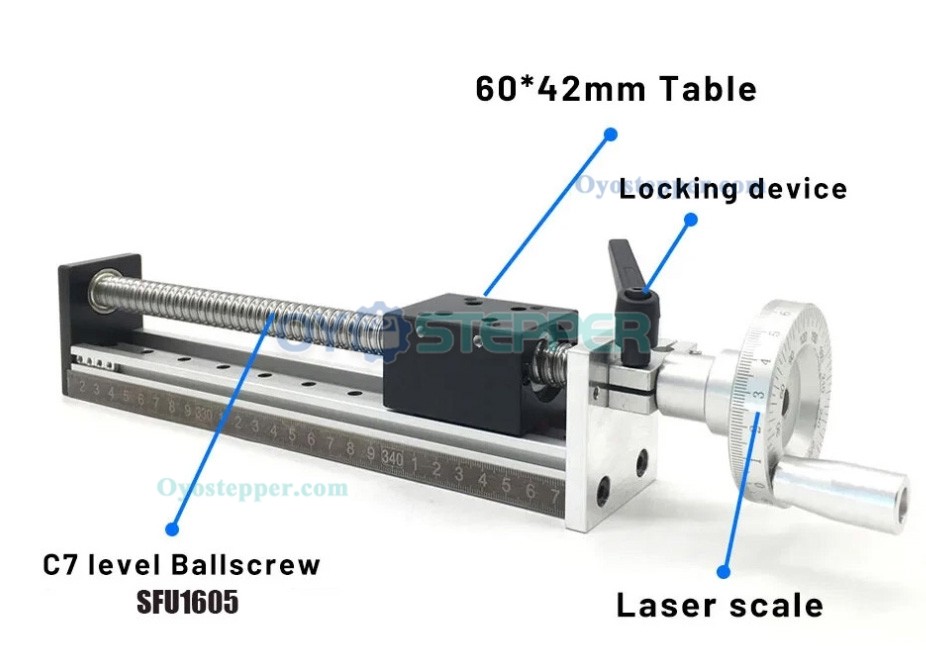

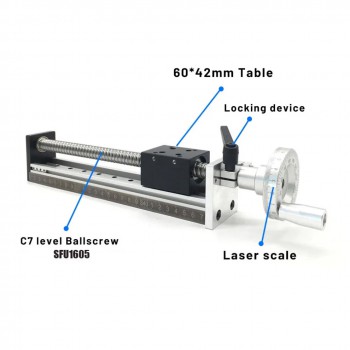

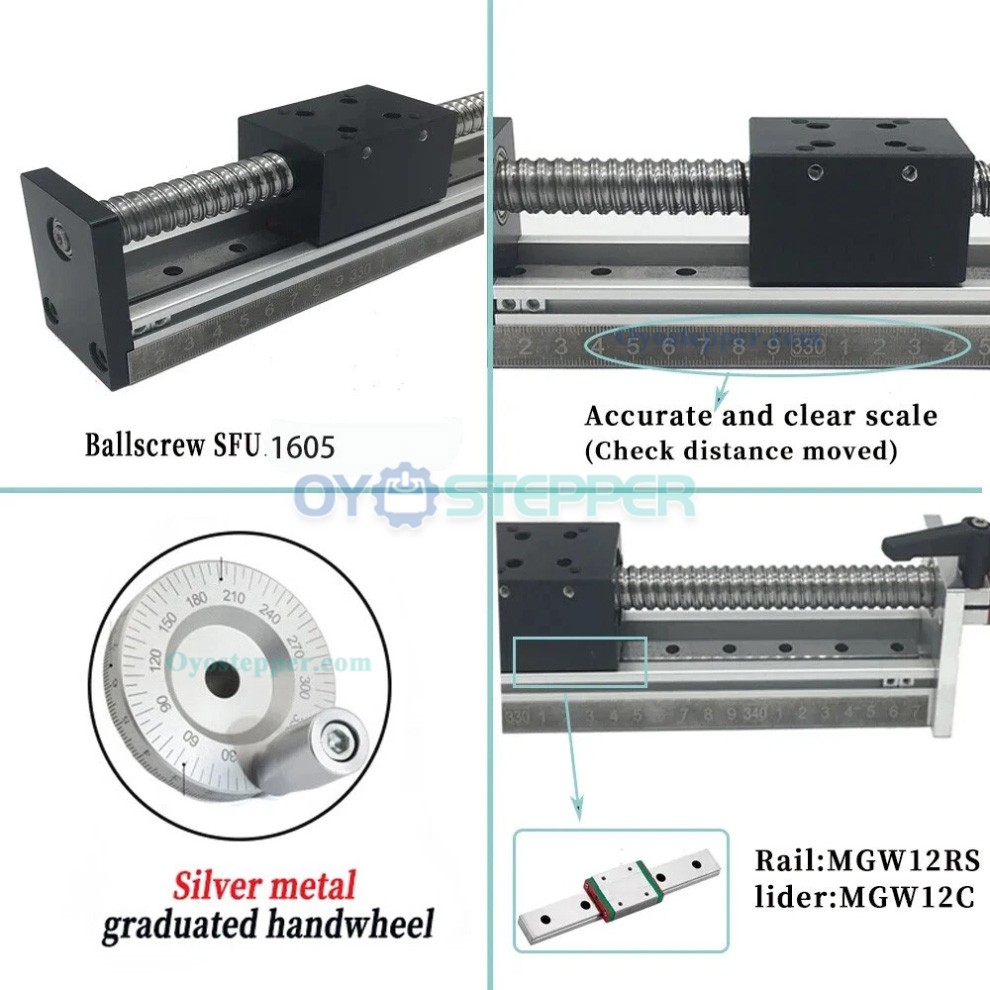

Ballscrew type: SFU1605
Ballscrew accuracy: C7 level
Effective Stroke: 100mm-300mm
Total length of slide: Effective stroke+180mm
Mobile panel size: 60mm*42mm
Guide diameter: 12mm

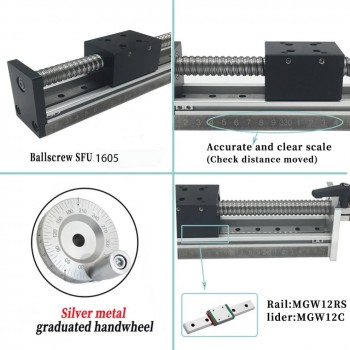

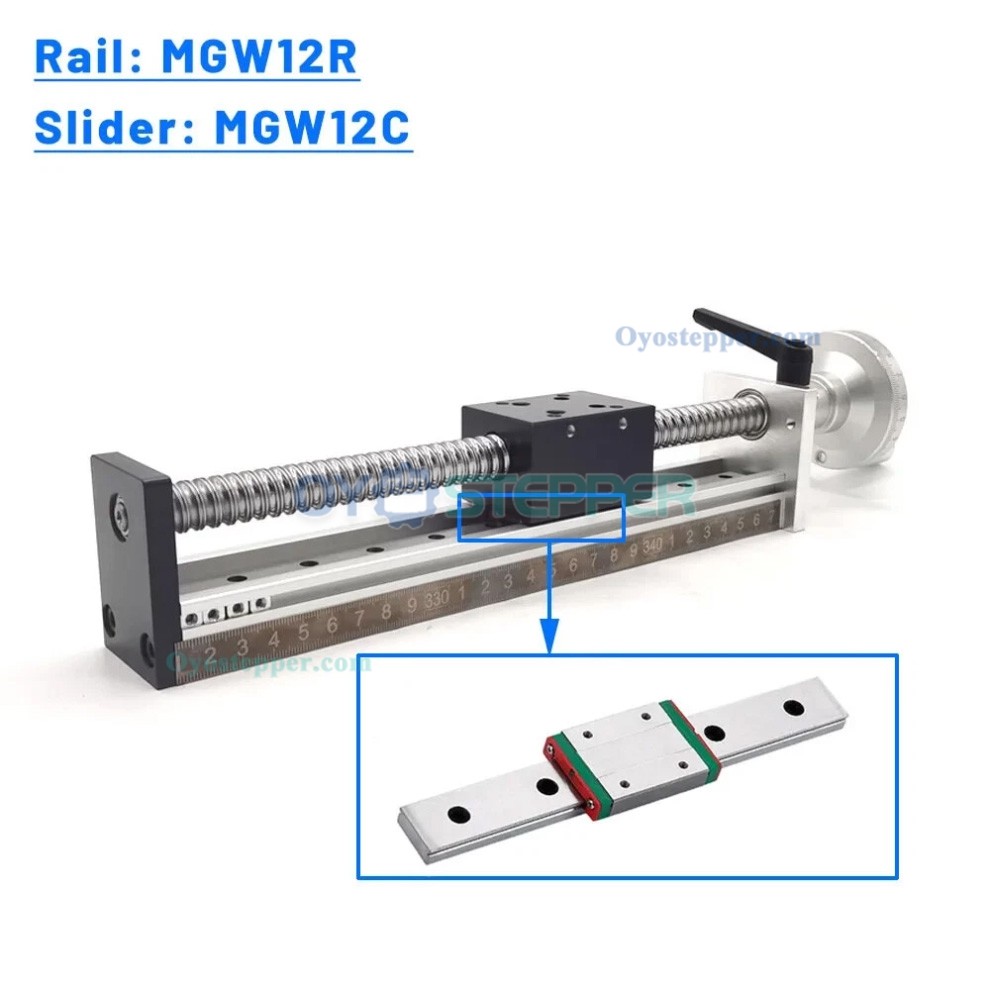

Guide Type: MGW12R
Slider Type: MGW12C
Horizontal load:40KG,88.18lb (Max);
Vertical load:20KG,44.09lb (Max);
Maximum speed: 500mm/s;
Ballscrew Repeat positioning accuracy: 0.02-0.03mm;
Material: Aviation Aluminum;



Package List:
1 X Sliding Table with Manual Handwheel;

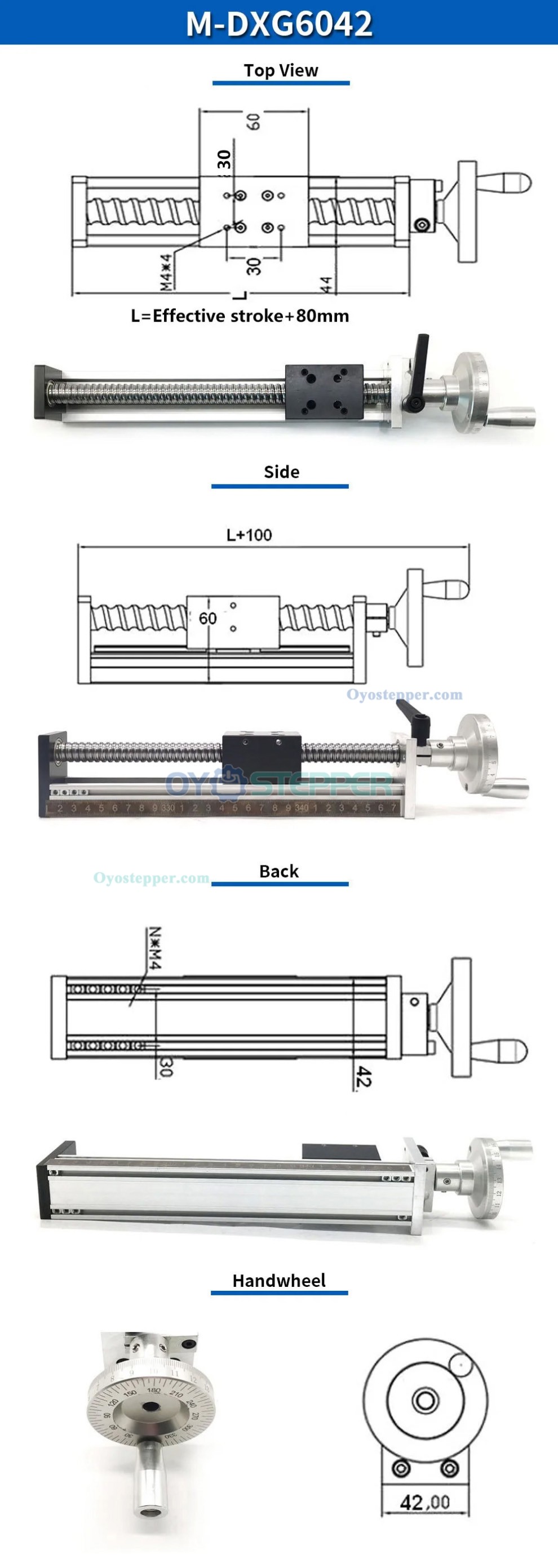

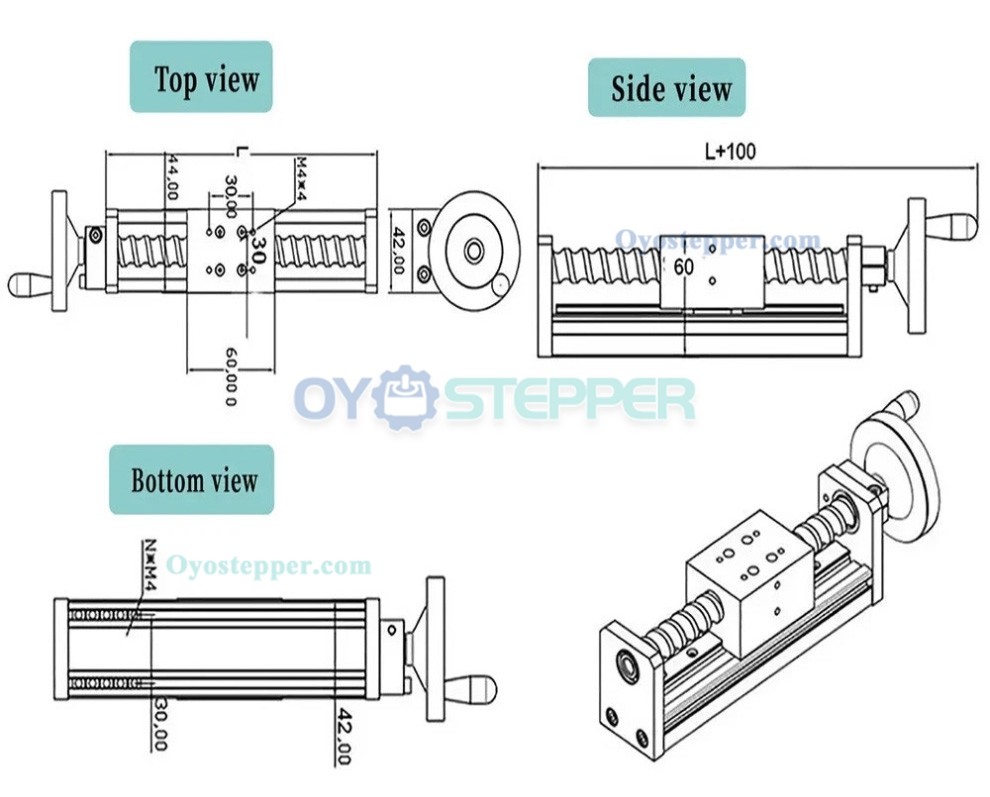

Drawings:
