QMF90 Fully Sealed Manual Ballscrew Slide Translation Stage 22-154lb CNC Linear Guide Module

QMF90 Fully Sealed Manual Ballscrew Slide Translation Stage 22-154lb CNC Linear Guide Module

Features:

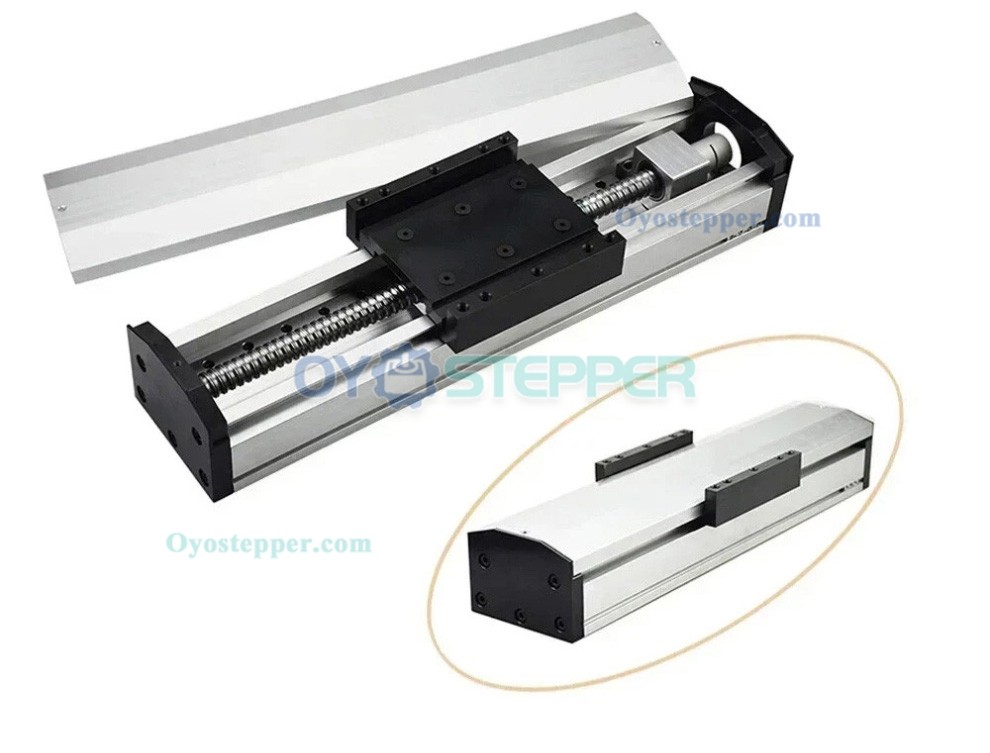

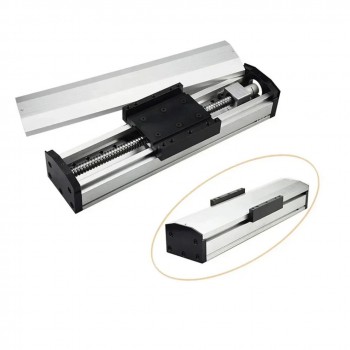

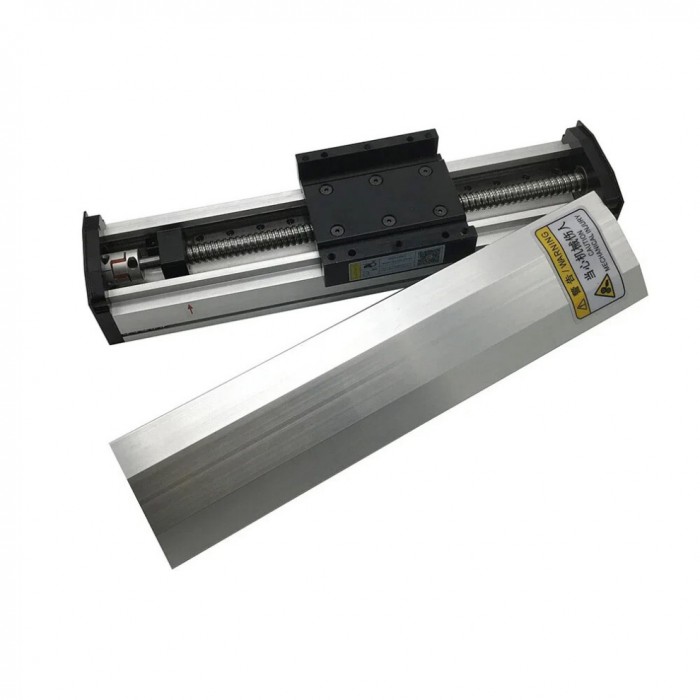

The linear motion actuator adopts a fully enclosed design with a noise level below 50 dB.
The actuator is designed to operate in environments with dust, solid particles, and light water splashes.
Horizontal load capacity: up to 70 kg; vertical load capacity: up to 35 kg.

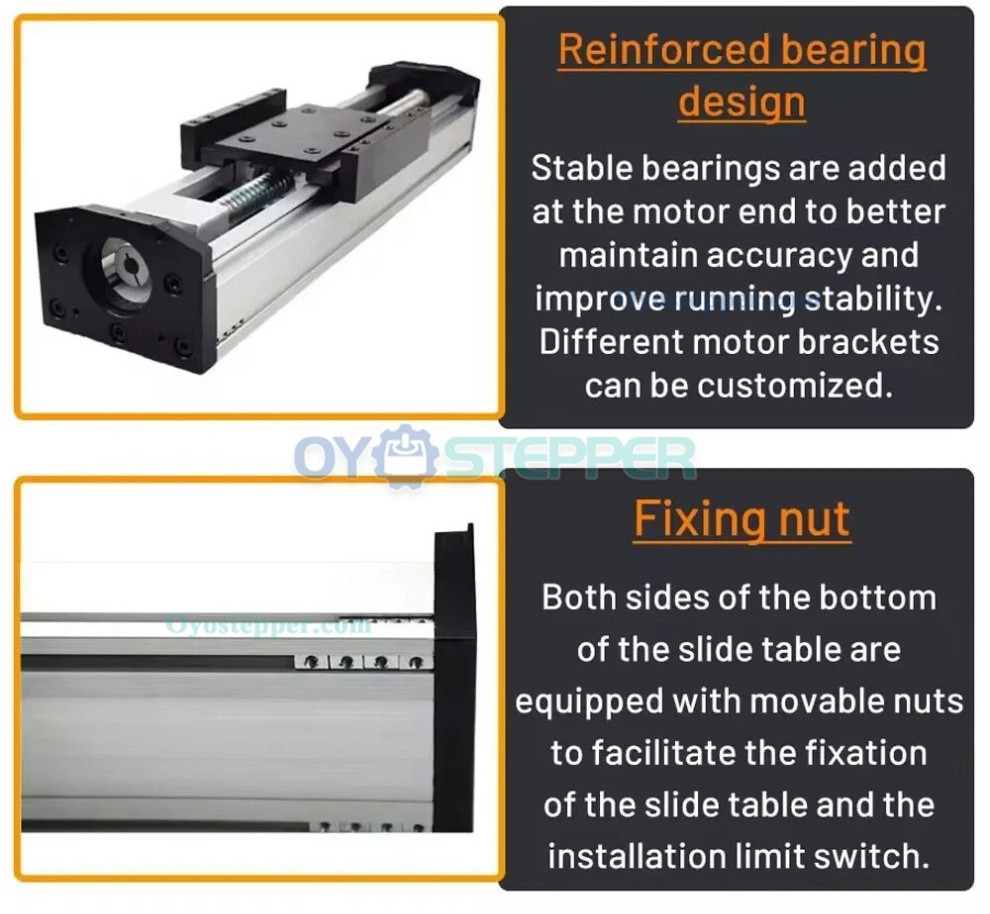

The unit adopts a reinforced structure and all-metal transmission mechanism.



Parameters:

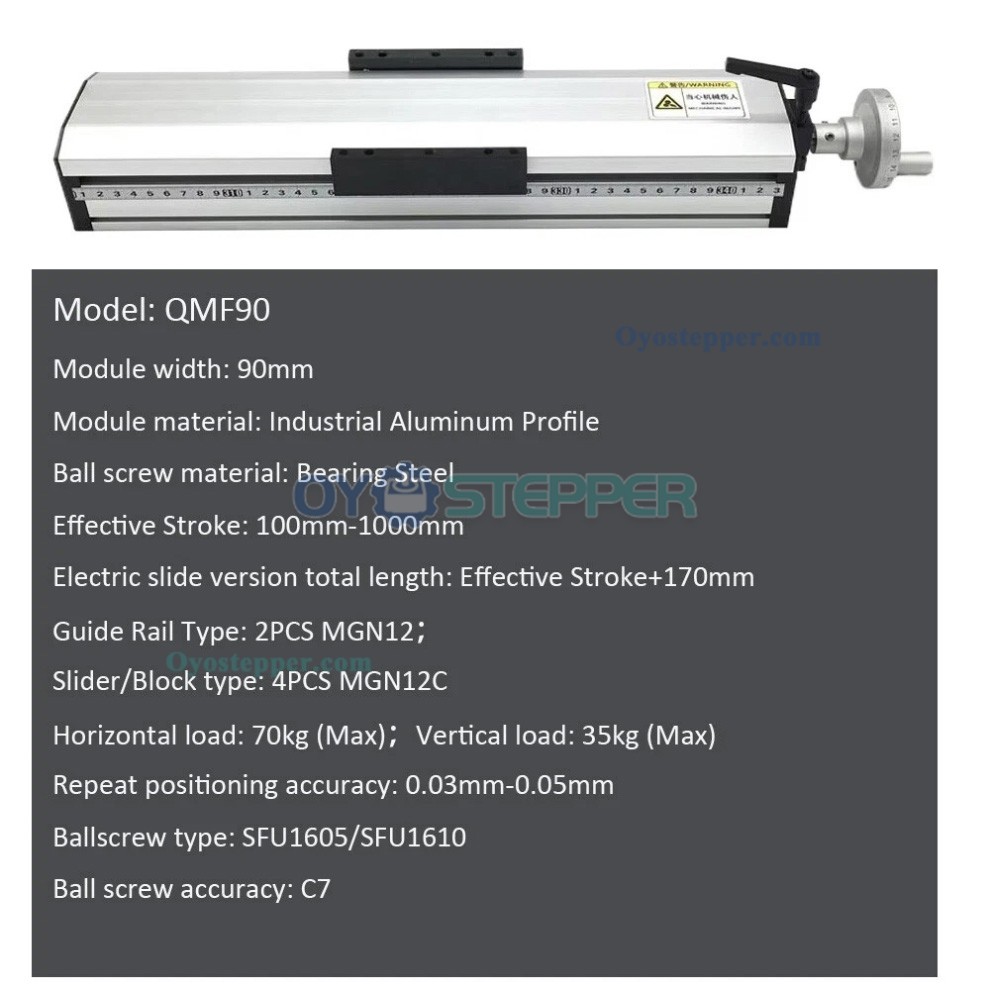

Model: QMF90
Module Material: Industrial Aluminum Profile
Stroke: 100 mm–1000 mm (select based on requirement)

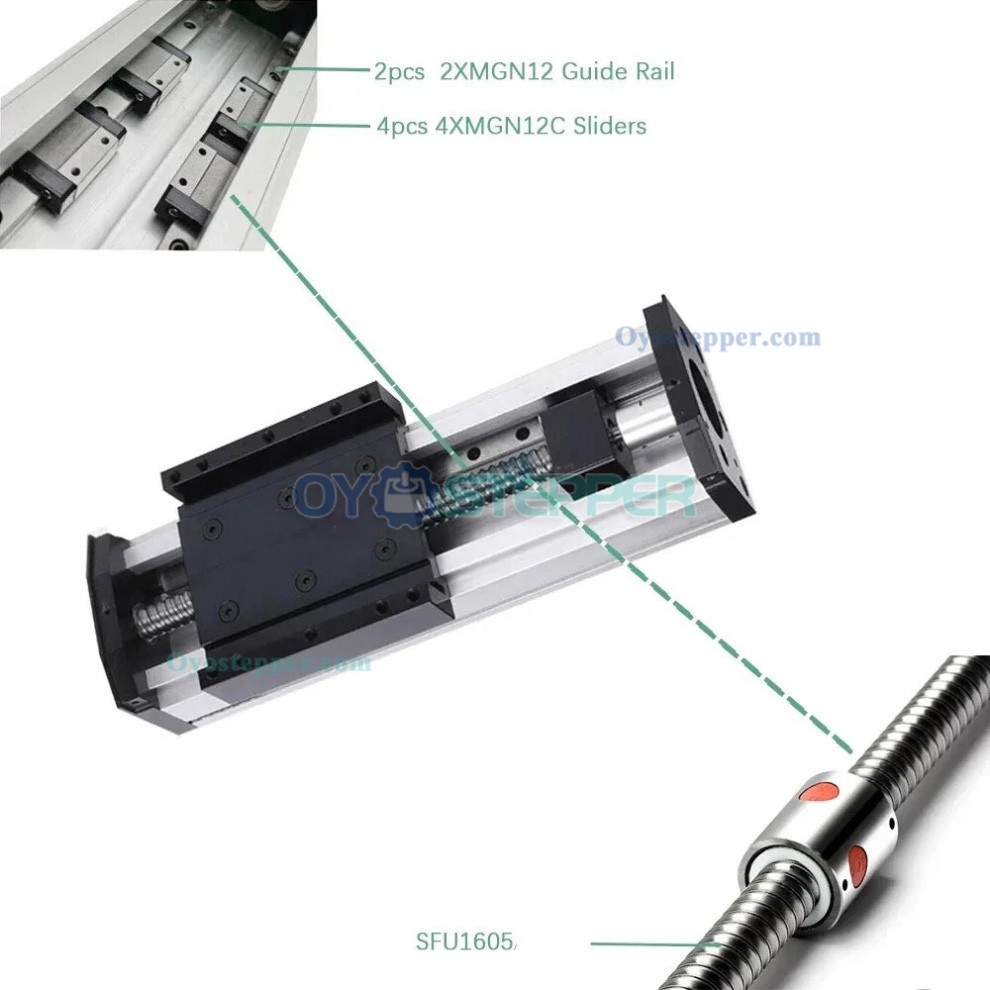

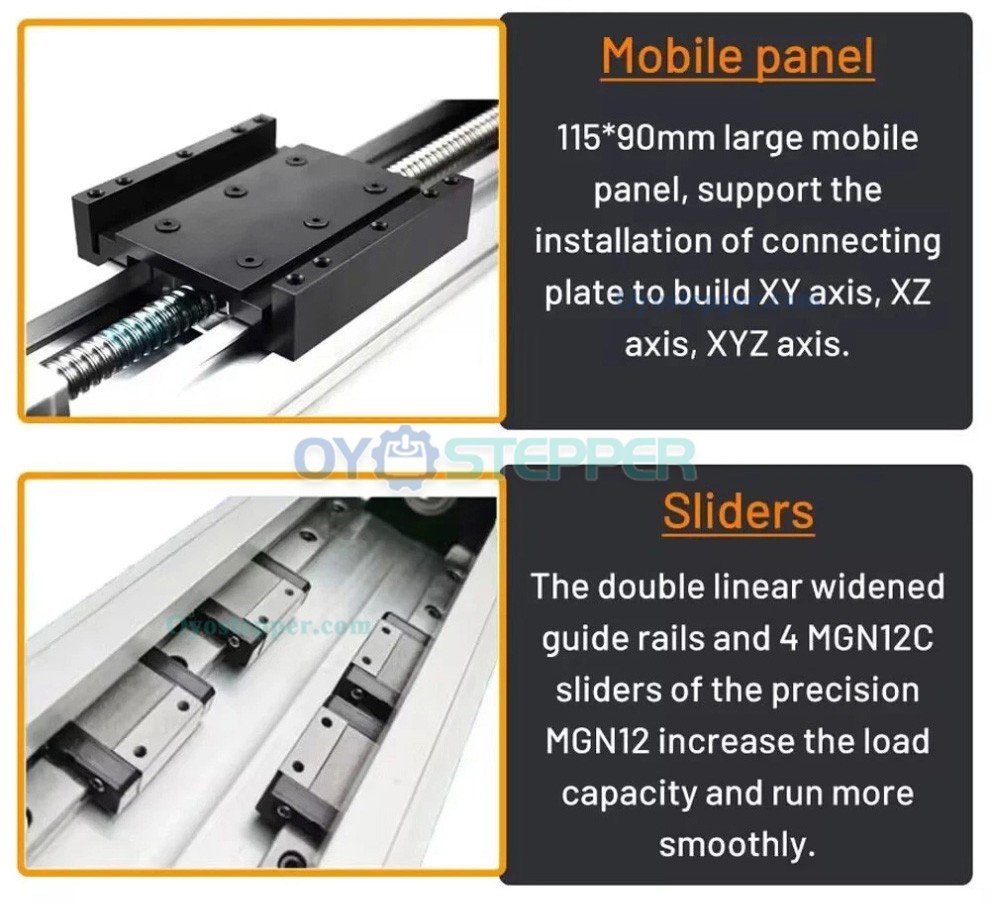

Guide Rail Type: 2 × MGN12
Slider Type: 4 × MGN12C
Horizontal Load: 70 kg (max)
Vertical Load: 35 kg (max)

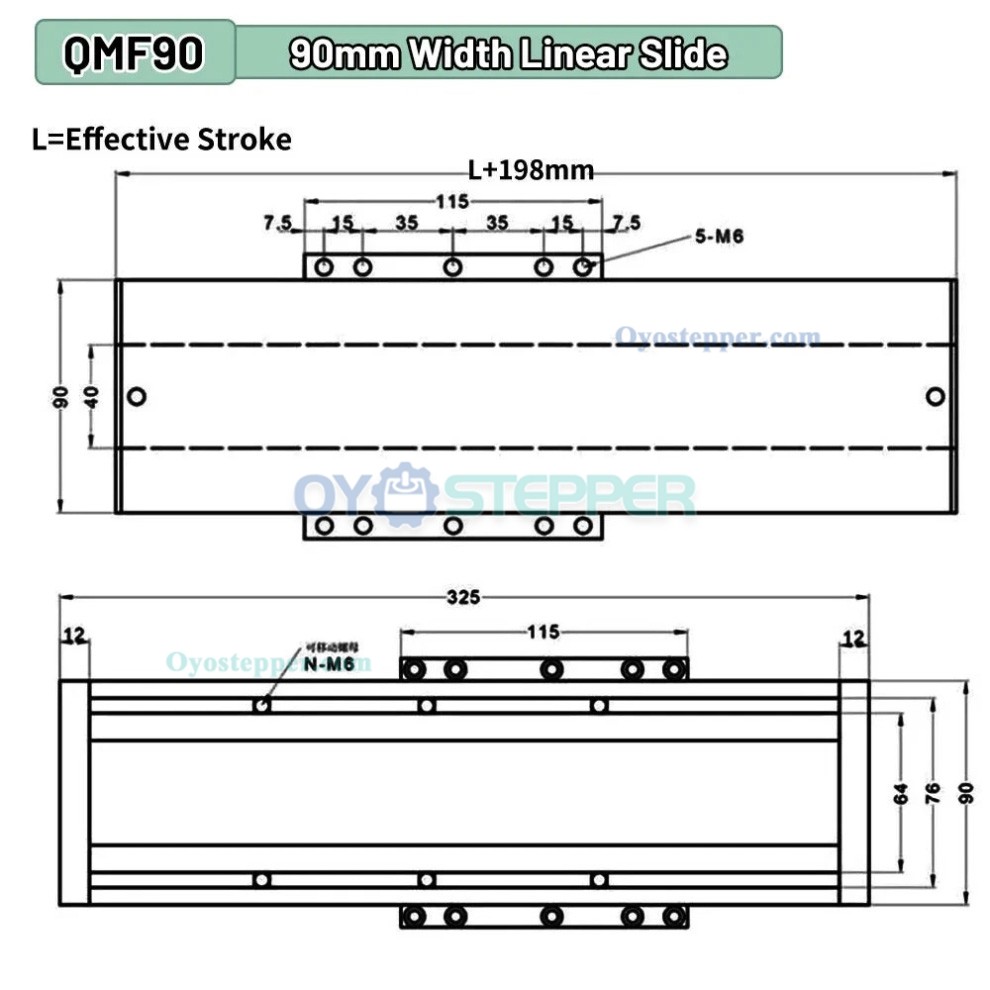

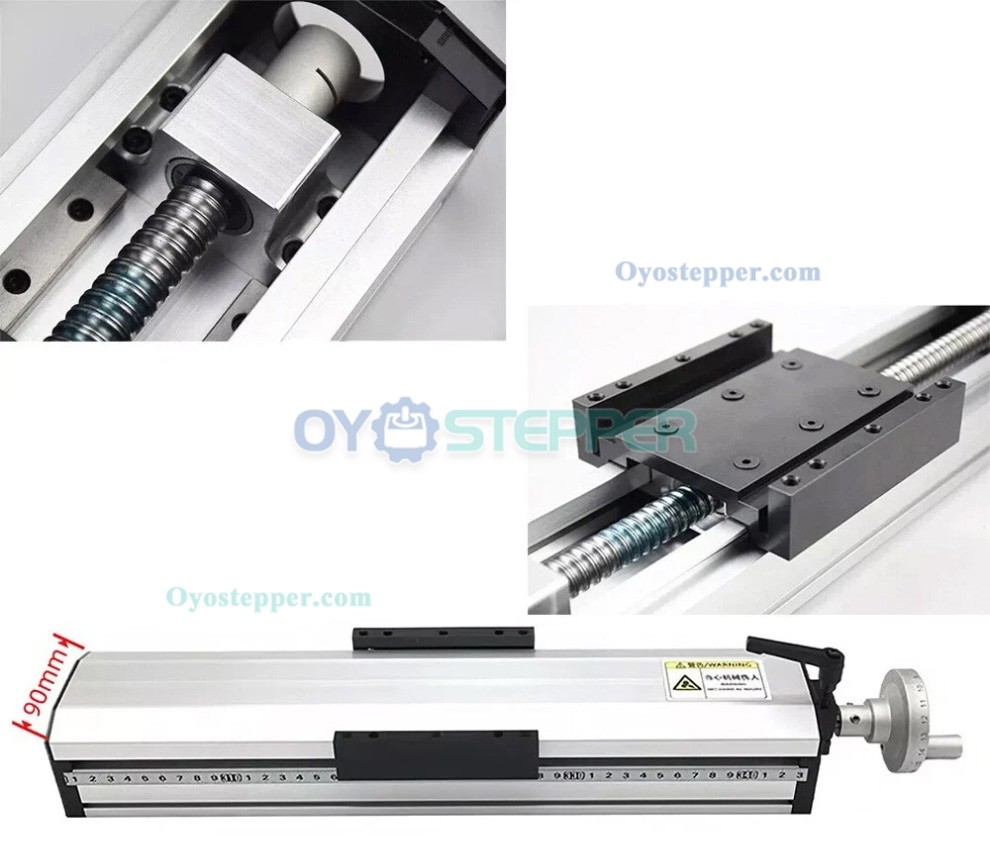

Module Width: 90 mm
Repeat Positioning Accuracy: 0.03–0.05 mm

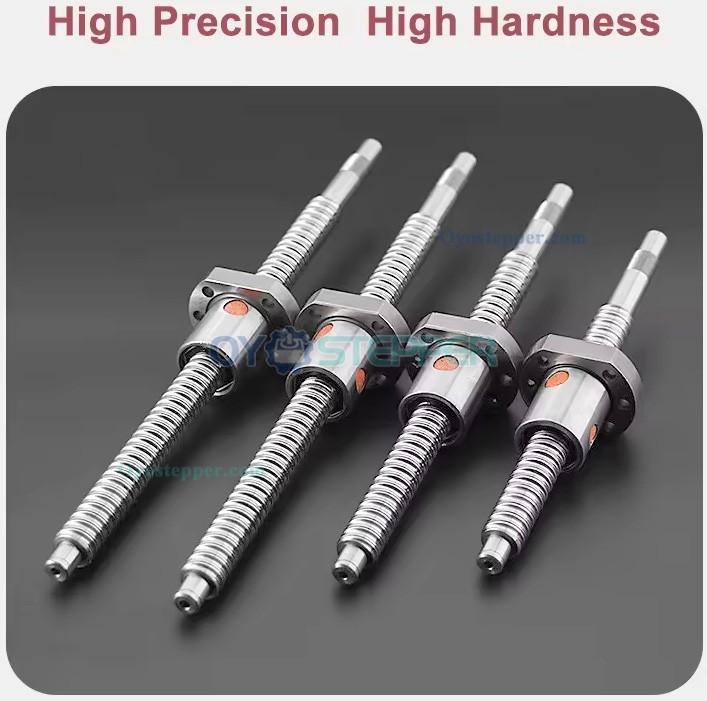

Ball Screw Material: Bearing Steel

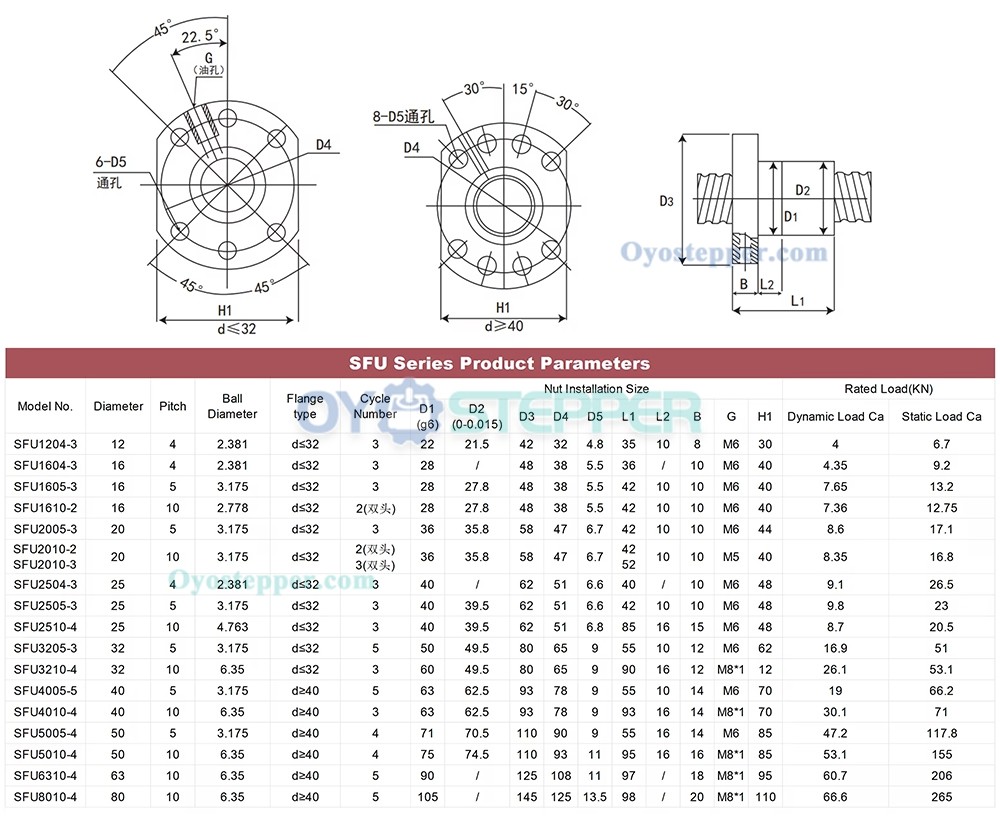

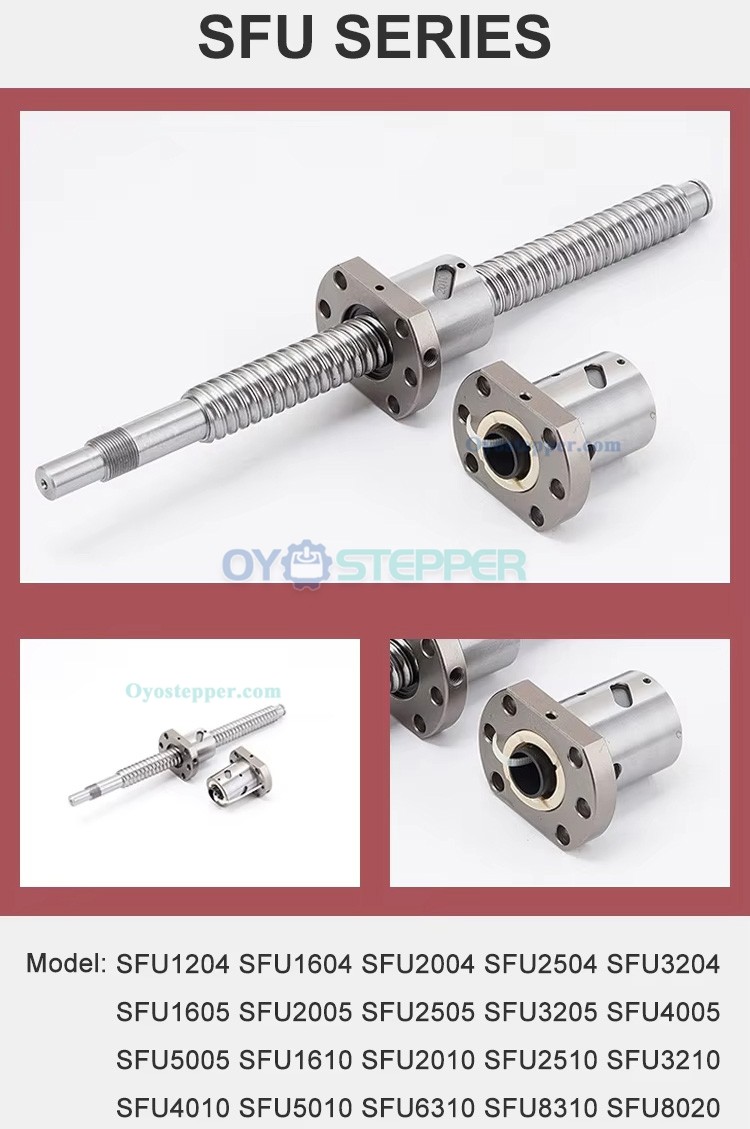

Ball Screw Type: SFU1605
(SFU1605: screw diameter 16 mm, pitch 5 mm; one rotation moves the table 5 mm).
Ball Screw Accuracy: C7
Maximum Moving Speed: 250 mm/s;

Package Includes:
1×Sliding Table

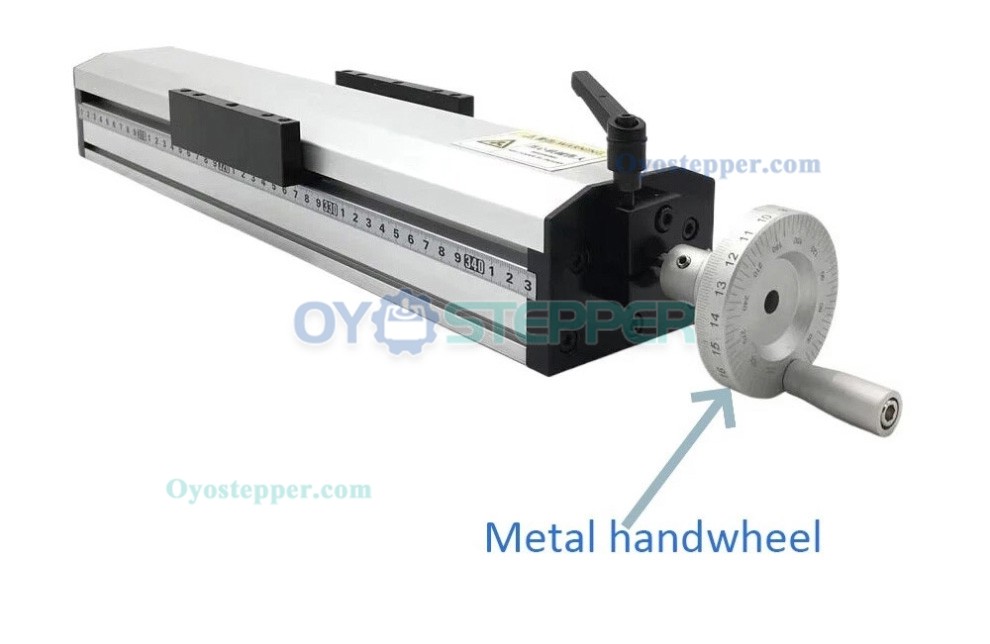

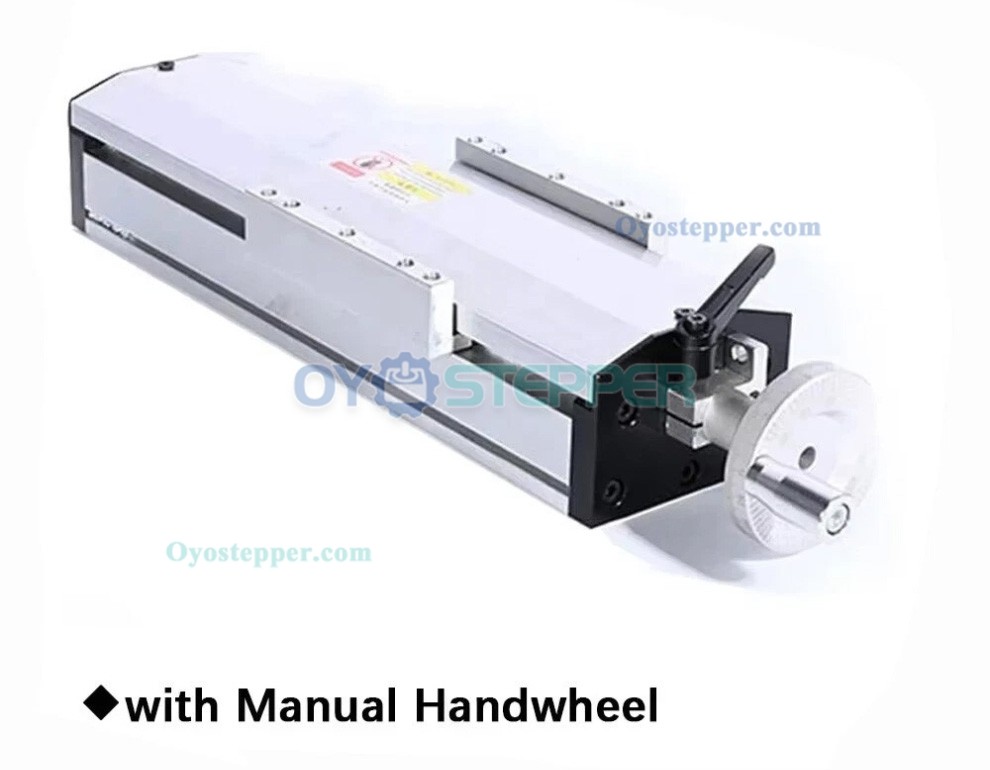

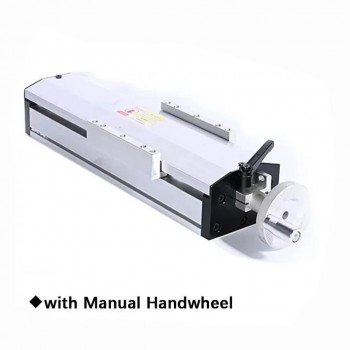

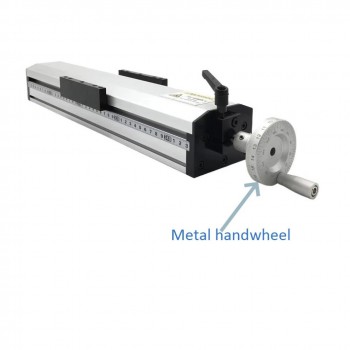

1×Manual Handwheel
