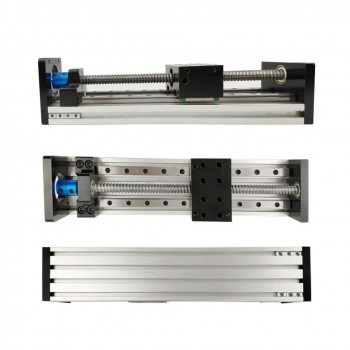

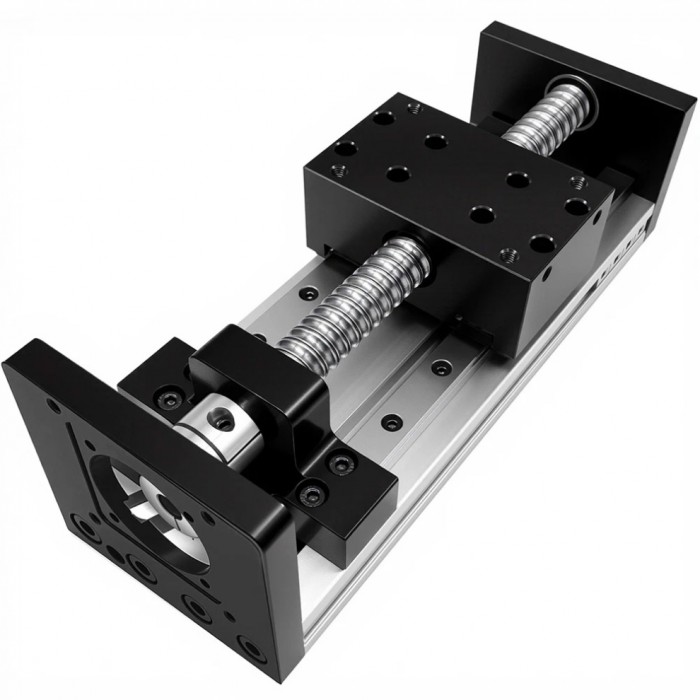

Motorized Ballscrew Linear Slide Fit Nema 17 / Nema 23 Stepper Motors CNC Linear Motion Stage

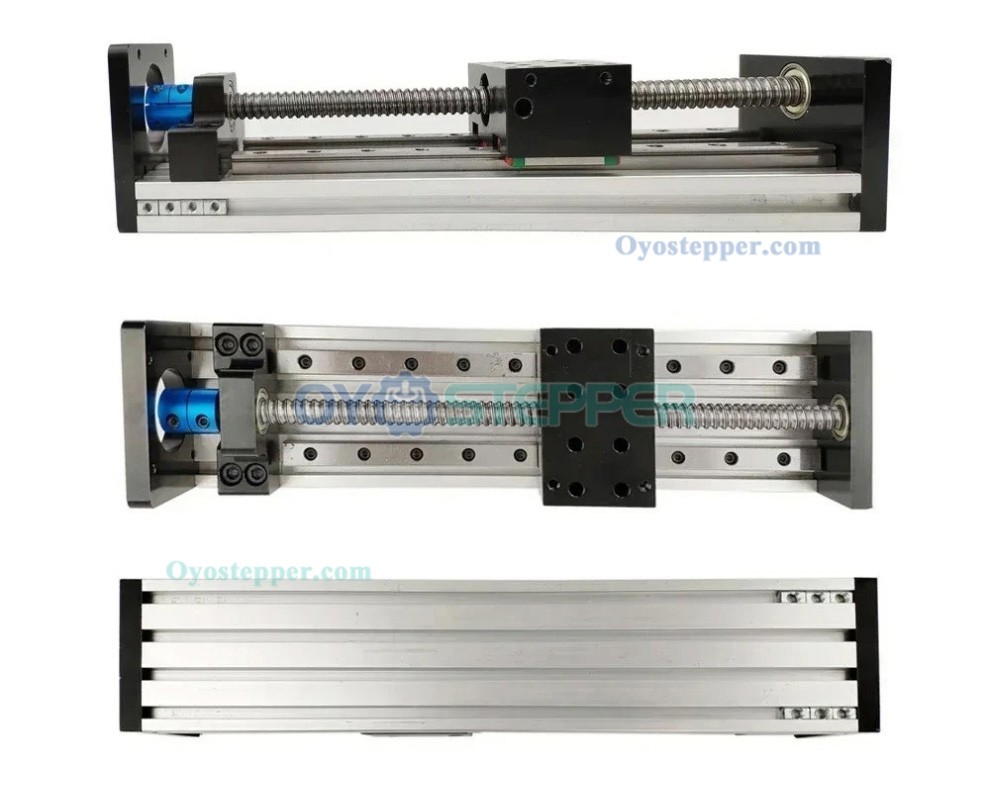

SXG5080 Motorized Ballscrew Linear Slide Fit Nema 17 / Nema 23 Stepper Motors CNC Linear Motion Stage

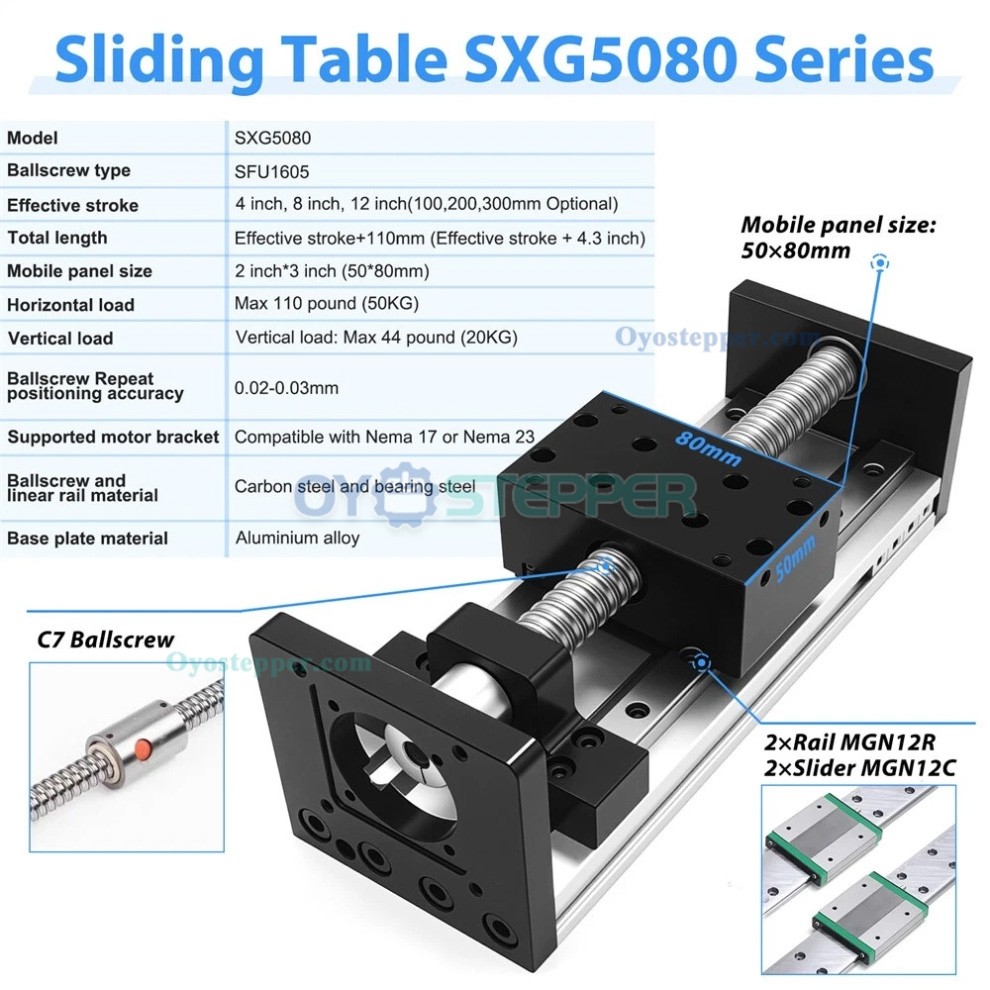

Features:

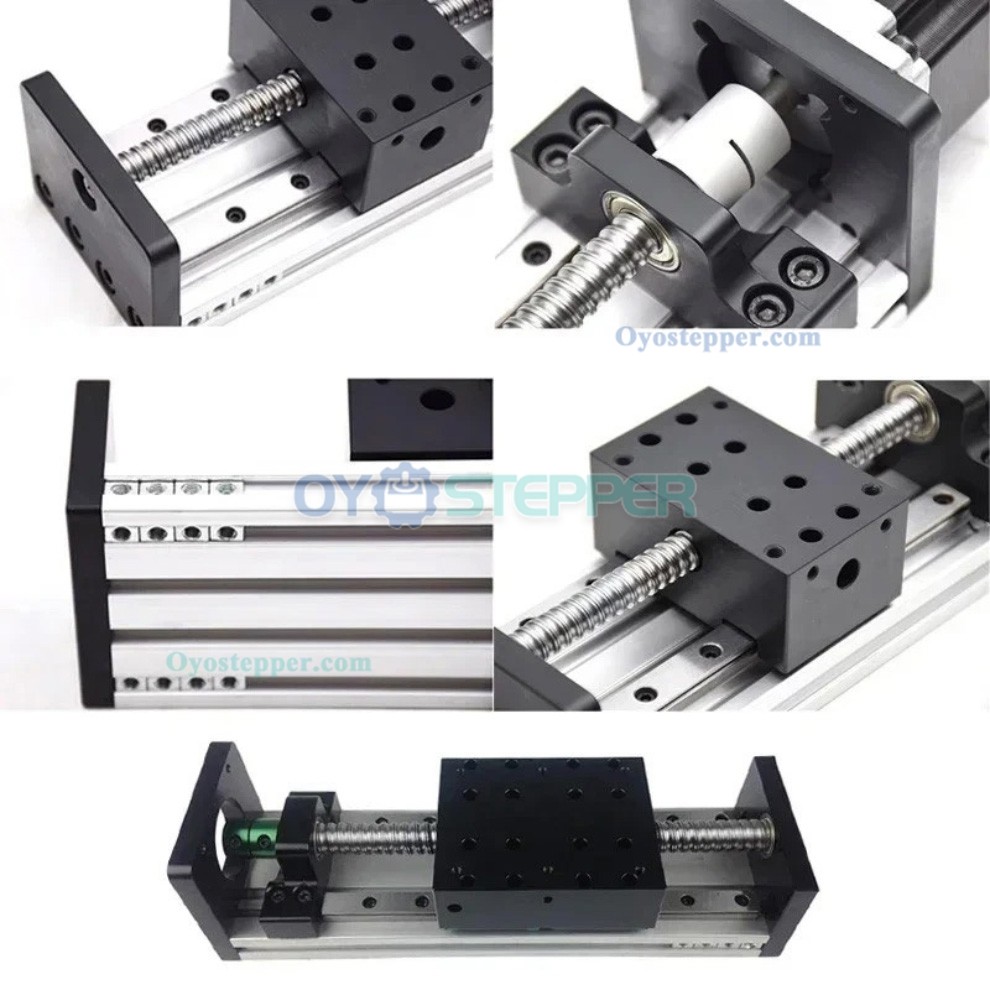

Ballscrew and Rails: Equipped with an SFU1605 ballscrew (C7 accuracy, 16mm diameter, 5mm pitch) and two MGN12 linear rails for guided linear motion.

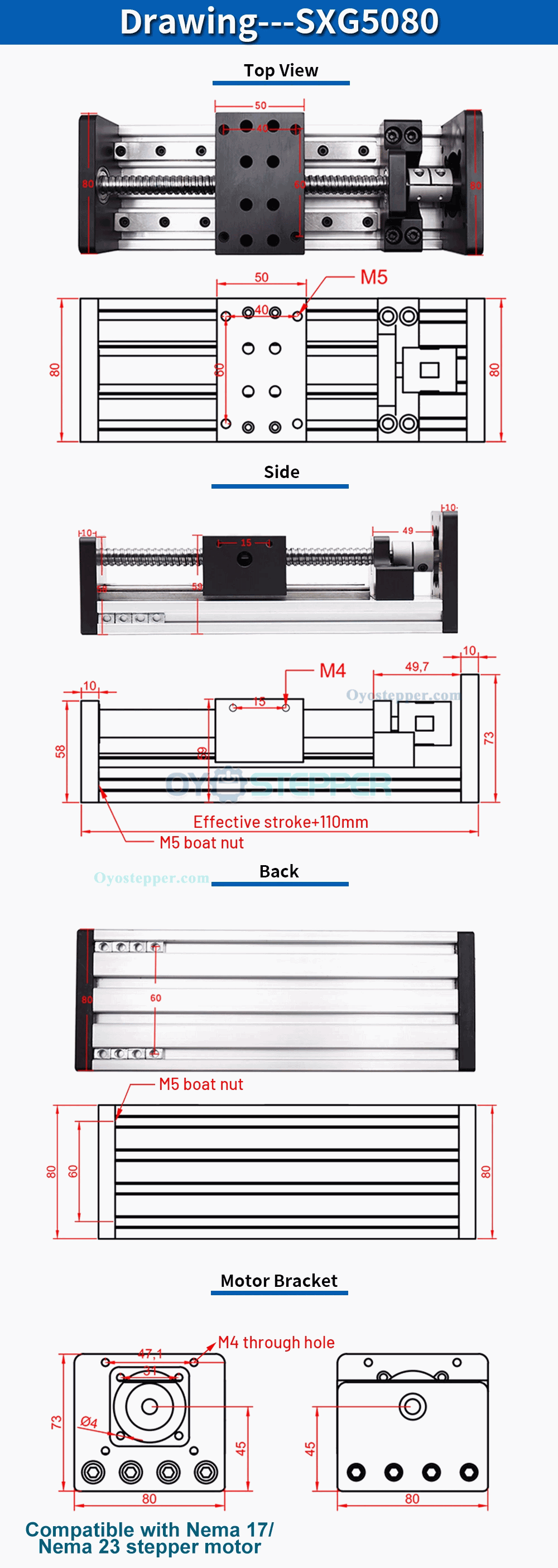

Stroke Range: Available in effective strokes from 100mm to 300mm. Total length = stroke + 110mm.

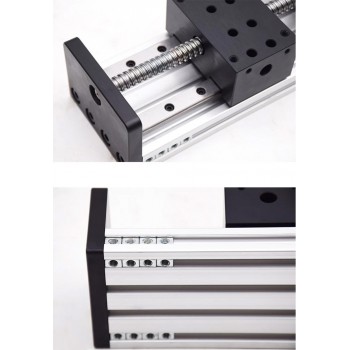

Material: Base plate made of aluminum alloy; ballscrew and rails made of carbon steel and bearing steel.

Load and Speed: Horizontal load capacity up to 60kg, vertical load capacity up to 30kg, and maximum travel speed of 500mm/s.

Repeat Positioning Accuracy: 0.02–0.03mm.

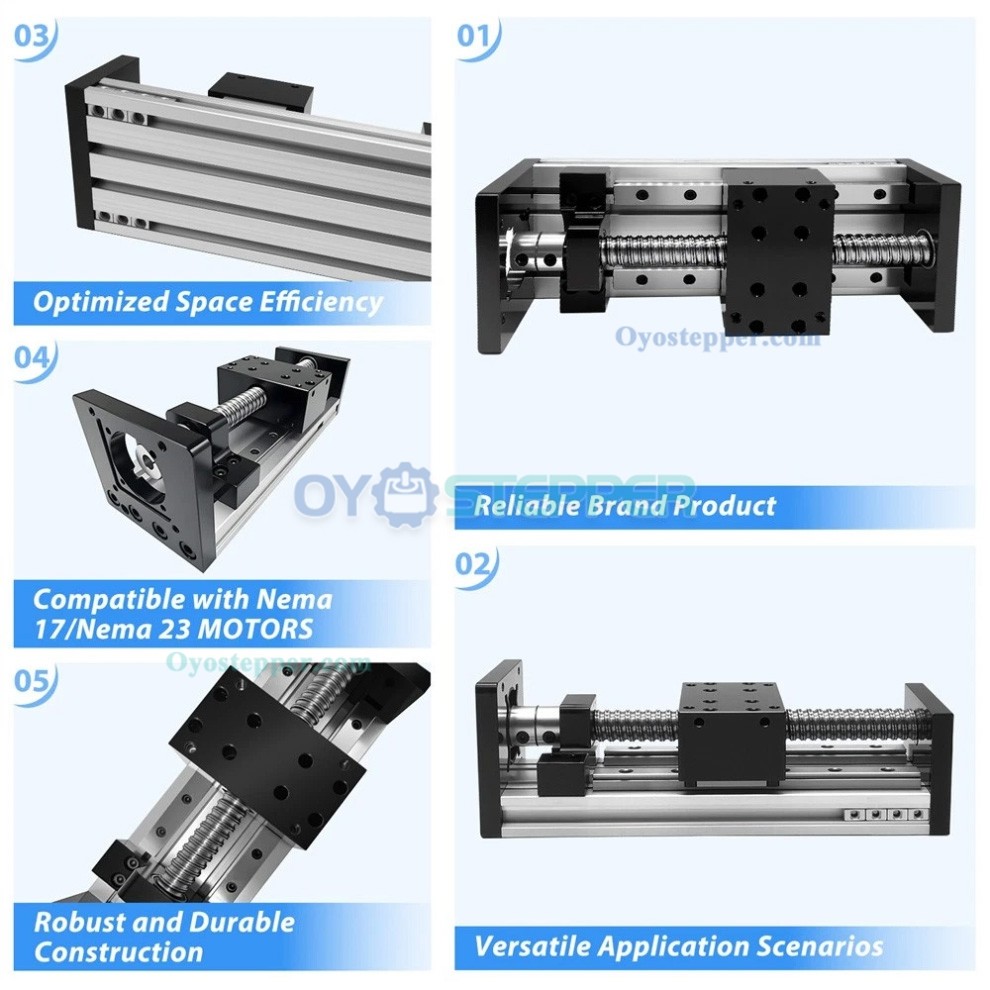

Motor Compatibility: Compatible with Nema 17 and Nema 23 stepper motors (motors not included).

Mobile Panel Size: 50×80mm.



Package Contents:

1 × CNC slide table

1 × 8mm-to-8mm coupling (for Nema 23 stepper motor)


Optional Configurations:

Custom stroke lengths and alternate ballscrew types (e.g., SFU1204 or SFU1610) available upon request.
