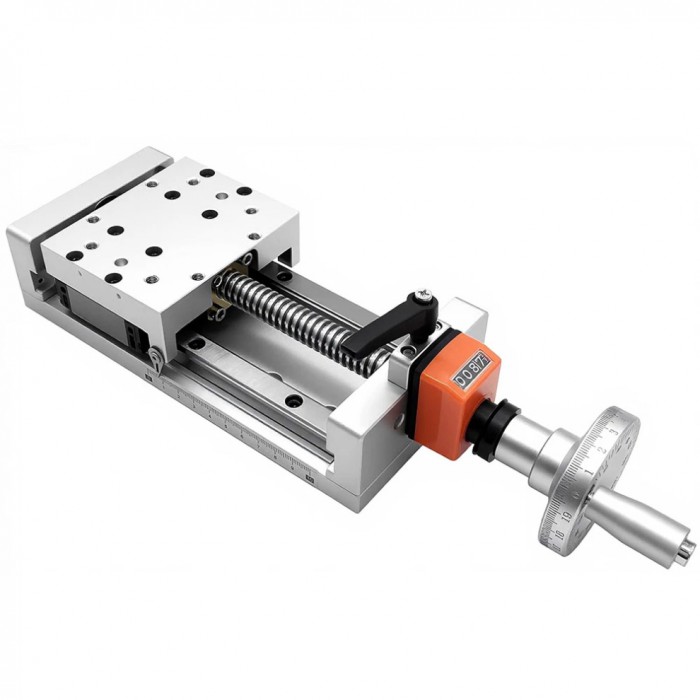

CNC Manual Slide Table Self-lock Digital Display Linear Module Z Position Stage Trapezoidal Screw Module
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 30th, 2026
- Note:No coupon code needed, please place order directly!

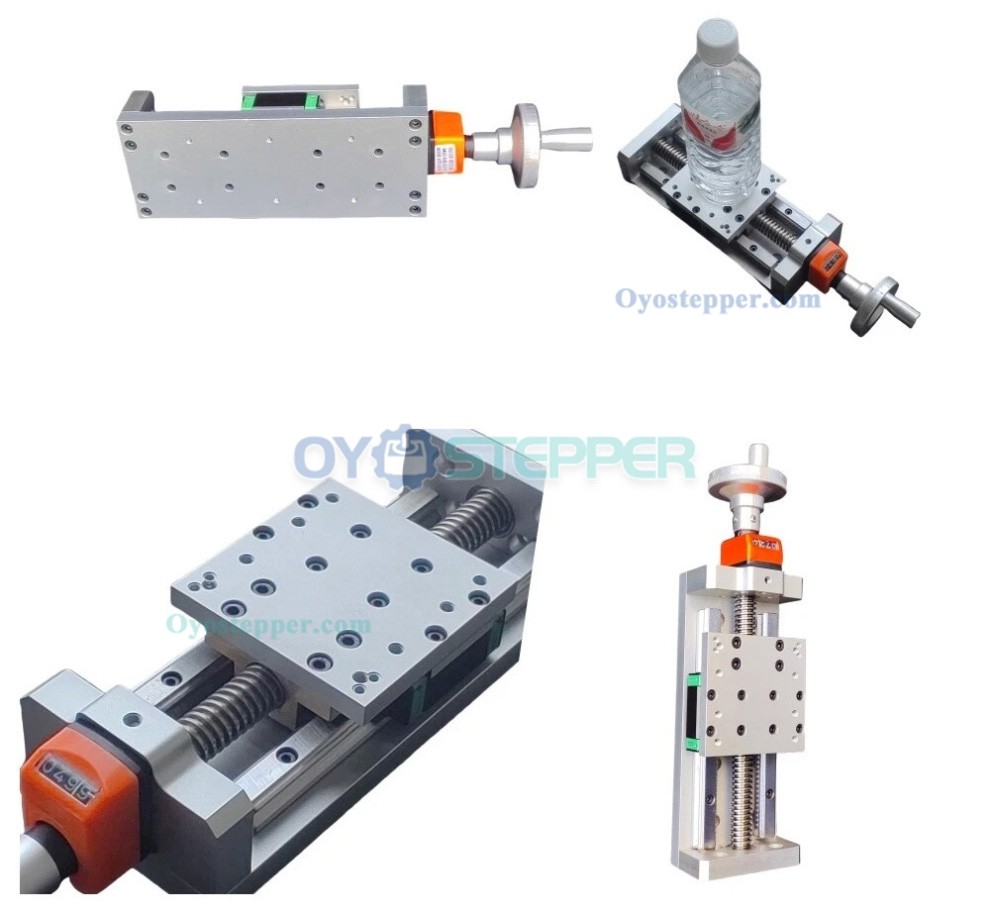

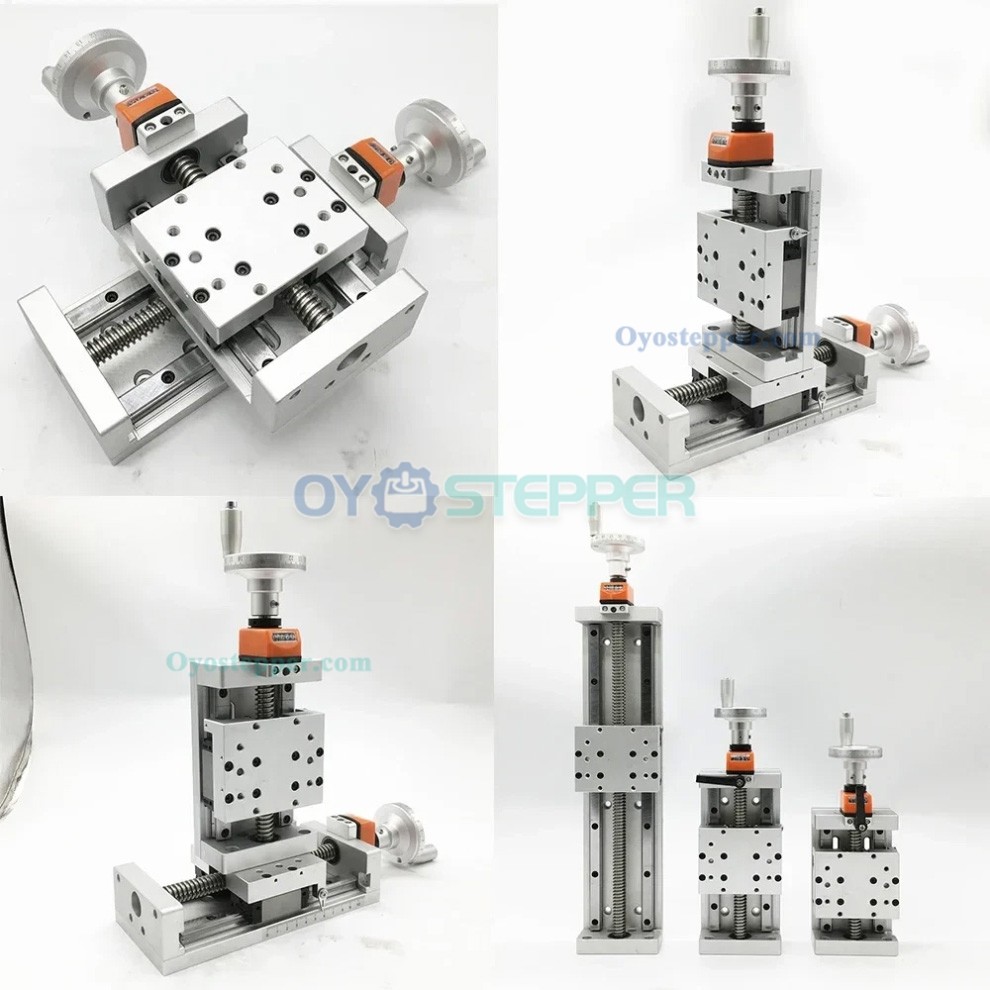

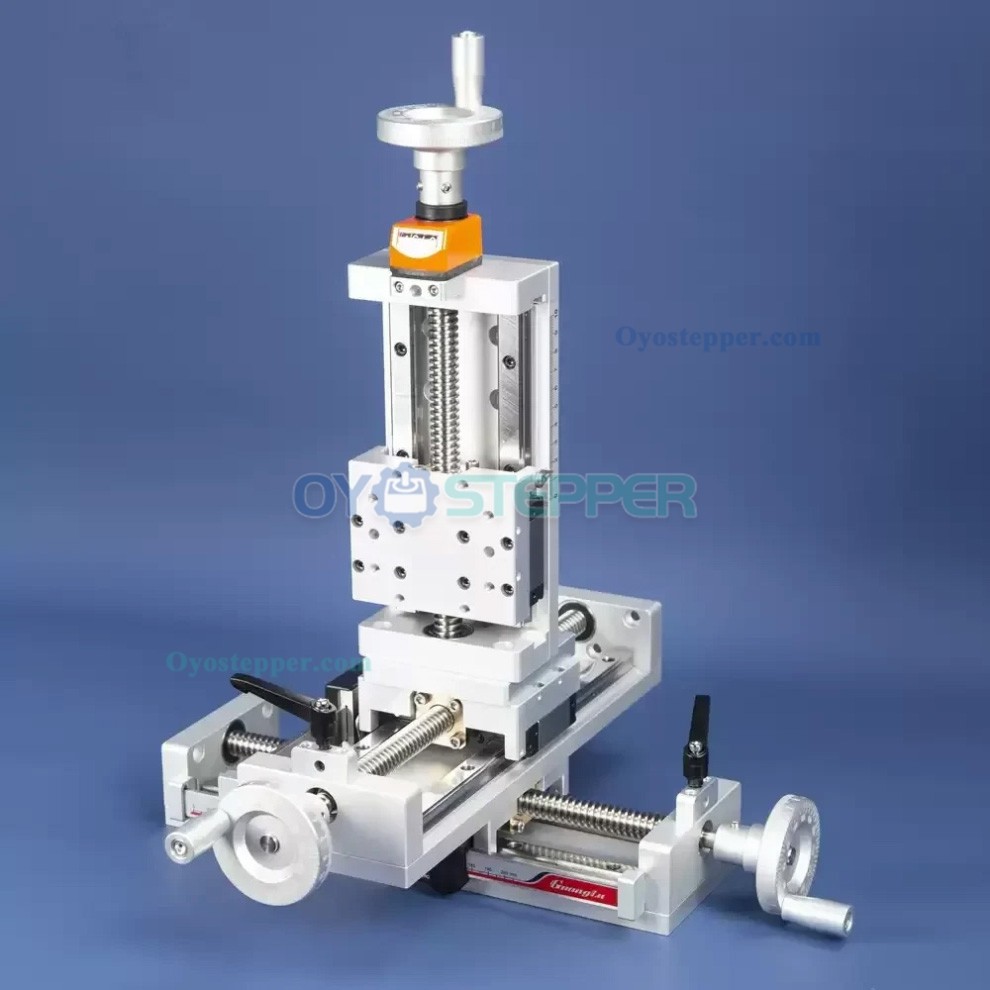

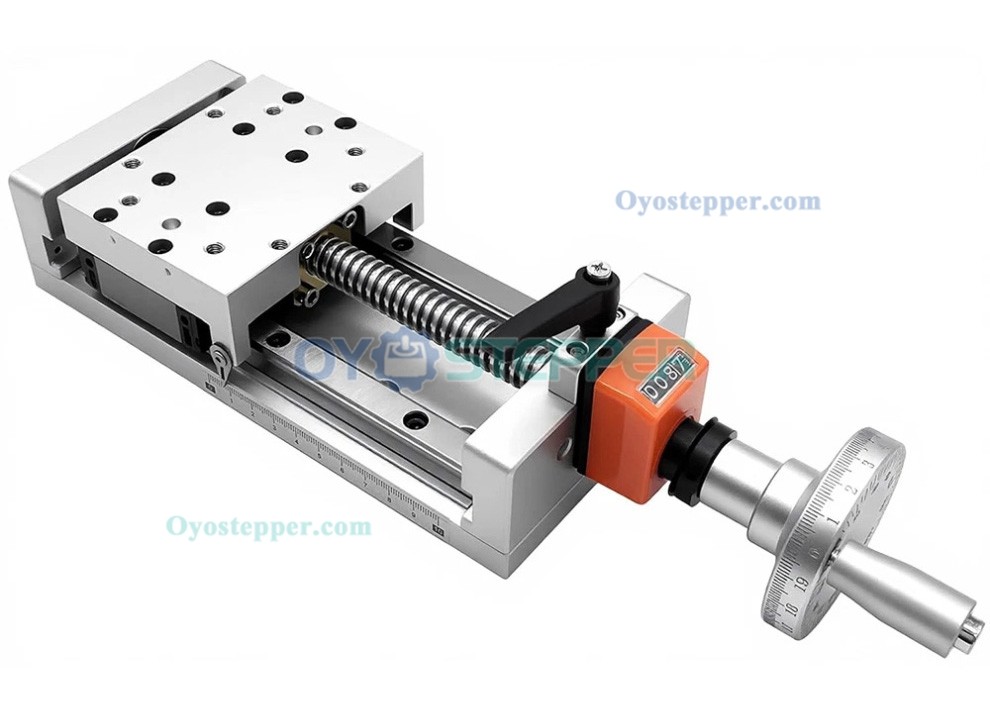

CNC Manual Slide Table Self-lock Digital Display Linear Module Z Position Stage Trapezoidal Screw Module
Description

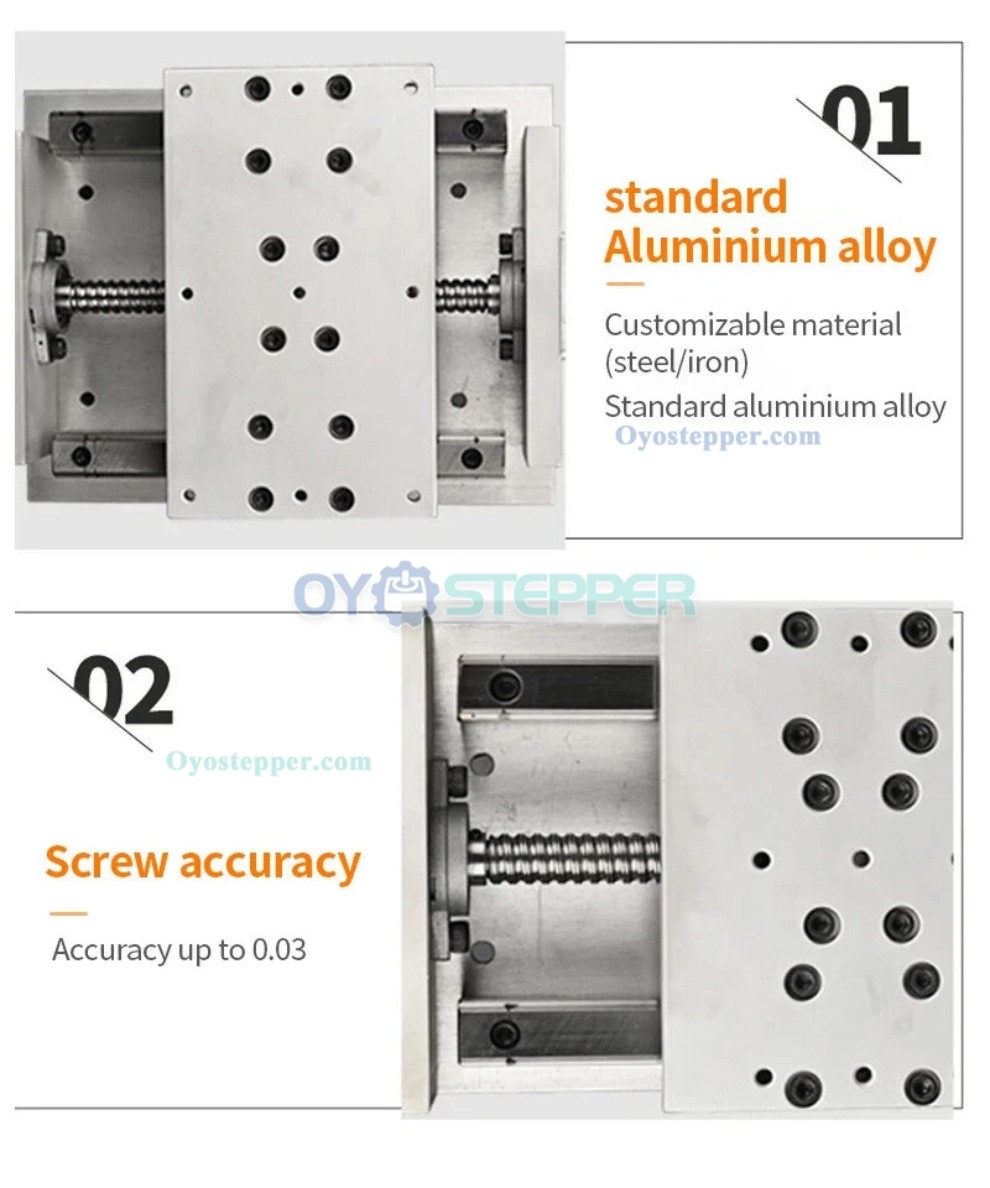

Material: Made with an industrial aluminum profile module and H95 brass nut.

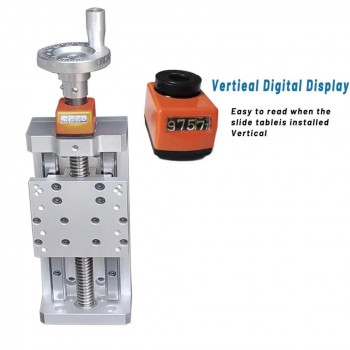

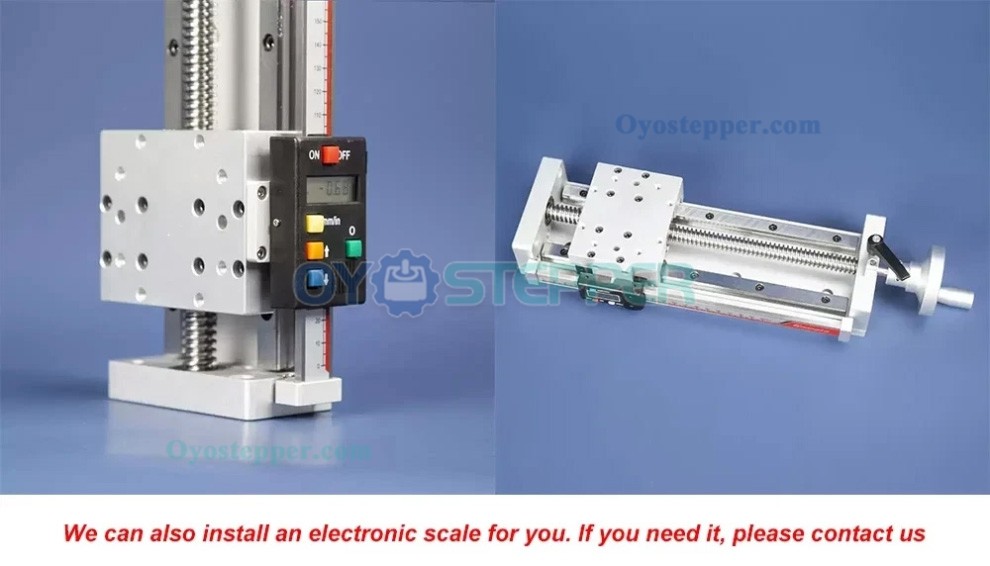

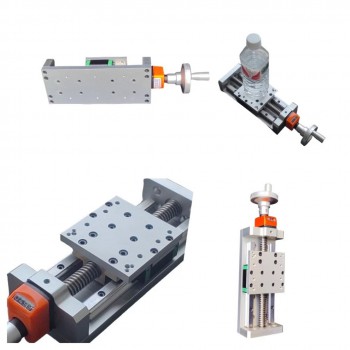

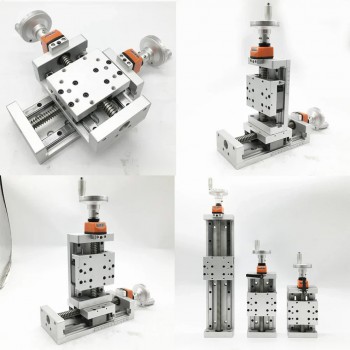

Digital Display: Equipped with horizontal and vertical digital display options. The horizontal display supports horizontal installations, while the vertical display supports vertical installations.

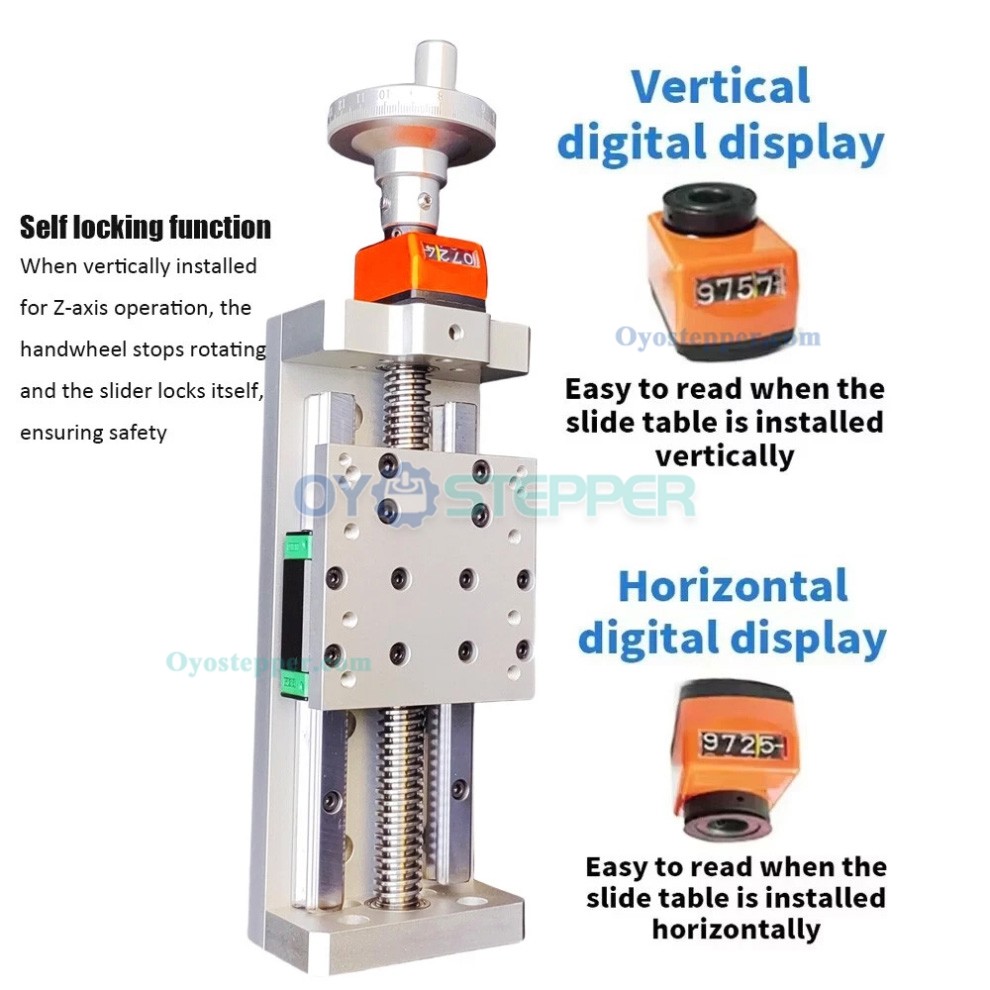

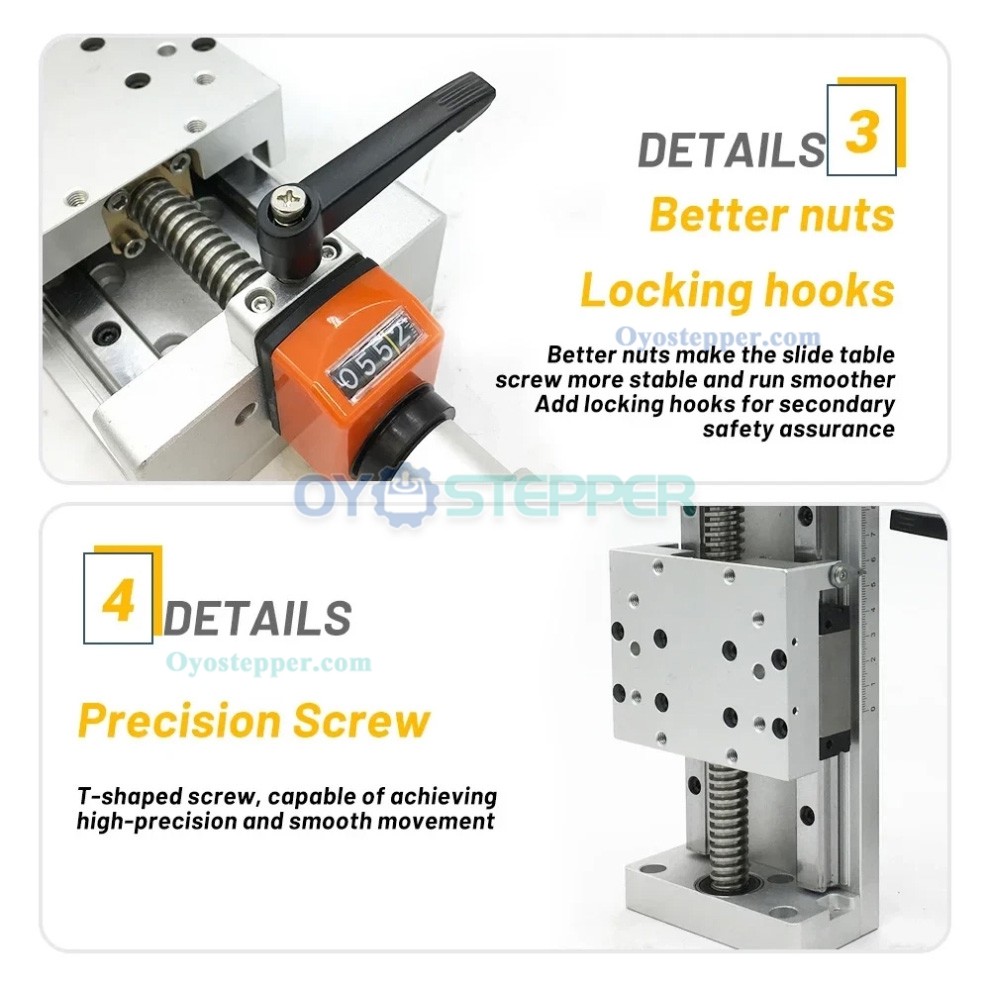

Self-Locking Function: When the Z-axis stops rotating, the moving panel locks automatically to maintain position.

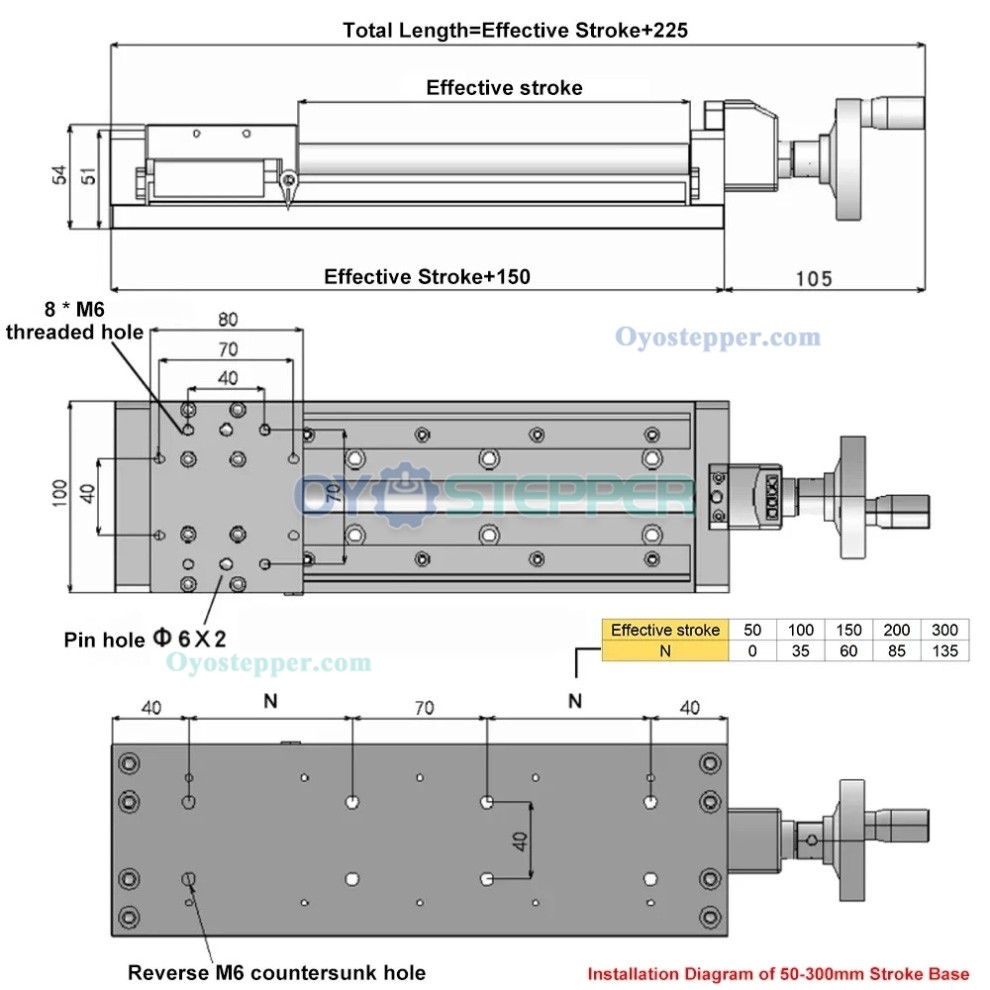

Specifications:

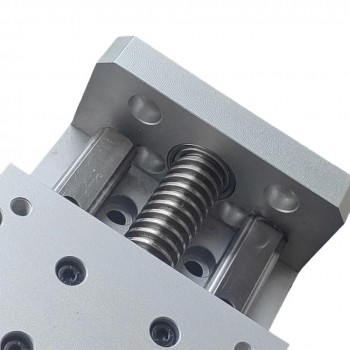

Trapezoidal screw: 16mm diameter, 4mm pitch
Rated load: 110 lbs

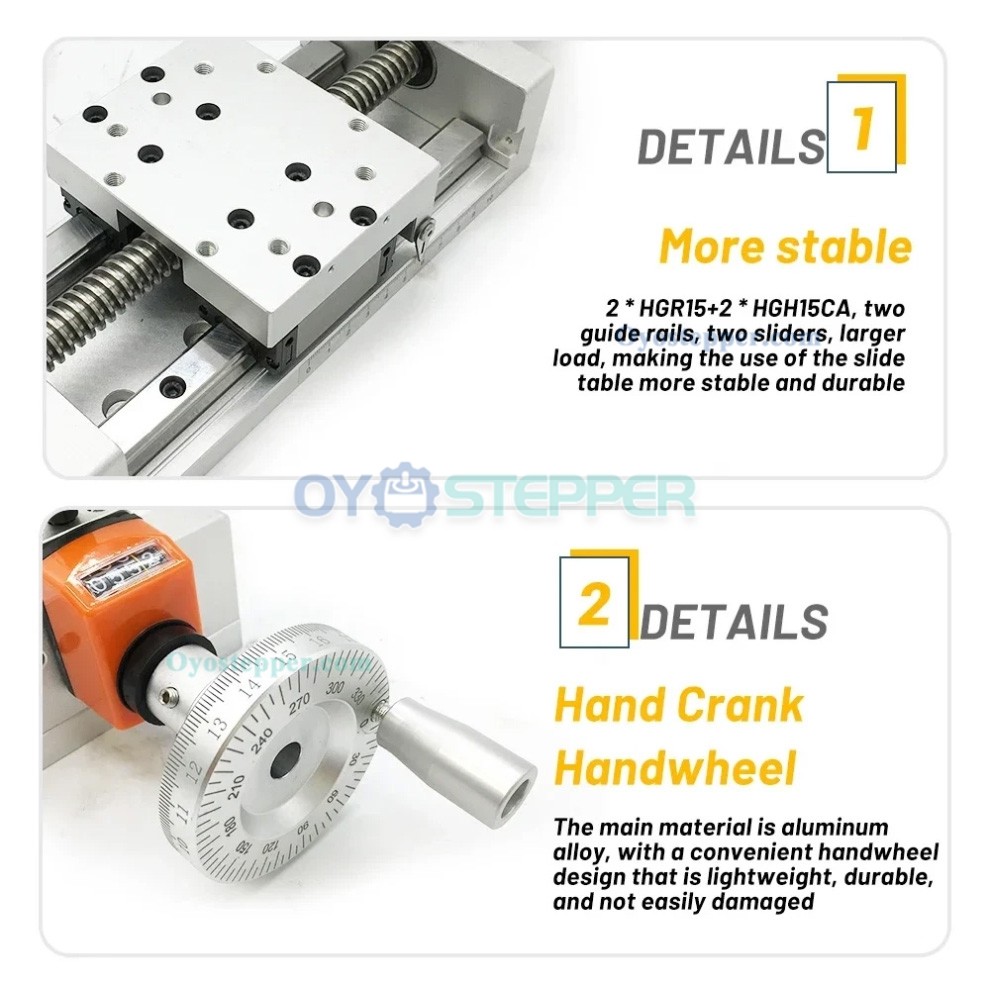

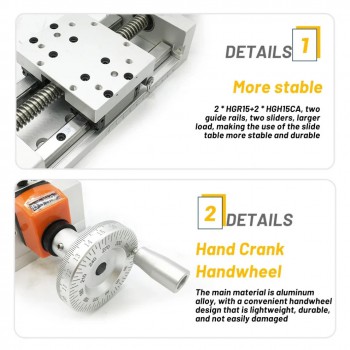

Linear guide: EGT15 × 2 pcs
Slider block: EG15 × 2 pcs
Maximum vertical load: 50kg (110 lbs)
Maximum horizontal load: 100kg (264 lbs)
Moving panel size: 100 × 80mm
Repeat positioning accuracy: 0.03–0.05mm
Screw type:T1604
Screw material:304 stainless steel
Screw diameter: 16mm
Guide rail diameter: 15mm
Nut material:H95 brass
Pitch:4mm
Guide rail: EGT15 * 2PCS
Sliding block: EG15* 2PCS
Screw material: 304 stainless steel
Module: effective travel+225mm
Horizontal load: Max 100kg(220.46lbs)
Vertical load: Max 50kg(110.23lbs)
Width: 100mm
Ballscrew Repeat positioning accuracy: 0.03-0.05mm
Material: Industrial Aluminum Profile

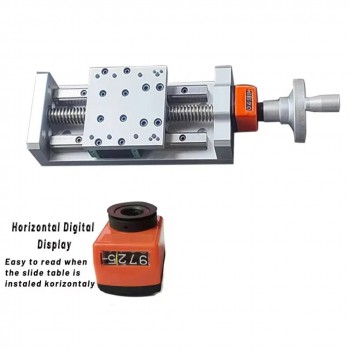

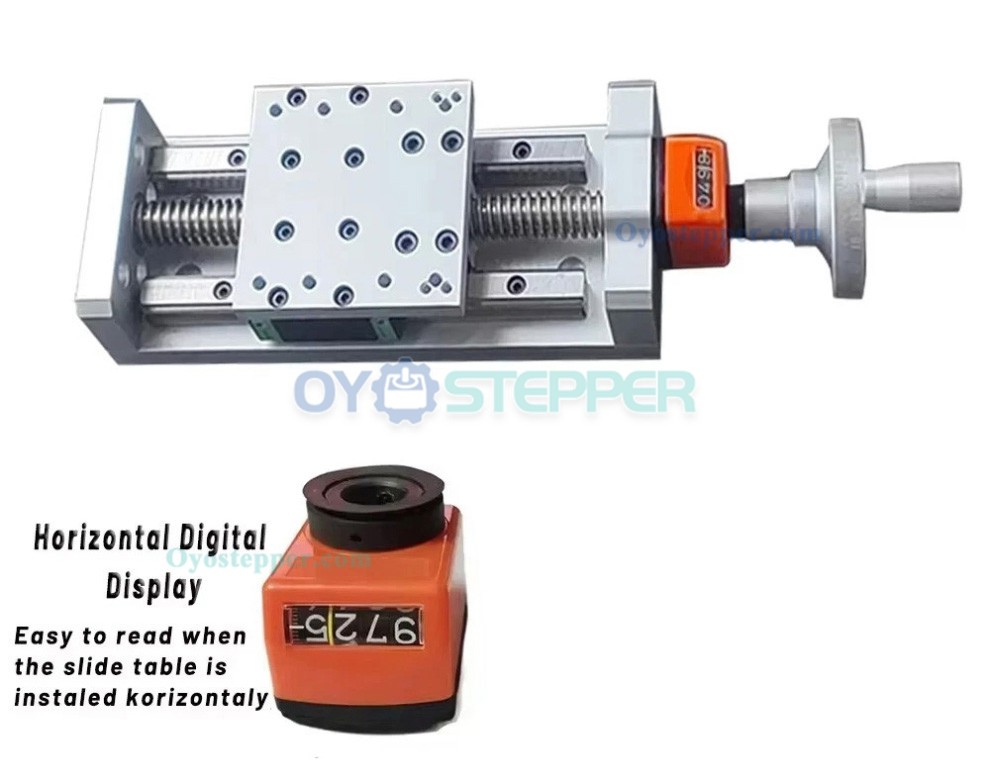

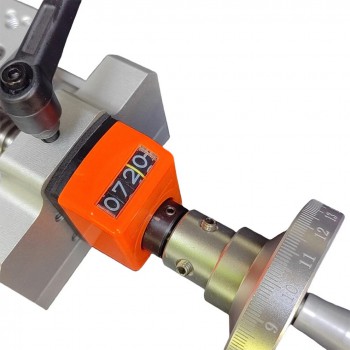

Horizontal digital display (Used for reading when the slide table is installed horizontally)
Vertical digital display (Used for reading when the slide table is installed vertically)
Package Includes:
1 × Manual module
1 × Scale handwheel
1 × Digital display (horizontal or vertical)
Size Chart:
