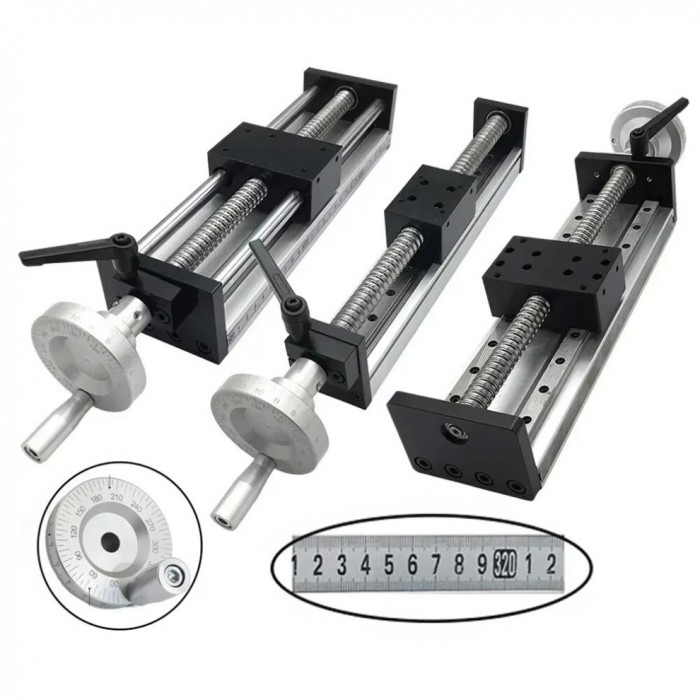

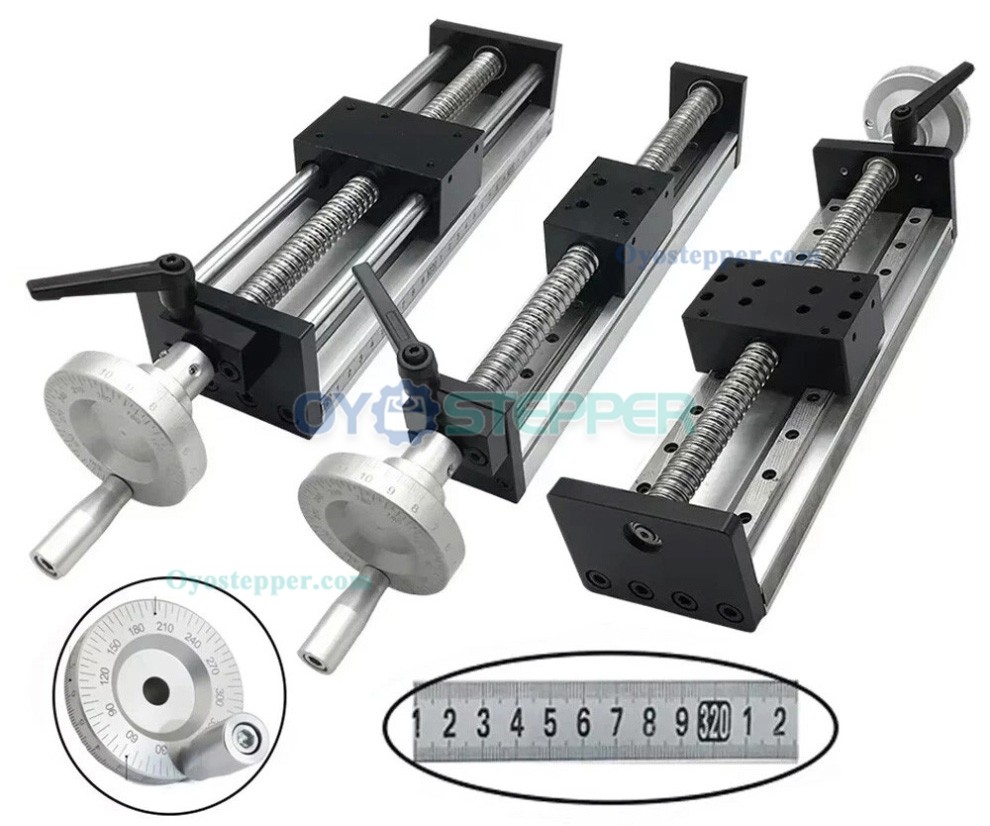

Manual Linear Ball Screw Module Motion Stage 22-132lbs Handwheel CNC Slide Table

Manual Linear Ball Screw Module Motion Stage 22-132lbs Handwheel CNC Slide Table

Width & Horizontal Load:

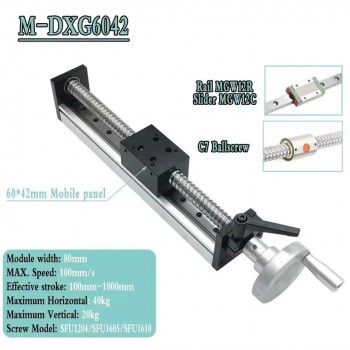

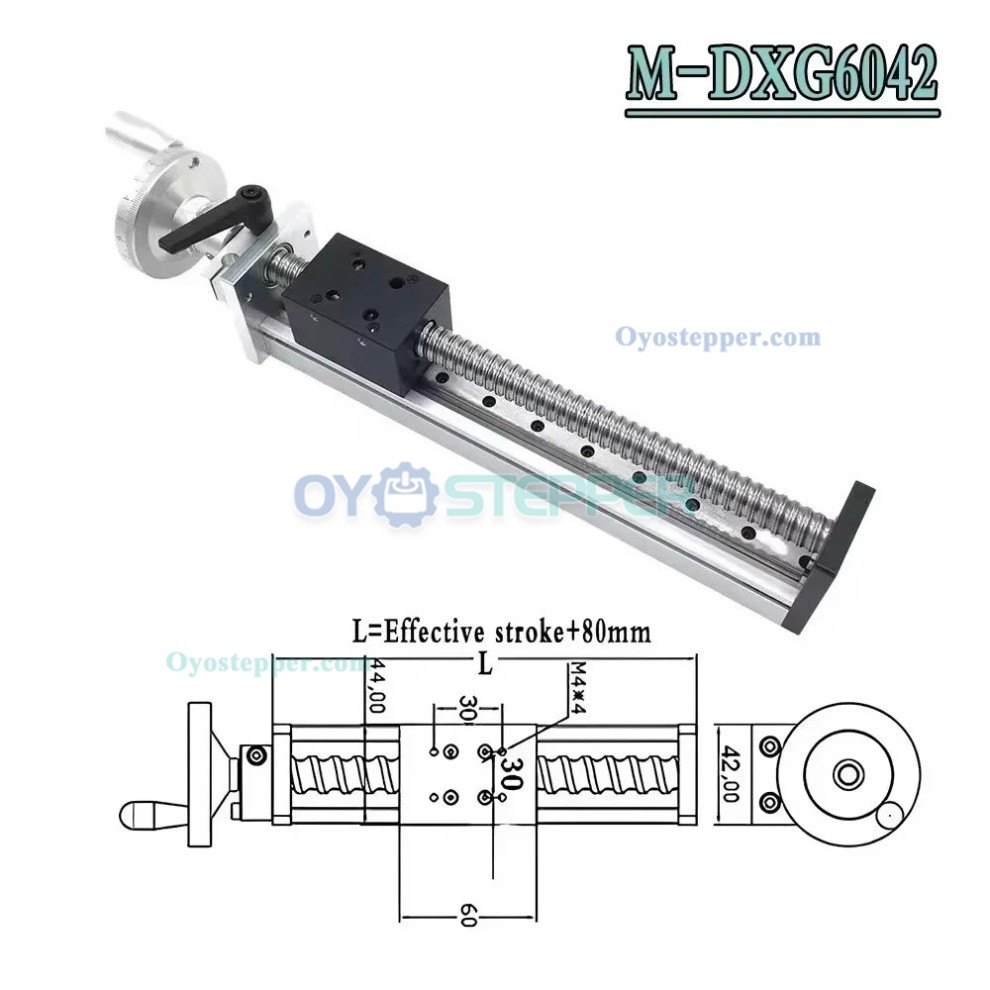

42mm Width- 40Kg(88.18lb)

80mm Width- 60Kg(132.28lb)

80mm Width- 60Kg(88.18lb)

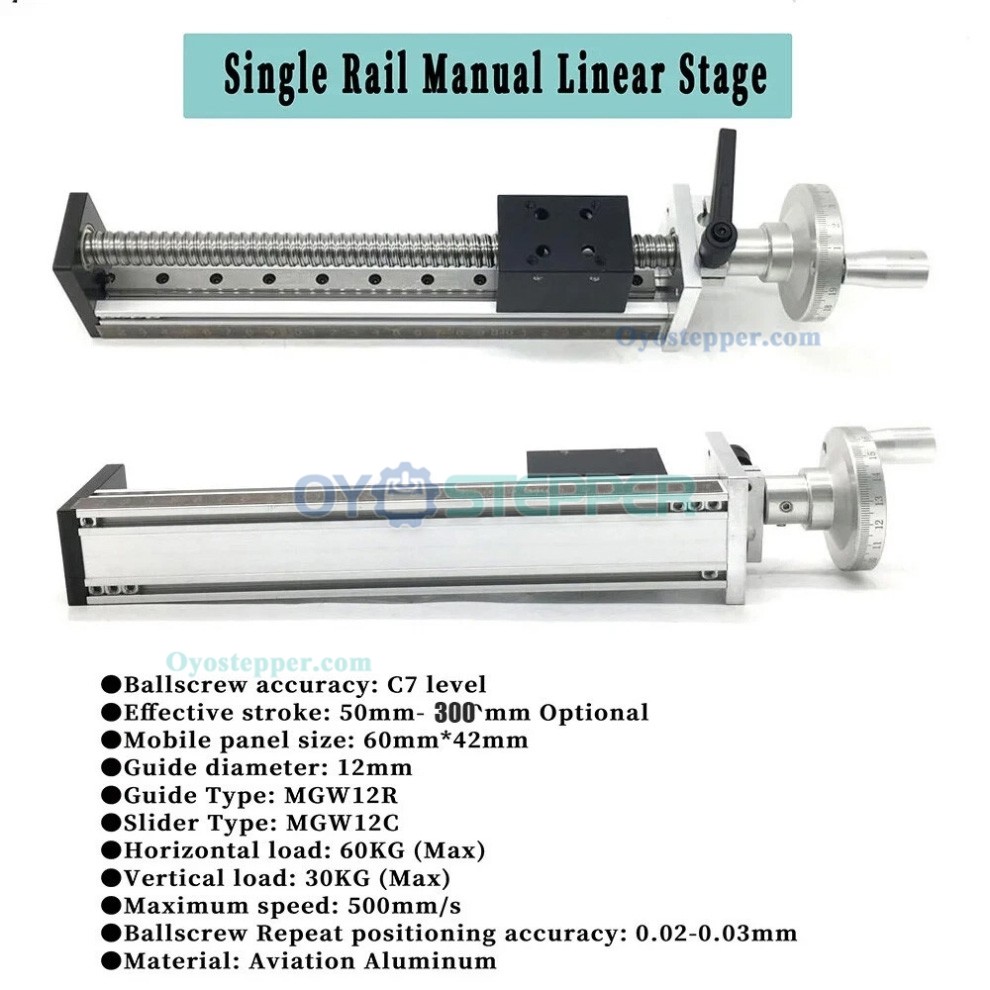

Product Parameters:

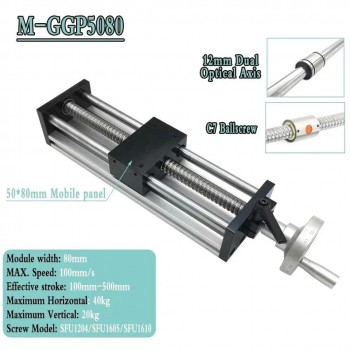

Model: GGP5080

Width: 80mm

Ballscrew Type: SFU1605

Screw Diameter: 16mm

Pitch: 5mm (1 rotation of the screw rod moves the panel 5mm)

Ballscrew Accuracy: C7 level

Effective Stroke: 50mm - 300mm (Customizable)

Total Length:

For Motorized Slide Table GGP5080: Effective Stroke + 120mm

Guide Diameter: 12mm

Guide Type: 2pcs Optical Axis Rod

Maximum Speed: 100mm/s

Load Capacity:

Horizontal Load: 40kg (Max)

Vertical Load: 20kg (Max)

Repeat Positioning Accuracy: 0.02-0.05mm

Material: Industrial Aluminum Profile


Package Includes:

1 x Manual CNC Slide Table

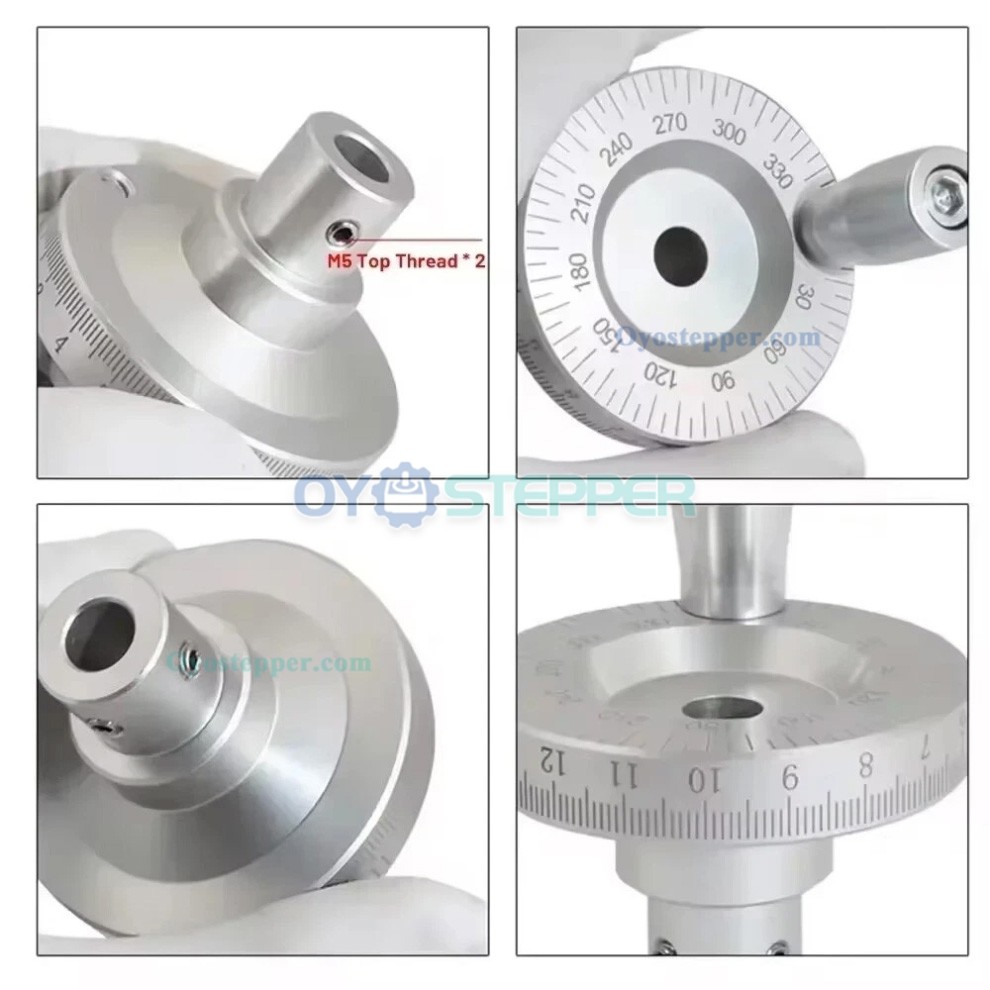

1 x Metal Handwheel
