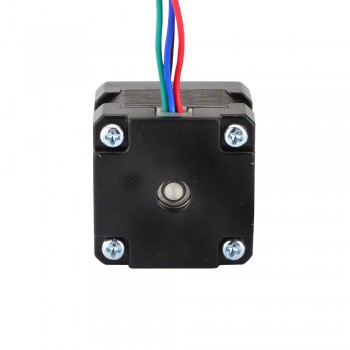

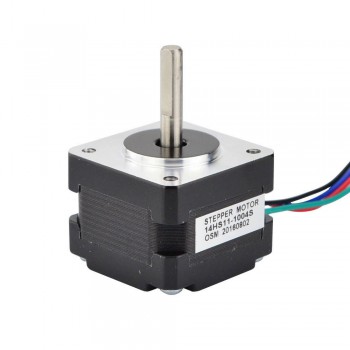

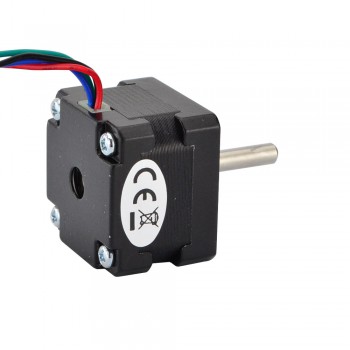

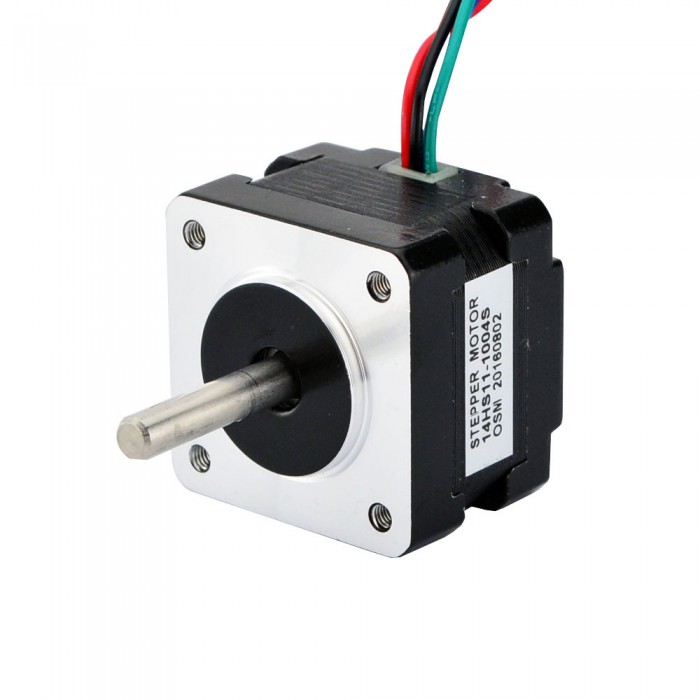

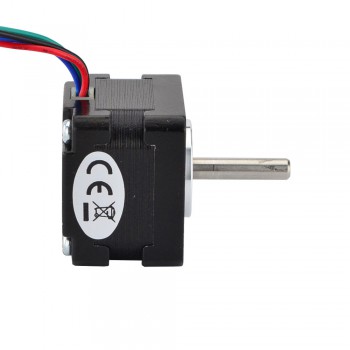

Nema 14 Stepper Motor Bipolar 1.8 Degree 12.5Ncm (17.7oz.in) 1A 3.5V 35x35x28mm 4 Wires
Nema 14 Stepper Motor Bipolar 1.8 deg 12.5Ncm (17.7oz.in) 1A 3.5V 35x35x28mm 4 Wires
This bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x28mm. It has 4 wires, each phase draws 1 A at 3.5V, with holding torque 12.5Ncm (17.7oz.in).
Electrical Specification
Manufacturer Part Number: 14HS11-1004S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 12.5Ncm(17.7oz.in)
Rated Current/phase: 1.0A
Voltage:3.5V
Phase Resistance: 3.5ohms
Inductance : 3.5mH ± 20%(1KHz)
Physical Specification
Frame Size: 35 x 35mm
Body Length: 28mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 300mm
Weight : 140g
Connection
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
Resources
Full Datasheet: 14HS11-1004S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 12.5 |
| Holding Torque (oz.in) | 17.7 |
| Inductance(mH) | 3.5 |
| Phase Resistance(ohm) | 3.5 |
| Rated Current (A) | 1 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 28 |
| Frame Size(mm) | 35x35 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20.5 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 120 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
