Nema Size 14 Stepper Motor Bipolar 1.8 Deg 5Ncm (7.08oz.in) 0.4A 10V 35x35x20mm 4 Wires

NO.:14HS08-0404S
Post a review

Special Offer in April 2024:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till April 30th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$12.06

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
10	$11.46	5%
30	$11.22	7%
50	$10.85	10%
100	$10.49	13%

Affiliate Link

Description Specification Custom Options Review

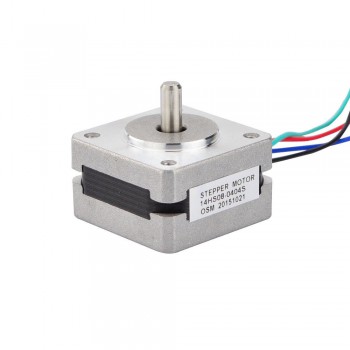

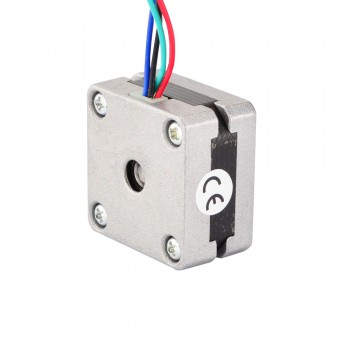

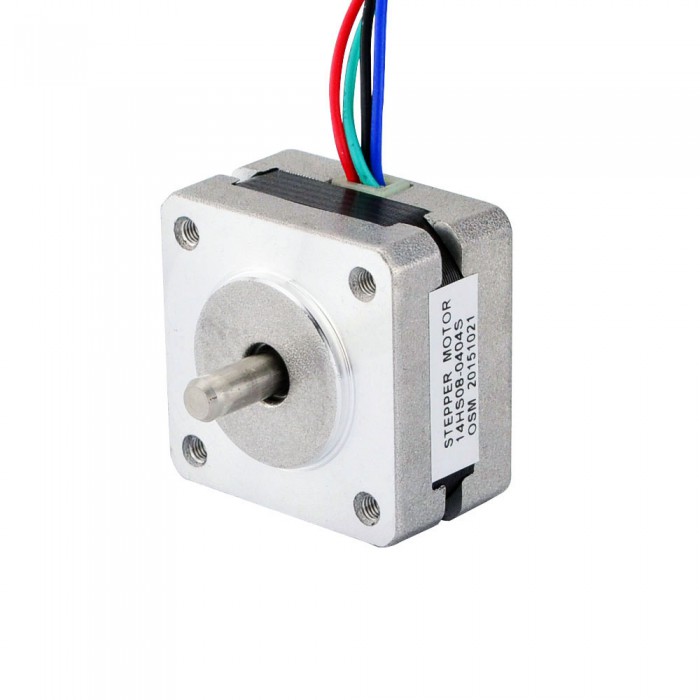

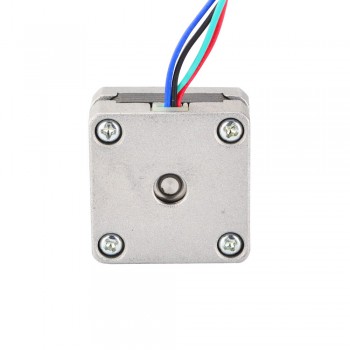

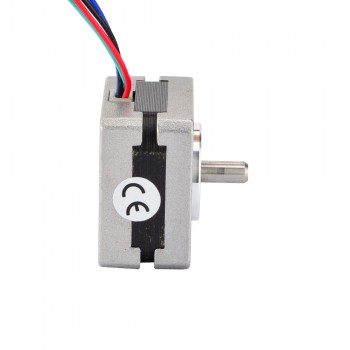

Nema Size 14 Stepper Motor Bipolar 1.8 deg 5Ncm (7.08oz.in) 0.4A 10V 35x35x20mm 4 Wires

This bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x20mm. It has 4 wires, each phase draws 0.4A, with holding torque 5Ncm (7.08oz.in).

Electrical Specification

Manufacturer Part Number: 14HS08-0404S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 5Ncm(7.08oz.in)
Rated Current/phase: 0.4A
Voltage: 10V
Phase Resistance: 25ohms
Inductance : 10mH ± 20%(1KHz)

Physical Specification

Frame Size: 35 x 35mm
Body Length: 20mm
Shaft Diameter: Φ5mm
Shaft Length: 12.5mm
Number of Leads: 4
Lead Length: 300mm
Weight: 100g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Resources

Full Datasheet: 14HS08-0404S.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Round Nema 14 Stepper Motor 0.9 Degree 9.5Ncm (13.5oz.in) 0.43A 3.83V Φ36x21.5mm with Pulley
Next: Nema 14 Stepper Motor Bipolar 1.8 Deg 14Ncm (20oz.in) 0.4A 12V 35x35x26mm 4 Wires

Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque (Ncm)	5
Holding Torque (oz.in)	7.08
Inductance(mH)	10
Phase Resistance(ohm)	25
Rated Current (A)	0.4
Step Angle(°)	1.8
Physical Specification
Body Length(mm)	20
Frame Size(mm)	35x35
Single Shaft/Dual Shaft	Single Shaft
Shaft Type	O
Shaft Diameter(mm)	5
Shaft Length(mm)	12.5
No. of Lead	4
Lead Length(mm)	300
Weight(g)	100

Connectors: Molex, Harwin, Tyco/AMP, JST etc.
Lead wires & cables: Special lengths, Protective hose
Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
Winding: Resistance, Inductance, Rated Current, etc.
